Posted by: 914werke Dec 2 2019, 01:19 PM

Here is a replacement for one of the 5 major OE nylon bushings that are critical to smooth shifting in your 914!
This self lubricating bronze bushing replaces the castellated nylon one in the shift console of your side-shift 901.

$27.99 Available https://914werke.com/shop?olsPage=products%2Fshift-rod-shf-rod1 & in the members vendor section

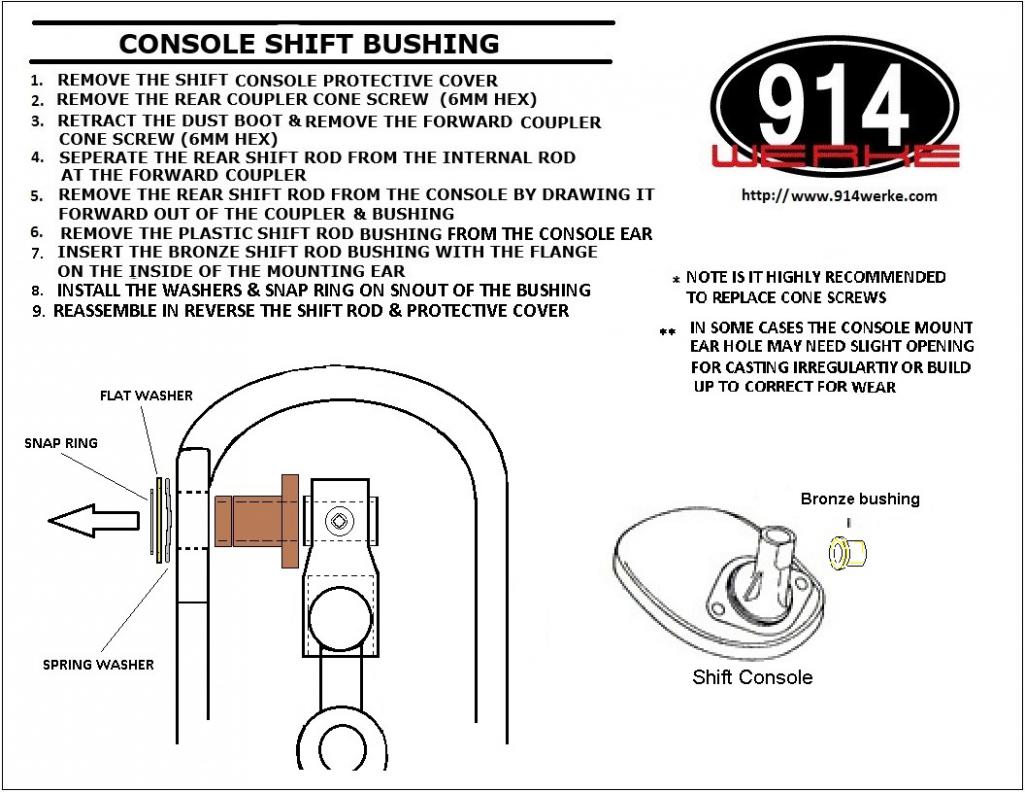

Attached thumbnail(s)

Posted by: Chi-town Dec 2 2019, 03:04 PM

I prefer bronze in this application. You need to offer a stainless sleeve to cover up the worn spots on the shift rod to go with it

Posted by: 914bub Dec 2 2019, 03:13 PM

Just tried to buy one but coupon code doesn't work, entered CYBER, no dice

Posted by: 914werke Dec 2 2019, 03:23 PM

Hmm... SW glitch. Apologies. Reset & tested it, seems to work now.

Posted by: 914bub Dec 2 2019, 04:24 PM

Tried again. It must not be meant to be. I'd be curious if anybody else has an issue. I tried CYBER. cyber, and CYBER MONDAY. Nope nope and nope. Made sure I didn't have a space in front of it, even tried a space in front of it. I'll try tonight from the laptop.

Posted by: 914werke Dec 2 2019, 06:15 PM

worked it out

Posted by: 914bub Dec 2 2019, 07:56 PM

Yes! Tried again and it worked. Rich sent me a message as well telling me he'd make it work one way or another. Thanks Rich, for being on top of it.

Posted by: euro911 Dec 3 2019, 01:27 PM

Rich, do you just have this one, or do you have more in stock?

Posted by: 914werke Dec 3 2019, 04:45 PM

@http://www.914world.com/bbs2/index.php?showuser=7300 This will now be a stocking item
Sold a bunch but I still have a handfull, I guess I should post it in the Members Vendor section

Posted by: rgalla9146 Dec 4 2019, 04:26 PM

CYBER coupon not working

Posted by: euro911 Dec 4 2019, 07:18 PM

It worked a day or two ago, but I never followed through with completing the order. Attempted to check out today and the discount disappeared and replaced with "The coupon code is expired"

Posted by: 914werke Dec 4 2019, 08:14 PM

No worries, It was a MONDAY sale but I extended the coupon to weeks end!

Posted by: CHIZ 914 Dec 13 2019, 04:42 PM

Put me down for one!

thanks!

Posted by: Jett Dec 13 2019, 08:59 PM

Rich, I’ll take one as well.

Posted by: Literati914 Dec 14 2019, 12:31 AM

I'll take one Rich.

Posted by: Tdskip Jan 20 2020, 04:59 PM

Is this for the bushing on the firewall? Sorry if I am being dense.

BTW - your box arrived in good order and everything was well packaged, thank you.

Posted by: 914werke Jan 20 2020, 11:35 PM

No this is a replacement for the plastic bush in the shift console on side shifter trans.
Good to hear!

Posted by: Tdskip Jan 21 2020, 09:17 AM

OK - so under the shifter then?

Replacing 914 424 224 03

OR

901 424 132 00 ?

Posted by: 914werke Jan 21 2020, 11:01 AM

replace's #29 part# 914.424.224.02

Posted by: DRPHIL914 Jan 21 2020, 12:04 PM

since I am doing everything else now in my shift linkage from firewall back, i'd like to get you to send me one of these please.

Phil

Posted by: 914werke Jan 21 2020, 01:16 PM

PM sent

Posted by: Tdskip Jan 22 2020, 11:15 AM

Now we are talking!

Posted by: Tdskip Feb 22 2020, 02:00 PM

Just install one of these that came with a bunch of other parts and it is TOTALLY worthwhile.

Ordering a couple.

Posted by: mb911 Mar 12 2020, 03:36 PM

Can I buy this with paypal?

Posted by: ranger Mar 16 2020, 05:22 AM

Need a bushing,Rick (951) 818-8628

Posted by: mb911 Mar 16 2020, 03:59 PM

Mine came today.. Very nice part

Posted by: 914werke Mar 16 2020, 06:07 PM

Sorry I meant to ping you I couldnt come up with that clip.

Posted by: mb911 Mar 16 2020, 07:53 PM

No problem

Posted by: 914werke Jun 27 2020, 11:09 PM

Posted by: 914werke Sep 7 2020, 01:24 PM

Posted by: Tdskip Nov 29 2020, 03:31 PM

These are nicely made and made a noticeable positive difference.

Posted by: Pappy1975 Jan 30 2021, 03:36 PM

Just ordered one!
Thanks

Posted by: pete-stevers Sep 14 2021, 09:49 PM

Ordered mine tonight! Thanks Rich!

Posted by: DC_neun_vierzehn Aug 11 2022, 12:31 PM

Trying to place an order, but shipping is showing $720 to ship to Delaware. I'll shoot you a PM.

Posted by: DC_neun_vierzehn Aug 11 2022, 12:34 PM

Posted by: mepstein Aug 11 2022, 01:00 PM

Sounds about right.

Posted by: 914werke Aug 11 2022, 02:30 PM

Dumb software
Edit: nope dumb operator.... Missed decimal

Posted by: DC_neun_vierzehn Aug 12 2022, 04:48 PM

Ordered mine this week : )

Posted by: JamesJ Aug 31 2022, 02:54 PM

Rich,
I ordered one of these last week. Can you please provide shipment information?

Posted by: 914werke Aug 31 2022, 07:27 PM

PM'ed

Posted by: jhynesrockmtn Oct 7 2022, 09:14 AM

Order placed, thanks Rich.

Posted by: pete-stevers Oct 31 2022, 08:34 PM

Rich I will take one of these!

Posted by: Cairo94507 Dec 3 2022, 07:51 AM

We just installed one of Rich's bushings in my car about 2 weeks ago- works great.

Posted by: 930cabman May 3 2023, 01:12 PM

I recently installed this kit and will never run without again, ever.
Thanks for the great, precision parts

Posted by: Tdskip May 4 2023, 09:41 PM

Good seller too

Posted by: 914werke Jun 23 2023, 09:34 PM

Installed (flange inside)

Posted by: MM1 Jun 24 2023, 07:28 PM

Thank you for the installed pics!

Posted by: mb911 Jul 1 2023, 06:14 AM

Great pictures and me being a dummy had mine installed backwards for about 1000 miles. 4th gear became my issue as it would not fully engage

Posted by: 914werke Jul 1 2023, 09:54 AM

I didnt make one of my 1 page install sheets for these perhaps I should.

Posted by: DC_neun_vierzehn Jul 21 2023, 04:29 PM

@http://www.914world.com/bbs2/index.php?showuser=453 Rich, a quick testimonial here ... I had my trans rebuild by Dr. Evil and while everything was all apart I had your bronze side-shift console bushing installed as well as brass shift coupler bushings. The shifting is phenomenal now - all slop gone, super notchy, and tight. I never thought we could get the shifting this clean.

THANK YOU!

In case anyone is interested, here's the link to the shift couplers I bought: https://www.ebay.com/itm/144163422647

Posted by: 914werke Aug 16 2023, 08:15 PM

Posted by: 914werke Aug 29 2023, 06:11 PM

Posted by: 914werke Sep 12 2023, 08:47 PM

Posted by: 914werke Oct 12 2023, 01:56 PM

Posted by: 914werke Nov 2 2023, 11:19 AM

Posted by: 914werke Nov 22 2023, 01:38 PM

Posted by: TJB/914 Nov 24 2023, 12:38 PM

Need help too? send a link.
Trying to order the special Bronze Side-Shift Bushings (New)
Tom in MI

Posted by: 914werke Nov 24 2023, 12:50 PM

@TJB/914
https://914werke.com/shop/ols/products/sideshift-bronze-bushing/v/SHF-BSH-BRZ

Posted by: 914werke Dec 15 2023, 10:50 AM

Posted by: 914werke Jan 12 2024, 11:36 AM

Posted by: JuniorVarsity Jan 14 2024, 06:24 PM

Does anyone know of a source for brass bushings for the shifter rod as it passes through the firewall and then into the coupler box at the tranny (side shift)? I'm pretty unimpressed with the plastic replacements from 914rubber and pelican. I hadn't yet thought about the bushing under the shifter in the cockpit; was focused first on all the play in the rod as it traverses the firewall and side shift box.....

Posted by: 914werke Jan 14 2024, 07:57 PM

Not sure I am understanding which bush(s) you are after?
The one offered in this thread replaces the castellated nylon one in the "shift console".

Posted by: 914werke Jan 31 2024, 12:01 PM

Posted by: 914werke Feb 28 2024, 12:55 PM

Posted by: 914werke Mar 5 2024, 02:01 PM

Posted by: 914werke Mar 5 2024, 02:03 PM

Posted by: 914werke Apr 3 2024, 11:37 AM

Posted by: 914werke Apr 17 2024, 12:35 PM

@http://www.914world.com/bbs2/index.php?showuser=27317 did you get your Q answered?

Posted by: TMM914 Apr 17 2024, 06:51 PM

Order placed….thank you for making these available.

Posted by: 914werke Apr 22 2024, 10:08 AM

Posted by: 914werke May 8 2024, 09:49 AM

Back to the top ...

Posted by: 914werke May 24 2024, 12:30 PM

Posted by: technicalninja May 24 2024, 06:52 PM

I've got a tip no one has mentioned.

That puppy is a "sintered" bushing, and they all say "self lubricated".

The Datsun Z uses one of these bushings as the pilot bushing for the clutch.

If you put one in "as made" it will die quickly. The lubricant that is in the bushing is not enough...

The way to better lubricate the bushing is as follows:

Place bushing on thumb and fill the interior of the bushing with the oil of your choice.

Fill it completely full and then with your other thumb over the other end of the bushing create hydraulic pressure. Don't press hard as I have split one showing this trick to another tech.
With mild pressure you will see the oil "weep" through the bushing. The sides of the bushing will go wet!
It looks like "special effects" when you do it.

Now the bushing is properly lubricated...

Probably won't matter much in this application but in a pilot bearing application it's a requirement.

This bushing looks great.
I will order one for my car.
Thank you for making these!

Posted by: 914werke Jun 4 2024, 01:29 PM

Posted by: 914werke Jul 11 2024, 12:49 PM

Posted by: 914werke Aug 7 2024, 12:51 PM

Posted by: 914werke Aug 30 2024, 10:13 PM

https://www.youtube.com/watch?v=uQaKqs0gNZw

Posted by: 914werke Sep 8 2024, 06:18 PM

Posted by: 914werke Oct 29 2024, 12:46 PM

Posted by: 914werke Nov 5 2024, 04:36 PM

In stock

Posted by: 914werke Nov 26 2024, 01:55 PM

Posted by: 914werke Dec 13 2024, 07:14 PM

new year... new shifting?

Posted by: 914werke Dec 23 2024, 03:11 PM

Posted by: 914werke Jan 10 2025, 11:20 AM

in stock

Posted by: 914werke Jan 28 2025, 01:53 PM

Posted by: 914werke Feb 6 2025, 01:36 PM

Posted by: 914werke Feb 6 2025, 01:37 PM

Posted by: 914werke Feb 15 2025, 01:24 PM

Posted by: 914werke Feb 25 2025, 12:48 PM

Time to get the those service items accomplished, spring is around the corner!

Posted by: 914werke Mar 7 2025, 10:17 PM

Posted by: 914werke Mar 22 2025, 08:24 PM

Posted by: mb911 Mar 23 2025, 02:17 PM

Rich I might be interested in buying in qty to include with my shift rod kits

Posted by: 914werke Mar 24 2025, 10:04 AM

Just give me a call
