73 1.7 D-jet, vacuum advance stock distributor.
First time I have set the timing on this car myself, but used to doing it on VWs with Type I and IV engines. The fan has two marks, a "0" for TDC, and a red notch for 27 BTDC. Distributor vacuum hoses removed and plugged. Even with the distributor turned as far clockwise as it will go, the timing is (according to the marks on the fan) at least 10-15 degrees too advanced at 3500 RPM.
Is the logical explanation that the fan was somehow installed incorrectly? The car was running fine, I pulled the distributor to clean the trigger points. I marked how it was lined up before, so I'm tempted to just put it back, but this is a little unnerving.

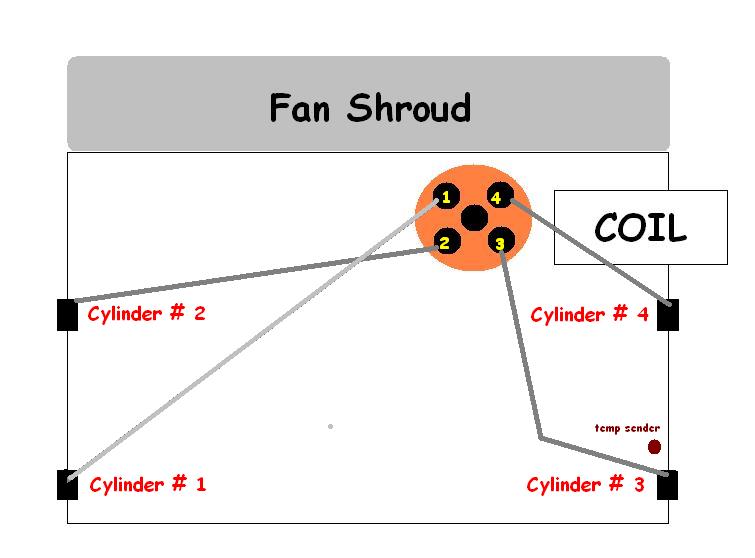

The timing light goes onto plug wire 1. As your standing behind the car and facing foward, it would be the one in the 10 o'clock possition on the cap. Might want to double check that.
Yep, got it on that plug wire, and verified that it goes to cylinder 1.
If the dizzy is on #1, and the O on the fan is in the notch, then you are good and the fan is not in the wrong place.
If you see no O with it at 10 o'clock on the dizzy/rotor, and it is gapped at .017, I don't know what to tell you.
I have a white hash mark at TDC not a O, and the fan is mounted correctly. When I disconnect the hoses and have the light on #1, at 3500 the red mark marches perfectly into view. and the vacuum is almost rubbing the middle of the OIL Neck assembly on the dizzy side of the rectangular assembly.. I mean almost smack halfway.
10-15 degrees off may burn a piston or bend a valve. Did both once. Check to see by turning the fan by hand that you go 4.5 blades to the right from TDC looking at the fan from the timing hole and then you have the red hash mark. It is a little more than 4 blades to the right of TDC. I know this from rebuilding 2 2.0L's in the last 35 years. I will be doing one more sooner than later.
Good luck!
John
could be the distributor drive gear is not in the right mesh, it htta is off, the dizzie may not be able to rotate to the right postion to get the timing right (the vacuum can will hit the fan house) les assume the fan marks are right for now, (fan can't be installed wrong, only fits one way) although different fans may have different timing marks, TDC shoudl be the same.
now find the actual #1 TDC (ie piston one at full out postion, and both valves for #1 closed (remove valve cover to confirm valves closed) remeber that the crank turns twice for a complete cycle, so there are two postion for which the TDC mark is stright up , but only one of them is for #1 piston TDC (valve closed) the other time the mark is on top, the #1 vlaves are NOT closed.
now that you have confirmed your motor is realy at #1 TDC, you have to look at the rotor postion in the dizzie and see which way it points, with teh vasccum can near the oil filler, and the trigger point plug near the fan house, the rotor should line up with the number 1 plug contact on the cap. (also a small notch on the dizzies body on the edge teh cap sits on.
if this is not the case, then teh distributor dirve gear is not indexed correctly and that may prevent you from being able to set the timing.
go thru the distribiutor drive gear installation procedure found in many repair manuals for the 914 and that shoudl get our dizzie where it should be.
good luck
I dont believe the fan can be mounted anyway but correct, nor can the flywheel and both have a notch for TDC.
Cant mount the distributor anyway but right, its notched and cant (no matter what you read on the internet) install it 180 degrees off.
You can mount the distributor drive gear off by a tooth and that may explain your issue.
static time it at TDC to confirm your distributor is lined up correctly.
Simple.
Rotate the motor to TDC.
Connect a light to the coil, a test light.
When it lights up, you are at TDC with the distributor....no matter where it is in rotation...
So, you may have your wiring off by one space on the distributor cap, or the drive gear may be off a tooth.
Rich
Rich
