Posted by: Mikey914 Feb 5 2020, 01:50 AM

We have been doing these for a while now. We want to bring the cost down, and doing these in quantity will allow for us to to reduce the cost and pass that on. We are looking for 10 of each to get the pricing good for you.

1st

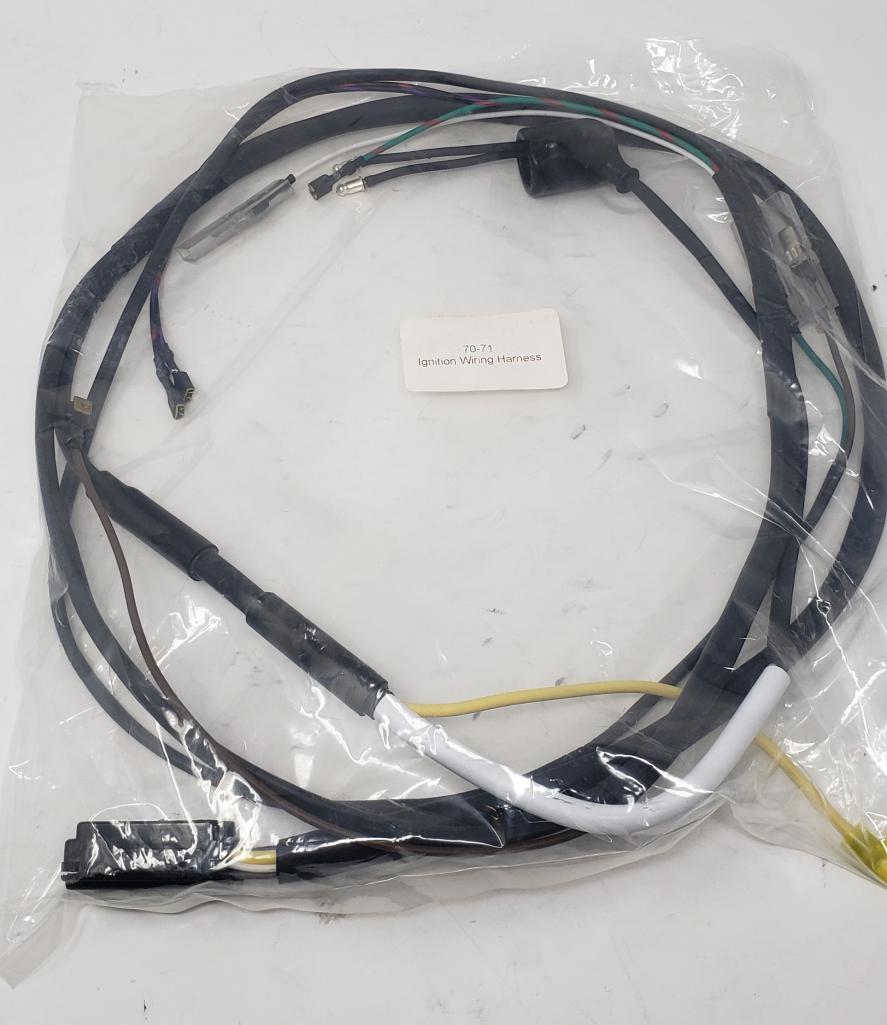

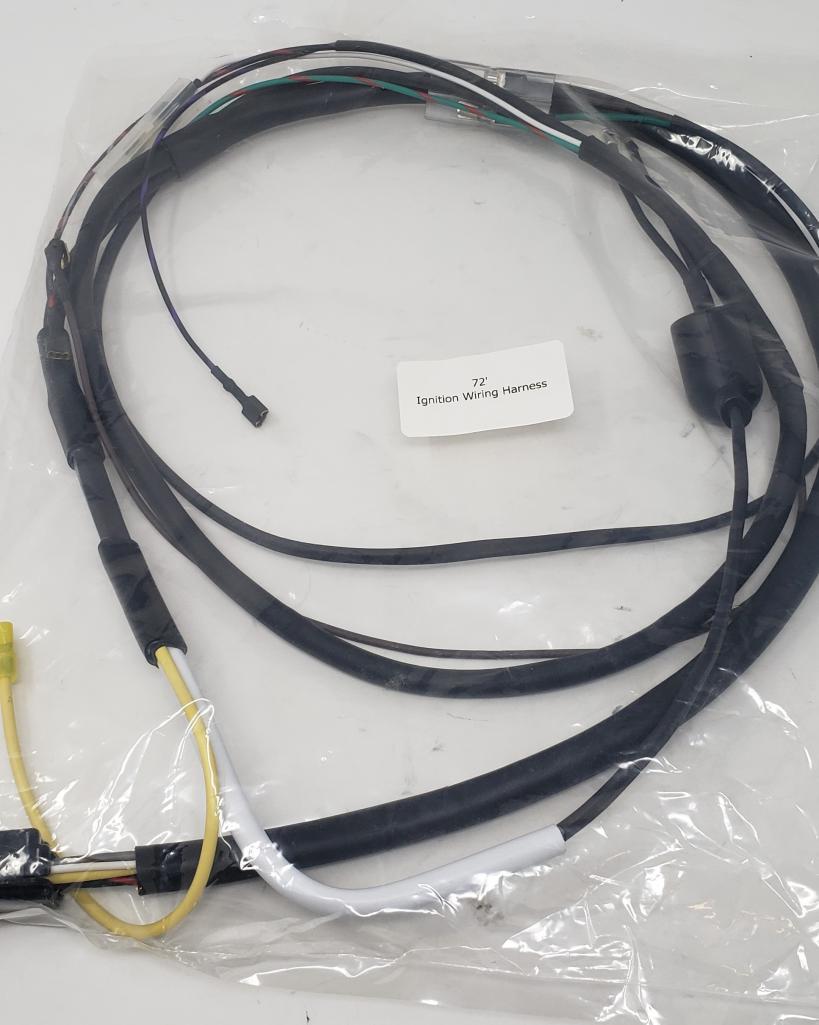

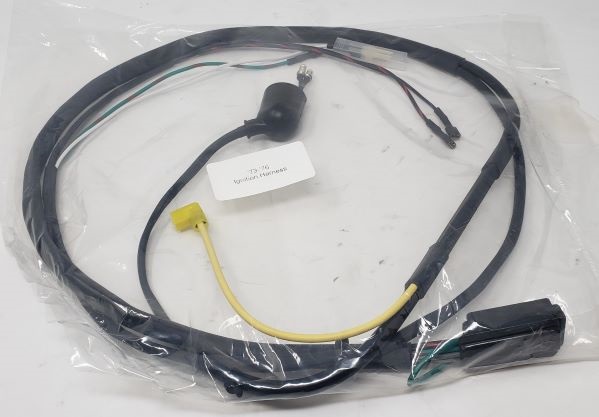

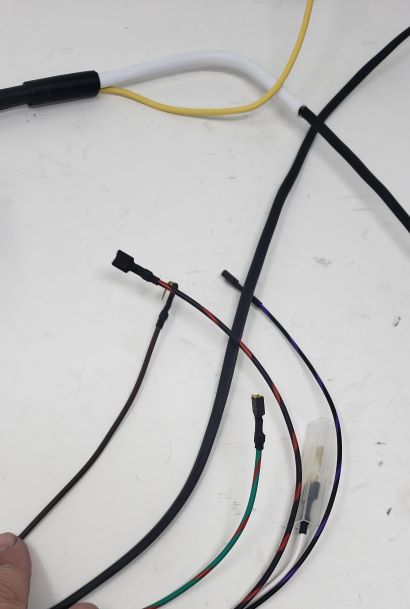

The ignition harnesses -

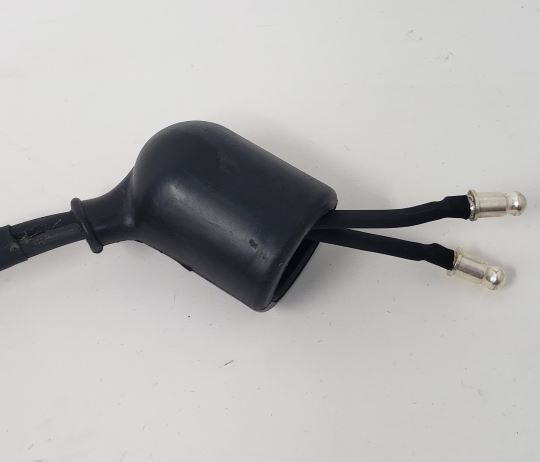

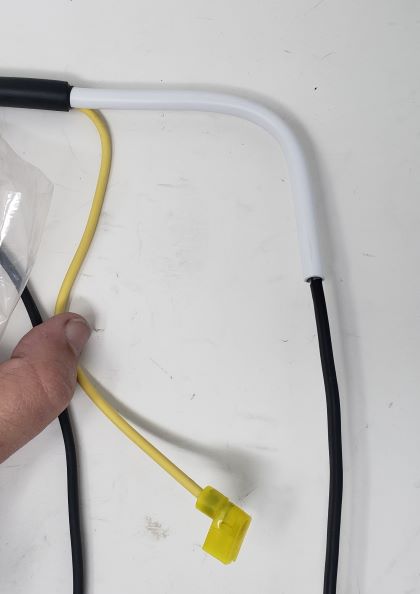

We have the replicated all of the parts including the L shaped tube at the transmission reverse light.
We have the
70-71
72
73-76
We have these for sale on the site but want to gear up to make in bulk and are offering a price for the GB if we can get 10 takers.

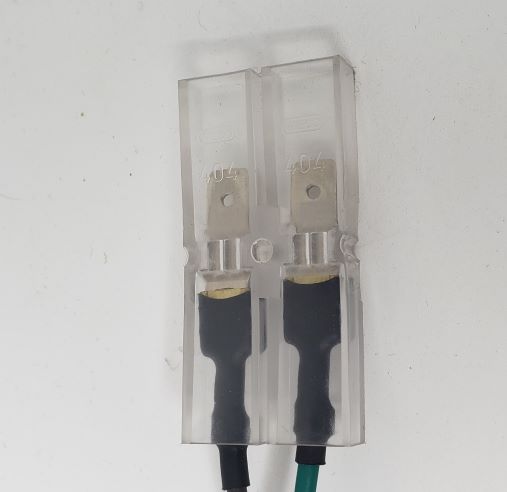

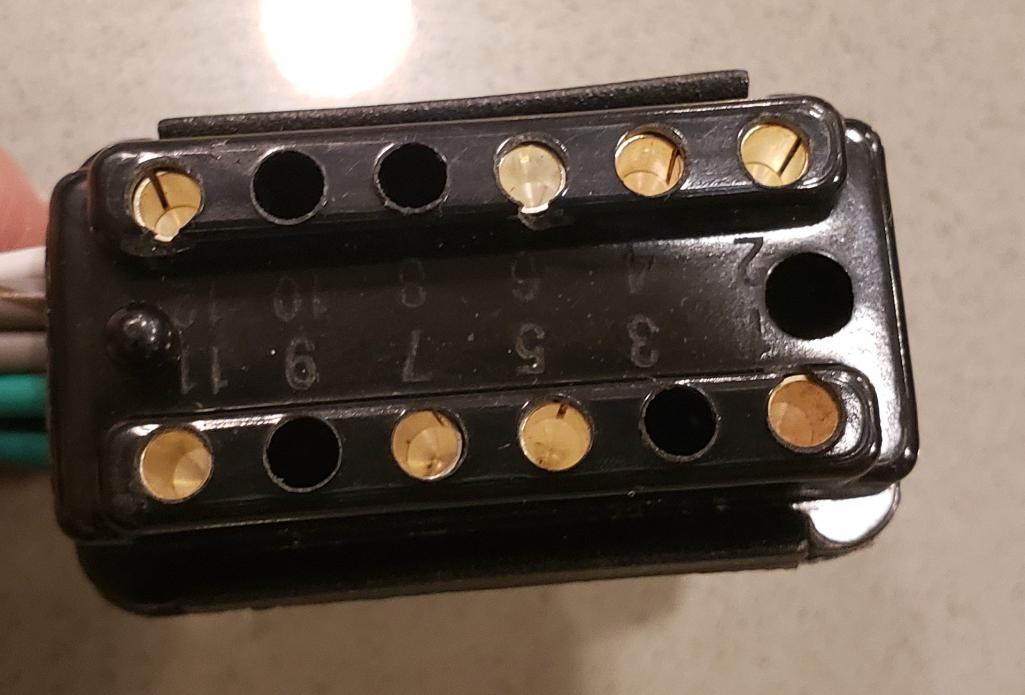

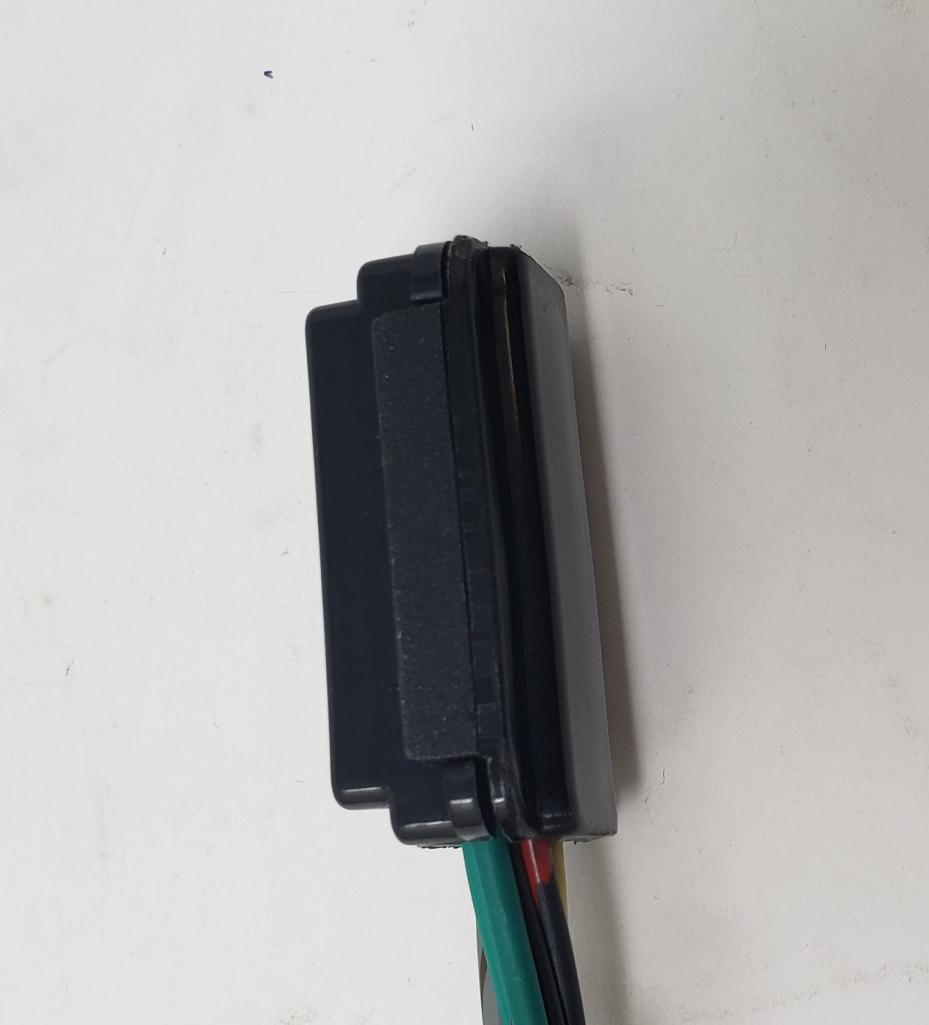

These are correct color coded wires and plugs

Just +1 Ignition harness and the year
we need 10 and can provide these for $210 reg 250
25 and we can make for $199


Attached thumbnail(s)
Attached Image Attached Image Attached Image Attached Image

Attached image(s)
Attached Image Attached Image Attached Image Attached Image Attached Image

Posted by: Mikey914 Feb 5 2020, 02:15 AM

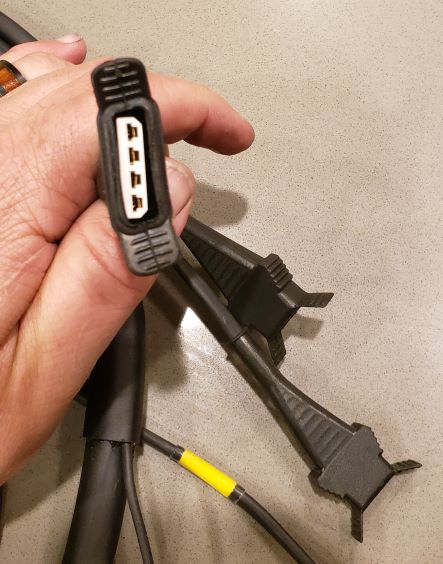

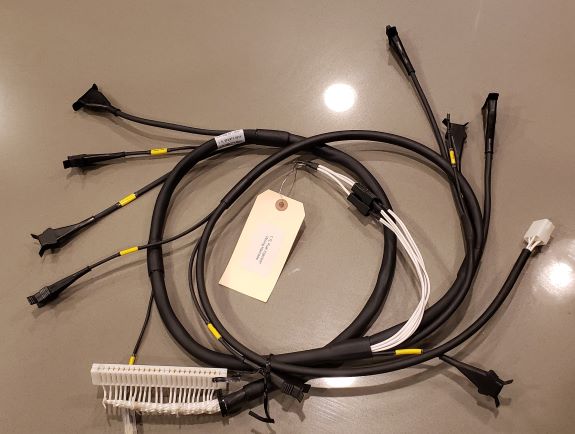

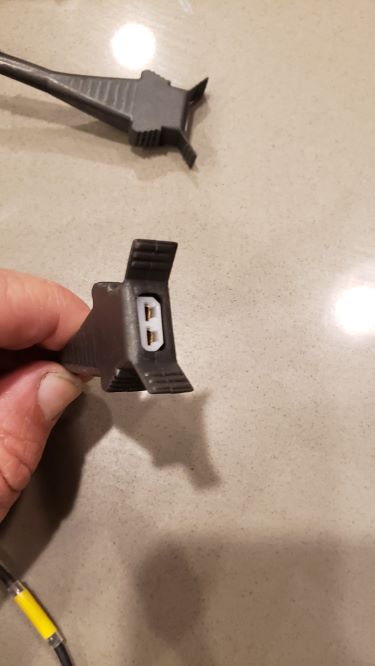

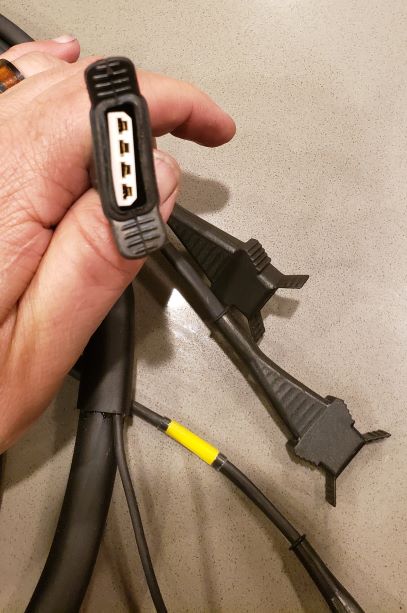

Now for the Fuel Injection harnesses
These will save you hours of tracking down shorts that are intermittent.
We have the
72+ 1.7 L
and the 73 20.L harnesses
we are just finishing up the early 70-71 harness this week
And can do a 1.8 harness if there is an interest

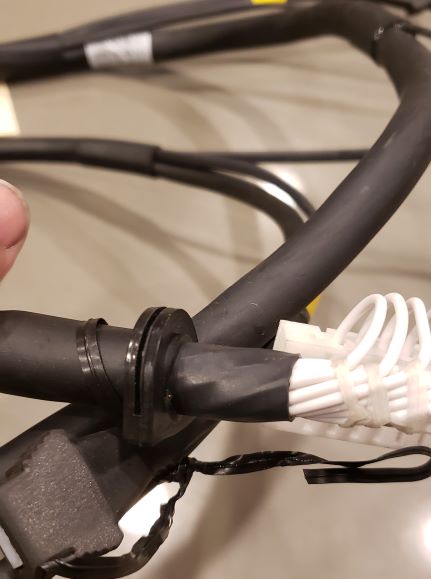

we have reproduced all the parts needed to make these even the D grommet at the ECU.

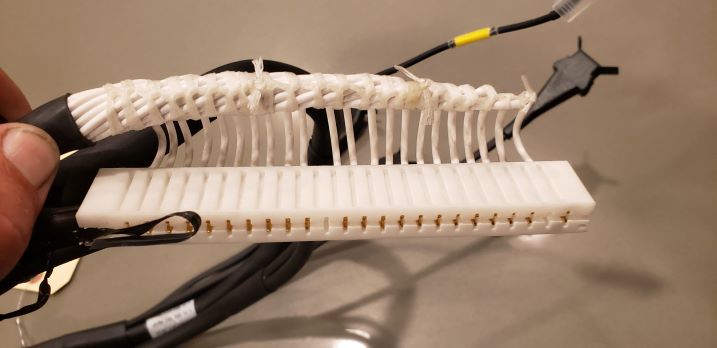

As well as the circuit board mount clip. Notice the way we wrap the wires so they will not pull. The only part we didn't reproduce is the "handle" that screws into the bracket on the board, as you shouldn't need to replace them. Ours will accept the old handle.

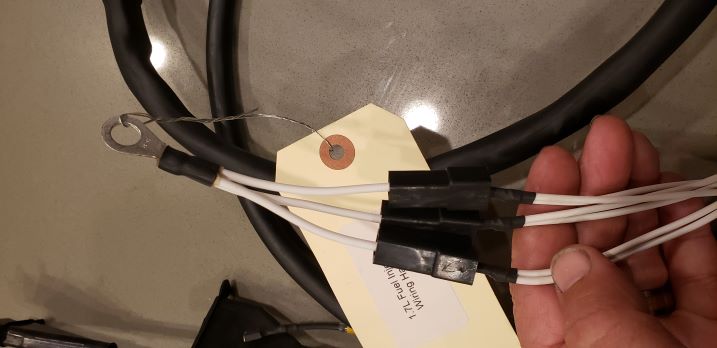

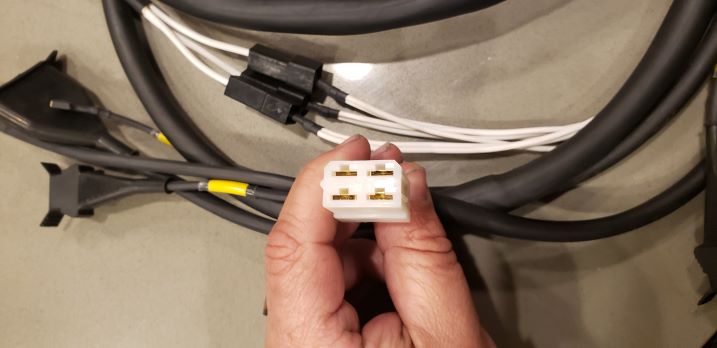

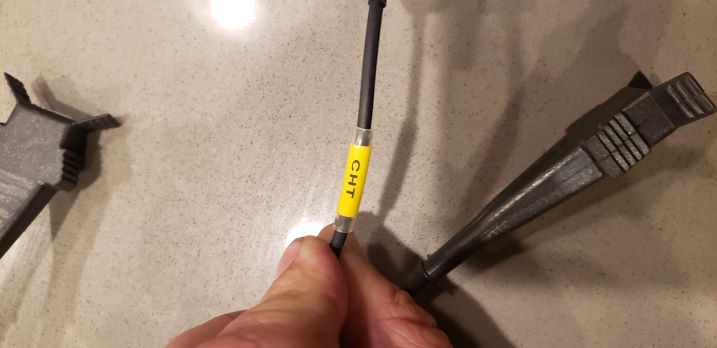

Best of all we label our ends. Is this the #3 or #4? pretty easy to tell. As well as the other ends. We have taken the liberty of creating a common ground for the 3 leads that require it. easy enough to un-clip and go direct if you wish, but we tried to make it as easy as possible.

These normally go for $494 each, but if we can get 30 takers we can sell these at $399 each. I'm hoping more as we may be able to reduce further if we get the economy of scale

Just need a +1 for the F/I harness with engine and if it's 1.7, early or late.

I think you will like these.
https://900designs-container.zoeysite.com/1973-74-2-0-l-fuel-injection-wiring-harness




Attached image(s)
Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image Attached Image

Posted by: ctc911ctc Feb 5 2020, 09:30 AM

Put me down for one of each,
C

Posted by: jesse7flying Feb 5 2020, 10:49 AM

+1 Ignition harness for a '71.

Posted by: 9one4tay Feb 5 2020, 06:36 PM

+1 ignition harness for a 74'

Posted by: 914four Feb 9 2020, 09:25 AM

QUOTE
The ignition harnesses -

73-76
We have these for sale on the site but want to gear up to make in bulk and are offering a price for the GB if we can get 10 takers.

Just +1 Ignition harness and the year
we need 10 and can provide these for $210 reg 250
25 and we can make for $199


The quality appears to be good from the pictures. If you get enough for the GB I'm in for an ignition harness for a '74.

Kelvin

Posted by: walterolin Feb 9 2020, 11:18 AM

One of each for a 1970 1.7.

Thanks

Posted by: lvnzdrm Feb 9 2020, 01:44 PM

I purchased and installed the FI harness into my 72' it fit like a glove and all connections worked perfectly. Connectivity is awesome and car runs great.

Posted by: ctc911ctc Feb 10 2020, 01:44 PM

QUOTE(lvnzdrm @ Feb 9 2020, 02:44 PM) *

I purchased and installed the FI harness into my 72' it fit like a glove and all connections worked perfectly. Connectivity is awesome and car runs great.


Posted by: pvollma Feb 10 2020, 04:49 PM

+1 on ignition harness for '76

Posted by: Maury4 Feb 10 2020, 09:22 PM

I need 1 for '74 1.8

Posted by: Mikey914 Feb 10 2020, 09:23 PM

QUOTE(Maury4 @ Feb 10 2020, 07:22 PM) *

I need 1 for '74 1.8

Ignition or F/I harness?

Posted by: Maury4 Feb 10 2020, 09:24 PM

I need Ign harness for '74 1.8 for 1.
thanks,
Rick

Posted by: Mikey914 Feb 11 2020, 12:22 AM

Ignition I have. We are still working on the fuel injection harness now.

Posted by: Rikyrat Feb 12 2020, 03:25 PM

+ 1 ignition Harness 74 1.8
Rick Gould

Posted by: Chris914n6 Feb 12 2020, 04:30 PM

Ignition harness is different between Djet and Ljet.

Posted by: potomacmidget Feb 13 2020, 08:03 PM

+ 1 for ignition for 71
+ 1 for 71 FI harness

Thanks,
Reg

Posted by: Rob-O Feb 13 2020, 08:45 PM

‘74 1.8L FI harness for me.

Posted by: 914Sixer Feb 13 2020, 10:27 PM

Best investment you will make for a good running engine. Engine electrical gremlins are a pain.

Posted by: seanpaulmc Feb 17 2020, 11:55 AM

Is there a close date on this GB?

Posted by: Mikey914 Feb 17 2020, 02:11 PM

Really need 10 commitments of each to make at this price. I do have most in stock, just the cost to make individually is higher. I'm looking to save the difference in economy of scale.
