Posted by: DennisV Jun 13 2024, 12:16 PM

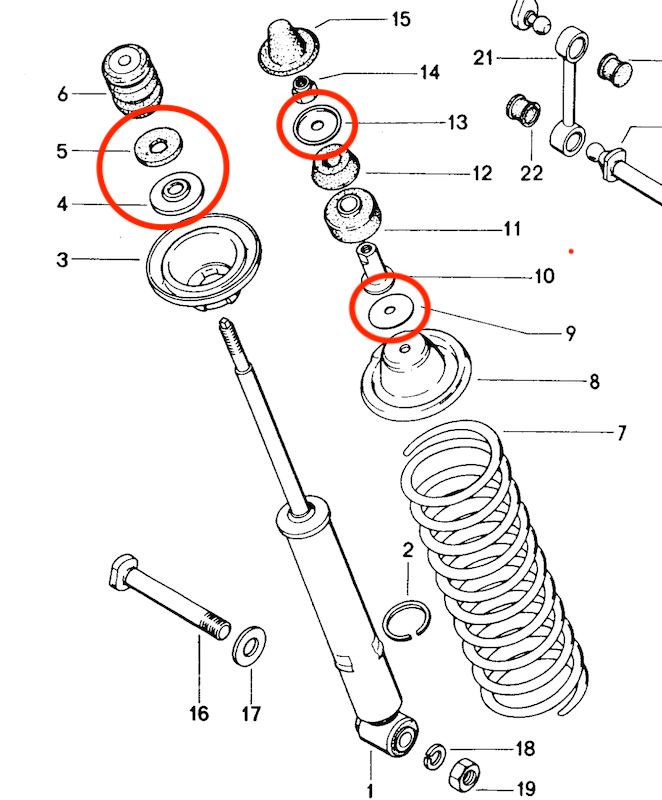

Can anyone tell me the ID, OD, and thickness of the washers used in the rear shock assembly?

The PO of our car swapped out and removed a bunch of stuff. I have a stash of various large washers I can pick through, but can't find specs to know what's correct. They all appear to be NLA, so hard to even find pictures. Are any of these unique in that they're concave or slotted?

• #4 914-333-503-00 Cap - boge -
• #5 901-333-511-00 Stop washer
• #9 914-333-515-01 Washer (aka suspension shim?)
• #13 914-333-515-00 Washer

Thank you.


P.S. Is it safe to reuse the rubber bump stop (6), donut (11), and cone (12) bushings fi they're not thrashed?

Posted by: Superhawk996 Jun 13 2024, 12:44 PM

Post WTB - plenty of proper parts out there. They are not standard washers.

New jounce bumpers will be much more pleasant to ride than age hardened parts.

Same for the rubber isolators (11 & 12) - new parts are available, why ride on 50 year old hardened parts?

Posted by: bdstone914 Jun 14 2024, 02:13 AM

@http://www.914world.com/bbs2/index.php?showuser=24575

They are all special i may have extra sets. Will get you pictures tomorrow.
Ping me if i forget.
Bruce

Posted by: DennisV Jun 24 2024, 08:18 AM

Fair point on the rubber.

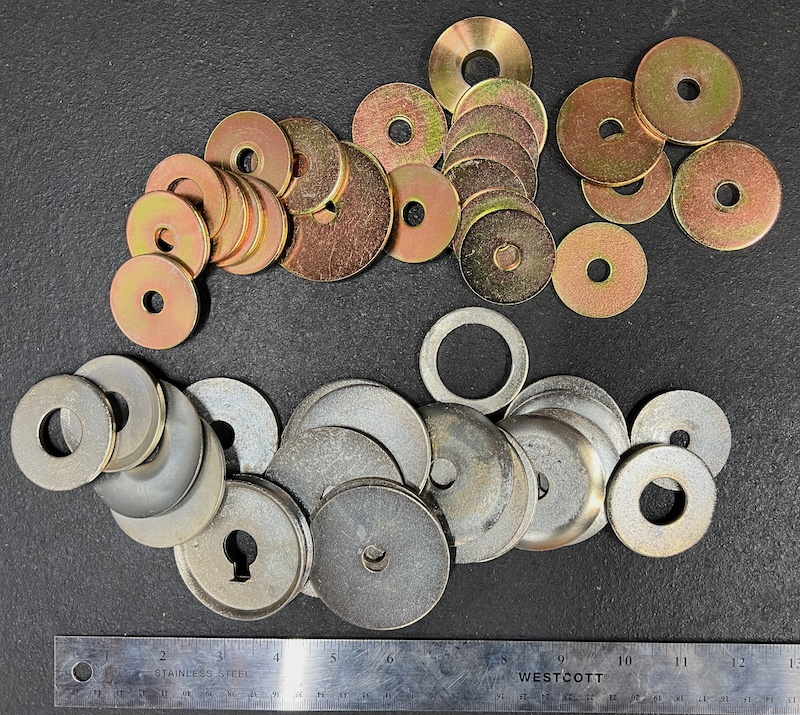

Regarding the washers, I have a lot of standard as well as non-standard. Whether digging through my stash or buying from someone else, I am not sure what I am looking for.




I would greatly appreciate pictures and any size info you are able to share.

Thank you.

Posted by: DennisV Jul 3 2024, 06:37 PM

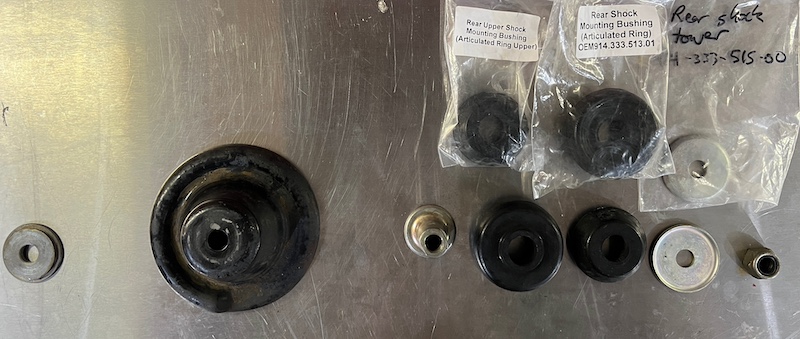

Made some progress, but still wrestling with a few. Is the stepped washer far left of the photo #4 from the parts catalog (914-333-503-00 Cap - boge -)?


Not entirely sure what I'm looking for to get these two:

• #5 901-333-511-00 Stop washer
• #9 914-333-515-01 Washer (aka suspension shim?)

Posted by: bkrantz Jul 3 2024, 08:25 PM

The need for some of those parts depends on your choice of shock make and model.

Posted by: bdstone914 Jul 3 2024, 09:47 PM

I think some Koni use a different thread pitch on some early shocks. I remember trying to find a match for one. But i thonk the washers ate all the same.

Posted by: bdstone914 Jul 3 2024, 09:51 PM

I have some sets i am preping for replating. Will try to remember to get pictures. Text me at nine five won five three six seven for seven ate

Posted by: bdstone914 Jul 3 2024, 09:55 PM

@http://www.914world.com/bbs2/index.php?showuser=24575

#dennisv


[quote name='bdstone914' post='3150828' date='Jun 14 2024, 01:13 AM']
They are all special i may have extra sets. Will get you pictures tomorrow.
Ping me if i forget.
Bruce
[/quote]
I would greatly appreciate pictures and any size info you are able to share.

Thank you.
[/quote]


I have some sets i am preping for replating. Will try to remember to get pictures. Text me at nine five won five three six seven for seven ate

Posted by: Superhawk996 Jul 4 2024, 11:11 AM

Yes

Posted by: bdstone914 Jul 4 2024, 02:19 PM

[quote name='bdstone914' date='Jul 3 2024, 08:55 PM' post='3154606']
@http://www.914world.com/bbs2/index.php?showuser=24575

#dennisv


[quote name='bdstone914' post='3150828' date='Jun 14 2024, 01:13 AM']
They are all special i may have extra sets. Will get you pictures tomorrow.
Ping me if i forget.
Bruce
[/quote]
I would greatly appreciate pictures and any size info you are able to share.

Thank you.
[/quote]


I have some sets i am preping for replating. Will try to remember to get pictures. Text me at nine five won five three six seven for seven ate
[/quote]



Attached thumbnail(s)

Posted by: Montreal914 Jul 4 2024, 03:37 PM

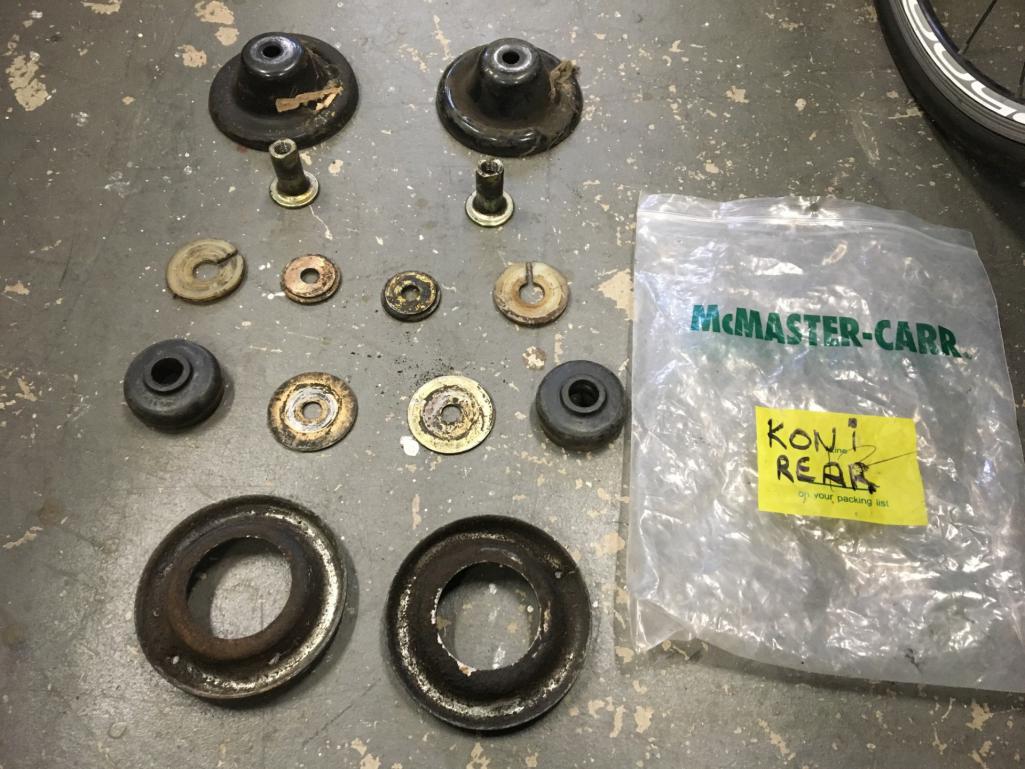

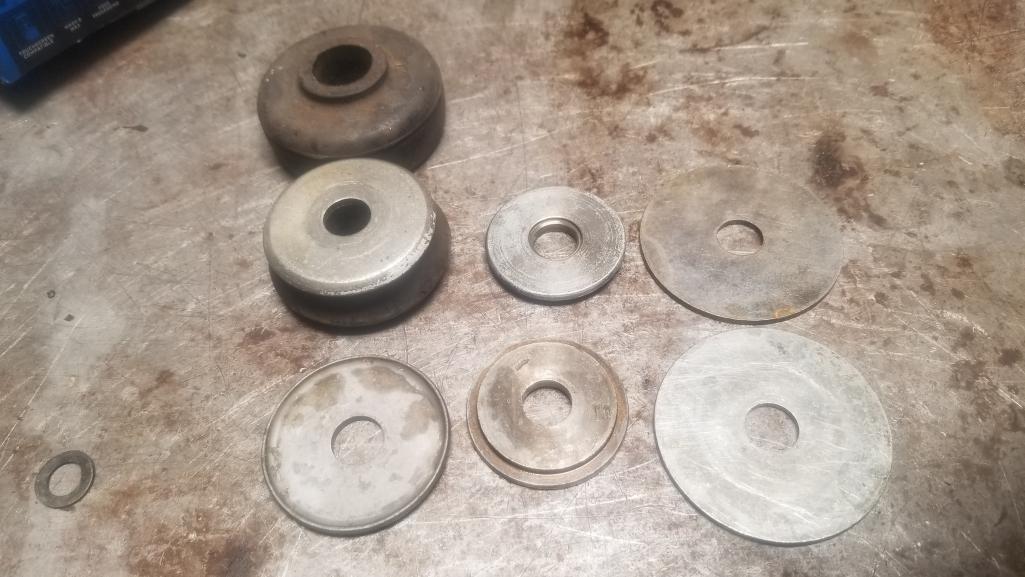

^^^ Agreed, this extra hadware I have from a Koni setup differs from my Bilstein setup.

If any of this can be of interest if Bruce doesn't have you covered, let me know.


Large file picture for you to zoom in.

Posted by: bdstone914 Jul 4 2024, 10:07 PM

You are missing #13 washers.
It is going to be a couple weeks til i have the parts plated and ready. I only have two complete sets and want two keep one. It seems @http://www.914world.com/bbs2/index.php?showuser=24575 may have some of the parts.
I think the only parts that may be different are the long nuts that go thru the rubber grometts at the top.
I think it was only the early Koni that were a different pitch. I remember trying to chase one down to have enough parts to build a set of shocks.

Posted by: DennisV Jul 5 2024, 11:41 AM

Thanks for the photos and replies.

I thought I had #13 and was missing #5 and #9.


FWIW - I took off old Koni's and am planning to install original setup Boge.

Posted by: Montreal914 Jul 5 2024, 02:04 PM

Dennis, I think Bruce meant, I (me) in my picture am missing #13.

Bruce is my reference . If there is anything you need in there that Bruce doesn'y have, let me know.

BTW, adriatic blue?

Posted by: bdstone914 Jul 5 2024, 10:06 PM

@http://www.914world.com/bbs2/index.php?showuser=24575

' date='Jul 5 2024, 10:41 AM' post='3154865']
[quote name='bdstone914' post='3154763' date='Jul 4 2024, 09:07 PM']
You are missing #13 washers.
[/quote]
Thanks for the photos and replies.

I thought I had #13 and was missing #5 and #9.


FWIW - I took off old Koni's and am planning to install original setup Boge.
[/quote]

Yes i was repling to Montreal 914 regarding #13 missing.

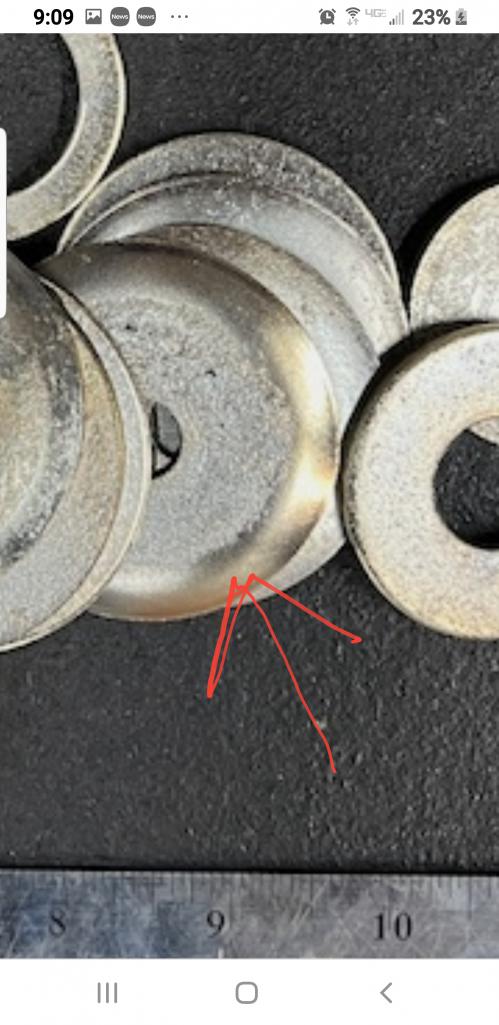

Do you have the lower shock perches for the Boge? They are unique to Boge.

It looks like you have #13


Attached thumbnail(s)

Posted by: DennisV Jul 8 2024, 01:01 PM

I've posted the details I've accumulated to the http://www.914world.com/bbs2/index.php?showtopic=371042.

@http://www.914world.com/bbs2/index.php?showuser=12023 and @http://www.914world.com/bbs2/index.php?showuser=1319 Thanks for the photos. They are helpful. If you have access to #5 and #9 the ID and OD dimensions would be great.

Posted by: Montreal914 Jul 9 2024, 08:11 AM

@http://www.914world.com/bbs2/index.php?showuser=24575 : I will gladly measure them tonight but it would help if someone could identify #5 for me in my picture.

As for #9, I would think they are the larger ones located in between the rubber ones in my picture.

Posted by: 914Sixer Jul 9 2024, 06:34 PM

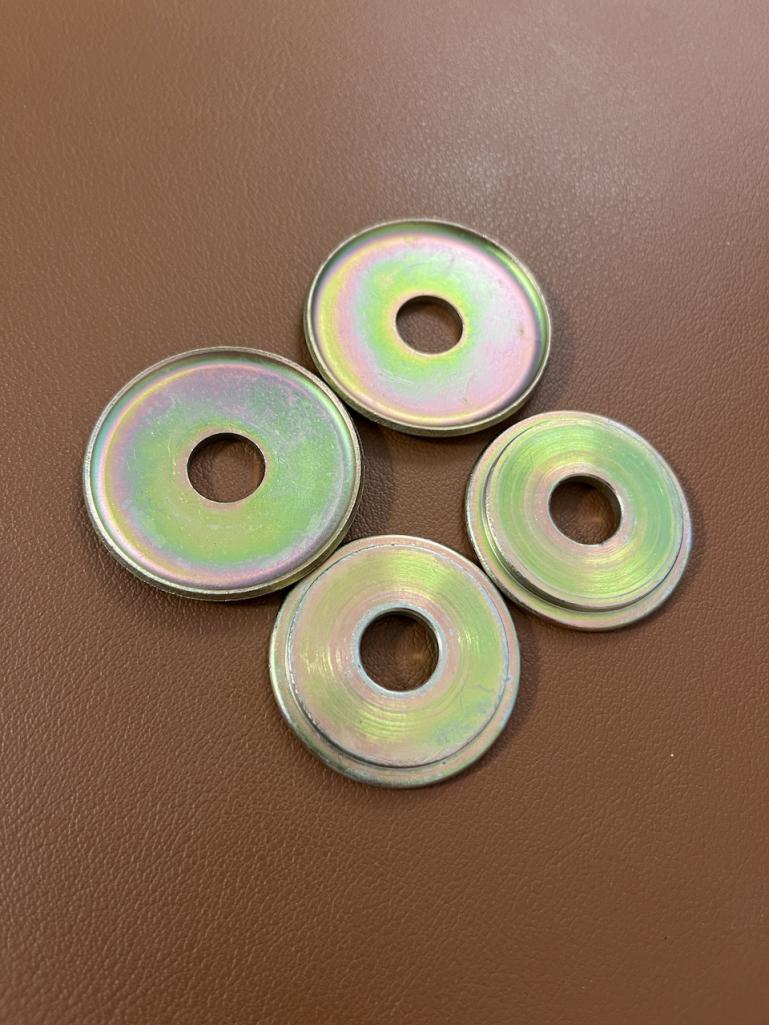

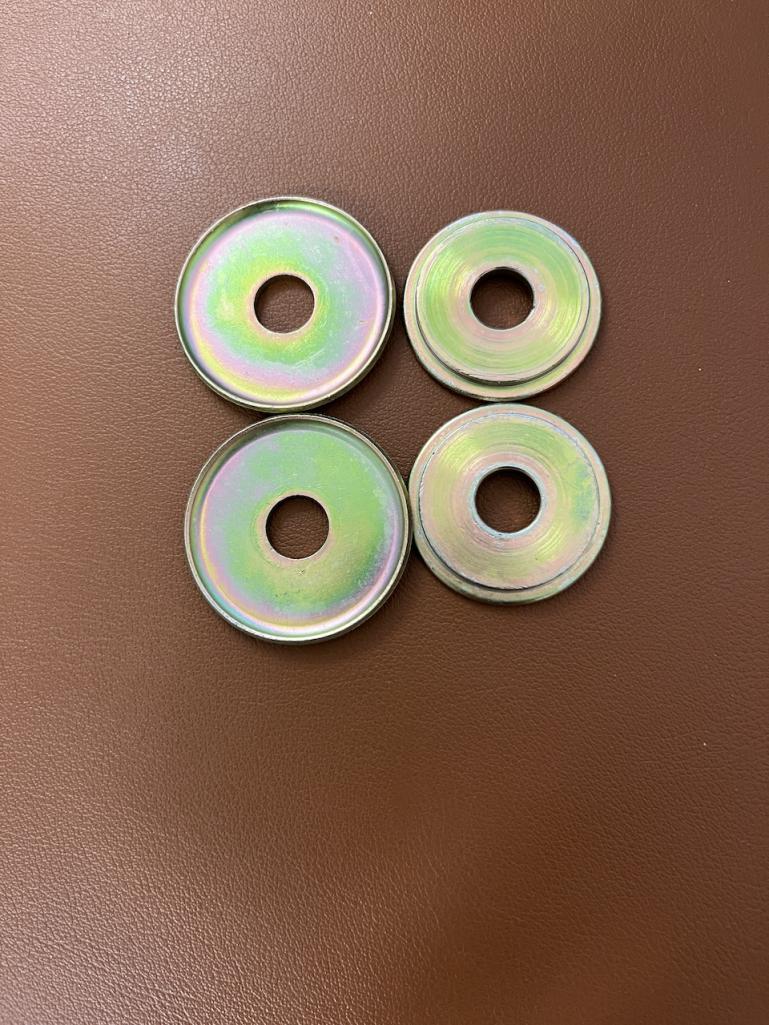

From replated stash


Attached thumbnail(s)

Posted by: Montreal914 Jul 10 2024, 02:03 PM

@http://www.914world.com/bbs2/index.php?showuser=24575

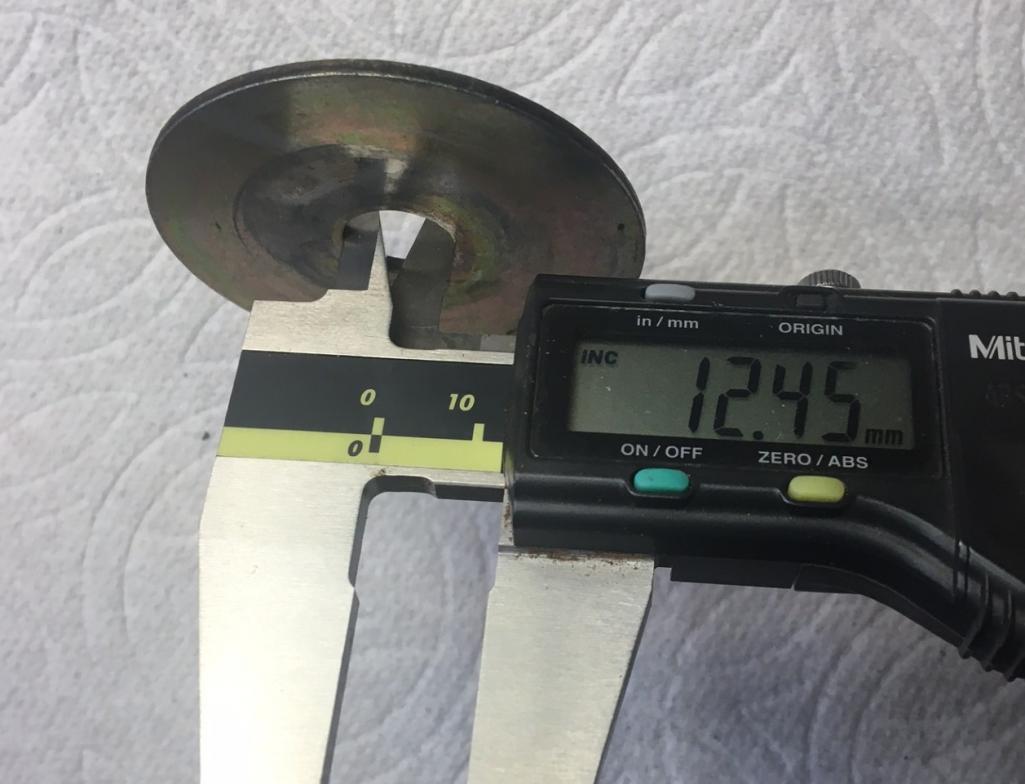

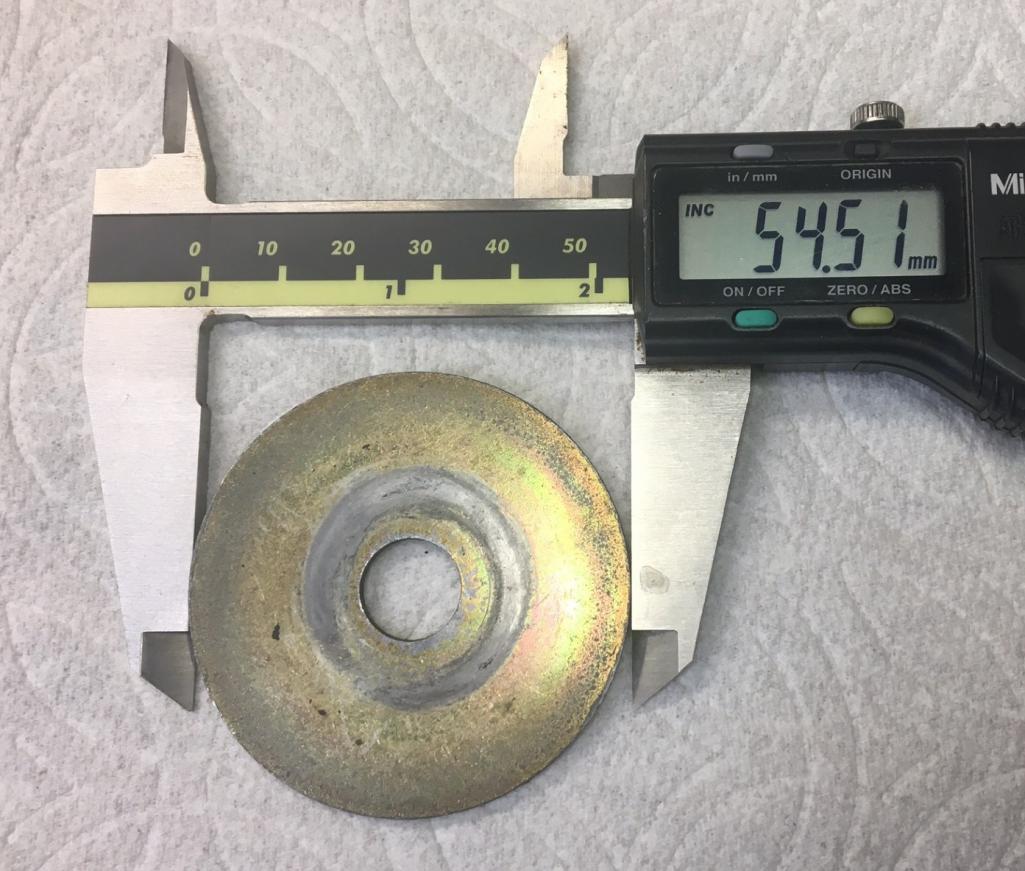

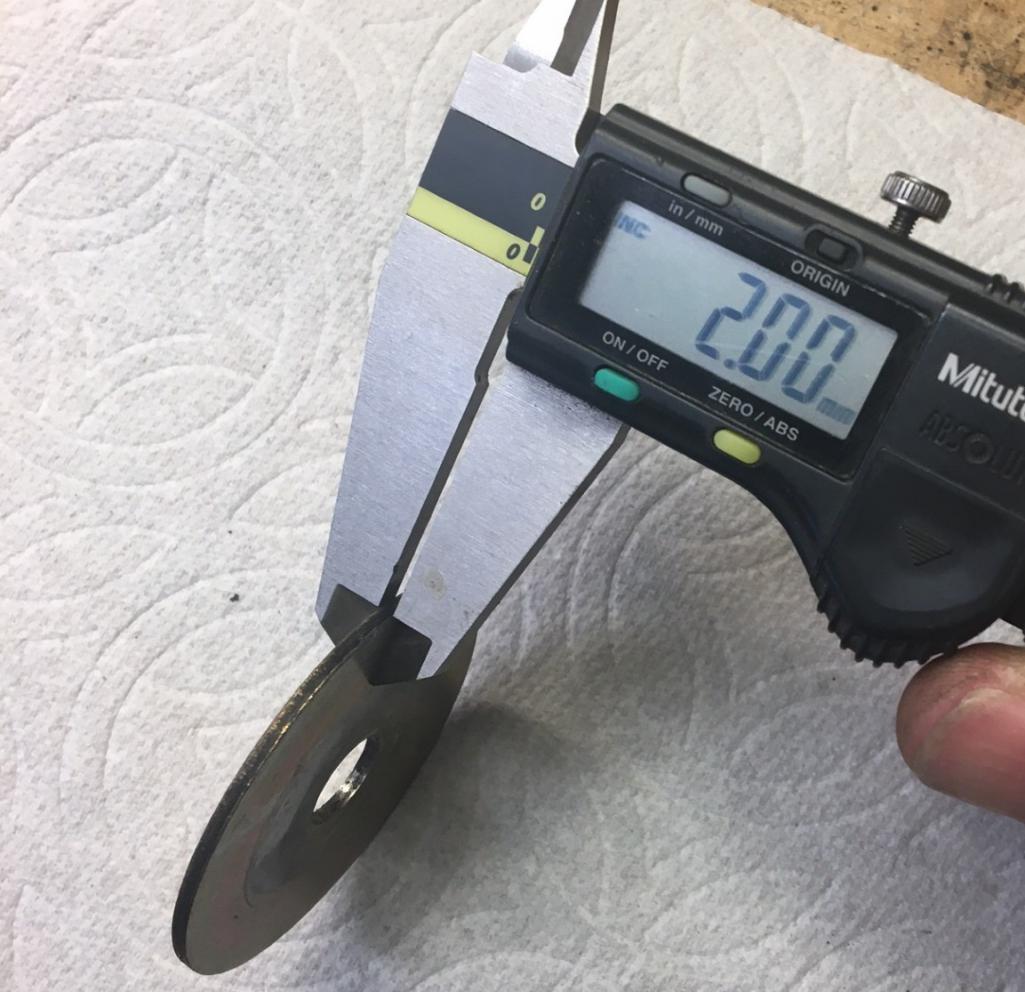

Here is what I measure for #9 (the ones showing in between the rubber stopper in my picture (a few post above).








As for washer #5, I am not sure which one it is ...maybe the plastic split ones?

Posted by: DennisV Jul 10 2024, 04:13 PM

@http://www.914world.com/bbs2/index.php?showuser=12023 Thanks very much for this. Added http://www.914world.com/bbs2/index.php?s=&showtopic=371074&view=findpost&p=3155851.

I just got somehttp://www.914world.com/bbs2/index.php?s=&showtopic=371075&view=findpost&p=3155853. They indicate #5 is in fact rubber and the OD is about 54mm.

Posted by: Montreal914 Jul 10 2024, 04:24 PM

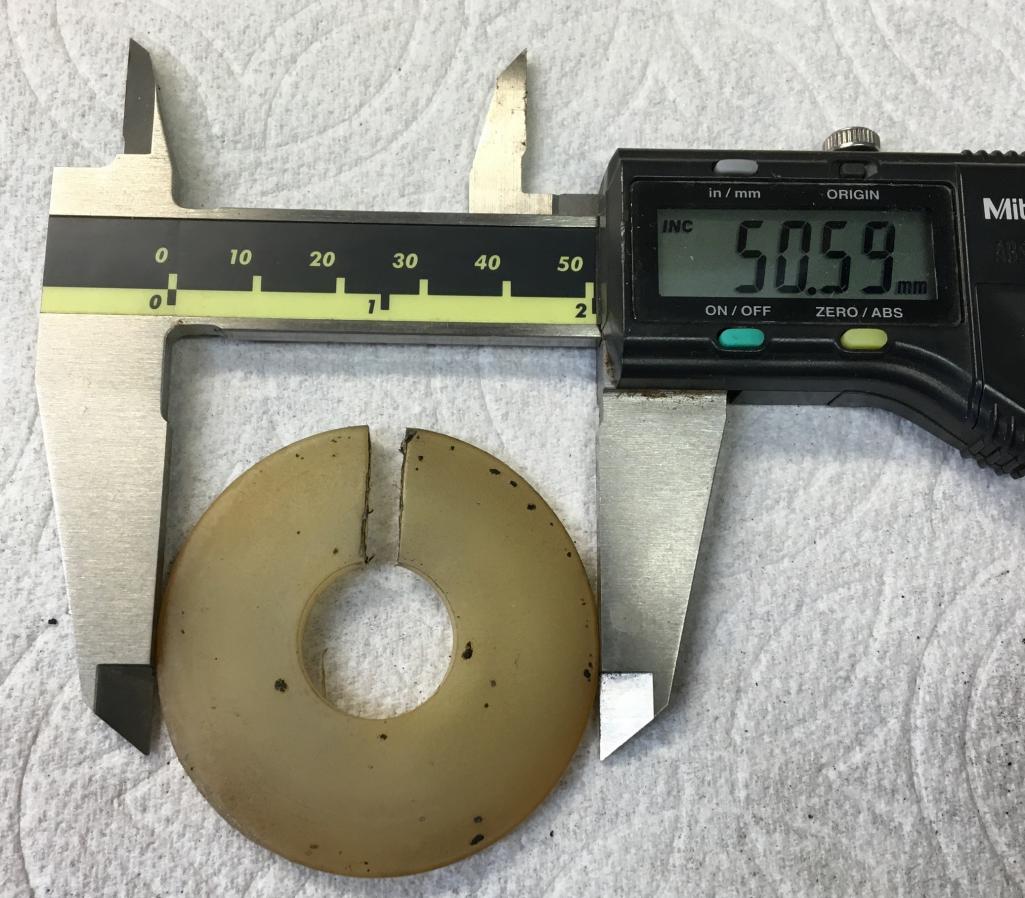

This is the only part that is non-metal in my Koni red leftover part setup. Seems like a compliant plastic.

Not sure it is #5 but here you go.

Posted by: Montreal914 Jul 30 2024, 08:58 PM

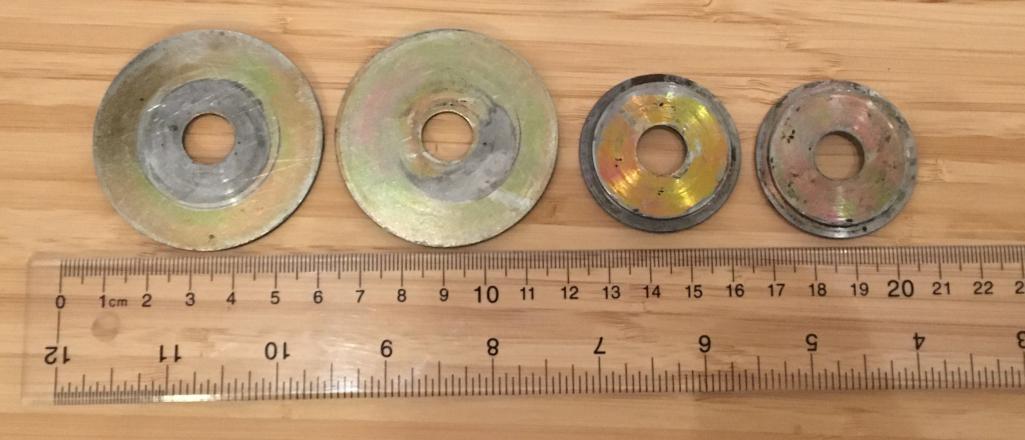

Dennis, I have the two plastic split washers shown in my previous post and I have these (the larger one being the one you wanted dimensions of).

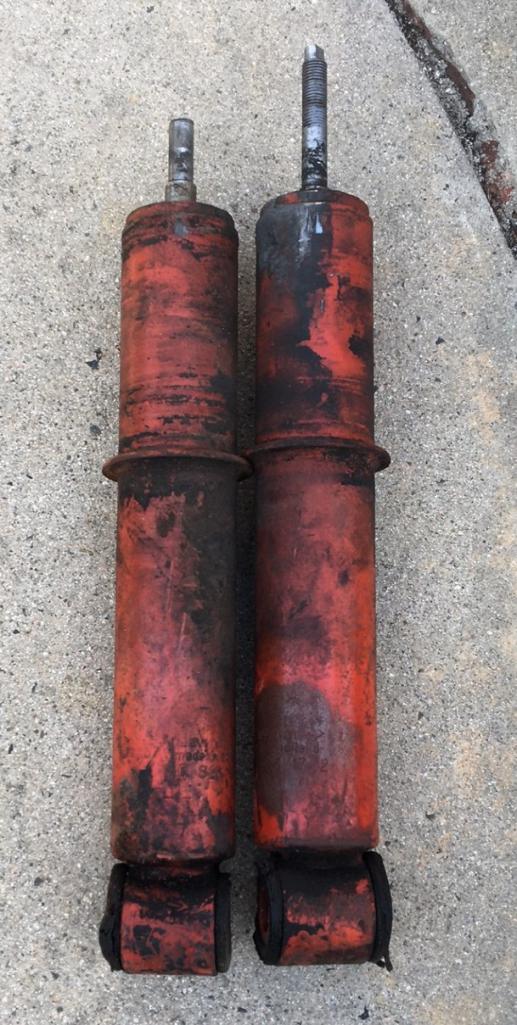

All of this hardware was part of the Koni red shown below:

Posted by: DennisV Dec 27 2024, 08:46 PM

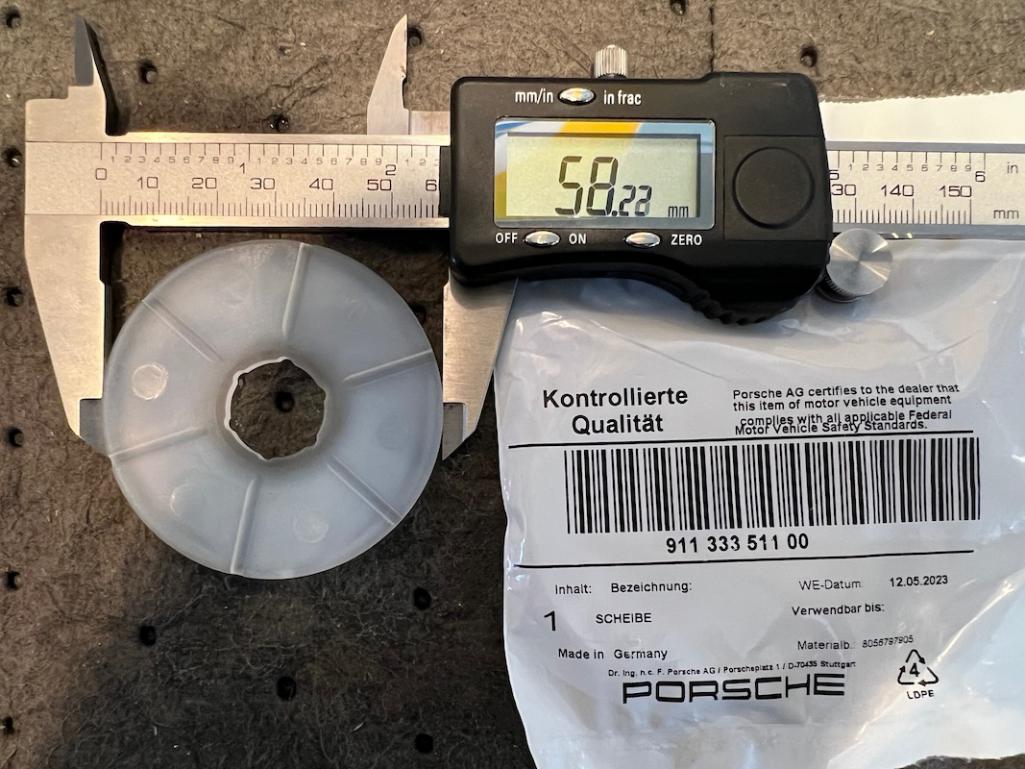

An update regarding #5 from parts catalog diagram 901-333-511-00 Stop washer for rear shocks. Non-metal rubber or plastic type of material. OD: ~ 54 mm.

While the original part is NLA, there is a shipping part (as of 2024) that appears to be similar material and has the grooves that Jeff suggests act as a vent to keep the stopper from acting as a vacuum pump and sucking fluid past the shaft seal.

It is 911-333-511-00. Slightly larger at 58mm.
