Factory LSD For Sale, 914 limited slip |
old914dog |
May 16 2019, 09:39 AM
Post
#1
|
Member Group: Members Posts: 72 Joined: 28-August 04 From: dallas,tx Member No.: 2,643 Region Association: None |

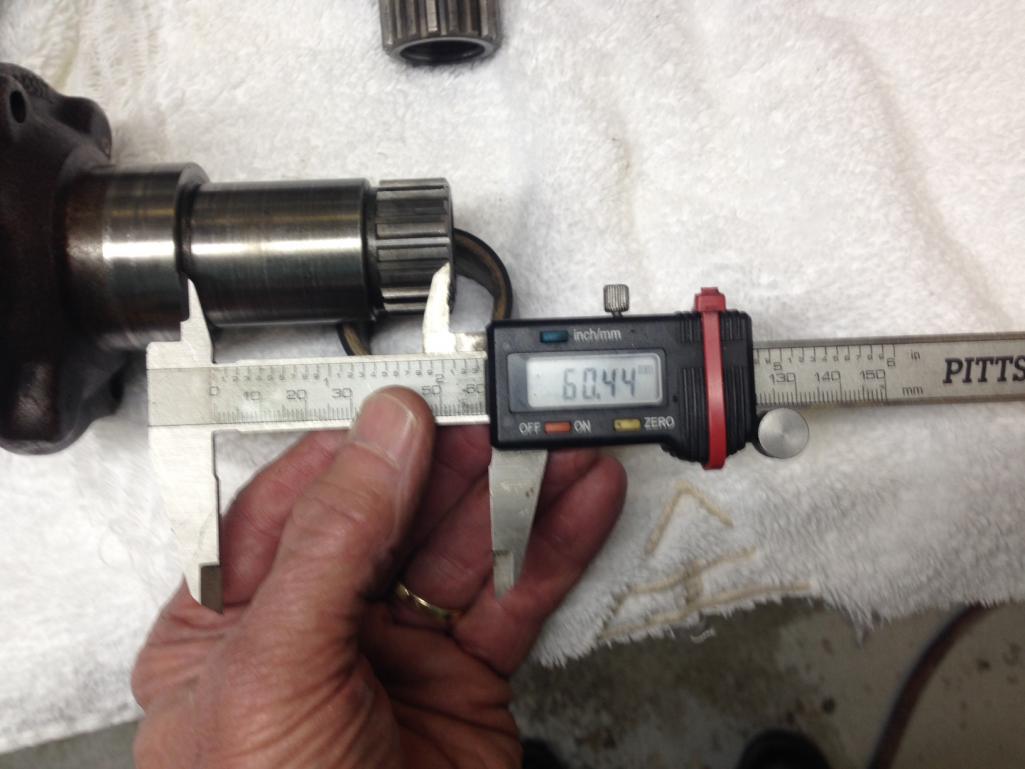

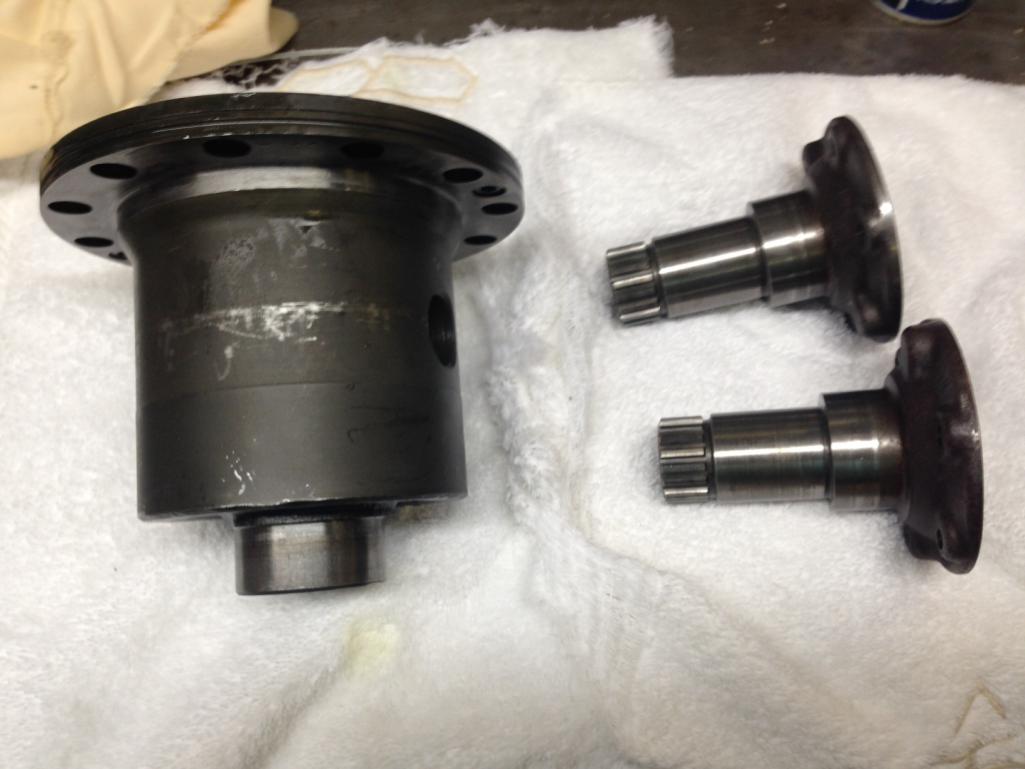

Gents, I have sold my race car and am thinning my treasures! This came 14 or so years ago from Roger Sheraton when I purchased 2 race boxes with 901 shafts, etc I have a 914 LSD, which Matt Monson says fits the 914, 1969 mag 901, 70-71 mag and 72-74 915 with 7:31 CWP. It worked like a charm for my vintage Type 4 E Prod. I have not disassembled the unit for inspection. As you can see with pics, I have the flanges and bolts. Not interested in separating at this point. Shipping from DFW area. Prefer local but am willing to work with purchaser. $2500 plus shipping, etc. Thanks old914dog
Attached thumbnail(s) Attached image(s) |
old914dog |
May 18 2019, 12:39 PM
Post
#2
|
Member Group: Members Posts: 72 Joined: 28-August 04 From: dallas,tx Member No.: 2,643 Region Association: None |
No responses means I am off on price. $2,000
|
mb911 |
May 18 2019, 08:00 PM
Post
#3
|
914 Guru Group: Members Posts: 6,812 Joined: 2-January 09 From: Burlington wi Member No.: 9,892 Region Association: Upper MidWest |
I would do a little searching on pricing.. There was one that sold recently here..
|
Steve |
May 18 2019, 08:10 PM
Post
#4
|
914 Guru Group: Members Posts: 5,570 Joined: 14-June 03 From: Orange County, CA Member No.: 822 Region Association: Southern California |
I would post on the 911 parts for sale on Pelican. You might have better luck there.
You can buy a new aftermarket LSD for $1500.00. |
mgphoto |
May 20 2019, 05:49 PM
Post
#5
|
"If there is a mistake it will find me" Group: Members Posts: 1,336 Joined: 1-April 09 From: Los Angeles, CA Member No.: 10,225 Region Association: Southern California |
Drive flanges are worth buck, $2k good price.
Parts for rebuilding are available, mostly 928 and 917. |
old914dog |
May 27 2019, 05:28 PM
Post
#6
|
Member Group: Members Posts: 72 Joined: 28-August 04 From: dallas,tx Member No.: 2,643 Region Association: None |
$1950 and a large bottle of Crown!
|
old914dog |
Jun 6 2019, 01:31 PM
Post
#7
|
Member Group: Members Posts: 72 Joined: 28-August 04 From: dallas,tx Member No.: 2,643 Region Association: None |
$1900.00
|
Superhawk996 |
Jun 8 2019, 06:48 AM
Post
#8
|
914 Guru Group: Members Posts: 5,749 Joined: 25-August 18 From: Woods of N. Idaho Member No.: 22,428 Region Association: Galt's Gulch |
Food for thought.
I've been watching this post with great interest as I'd like to eventually obtain a LSD. However, a complete Trans with a Quaife recently sold for not much more than what you are asking. http://www.914world.com/bbs2/index.php?showtopic=337062 Quaife has advantage over factory LSD in that it is a helical gear LSD that doesn't require maintenance and/or new plates like factory LSD with friction plates eventually will (especially if raced previously). I do understand that it is factory LSD which holds some appeal for purists. However, not knowing the condition of the internals is a show stopper for me. Replacement of the friction plates, the metal drive plates, and the springs can quickly add up. I'll keep watching. I missed out on the the other one, and maybe I'm wrong about the value of this one. I'm still learning the true value of some of these rare 914 parts after having been away for so long. (IMG:style_emoticons/default/beerchug.gif) |
colingreene |
Jun 12 2019, 12:21 PM
Post
#9
|
Senior Member Group: Members Posts: 729 Joined: 17-October 13 From: Southern California Member No.: 16,526 Region Association: Southern California |
Problem with a Quafe is that they induce corner entry understeer and they also are not adjustable in any way.
|
sixnotfour |
Jun 12 2019, 12:57 PM
Post
#10
|
914 Wizard Group: Members Posts: 10,411 Joined: 12-September 04 From: Life Elevated..planet UT. Member No.: 2,744 Region Association: Rocky Mountains |
and they do wear
|
Superhawk996 |
Jun 12 2019, 07:29 PM
Post
#11
|
914 Guru Group: Members Posts: 5,749 Joined: 25-August 18 From: Woods of N. Idaho Member No.: 22,428 Region Association: Galt's Gulch |
Problem with a Quafe is that they induce corner entry under steer and they also are not adjustable in any way. All limited slip's will add under steer - nature of the beast. Helical's are indeed adjustable - bias ratio can be varied as a function of design typically about 2:1 but can be varied. Less bias = less under steer = less ability to transfer drive torque. No free lunch! Likewise most friction disc LSD's are not adjustable other than by design (# of plates and by spring pre-load at the time of build-up). Most importantly to all conventional LSD's - get a wheel in the air. No torque transferred. In practice - not an issue for most 914's operating on the street (IMG:style_emoticons/default/biggrin.gif) Unless you're talking electronic LSD's or torque vectoring differentials but that's another animal altogether. |
Superhawk996 |
Jun 12 2019, 07:30 PM
Post
#12
|
914 Guru Group: Members Posts: 5,749 Joined: 25-August 18 From: Woods of N. Idaho Member No.: 22,428 Region Association: Galt's Gulch |
|
Superhawk996 |
Jun 12 2019, 07:33 PM
Post
#13
|
914 Guru Group: Members Posts: 5,749 Joined: 25-August 18 From: Woods of N. Idaho Member No.: 22,428 Region Association: Galt's Gulch |
Still pretty neat that these are floating around and glad to see the parts offered up for sale.

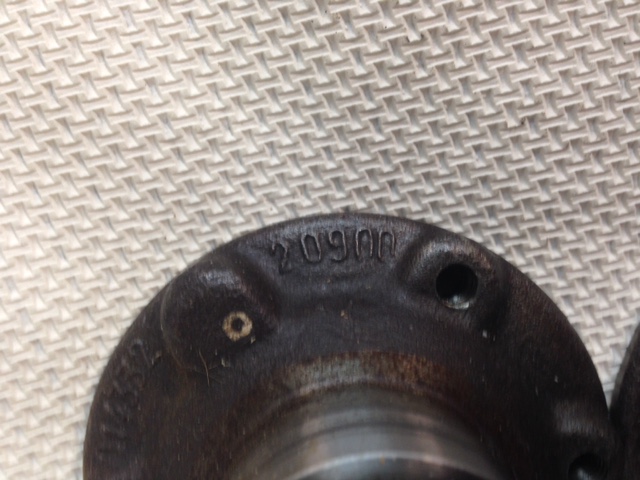

I've been trying to track down the part number that seems to be inscribed on these - not matching PET. Don't seem to follow Porsche numbering. Anyone know what they are? |
old914dog |
Jun 13 2019, 11:00 AM
Post
#14
|
Member Group: Members Posts: 72 Joined: 28-August 04 From: dallas,tx Member No.: 2,643 Region Association: None |
Going from an open dif to lsd or quaife is an eye-opener the first time you hit the gas in a corner!! A locked or welded dif is another world! First time for me was Road Atlanta with a welded dif in the rain....you have to sling the car, just like a dirt tracker!! After running all 4 difs, I think my best times were with the lsd. Anecdotal, yes...but true for me. Best aide to going fast is more seat time!!! Spend less on "stuff" and practice more and read about chassis setup. Track tire temps, all of it. Just saying!
|
old914dog |
Jun 19 2019, 04:14 PM
Post
#15
|
Member Group: Members Posts: 72 Joined: 28-August 04 From: dallas,tx Member No.: 2,643 Region Association: None |
$1800 and the bottle of Crown is back!
|
Superhawk996 |
Jul 4 2019, 10:10 AM
Post
#16
|
914 Guru Group: Members Posts: 5,749 Joined: 25-August 18 From: Woods of N. Idaho Member No.: 22,428 Region Association: Galt's Gulch |
Someone needs to buy this to keep me away from it!
|
rgalla9146 |
Jul 4 2019, 08:27 PM
Post
#17
|
Advanced Member Group: Members Posts: 4,545 Joined: 23-November 05 From: Paramus NJ Member No.: 5,176 Region Association: None |

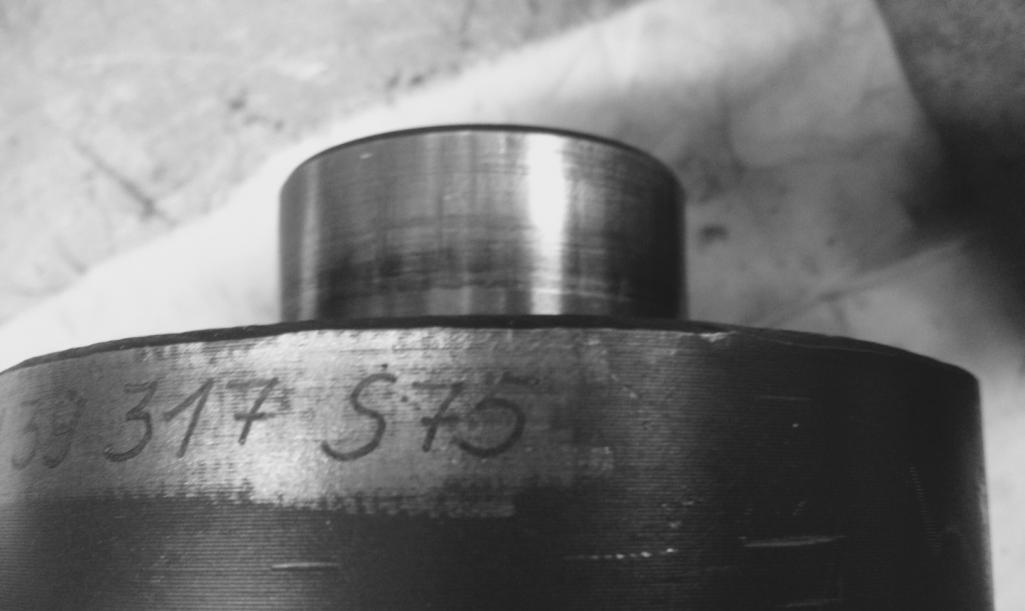

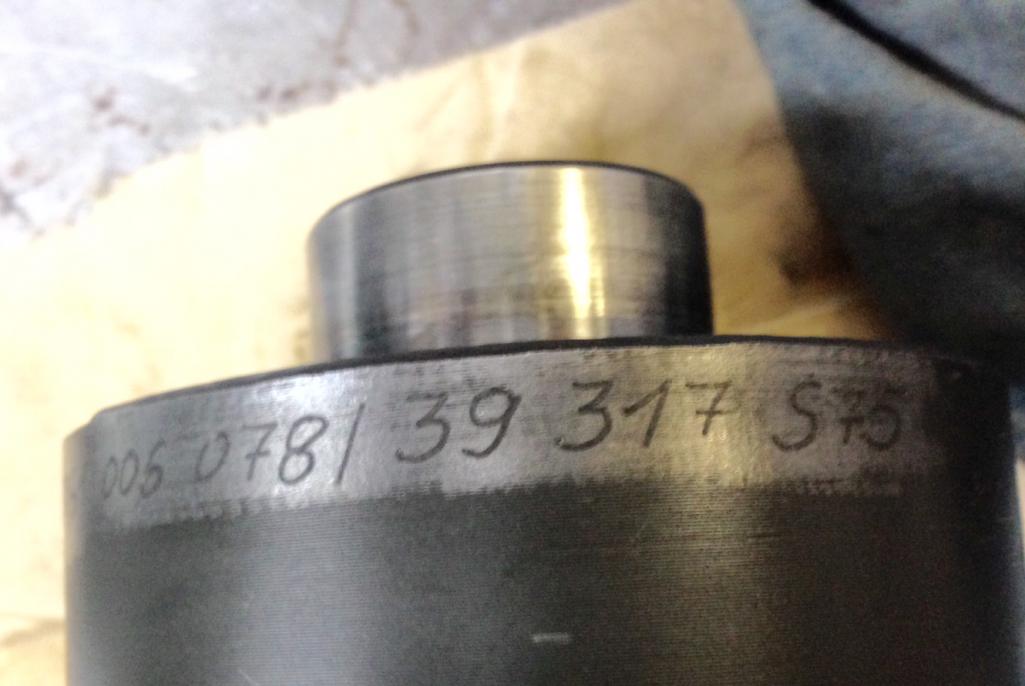

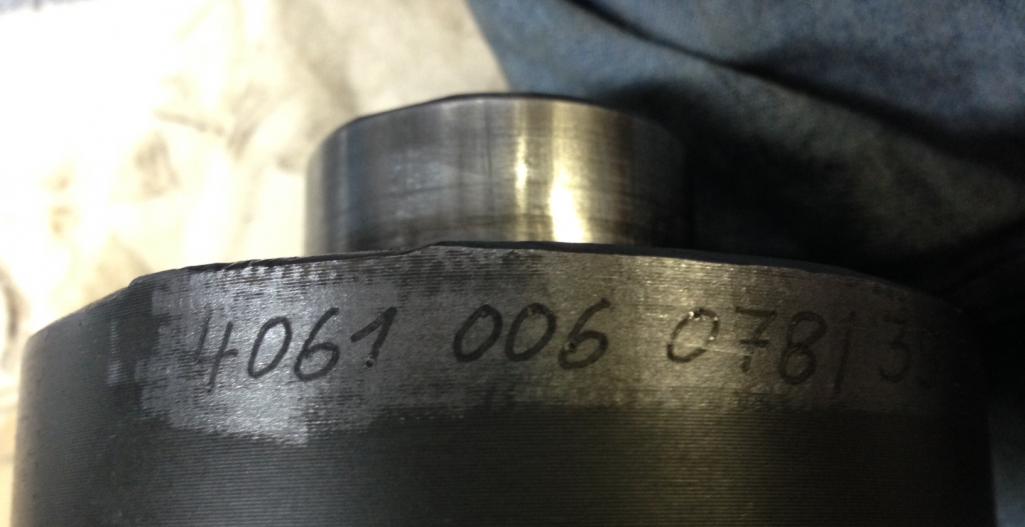

Still pretty neat that these are floating around and glad to see the parts offered up for sale. I've been trying to track down the part number that seems to be inscribed on these - not matching PET. Don't seem to follow Porsche numbering. Anyone know what they are? The inscribed numbers appear on both the ring gear and the pinion gear They are manufactured and machined as a pair and are marked to keep them from being paired with the wrong partner. They are not part numbers. |
Superhawk996 |
Jul 5 2019, 11:09 AM
Post
#18
|
914 Guru Group: Members Posts: 5,749 Joined: 25-August 18 From: Woods of N. Idaho Member No.: 22,428 Region Association: Galt's Gulch |
Still pretty neat that these are floating around and glad to see the parts offered up for sale. I've been trying to track down the part number that seems to be inscribed on these - not matching PET. Don't seem to follow Porsche numbering. Anyone know what they are? The inscribed numbers appear on both the ring gear and the pinion gear They are manufactured and machined as a pair and are marked to keep them from being paired with the wrong partner. They are not part numbers. Hmm. Could be, but in the case of this LSD, it wouldn't be matched to a ring and pinion would it? Maybe numbers to match the two parts (case and cover) of the LSD? Any factory part numbers on the LSD itself? Per PET should be 901 332 053 13 |
rgalla9146 |
Jul 7 2019, 06:21 AM
Post
#19
|
Advanced Member Group: Members Posts: 4,545 Joined: 23-November 05 From: Paramus NJ Member No.: 5,176 Region Association: None |
Still pretty neat that these are floating around and glad to see the parts offered up for sale. I've been trying to track down the part number that seems to be inscribed on these - not matching PET. Don't seem to follow Porsche numbering. Anyone know what they are? The inscribed numbers appear on both the ring gear and the pinion gear They are manufactured and machined as a pair and are marked to keep them from being paired with the wrong partner. They are not part numbers. Hmm. Could be, but in the case of this LSD, it wouldn't be matched to a ring and pinion would it? Maybe numbers to match the two parts (case and cover) of the LSD? Any factory part numbers on the LSD itself? Per PET should be 901 332 053 13 I see your point and I agree. It's unlikely the LSD is marked to match the gears. The inscribed numbers in your photos are most likely ZF production marks. Not part numbers. As you point out, probably to match the two major components of the diff. Much like a pair of transmission gears. My bad. |
old914dog |
Jul 9 2019, 07:32 PM
Post
#20
|
Member Group: Members Posts: 72 Joined: 28-August 04 From: dallas,tx Member No.: 2,643 Region Association: None |
$1600 and a gallon of crown!!
|
