> engine is back in with radiator, as well as, radiator shroud pics
scotty914
post Feb 4 2005, 04:48 PM
Post #1


suby torque rules
***

Group: Members
Posts: 1,528
Joined: 20-July 03
From: maryland, the land of 25 year
Member No.: 924
okay as some of you know ( and some of you who dont care ) i built the radiator support frame, and welded it to the fire wall. then i sealed the frame off to the fire wall with sheet AL. now the radiator sits in the frame and get bolted to the top ( with grommets ). the first pic is the frame welded to fire wall with the shouding in place, i still need to make the scoop for the bottom though.

pic deleted by me
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scotty914
post Feb 4 2005, 04:50 PM
Post #2


suby torque rules
***

Group: Members
Posts: 1,528
Joined: 20-July 03
From: maryland, the land of 25 year
Member No.: 924
another shot of the shrouding on the drivers side from the outside

pic deleted by me
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scotty914
post Feb 4 2005, 04:52 PM
Post #3


suby torque rules
***

Group: Members
Posts: 1,528
Joined: 20-July 03
From: maryland, the land of 25 year
Member No.: 924
okay here is a pic of the radiator mounted to the frame

pic deleted by me
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scotty914
post Feb 4 2005, 04:54 PM
Post #4


suby torque rules
***

Group: Members
Posts: 1,528
Joined: 20-July 03
From: maryland, the land of 25 year
Member No.: 924
okay second to last, the engine bolted back in to the car with the radiator in place

pic deleted by me
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scotty914
post Feb 4 2005, 04:56 PM
Post #5


suby torque rules
***

Group: Members
Posts: 1,528
Joined: 20-July 03
From: maryland, the land of 25 year
Member No.: 924

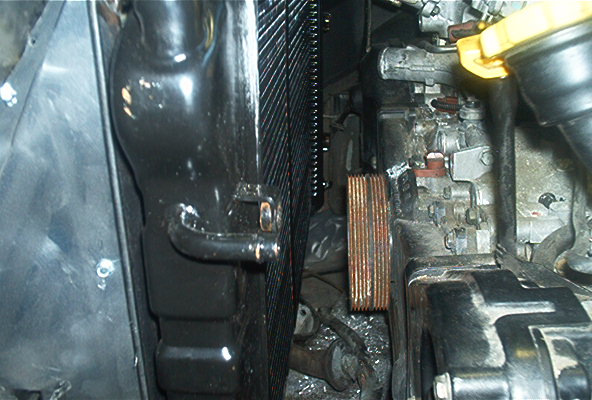

last pic ... front of motor showing the pully clearence to the radiator


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Feb 4 2005, 05:05 PM
Post #6


914 Freak!
***************

Group: Members
Posts: 17,150
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
sweet....hope it works, you might be proving a bunch of people wrong.....of course I guess for the V8 guys, it does not matter due to the lack of space (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Feb 4 2005, 05:17 PM
Post #7


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Pulls air from under the car?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bondo
post Feb 4 2005, 05:19 PM
Post #8


Practicing my perpendicular parking
****

Group: Members
Posts: 4,277
Joined: 19-April 03
From: Los Osos, CA
Member No.: 587
Region Association: Central California
Looks nice! I wish I had room to do that (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)

Oh man, that avatar... (IMG:http://www.914world.com/bbs2/html/emoticons/wacko.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bondo
post Feb 4 2005, 05:22 PM
Post #9


Practicing my perpendicular parking
****

Group: Members
Posts: 4,277
Joined: 19-April 03
From: Los Osos, CA
Member No.: 587
Region Association: Central California
It woulda been cool to make a frame that holds the engine/radiator/battery/etc. as a unit.. then you could drop the engine without disconencting any hoses. After you got it out you could set the engine on a skateboard, bolt a couple wheels to the trans output flanges and ride it around (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scotty914
post Feb 4 2005, 05:29 PM
Post #10


suby torque rules
***

Group: Members
Posts: 1,528
Joined: 20-July 03
From: maryland, the land of 25 year
Member No.: 924
QUOTE (McMark @ Feb 4 2005, 03:17 PM)
Pulls air from under the car?

yup, using a spring loaded kydex scoop. spring loaded so if i hit a speed bump it will rotate out of the way, and kydex which is a plastic that is stiff enough to hold its shape but can bend very easily. kydex is used to make gun holsters as well as many other items.

the scoop will be about 2 inches below the floor pan and 28 inches wide, or about the same size as the air deflectors. speaking of the air deflectors does any body need a set. the opening of the area feeding in to the radiator is 5 inches by 28 inches, the scoop just helps the air go the right direction at speed
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scotty914
post Feb 4 2005, 05:30 PM
Post #11


suby torque rules
***

Group: Members
Posts: 1,528
Joined: 20-July 03
From: maryland, the land of 25 year
Member No.: 924
QUOTE (bondo @ Feb 4 2005, 03:22 PM)
After you got it out you could set the engine on a skateboard, bolt a couple wheels to the trans output flanges and ride it around (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)

oh ya a 180 hp skate board
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Feb 4 2005, 05:32 PM
Post #12


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Sounds like it's gonna work perfect for that 4. You could probably do the same with those W6 engines. They're supposed to be pretty short.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scruz914
post Feb 4 2005, 06:02 PM
Post #13


Senior Member
***

Group: Members
Posts: 815
Joined: 26-February 04
From: Santa Cruz, CA
Member No.: 1,724
Will you be running a fan, either turned by the engine or electric? My experience with a V6 in my VW Bus was that you could be stopped or going slow only so long before the temp goes up. I had no problems after I mounted an electric fan on the radiator.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scotty914
post Feb 4 2005, 06:09 PM
Post #14


suby torque rules
***

Group: Members
Posts: 1,528
Joined: 20-July 03
From: maryland, the land of 25 year
Member No.: 924
QUOTE (scruz914 @ Feb 4 2005, 04:02 PM)
Will you be running a fan, either turned by the engine or electric?

1200 cfm fan controlled by the suby wiring and an overide switch

one thing i have not said anything about is the suby needs the heater core lines hooked up, if they are not hooked up the thermostat does not open, so i plan on putting in a motor cycle radiator with a fan ( the reason for using a radiator from a motor cycle is the cap will help in bleeding ) . in the summer i will just let the fan blow through the heater core ( motor cycle rad ) in the winter i will duct it through the stock heater tubes for heat. so i will be gaining an addition 100 square inches or so of constant air flow for cooling.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SpecialK
post Feb 4 2005, 07:45 PM
Post #15


aircraft surgeon
****

Group: Benefactors
Posts: 3,211
Joined: 15-March 04
From: Pacific, MO
Member No.: 1,797
Pretty slick Scott (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif) , it'll be interesting to see what kind of temps you'll be running. How's the clearance for the air cleaner/intake boot? Looks kind of close, but that just may the the angle of the pic.

Kevin
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MecGen
post Feb 5 2005, 06:56 AM
Post #16


8 Easy Steps
***

Group: Members
Posts: 848
Joined: 8-January 05
From: Laval, Canada
Member No.: 3,421
COOL
Keep us informed. Maybe take a pic from under the car to show that clearance to road.
WBR
Joe
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mattillac
post Feb 5 2005, 01:30 PM
Post #17


robots!
***

Group: Members
Posts: 536
Joined: 27-October 04
From: vallejo,ca
Member No.: 3,020
scott, you're my hero! (IMG:http://www.914world.com/bbs2/html/emoticons/pray.gif) i'm gonna start saving my pennies up for a suby motor!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
