> Sway bar mounts - Front / Rear, All of them in one place!
Engman
post Mar 9 2005, 06:29 PM
Post #1


Zoisite
***

Group: Benefactors
Posts: 1,349
Joined: 25-March 03
From: New Albany, IN
Member No.: 475
Since I have several versions and a couple of new items - here they are all in one place. There are links to the old postings below.

Front Sway Bar Mounts

Rear Sway Bar Mounts

XL Front Sway Bar Mounts

Please see http://engmanparts.com for details

PM or email me

now on to the new stuff - next post

M
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Engman
post Mar 9 2005, 06:35 PM
Post #2


Zoisite
***

Group: Benefactors
Posts: 1,349
Joined: 25-March 03
From: New Albany, IN
Member No.: 475

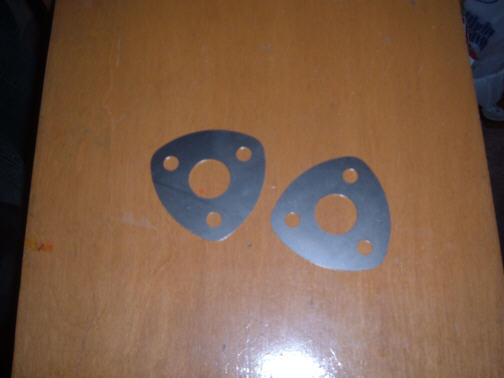

The Factory did it differently - spot welded plates with nuts

For details - Engman Parts


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Engman
post Mar 9 2005, 06:39 PM
Post #3


Zoisite
***

Group: Benefactors
Posts: 1,349
Joined: 25-March 03
From: New Albany, IN
Member No.: 475

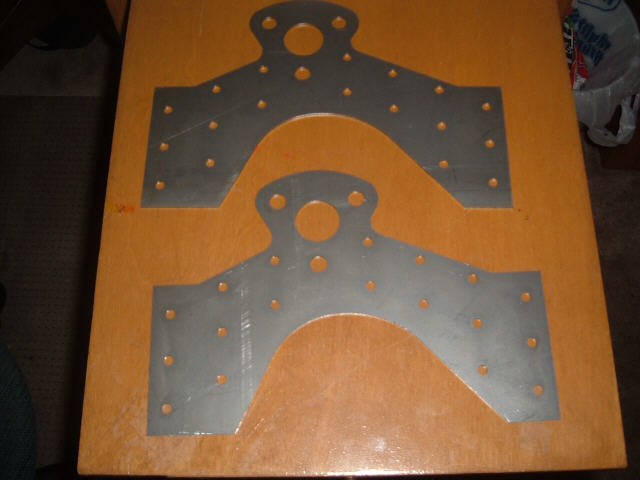

Now another issue that some have had is the front sways ripping out - thus a large reinforcement piece for use in the wheel wheel - these are 16G material.

Price - please see http://www.engmanparts.com

PM or email me....


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Engman
post Mar 20 2005, 10:49 AM
Post #4


Zoisite
***

Group: Benefactors
Posts: 1,349
Joined: 25-March 03
From: New Albany, IN
Member No.: 475

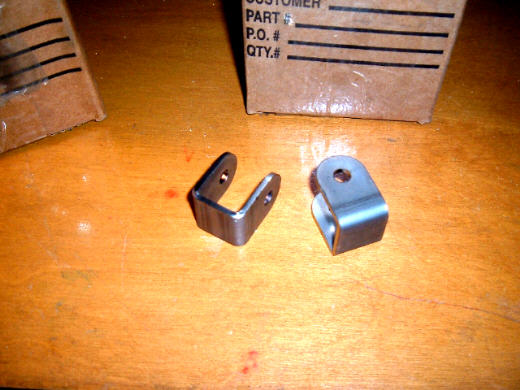

Front sway a arm tabs - Price - please see http://www.engmanparts.com


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Engman
post Sep 29 2005, 06:23 AM
Post #5


Zoisite
***

Group: Benefactors
Posts: 1,349
Joined: 25-March 03
From: New Albany, IN
Member No.: 475
A couple of people have asked if I still make these -

Yes - I do.

M
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Oct 5 2005, 05:38 PM
Post #6


"I got blisters on me fingers"
**********

Group: Members
Posts: 11,246
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
QUOTE (Engman @ Mar 9 2005, 04:35 PM)
The Factory added a reinforcement plate in the wheel well on cars equipped w/ sway bars from the factory. I have reproduced these.

$18.00 seperately aset - includes shipping or add $14.00 to any front sway bar mount order.

Thus the front sways w/ reinforcements - $44.50 include shipping.

Mark Just to be correct the piece the factory added was the SOLE mounting point (in each well) for the Anti-sway bar bushings.
What they did was cut 4 holes and then spot and blob weld a stamped sheet metal piece with 3 nuts afixed in the wheel well wall. No mods were made in the gas tank cavitiy.

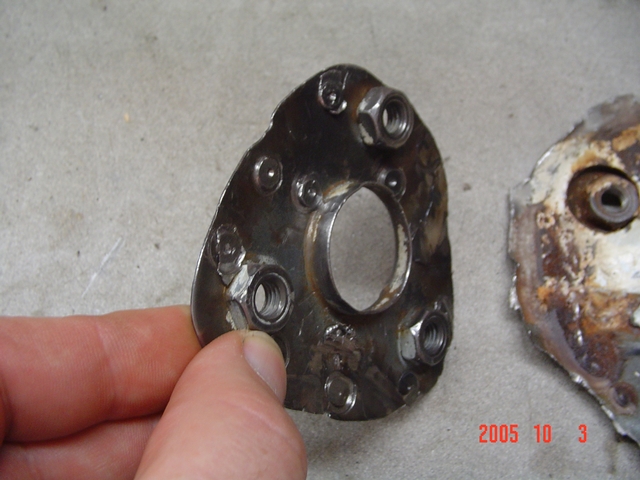

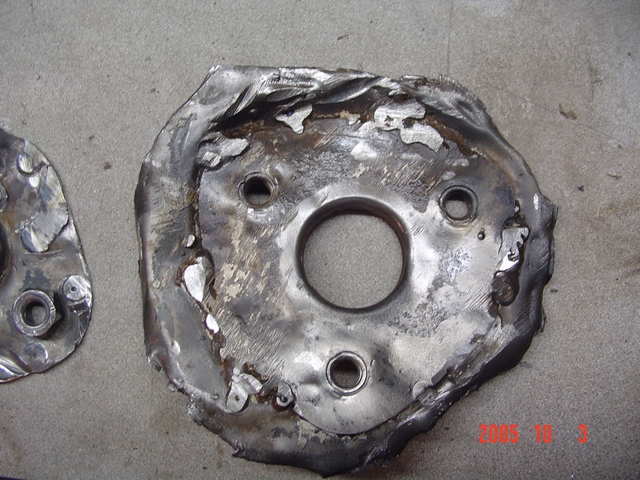

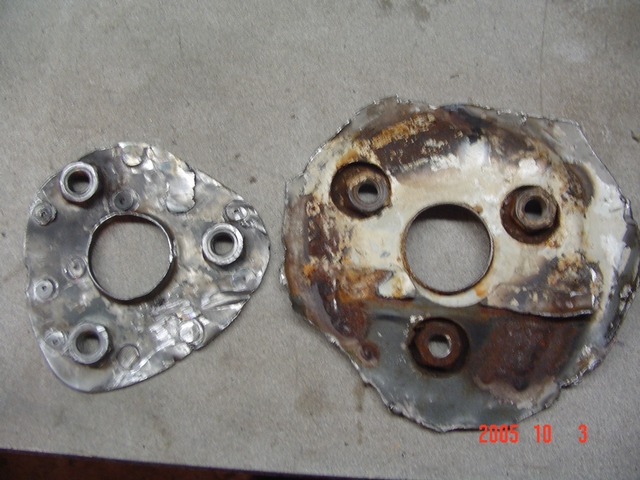

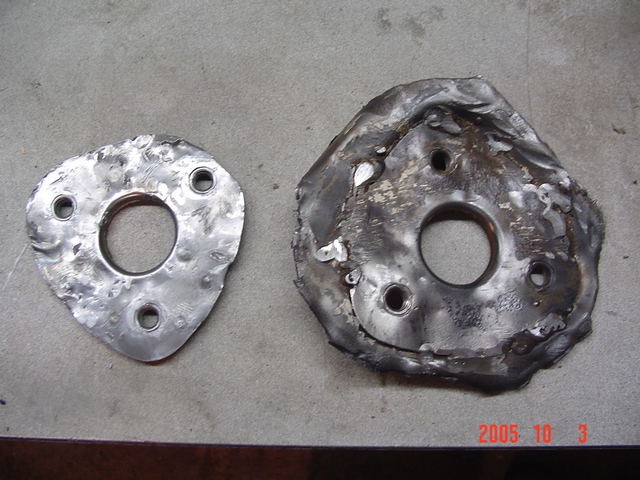

Here are some pics of the piece autopsyed from my car in prep for restoration.
Do you offer those pieces including the nuts welded in place? I can prolly live w/o the Large hole sholder.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Oct 5 2005, 05:41 PM
Post #7


"I got blisters on me fingers"
**********

Group: Members
Posts: 11,246
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
#2


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Oct 5 2005, 05:42 PM
Post #8


"I got blisters on me fingers"
**********

Group: Members
Posts: 11,246
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
asdf


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Oct 5 2005, 05:44 PM
Post #9


"I got blisters on me fingers"
**********

Group: Members
Posts: 11,246
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
(IMG:http://www.914world.com/bbs2/html/emoticons/wacko.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Engman
post Oct 6 2005, 05:10 PM
Post #10


Zoisite
***

Group: Benefactors
Posts: 1,349
Joined: 25-March 03
From: New Albany, IN
Member No.: 475
Yep - you are correct. My Bad.

I can add nuts and get them for ya.

M
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Engman
post Oct 7 2005, 01:16 PM
Post #11


Zoisite
***

Group: Benefactors
Posts: 1,349
Joined: 25-March 03
From: New Albany, IN
Member No.: 475

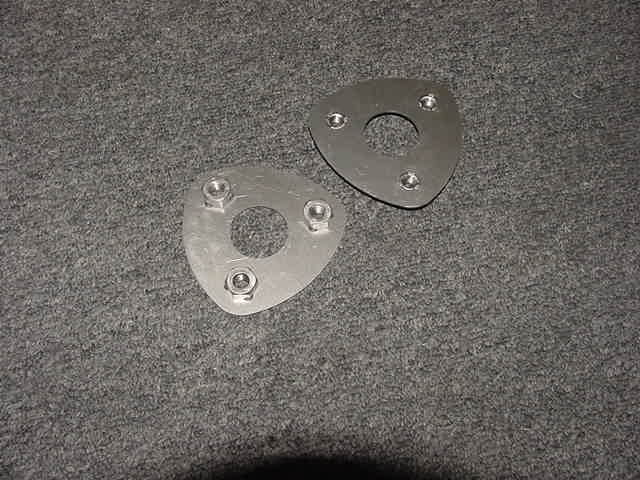

How bout this..... just spot welded em - too hot to handle...



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Wild 6
post Jan 20 2006, 12:20 PM
Post #12


See you at the next autocross.
**

Group: Members
Posts: 212
Joined: 16-November 04
From: Phoenix, AZ
Member No.: 3,128
Got my mounts today. They rock. Outstanding quality. (IMG:http://www.914world.com/bbs2/html/emoticons/smilie_pokal.gif)

Thanks,
Andy
