> 4 lug wheels on NARROW body 914's
carr914
post Oct 25 2013, 09:12 PM
Post #81


Racer from Birth
****************************************************************************************************

Group: Members
Posts: 124,936
Joined: 2-February 04
From: Tampa,FL
Member No.: 1,623
Region Association: South East States
That sounds right for the wheels pictured. My Grakus's looked just like them & with a name like Graku, they might have been an Eastern European Copy
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
lennyhope
post Oct 26 2013, 02:09 AM
Post #82


Member
**

Group: Members
Posts: 168
Joined: 2-November 11
From: prescot
Member No.: 13,736
Region Association: England
QUOTE(Pat Garvey @ Oct 25 2013, 11:32 PM) *

QUOTE(lennyhope @ Oct 25 2013, 10:47 AM) *

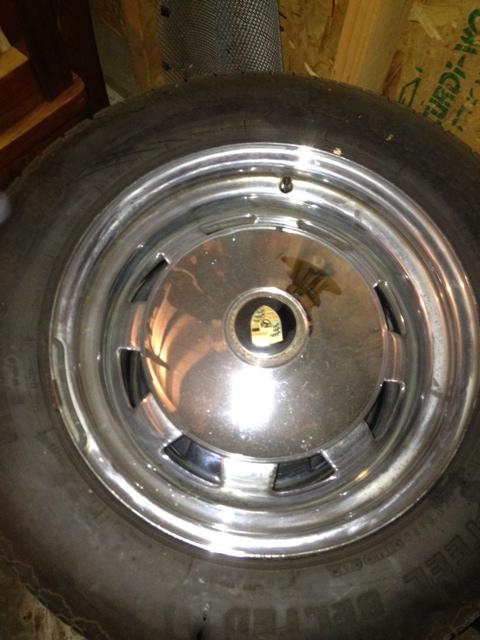

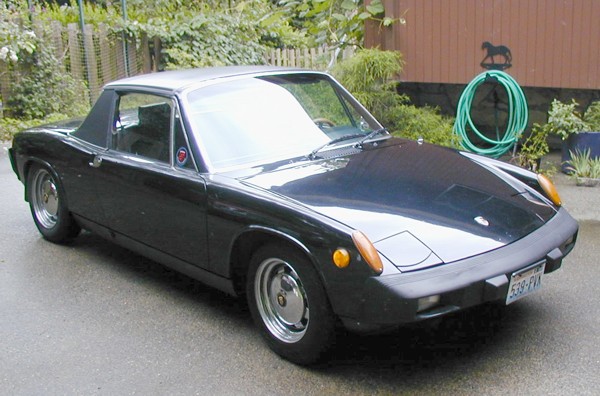

I've been offered some of these wheels. Does anyone know more about them??

(IMG:http://www.914world.com/bbs2/uploads_offsite/i152.photobucket.com-13736-1382719628.1.jpg)

(IMG:http://www.914world.com/bbs2/uploads_offsite/i152.photobucket.com-13736-1382719628.2.jpg)

These wheels where manufactured by a Brazilian company named Mangal. They are high quality and were offered as dealer options for 914's in the 70's. Think they stopped making them in the late '70's, as alloy wheels were becoming more mainstream. A Chinese company remade them in the 90's, with horrible results (BIG surprise there).

I've had my Brazilian wheels for 40 years and love them. There are probably some still available, but stay away from that Chinese crap (and they are CRAP!).


The ones I have been offered are Made in Brasil...and have the Mangal on them...Big thanks gor the info....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
lennyhope
post Oct 26 2013, 10:31 AM
Post #83


Member
**

Group: Members
Posts: 168
Joined: 2-November 11
From: prescot
Member No.: 13,736
Region Association: England

What markings/stamps are on the factory 914 5.5 steelies that distinguish them from others??
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
euro911
post Oct 26 2013, 10:54 AM
Post #84


Retired & living the dream. God help me if I wake up!
*****

Group: Members
Posts: 8,892
Joined: 2-December 06
From: So.Cal. & No.AZ (USA)
Member No.: 7,300
Region Association: Southern California

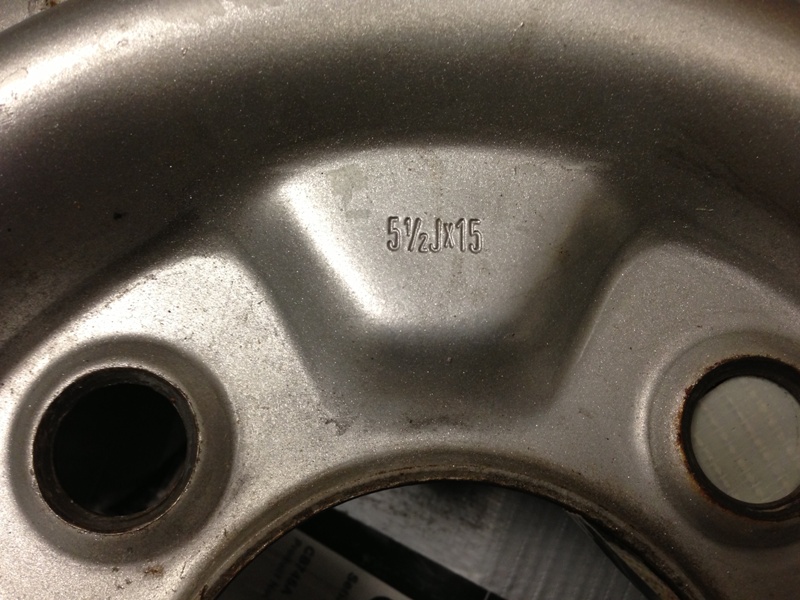

Size Code

Attached Image

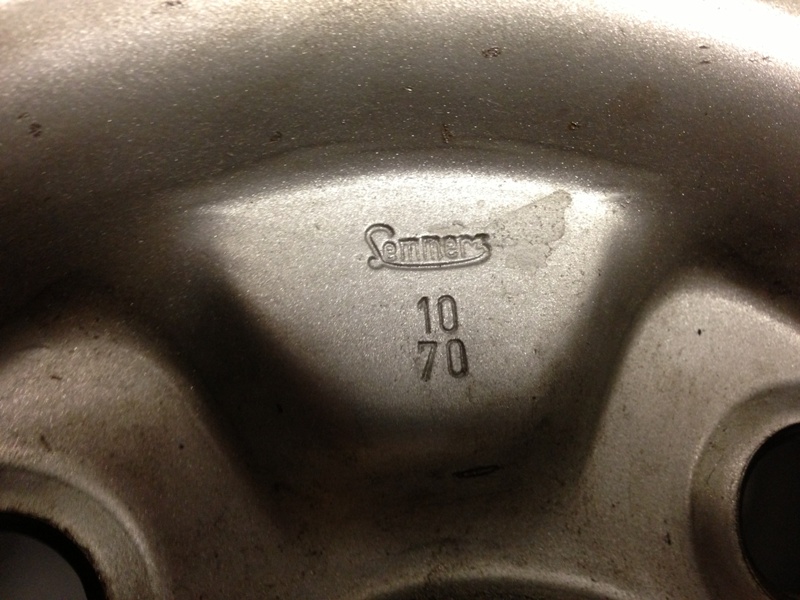

Manufacturer and Date Code

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
lennyhope
post Oct 26 2013, 11:52 AM
Post #85


Member
**

Group: Members
Posts: 168
Joined: 2-November 11
From: prescot
Member No.: 13,736
Region Association: England
Instead of 10 and 70, what would the other wheels tend to have? I guess what I am saying is What do they mean??

Many thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
euro911
post Oct 26 2013, 02:34 PM
Post #86


Retired & living the dream. God help me if I wake up!
*****

Group: Members
Posts: 8,892
Joined: 2-December 06
From: So.Cal. & No.AZ (USA)
Member No.: 7,300
Region Association: Southern California
51/2 J x 15 = wheel width, offset and diameter

10 = month (October)

70 = year (1970)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
lennyhope
post Oct 26 2013, 02:38 PM
Post #87


Member
**

Group: Members
Posts: 168
Joined: 2-November 11
From: prescot
Member No.: 13,736
Region Association: England
"Doh!"

Where is the offset marked??
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
euro911
post Oct 26 2013, 10:34 PM
Post #88


Retired & living the dream. God help me if I wake up!
*****

Group: Members
Posts: 8,892
Joined: 2-December 06
From: So.Cal. & No.AZ (USA)
Member No.: 7,300
Region Association: Southern California
I believe 'J' is the offset/backspacing designator. I'll measure the back-spacing when I get back to the shop. If anyone else knows the info off the top of their head, chime in.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Oct 27 2013, 08:10 AM
Post #89


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,240
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
4 5/8"?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Craigers17
post Sep 8 2017, 06:22 PM
Post #90


Senior Member
***

Group: Members
Posts: 844
Joined: 5-August 17
From: Rome, GA
Member No.: 21,317
Region Association: South East States

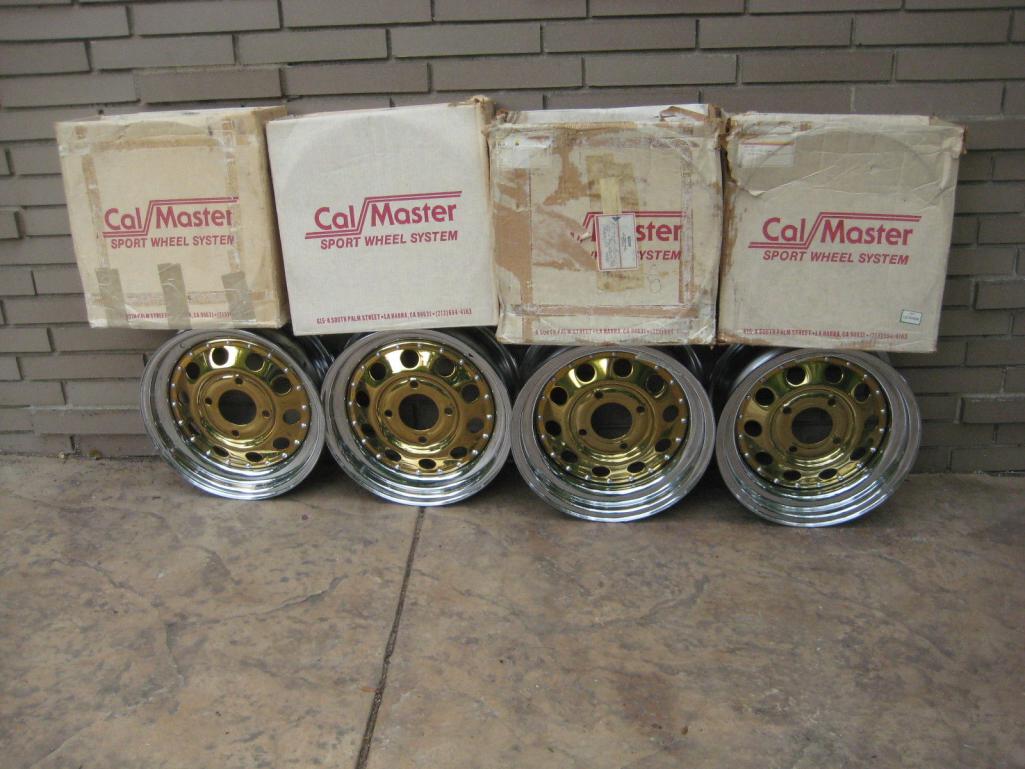

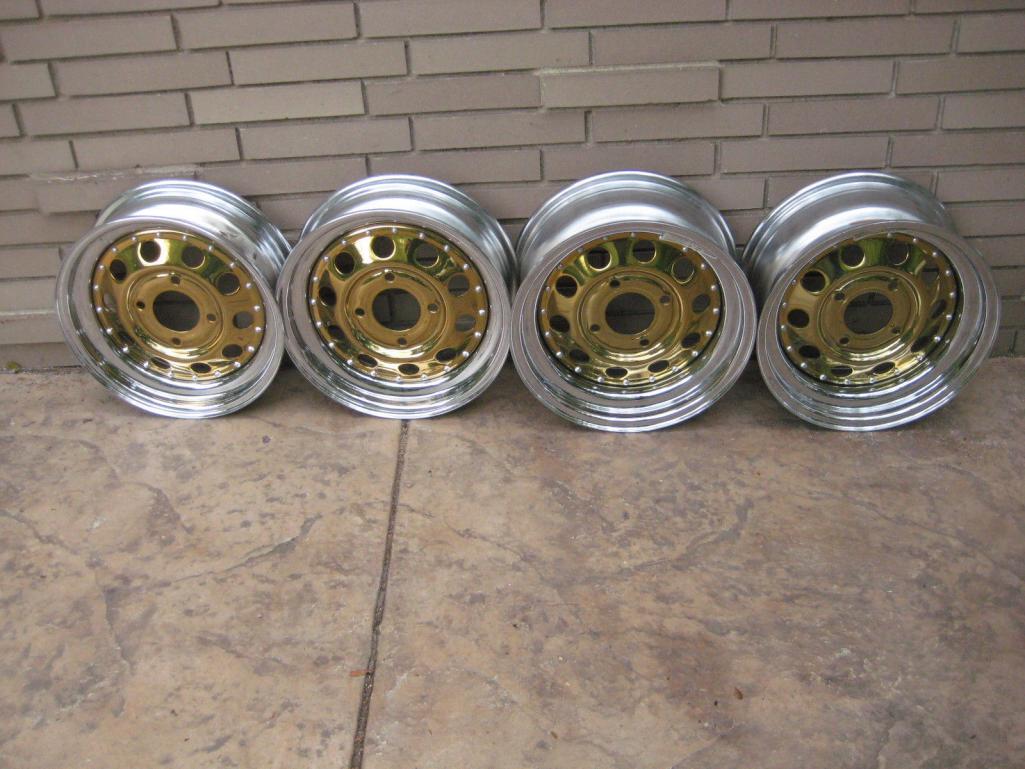

...As a newbie, I hate to bust in on a classic wheel thread, but I've been doing a lot of wheel shopping lately, and I found these on Ebay. I think they might be the unidentified wheels in pic #19.

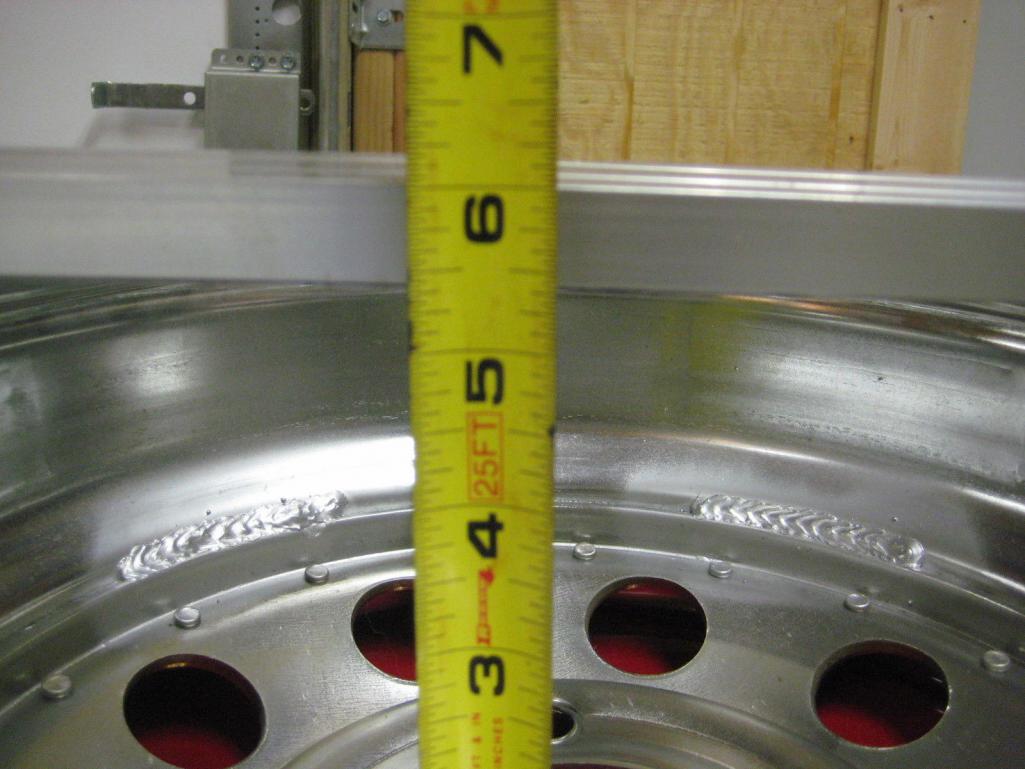

They are "Cal Master" and appear to be VW type wheels 4x130's. I wondered if anyone has heard of these. The only caveat is that two are 15x5 and two are 15x7...don't know how this would affect the handling. Based on the backspacing, it looks like these might actually work on a narrow body??? (yes, that is a statement/question). Maybe with a spacer? Dunno.
Attached Image Attached ImageAttached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TM_Corey
post Sep 8 2017, 06:31 PM
Post #91


Member
**

Group: Members
Posts: 231
Joined: 28-March 16
From: Indianapolis
Member No.: 19,809
Region Association: Upper MidWest

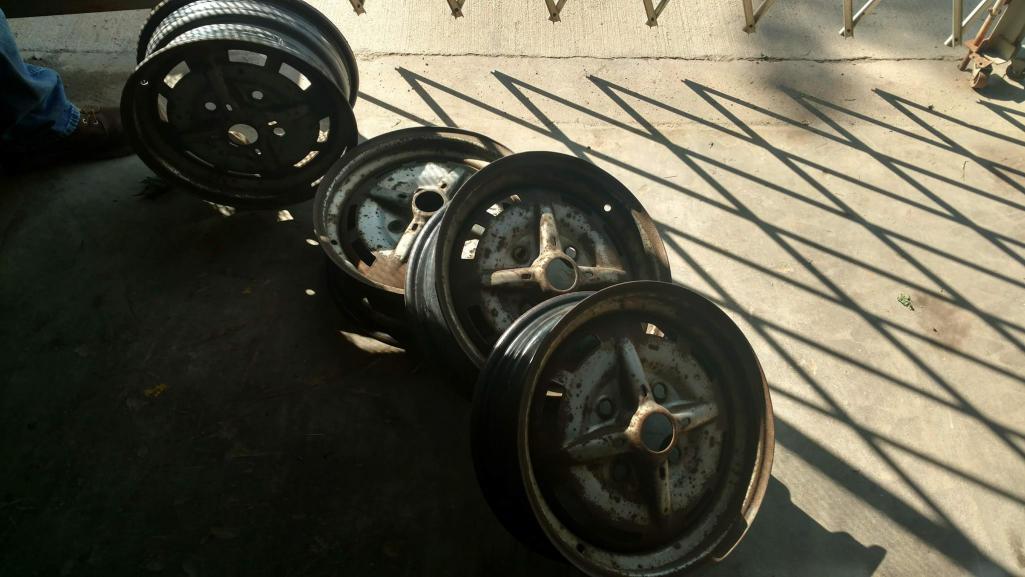

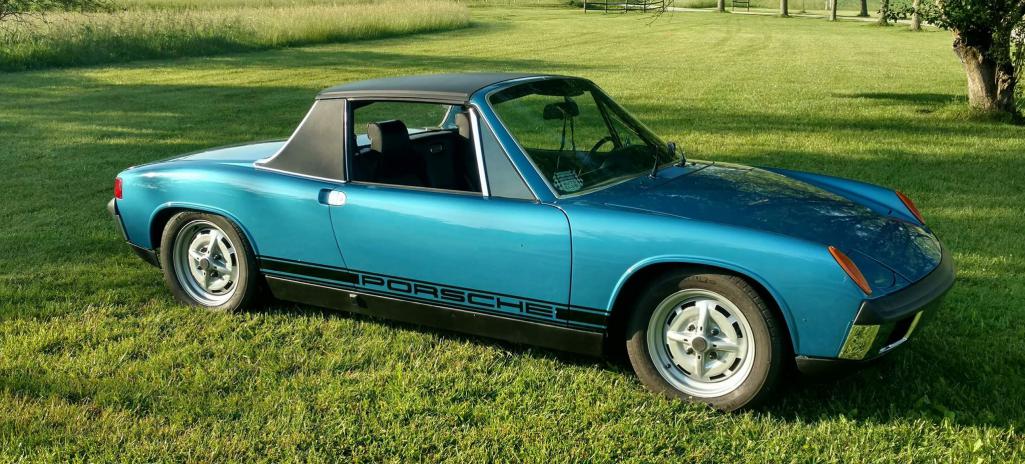

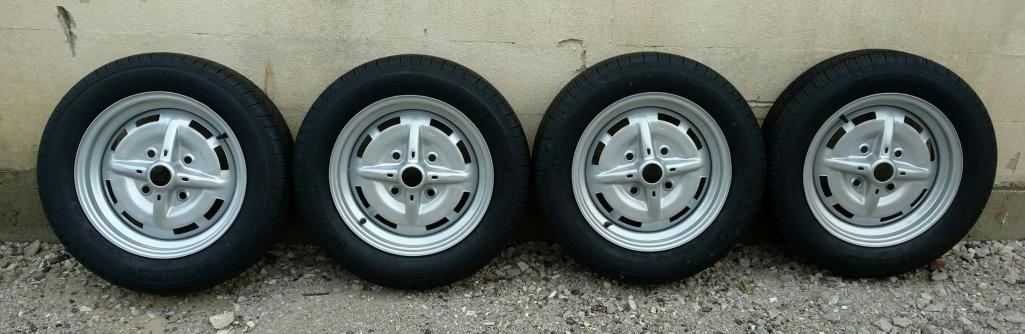

I get razzed about my steel wheels but I like them and they are the actual original wheels that came with my car. I like to say it's a "sleeper" 2.0. (IMG:style_emoticons/default/biggrin.gif)

Although if I had it to do over again I would have painted instead of powder coated.



Attached thumbnail(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BillC
post Sep 8 2017, 07:26 PM
Post #92


Senior Member
***

Group: Members
Posts: 632
Joined: 24-April 15
From: Silver Spring, MD
Member No.: 18,667
Region Association: MidAtlantic Region
QUOTE(euro911 @ Oct 27 2013, 12:34 AM) *

I believe 'J' is the offset/backspacing designator. I'll measure the back-spacing when I get back to the shop. If anyone else knows the info off the top of their head, chime in.

Actually, the "J" describes the bead seat contour. You can read more about it here, about halfway down the page.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
euro911
post Sep 8 2017, 09:08 PM
Post #93


Retired & living the dream. God help me if I wake up!
*****

Group: Members
Posts: 8,892
Joined: 2-December 06
From: So.Cal. & No.AZ (USA)
Member No.: 7,300
Region Association: Southern California
Thanks for that link Bill. Didn't know about the bead style, nor the hump style (IMG:style_emoticons/default/idea.gif)

Bookmarked it (IMG:style_emoticons/default/type.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
garrettlee2
post Sep 8 2017, 09:18 PM
Post #94


Member
**

Group: Members
Posts: 158
Joined: 8-September 12
From: riverside ca
Member No.: 14,901
Region Association: None

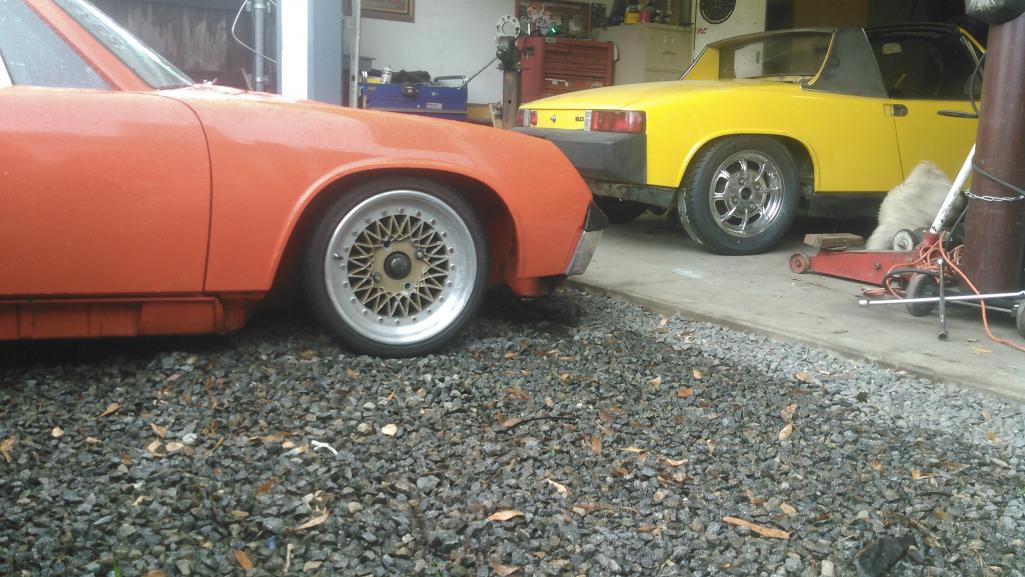

Attached Image compomotive cx 400
