V8 topic: front mounted electric fuel pump wiring, ...where to tap 12V? |
neo914-6 |
Jul 20 2006, 02:06 AM
Post
#1
|
neo life Group: Members Posts: 5,086 Joined: 16-January 03 From: Willow Glen (San Jose) Member No.: 159 |
What's a good circuit to tap into near the front?

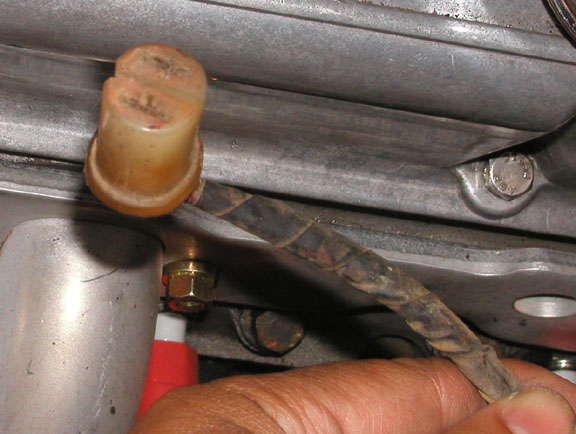

I tried to activate the stock relay and am stumped. I get 12V at #14 in the 14 pin plug on the relay board but no where else. Where can I find the plug in a '70 chassis, the one pictured near the hell hole did not ohm. It may be cut or maybe another plug. (IMG:style_emoticons/default/confused24.gif) Are Holley Blue's supposed to be high pitched? Attached image(s) |
McMark |
Jul 20 2006, 02:46 AM
Post
#2
|
914 Freak! Group: Retired Admin Posts: 20,179 Joined: 13-March 03 From: Grand Rapids, MI Member No.: 419 Region Association: None |
Do you still have the relay board?
The FI plug, terminal #3 must be grounded in order for the fuel pump relay to trip. The FI terminal is the four terminal connector near the rear of the relay board. Run a wire from the #3 spade terminal to the relay board ground point and the relay will trip and you will get 12v at the plug. (IMG:style_emoticons/default/wink.gif) Attached image(s) |
Nickm1 |
Jul 20 2006, 07:40 AM
Post
#3
|
Member Group: Members Posts: 76 Joined: 22-April 05 From: Madison Heights, MI Member No.: 3,966 |
I just run mine off of the ignition wire. So the pump only gets power when the key is turned on. Then to a manual on off toggle switch so if something happens when the car is on i can turn the pump off without killing the power to the rest of the car.
|
neo914-6 |
Jul 20 2006, 09:52 AM
Post
#4
|
neo life Group: Members Posts: 5,086 Joined: 16-January 03 From: Willow Glen (San Jose) Member No.: 159 |
Do you still have the relay board? The FI plug, terminal #3 must be grounded in order for the fuel pump relay to trip. The FI terminal is the four terminal connector near the rear of the relay board. Run a wire from the #3 spade terminal to the relay board ground point and the relay will trip and you will get 12v at the plug. (IMG:style_emoticons/default/wink.gif) Thanks Mark, I'll try that. I thought I solved it as it seem all the relays are in series and I only installed one for the pump. When I read the ECU controls it I gave up. |
BRAVE_HELIOS |
Nov 11 2010, 06:20 PM
Post
#5
|
"Knowledge speaks, wisdom listens" Group: Members Posts: 295 Joined: 25-September 06 From: The Land Of ID! Member No.: 6,920 Region Association: Pacific Northwest |
I just run mine off of the ignition wire. So the pump only gets power when the key is turned on. Then to a manual on off toggle switch so if something happens when the car is on i can turn the pump off without killing the power to the rest of the car. This is probably something out of electrical 101, but is it better to run the positive wire through the toggle switch or the negative wire? Thanks. (IMG:style_emoticons/default/smile.gif) |
computers4kids |
Nov 11 2010, 06:55 PM
Post
#6
|
Love these little cars! Group: Members Posts: 2,443 Joined: 11-June 05 From: Port Townsend, WA Member No.: 4,253 Region Association: None |
I had put a holly blue in the front trunk (75 spot) and quickly removed it...it was just too loud.
|
Mike Bellis |
Nov 11 2010, 07:22 PM
Post
#7
|
Resident Electrician Group: Members Posts: 8,345 Joined: 22-June 09 From: Midlothian TX Member No.: 10,496 Region Association: None |
I just run mine off of the ignition wire. So the pump only gets power when the key is turned on. Then to a manual on off toggle switch so if something happens when the car is on i can turn the pump off without killing the power to the rest of the car. This is probably something out of electrical 101, but is it better to run the positive wire through the toggle switch or the negative wire? Thanks. (IMG:style_emoticons/default/smile.gif) Niether one is better; only different. Typically in a low voltage system (below 100V) the ground is switched, ie. dome light, heater fan, injectors. But this is not always the case, ie. wiper motor, head lamps. If your switch is triggering a relay, the ground is usually switched unless the switch is illuminated. Then the positive is switched. Above 100V, the positive or "hot" wire is ALWAYS switched. In a car it can be both ways. It only depends on your needs. For my fuel pump I use a positive switch as an override for the EFI computer. This switch is also illuminated but I reverse the to and from leads. This way, if my ECU is running the pump I get feedback to illuminate the switch. If I turn the switch on, I also get a light. My ECU has a positive on/off for the fuel pump relay. I hope this makes perfect nonsense (IMG:style_emoticons/default/blink.gif) |
