> Wiring question, Last step to run
skline
post Oct 9 2004, 11:19 PM
Post #1


Born to Drive
*****

Group: Members
Posts: 7,910
Joined: 26-December 02
From: Costa Mesa, CA
Member No.: 17
Region Association: Southern California
On the relay board where the plug comes from the cabin, does anyone have a schematic for it telling me what wire is what? I am to that point and it would sure save me a lot of time if someone has this. If I can figure it out, I will be starting up the engine tomorrow. Film at 11:00
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Oct 9 2004, 11:43 PM
Post #2


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
The wiring diagram shows the connector on the relay board as well as where are the wires go.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
skline
post Oct 9 2004, 11:57 PM
Post #3


Born to Drive
*****

Group: Members
Posts: 7,910
Joined: 26-December 02
From: Costa Mesa, CA
Member No.: 17
Region Association: Southern California
Ok, Well, I just went through the one i have and I see the relay board but not the connector. Doesnt anyone have the pinout numbers and what they go to??
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Oct 9 2004, 11:59 PM
Post #4


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Time to fulfill my admin duties, I guess. (IMG:style_emoticons/default/laugh.gif)

Give me 15 minutes.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Oct 10 2004, 12:01 AM
Post #5


Resident German
*************************

Group: Admin
Posts: 41,854
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
Connector (mid '72+):

13|11| 9| 7| 5| 3| 1

14|12|10| 8| 6| 4| 2


1 = yellow, power to the starter
2 = blue, from alternator indicator light to D+ (red) on alternator harness
3 = grey/brown, from brakelight switch
4 = grey/brown, to brakelights
5 = green/red, oil-pressure sender to oil-pressure warning light
6 = not used
7 = black/purple, to tachometer, comes from pin #1 on coil
8 = black, from fuse #8, power for relays, goes to pin #15 on coil
9 = green/white, from heater blower switch to blower
10 = brown, to main ground connector
11 = green, to heater fan
12 = red, to battery
13 = black/red, to fuelpump
14 = red, to battery


early cars (pre mid '72) have:
6 = green/black, sportomatic warning light
11 = brown/white, to sportomatic

hope this helps,
(IMG:style_emoticons/default/cool.gif) Andy
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
markb
post Oct 10 2004, 12:14 AM
Post #6


914less :(
*****

Group: Members
Posts: 5,449
Joined: 22-January 03
From: Nipomo, CA
Member No.: 180
Region Association: Central California
Hey Andy, got the one for the other connector, too? The schematic always confuses me. (IMG:style_emoticons/default/wacko.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Oct 10 2004, 12:19 AM
Post #7


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
According to the 73 wiring diagram:

1 - Power to starter from key
2 - Oil Pressure Light (Idiot Light)
3 - Stop Light Switch
4 - Stop Lights, Turn Signals, or Reverse Lights (?)
5 - Alternator Light
6 - --nothing--
7 - To tach (pulsed signal)
8 - Powered from Ignition switch (12V when ignition is on, goes to relays and coil)
9 - Heater Lever
10 - Ground
11 - Heater Fan
12 - Battery (12V)
13 - Fuel Pump
14 - Battery (12V)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Oct 10 2004, 12:21 AM
Post #8


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Damn you Andy for already having it. (IMG:style_emoticons/default/tongue.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Oct 10 2004, 12:23 AM
Post #9


Resident German
*************************

Group: Admin
Posts: 41,854
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
Connector (mid '72+):

 1| 2
 3| 4
 5| 6
 7| 8
 9|10
11|12

1 = green/red, to oil pressure sender
2 = grey/brown, to backup light switch
3 = not used
4 = grey/brown, to backup light switch
5 = black/purple, tachometer to pin #1 on coil
6 = yellow, to starter
7 = black/red, to pin #15 on coil
8 = not used
9 = not used
10 = not used
11 = not used
12 = white, auxilary air valve


early cars (pre mid '72) have:
3 = green/black, to oil temp sender
11 = green, to heater blower


hope this helps,
(IMG:style_emoticons/default/cool.gif) Andy
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Oct 10 2004, 12:26 AM
Post #10


Resident German
*************************

Group: Admin
Posts: 41,854
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(markd@mac.com @ Oct 9 2004, 11:21 PM)
Damn you Andy for already having it. (IMG:style_emoticons/default/tongue.gif)

and you got 2. and 5. flipped ...

(IMG:style_emoticons/default/biggrin.gif) Andy
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Oct 10 2004, 12:38 AM
Post #11


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Ah, yeah the wiring harness shows the guages from the back. Oops.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
skline
post Oct 10 2004, 06:19 AM
Post #12


Born to Drive
*****

Group: Members
Posts: 7,910
Joined: 26-December 02
From: Costa Mesa, CA
Member No.: 17
Region Association: Southern California
Thanks guys, I am off to the LB Veterans stadium for the high performance swap meet for some last minute goodies, when I get home I will get started on the car and with any luck, fire the engine up for the first time. Wish me luck.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mikerose
post Oct 10 2004, 12:33 PM
Post #13


Happy to be back
***

Group: Members
Posts: 657
Joined: 31-December 02
From: Pittsburg,ca
Member No.: 60
Region Association: None

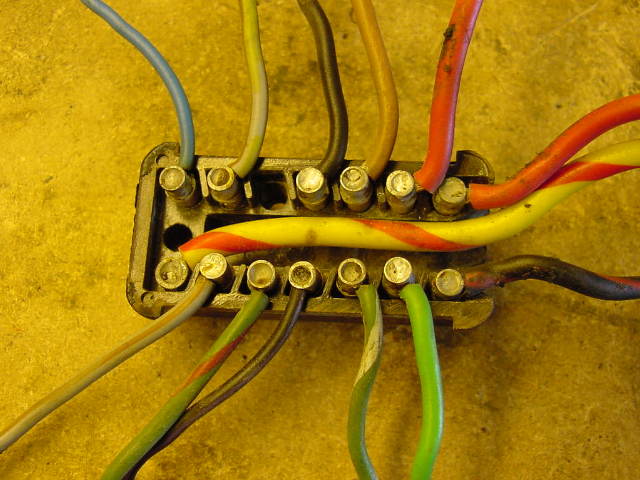

Will this help (IMG:style_emoticons/default/biggrin.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
markb
post Oct 10 2004, 06:49 PM
Post #14


914less :(
*****

Group: Members
Posts: 5,449
Joined: 22-January 03
From: Nipomo, CA
Member No.: 180
Region Association: Central California
Excellent! (IMG:style_emoticons/default/clap56.gif)

Thanks, this makes things muche easier to understand. (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mrs. K
post Oct 10 2004, 07:01 PM
Post #15


Grieve we must, but celebrate a great life!
*****

Group: Birthday Fairy
Posts: 7,513
Joined: 6-June 04
From: Long Beach, CA
Member No.: 2,166
QUOTE(skline @ Oct 10 2004, 05:19 AM)
Thanks guys, I am off to the LB Veterans stadium for the high performance swap meet for some last minute goodies, when I get home I will get started on the car and with any luck, fire the engine up for the first time. Wish me luck.

So, Scott, any "news at 11?" (IMG:style_emoticons/default/cool.gif)
We are on the edge of our collective
seats! (IMG:style_emoticons/default/bootyshake.gif) (IMG:style_emoticons/default/lol2.gif) (IMG:style_emoticons/default/lol2.gif) (IMG:style_emoticons/default/lol2.gif)

Lisa (IMG:style_emoticons/default/wavey.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Oct 10 2004, 07:03 PM
Post #16


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California
i wanna hear the v8 from here!

web cam?
