> Kinda Interesting Carb Video, FIXED already, odd problem, solution in bold.
McMark
post Dec 23 2013, 01:28 PM
Post #1


914 Freak!
***************

Group: Retired Admin
Posts: 20,180
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Trying to trouble shoot an acceleration lean problem on this set of carbs. So we stuck the GoPro on the back and took a quick test drive. Video confirmed that the pump doesn't squirt as readily/quickly as it should. Still working out the solution, but thought I'd share the video since it's mildly interesting.


https://www.youtube.com/watch?v=XYDmTkNTk3w
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Dec 23 2013, 01:33 PM
Post #2


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,248
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
wow. sounds terrible. must be undriveable in that state of tune.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
drgchapman
post Dec 23 2013, 01:44 PM
Post #3


Current Stable
***

Group: NoClassifiedAccess
Posts: 922
Joined: 20-September 04
From: Portland, OR
Member No.: 2,789
Region Association: Pacific Northwest
Very Clever!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
EdwardBlume
post Dec 23 2013, 01:53 PM
Post #4


914 Wizard
**********

Group: Members
Posts: 12,338
Joined: 2-January 03
From: SLO
Member No.: 81
Region Association: Central California
Very cool. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Dec 23 2013, 02:19 PM
Post #5


PMB Performance
***************

Group: Admin
Posts: 19,304
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
What's up with the emulsion tubes?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Dec 23 2013, 02:28 PM
Post #6


914 Freak!
***************

Group: Retired Admin
Posts: 20,180
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
QUOTE(Eric_Shea @ Dec 23 2013, 12:19 PM) *

What's up with the emulsion tubes?

What're you referring to? The emulsion tube is buried in the carb. You can't see it. The secondary venturi and how the top is dimpled? These are EMPI HPMXs so there's all kinds of little 'things'. (IMG:style_emoticons/default/icon8.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Dec 23 2013, 02:29 PM
Post #7


914 Freak!
***************

Group: Retired Admin
Posts: 20,180
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
QUOTE(rhodyguy @ Dec 23 2013, 11:33 AM) *

wow. sounds terrible. must be undriveable in that state of tune.

Pretty much. Total lean on throttle input. Testing out a solution right now.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ThePaintedMan
post Dec 23 2013, 02:41 PM
Post #8


Advanced Member
****

Group: Members
Posts: 3,887
Joined: 6-September 11
From: St. Petersburg, FL
Member No.: 13,527
Region Association: South East States
Ouch. I've not really heard anything good about HPMXs. Hard to see from the video Mark, but are both barrels on the same carb doing that? Crappy pump diaphragm?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Dec 23 2013, 04:29 PM
Post #9


PMB Performance
***************

Group: Admin
Posts: 19,304
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
QUOTE(McMark @ Dec 23 2013, 01:28 PM) *

QUOTE(Eric_Shea @ Dec 23 2013, 12:19 PM) *

What's up with the emulsion tubes?

What're you referring to? The emulsion tube is buried in the carb. You can't see it. The secondary venturi and how the top is dimpled? These are EMPI HPMXs so there's all kinds of little 'things'. (IMG:style_emoticons/default/icon8.gif)


Sorry... Air correction jets that fit over the e-tubes. Are they offset like that on those carbs? Maybe it's just the angle?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Dec 23 2013, 04:32 PM
Post #10


914 Freak!
***************

Group: Retired Admin
Posts: 20,180
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Wide angle lens on the GoPro.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Dec 23 2013, 04:44 PM
Post #11


Custom Member
***************

Group: Members
Posts: 24,705
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
Very neat idea, really.

Looks like you have your work cut out for you.

Rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
stugray
post Dec 23 2013, 05:10 PM
Post #12


Advanced Member
****

Group: Members
Posts: 3,825
Joined: 17-September 09
From: Longmont, CO
Member No.: 10,819
Region Association: None
Now if we could put 4X Go Pros and plot Each barrel manifold pressure along with EGTs.....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tomeric914
post Dec 23 2013, 05:16 PM
Post #13


One Lap of America in a 914!
***

Group: Members
Posts: 1,268
Joined: 25-May 08
From: Syracuse, NY
Member No.: 9,101
Region Association: North East States
Sounds and looks like you have a plugged idle circuit. Pull all of the jets and make sure they are clean by spraying carb cleaner through them. THEN, carefully remove each idle screw counting the turns so you don't have to set them up again. Take the little extension on the carb cleaner, stick it in the idle screw hole and spray. Then reassemble everything. Be careful not to munge the idle jet o-rings.

I like to spray the jets out on, in or near a white paper towel so I can see what junk comes out. The satisfaction of finding a little piece of junk is akin to popping a zit.

The idle circuit is in play up close to 3000 RPM. When you get beyond that it seems to run better.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Dec 23 2013, 06:20 PM
Post #14


914 Freak!
***************

Group: Retired Admin
Posts: 20,180
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Not a plugged idle jet. Runs perfectly at idle and cruise and as long as you don't punch the throttle.

Actually, if you look really close on the HD version in fullscreen you can see the problem. The accell pump squirters don't spray immediately. There is a lag. So when you open the throttle, it goes way lean until the pump finally kicks in and richens things up. There is a tiny check valve in the bottom of the bowl with a ball inside. I compared these 'new' ones with some old IDF pieces and the new ones have a lot more slop. This was also proven by blowing compressed air backwards against the ball. It took half a second for the ball to overcome inertia and move into place, blocking the flow of fuel. This meant that there was half a second of fuel dumping back into the bowl before the ball finally sealed and starting dumping that fuel where it was supposed to go.

Here's how I fixed it - These accel pump check valves have a little plate in them to limit the movement of the check-ball, so I simply tapped the limiting plate closer, moving the ball closer to the seat and reducing the amount of flow necessary to close off the passage. Yes, I thought about making sure not to restrict the flow of fuel overall. But this modification and going one step bigger on the idle jets solved the hesitation.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Dec 23 2013, 06:32 PM
Post #15


Resident Electrician
*****

Group: Members
Posts: 8,347
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None
Not only do they not squirt right away, they have a limp dribble when they do squirt.

Fix it!



(IMG:style_emoticons/default/beer.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Dec 23 2013, 06:35 PM
Post #16


Custom Member
***************

Group: Members
Posts: 24,705
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
Amazing use of a go pro camera....
What did we do without all the technology in the past....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Dec 23 2013, 07:02 PM
Post #17


PMB Performance
***************

Group: Admin
Posts: 19,304
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
On 40ida3cs you can adjust the cam on the pump and, they wear. Could it be the same here? Worn fulcrum pin or cam itself? Also, on webers the float level plays a big part in acc. pump volume. Yay? Nay?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Dec 23 2013, 07:04 PM
Post #18


914 Freak!
***************

Group: Retired Admin
Posts: 20,180
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
These are a pin-through-hole design. No adjustment and checked for slop first.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Dec 23 2013, 07:30 PM
Post #19


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,248
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
faulty diaphragm or an issue with the passageway for the pump jet? how old are those carbs? iirc the early versions had a little plastic wheel on an arm connected to the rod assembly, they go south.

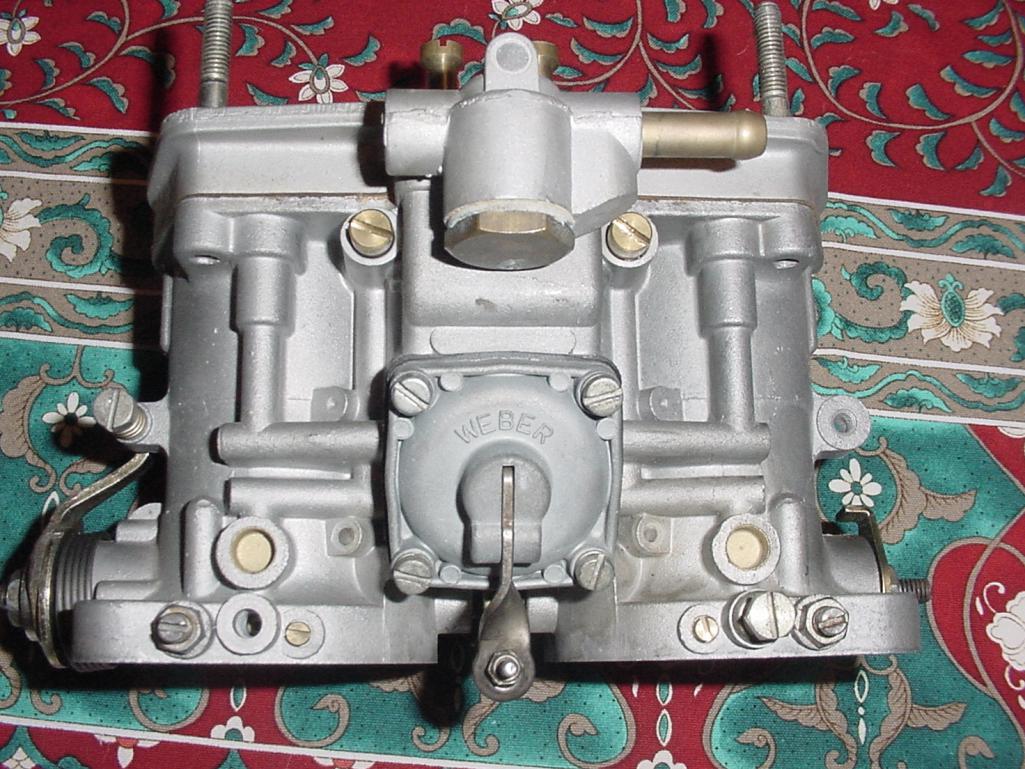

general knowledge picture. the passageway is the round 90* bend that starts behind the accel pump cover and runs to the pump jet. the squirty thing in the video. right behind the top of the cast in passageway inside the bore.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Dec 23 2013, 07:42 PM
Post #20


914 Freak!
***************

Group: Retired Admin
Posts: 20,180
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
I already knew the diaphragms were pliable and had already cleared the passages before the carbs even went on the engine. But during my troubleshooting I installed a new set of diaphragms and reinspected the passages (no change).

I edited my earlier post for those of you who find my posts a little too wordy to read. (IMG:style_emoticons/default/laugh.gif) I bolded the part where I outlined how I fixed the problem already.
