> /6 Electrical question, Where does this ground wire go?
PanelBilly
post Nov 16 2014, 12:46 PM
Post #1


914 Guru
*****

Group: Members
Posts: 5,811
Joined: 23-July 06
From: Kent, Wa
Member No.: 6,488
Region Association: Pacific Northwest
After a little research, I figured out that I left a ground wire off. I know it connects to the top of the case right behind the fan housing, but I don't remember where the other end goes. I'm guessing it goes somewhere near the alternator, but where?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JStroud
post Nov 16 2014, 01:23 PM
Post #2


Senior Member
***

Group: Members
Posts: 1,463
Joined: 15-January 11
From: Galt, California
Member No.: 12,594
Region Association: Northern California
It connects to the ground connector on the back of the alternator.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PanelBilly
post Nov 16 2014, 02:56 PM
Post #3


914 Guru
*****

Group: Members
Posts: 5,811
Joined: 23-July 06
From: Kent, Wa
Member No.: 6,488
Region Association: Pacific Northwest
Guess the shroud needs to come back off...

Right after the Seahawk game
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PanelBilly
post Nov 16 2014, 05:17 PM
Post #4


914 Guru
*****

Group: Members
Posts: 5,811
Joined: 23-July 06
From: Kent, Wa
Member No.: 6,488
Region Association: Pacific Northwest
Attached Image

Which is the ground?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JStroud
post Nov 16 2014, 06:05 PM
Post #5


Senior Member
***

Group: Members
Posts: 1,463
Joined: 15-January 11
From: Galt, California
Member No.: 12,594
Region Association: Northern California

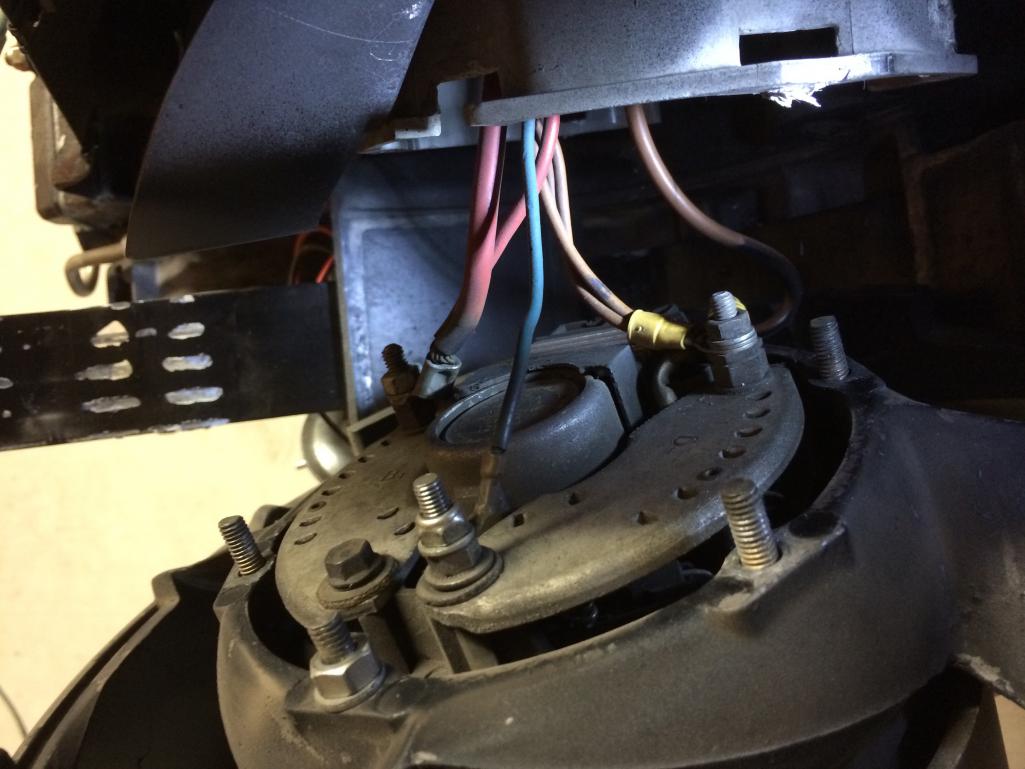

In the picture of my alt. (75 2.7) the red wire is connected to the connector marked B+,
The brown wires(ground) is connected to connector marked D-, the blue wire is connected to the bottom unmarked connector.

Hope this helps.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
