> Help me find my oil leak!
bkrantz
post Jan 5 2023, 09:24 PM
Post #1


914 Guru
*****

Group: Members
Posts: 8,436
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains



As I described in my build thread, last year, once I got the engine running, I noticed significant oil drops (or more) after each drive. With winter in full throttle, I decided to drop the motor, and see about fixing the leak.

Here's the view of the front. Maybe you can see some oil.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 5 2023, 09:26 PM
Post #2


914 Guru
*****

Group: Members
Posts: 8,436
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains



I found some oil inside the inner blowing housing, along the recess for the blower cage.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 5 2023, 09:27 PM
Post #3


914 Guru
*****

Group: Members
Posts: 8,436
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

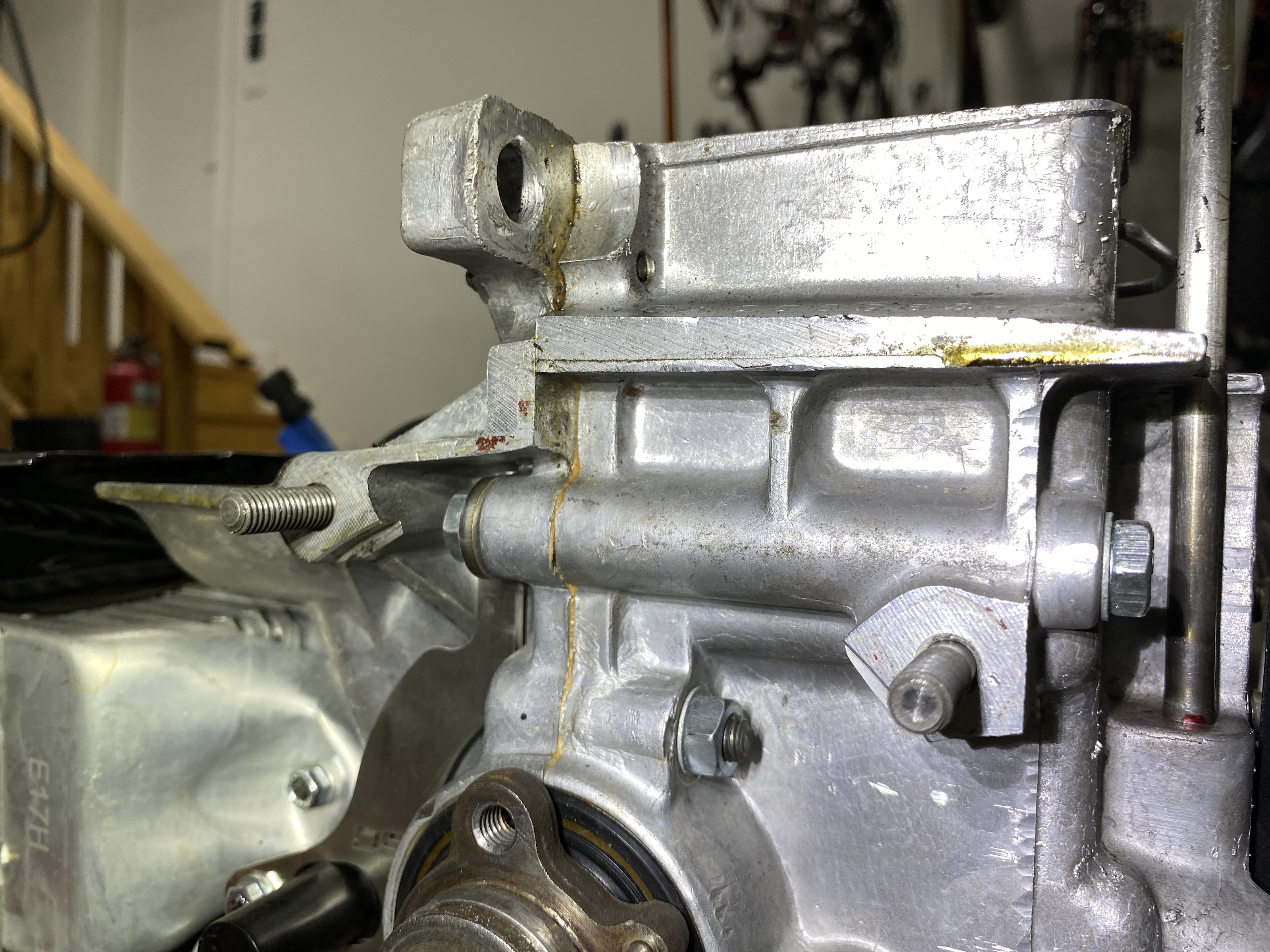

Starting from the top, the case seam looks OK.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 5 2023, 09:29 PM
Post #4


914 Guru
*****

Group: Members
Posts: 8,436
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

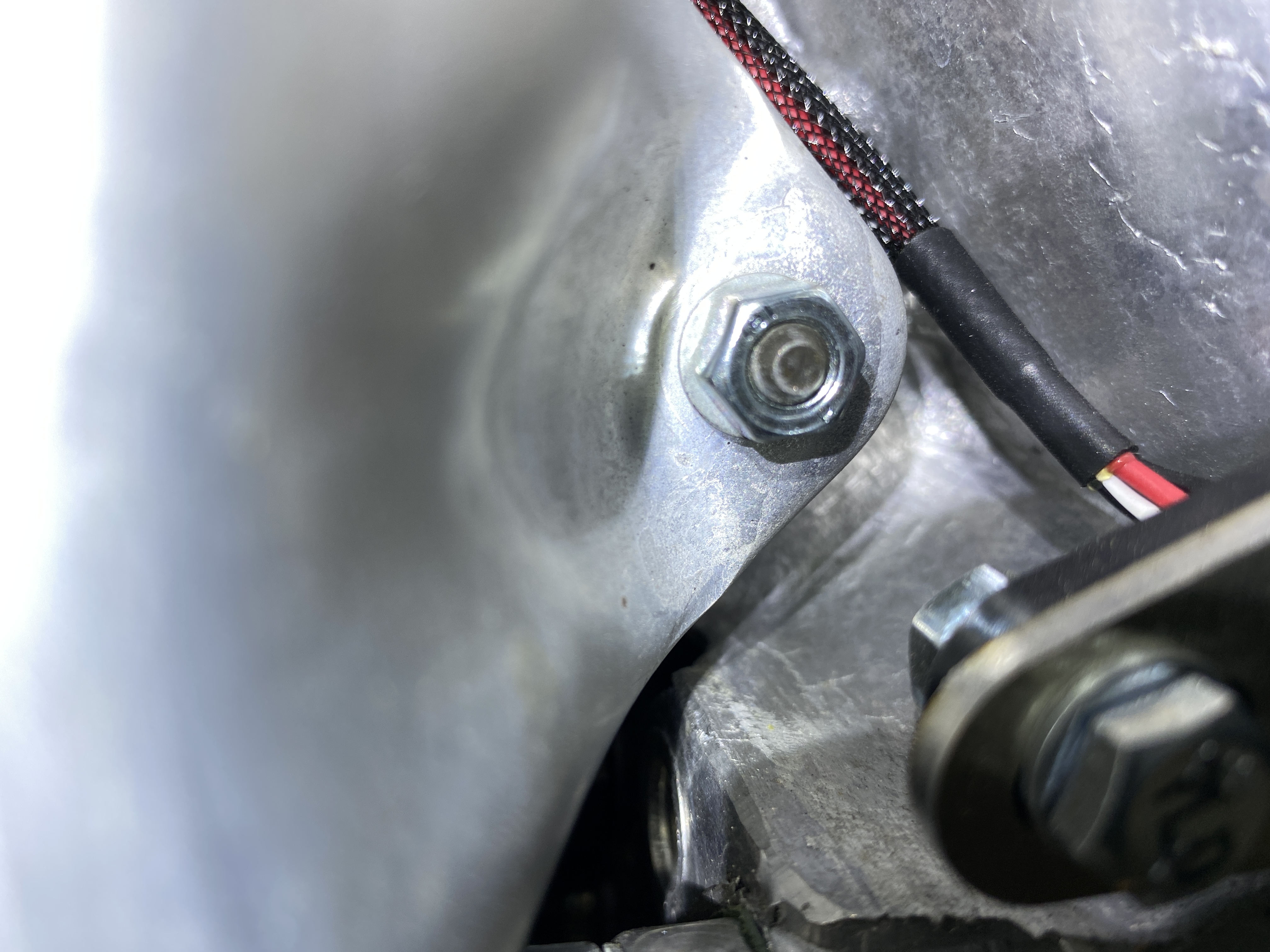

The front seal looks a bit oil wet. But is the seal leaking, or oil blowing from elsewhere?


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 5 2023, 09:30 PM
Post #5


914 Guru
*****

Group: Members
Posts: 8,436
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains



Lots of oil sitting on the top edge of the oil pump cover.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 5 2023, 09:31 PM
Post #6


914 Guru
*****

Group: Members
Posts: 8,436
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains



Quite a bit of oil pooled in the right motor mount bracket, probably dripping from the inner blower housing.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 5 2023, 09:33 PM
Post #7


914 Guru
*****

Group: Members
Posts: 8,436
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains



No oil visible where I would expect it if the cooler seals leaked.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 5 2023, 09:34 PM
Post #8


914 Guru
*****

Group: Members
Posts: 8,436
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

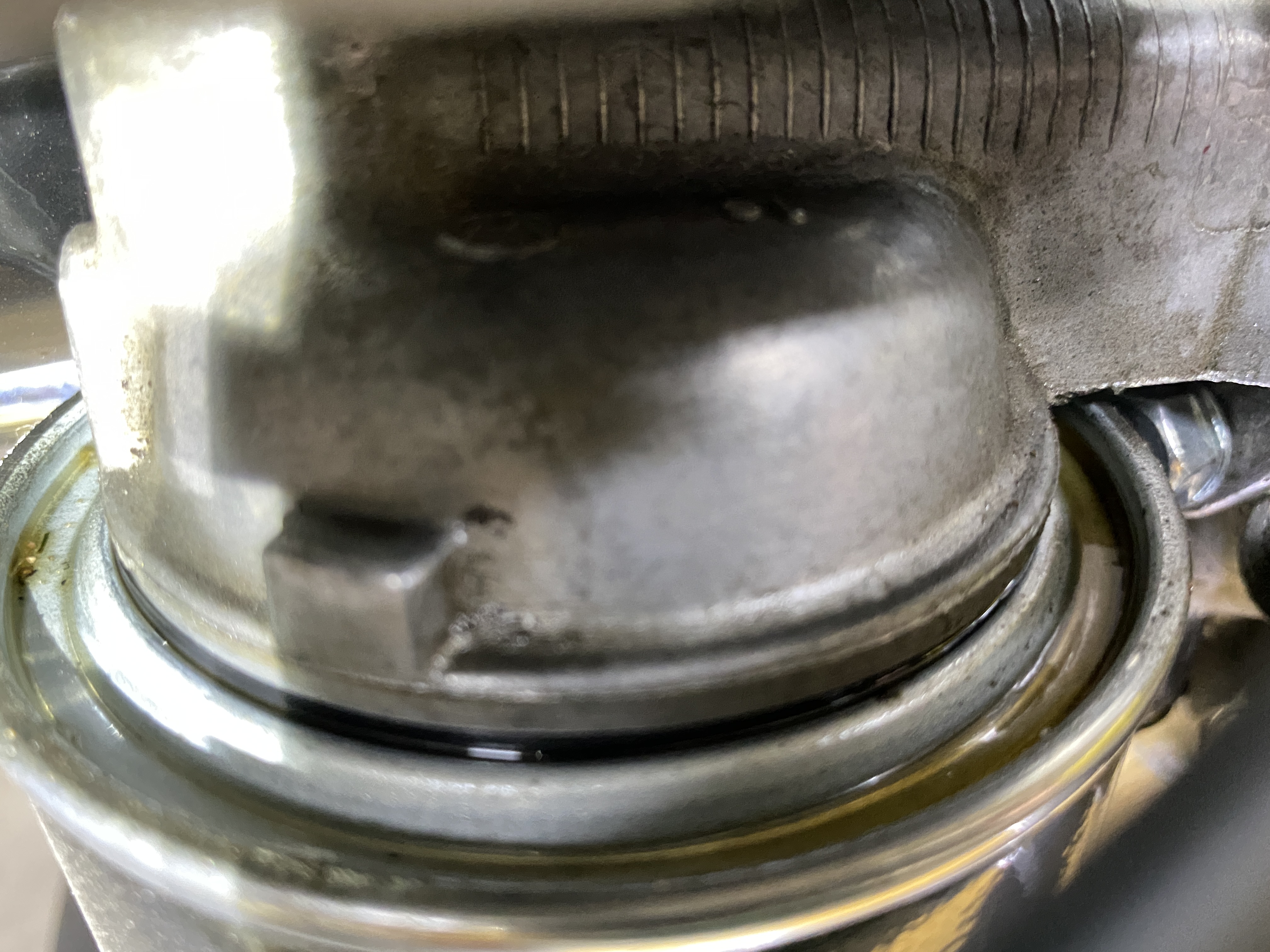

Some oil sitting on top of the filter.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 5 2023, 09:36 PM
Post #9


914 Guru
*****

Group: Members
Posts: 8,436
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

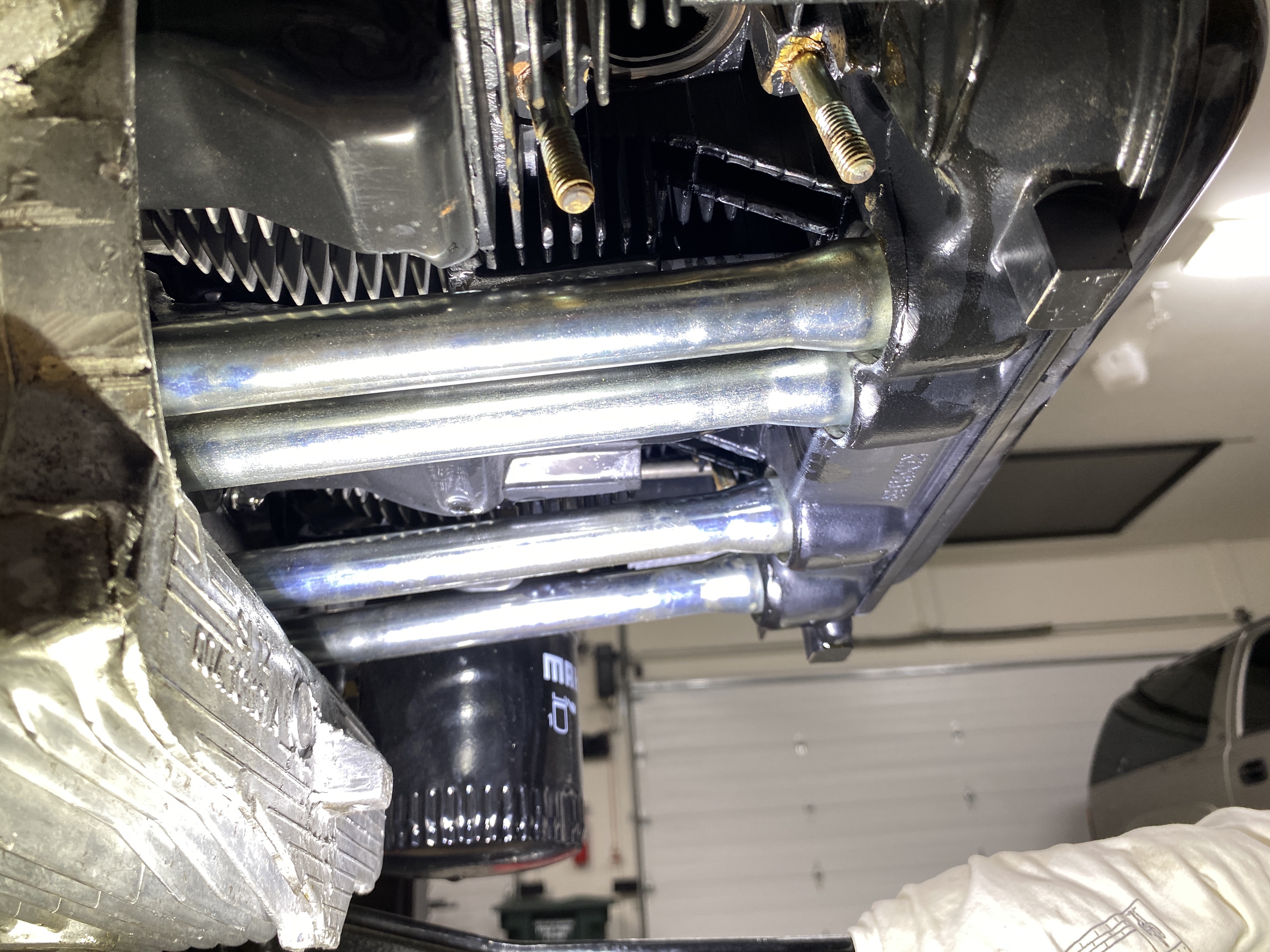

Meanwhile, underneath I might have just a bit of oil weeping from the outer pushrod tube seals and/or the valve covers on both sides.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 5 2023, 09:38 PM
Post #10


914 Guru
*****

Group: Members
Posts: 8,436
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains



But the inner seals, and the cylinder-to-case joints look dry.

Tomorrow, I will get in closer with more light. Any suggestions and ideas appreciated.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Shivers
post Jan 6 2023, 08:00 AM
Post #11


Senior Member
****

Group: Members
Posts: 3,077
Joined: 19-October 20
From: La Quinta, CA
Member No.: 24,781
Region Association: Southern California



Looking at that black wire on the front of the engine, does it end up reaching up so oil could follow it down to the wire zip ties? I see seepage, at the front seal, but nothing bad. I've had a poorly made oil filter leak and shoot oil out and looked like a cooler leak.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
porschetub
post Jan 6 2023, 01:35 PM
Post #12


Advanced Member
****

Group: Members
Posts: 4,882
Joined: 25-July 15
From: New Zealand
Member No.: 18,995
Region Association: None



QUOTE(Shivers @ Jan 7 2023, 02:00 AM) *

Looking at that black wire on the front of the engine, does it end up reaching up so oil could follow it down to the wire zip ties? I see seepage, at the front seal, but nothing bad. I've had a poorly made oil filter leak and shoot oil out and looked like a cooler leak.

(IMG:style_emoticons/default/agree.gif) front seal for sure,well be interesting to see why it is leaking,not generally a concern except on a high mileage motor.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Jan 6 2023, 01:36 PM
Post #13


914 Guru
*****

Group: Members
Posts: 8,187
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None



you have an aftermarket oil pump, they are very very very hard to seal


QUOTE(bkrantz @ Jan 5 2023, 08:24 PM) *

As I described in my build thread, last year, once I got the engine running, I noticed significant oil drops (or more) after each drive. With winter in full throttle, I decided to drop the motor, and see about fixing the leak.

Here's the view of the front. Maybe you can see some oil.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
930cabman
post Jan 6 2023, 02:20 PM
Post #14


Advanced Member
****

Group: Members
Posts: 4,169
Joined: 12-November 20
From: Buffalo
Member No.: 24,877
Region Association: North East States



QUOTE(dr914@autoatlanta.com @ Jan 6 2023, 02:36 PM) *

you have an aftermarket oil pump, they are very very very hard to seal


QUOTE(bkrantz @ Jan 5 2023, 08:24 PM) *

As I described in my build thread, last year, once I got the engine running, I noticed significant oil drops (or more) after each drive. With winter in full throttle, I decided to drop the motor, and see about fixing the leak.

Here's the view of the front. Maybe you can see some oil.



We have the same concern with an oil leak in this area, also running an aftermarket pump. Thanks to the good doctor. Why are they so hard to seal? covers not flat/
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 6 2023, 09:54 PM
Post #15


914 Guru
*****

Group: Members
Posts: 8,436
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains



Thanks everyone. Based on what I see so far, I will replace the front shaft seal and O-ring, after checking the seal surface on the hub, reseal the oil pump cover, and replace the oil filter. Any other ideas?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jan 6 2023, 09:58 PM
Post #16


914 Guru
*****

Group: Members
Posts: 7,219
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch



QUOTE(930cabman @ Jan 6 2023, 03:20 PM) *

QUOTE(dr914@autoatlanta.com @ Jan 6 2023, 02:36 PM) *

you have an aftermarket oil pump, they are very very very hard to seal


QUOTE(bkrantz @ Jan 5 2023, 08:24 PM) *

As I described in my build thread, last year, once I got the engine running, I noticed significant oil drops (or more) after each drive. With winter in full throttle, I decided to drop the motor, and see about fixing the leak.

Here's the view of the front. Maybe you can see some oil.



We have the same concern with an oil leak in this area, also running an aftermarket pump. Thanks to the good doctor. Why are they so hard to seal? covers not flat/


T1 pumps OD is usually a few thousandths smaller than the T4 OD. This allows some bleed by between the pump OD and the case. That puts all the sealing duty on that thin paper gasket.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
930cabman
post Jan 7 2023, 06:38 AM
Post #17


Advanced Member
****

Group: Members
Posts: 4,169
Joined: 12-November 20
From: Buffalo
Member No.: 24,877
Region Association: North East States



QUOTE(Superhawk996 @ Jan 6 2023, 10:58 PM) *

QUOTE(930cabman @ Jan 6 2023, 03:20 PM) *

QUOTE(dr914@autoatlanta.com @ Jan 6 2023, 02:36 PM) *

you have an aftermarket oil pump, they are very very very hard to seal


QUOTE(bkrantz @ Jan 5 2023, 08:24 PM) *

As I described in my build thread, last year, once I got the engine running, I noticed significant oil drops (or more) after each drive. With winter in full throttle, I decided to drop the motor, and see about fixing the leak.

Here's the view of the front. Maybe you can see some oil.



We have the same concern with an oil leak in this area, also running an aftermarket pump. Thanks to the good doctor. Why are they so hard to seal? covers not flat/


T1 pumps OD is usually a few thousandths smaller than the T4 OD. This allows some bleed by between the pump OD and the case. That puts all the sealing duty on that thin paper gasket.


I have wondered the same. Is this an application for a gasket in a tube? very sparingly of course.

Is there a doctor in the house?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jan 7 2023, 09:44 AM
Post #18


914 Guru
*****

Group: Members
Posts: 7,219
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch



QUOTE(930cabman @ Jan 7 2023, 07:38 AM) *


I have wondered the same. Is this an application for a gasket in a tube? very sparingly of course.



No. It’s an application to use the proper T4 oil pump (with a pinned or peened idler shaft). (IMG:style_emoticons/default/happy11.gif)

T4 pump OD is 2.7565” using a smaller OD T1 pump and gasket in a tube is just a cobble job in my opinion.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
930cabman
post Jan 7 2023, 06:19 PM
Post #19


Advanced Member
****

Group: Members
Posts: 4,169
Joined: 12-November 20
From: Buffalo
Member No.: 24,877
Region Association: North East States



QUOTE(Superhawk996 @ Jan 7 2023, 10:44 AM) *

QUOTE(930cabman @ Jan 7 2023, 07:38 AM) *


I have wondered the same. Is this an application for a gasket in a tube? very sparingly of course.



No. It’s an application to use the proper T4 oil pump (with a pinned or peened idler shaft). (IMG:style_emoticons/default/happy11.gif)

T4 pump OD is 2.7565” using a smaller OD T1 pump and gasket in a tube is just a cobble job in my opinion.


I used a Schadek 26mm pump on a recent build and I suspect an oil leak at the cover. Not sure what is the OD of these pumps.

Bob, It makes some sense to replace the oil seal and O ring, but this is a difficult/tricky diagnosis.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Jan 7 2023, 08:29 PM
Post #20


Advanced Member
****

Group: Members
Posts: 4,808
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None



QUOTE(bkrantz @ Jan 5 2023, 07:27 PM) *

Starting from the top, the case seam looks OK.


I see oil at the top of the case on the right side under the filler chimney. Make sure the seal for the filler assembly to case are properly installed. I glue the cork rectangle to the metal "box" with 3m weather strip adhesive. I think there is also an o-ring at the base of the filler neck/metal box.
User is offlineProfile CardPM
Go to the top of the page
