> New Item Rarely Seen on Ebay, NOS Limited Slip Differential Transmission Flanges
914Sixer
post Aug 9 2024, 07:00 AM
Post #1


914 Guru
*****

Group: Members
Posts: 9,123
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region

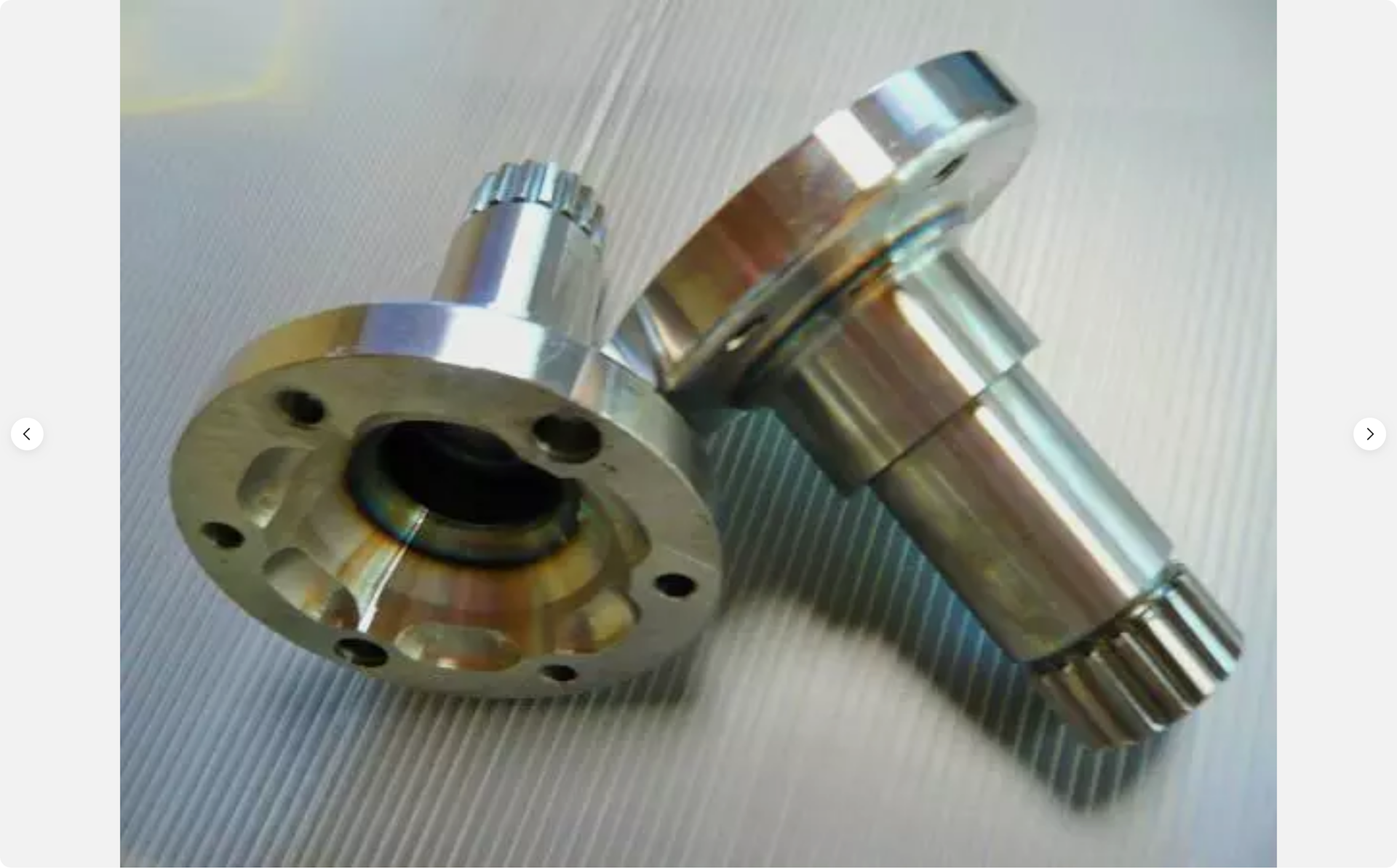

Lot thicker and longer shaft.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Sixer
post Aug 9 2024, 07:13 AM
Post #2


914 Guru
*****

Group: Members
Posts: 9,123
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region

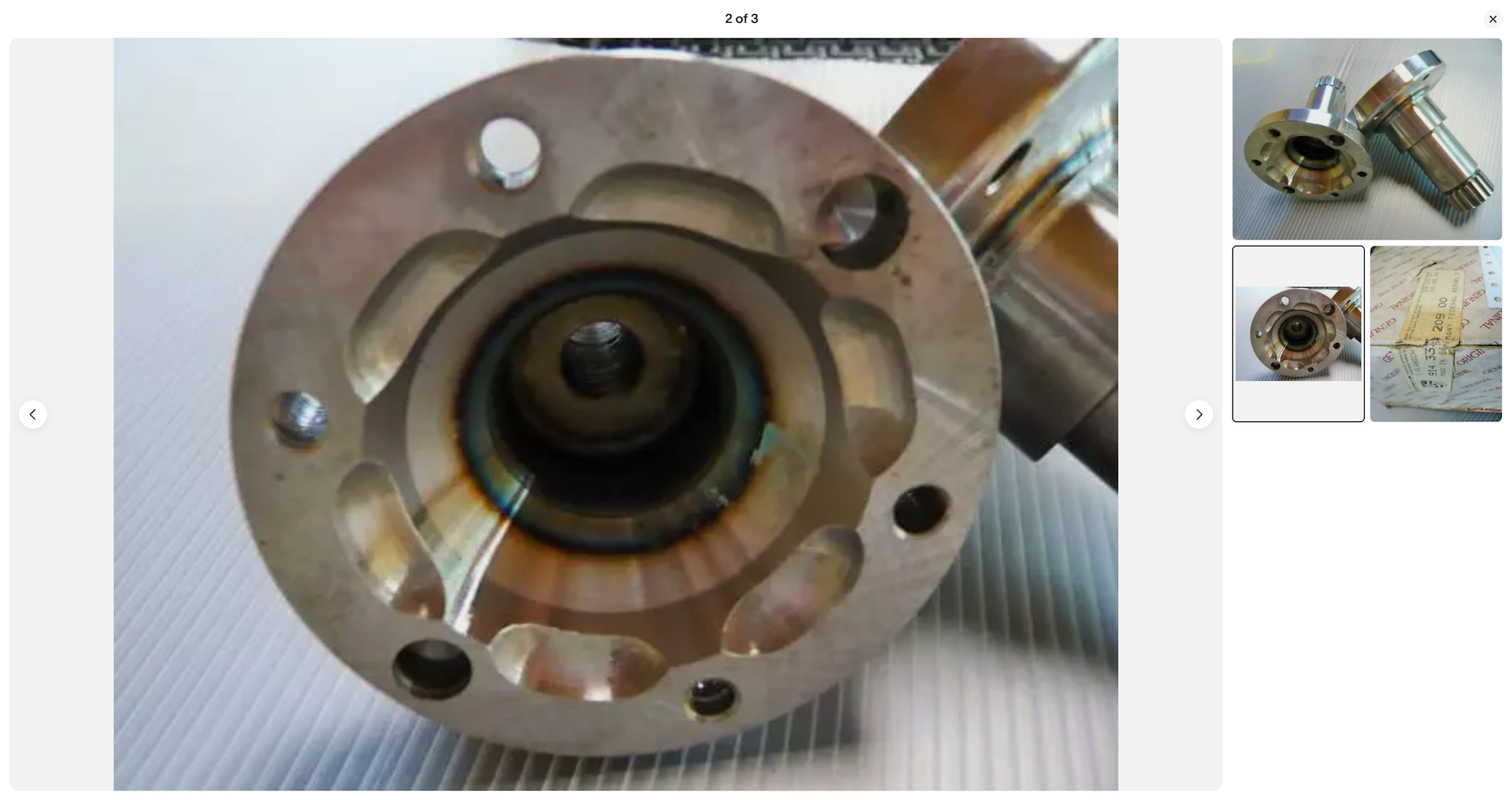

One more


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Aug 9 2024, 10:48 AM
Post #3


The rubber man
**********

Group: Members
Posts: 12,767
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None
Saw these, was wondering how these may hold up. I believe the originals were forged. These appear to be welded.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfinegan
post Aug 9 2024, 12:09 PM
Post #4


Senior Member
***

Group: Members
Posts: 1,073
Joined: 8-February 13
From: NC
Member No.: 15,499
Region Association: MidAtlantic Region
good eye...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Sixer
post Aug 9 2024, 01:52 PM
Post #5


914 Guru
*****

Group: Members
Posts: 9,123
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region
Somebody with a an original factory Porsche 914 LSD will have to chime in. I have never seen originals, so do not know. Pretty sure the factory 911 LSD were forged.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Aug 9 2024, 02:35 PM
Post #6


914 Guru
*****

Group: Members
Posts: 7,031
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
QUOTE(Mikey914 @ Aug 9 2024, 12:48 PM) *

Saw these, was wondering how these may hold up. I believe the originals were forged. These appear to be welded.

Not welded that is heat treat zone from induction hardening
User is online!Profile CardPM
Go to the top of the page
+Quote Post
mb911
post Aug 9 2024, 02:36 PM
Post #7


914 Guru
*****

Group: Members
Posts: 7,560
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
That color is from burnishing not welding
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mb911
post Aug 9 2024, 02:36 PM
Post #8


914 Guru
*****

Group: Members
Posts: 7,560
Joined: 2-January 09
From: Burlington wi
Member No.: 9,892
Region Association: Upper MidWest
QUOTE(Superhawk996 @ Aug 9 2024, 12:35 PM) *

QUOTE(Mikey914 @ Aug 9 2024, 12:48 PM) *

Saw these, was wondering how these may hold up. I believe the originals were forged. These appear to be welded.

Not welded that is heat treat zone from induction hardening



Yup more likely than my response
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Aug 9 2024, 04:18 PM
Post #9


914-6 GT in waiting
***************

Group: Members
Posts: 19,876
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region

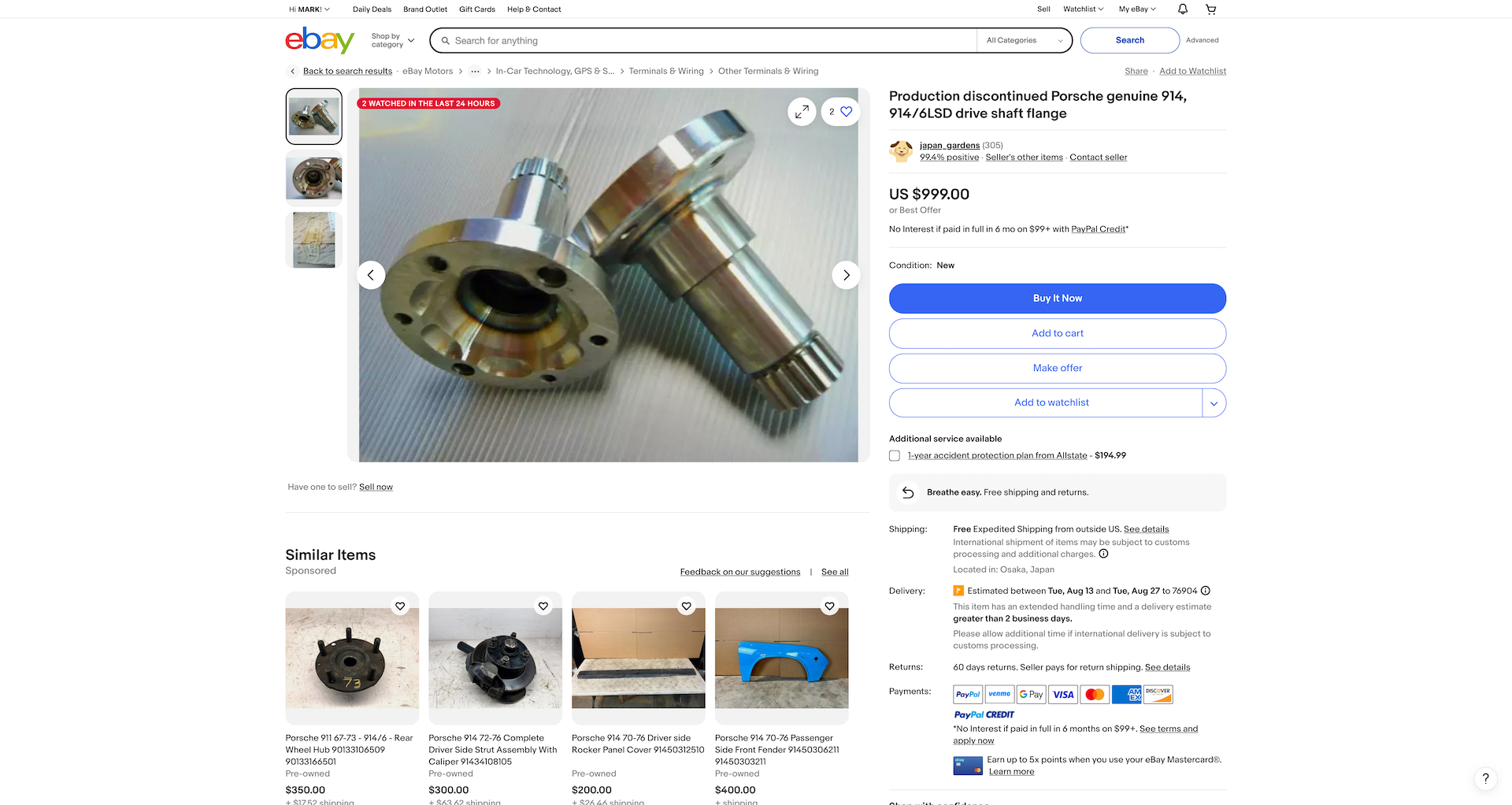

The ad reads like these were once made by Porsche, right? I’ve never seen a Porsche stub like this. Looks aftermarket to me. Maybe I’m missing something since I’m not looking at the actual ebay description.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Sixer
post Aug 9 2024, 04:31 PM
Post #10


914 Guru
*****

Group: Members
Posts: 9,123
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region

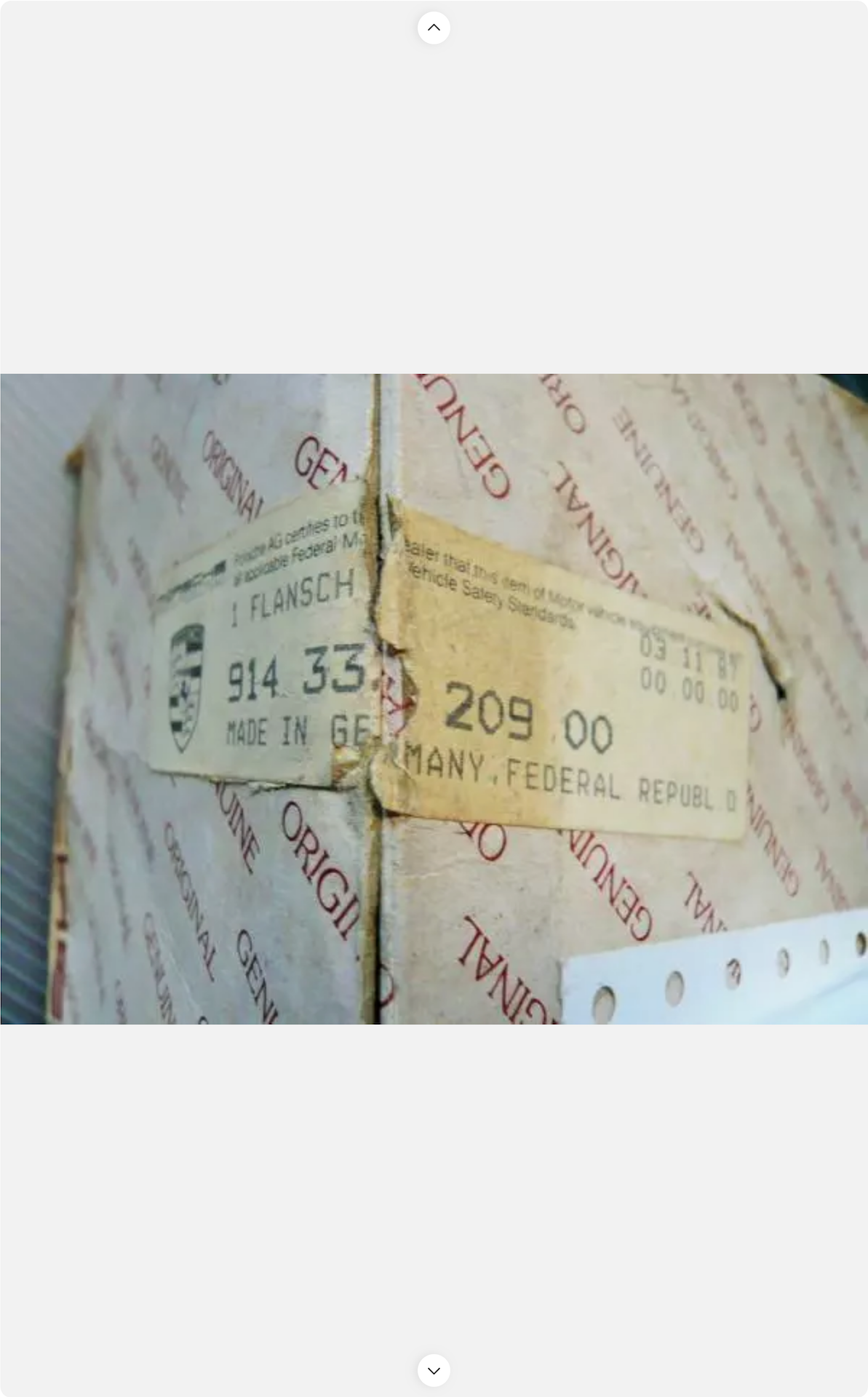

Added picture of box with part number.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Aug 9 2024, 04:48 PM
Post #11


914 Guru
*****

Group: Members
Posts: 7,031
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
QUOTE(mepstein @ Aug 9 2024, 06:18 PM) *

I’ve never seen a Porsche stub like this. Looks aftermarket to me.

That’s because we are used to seeing them rust covered. Uhmm, I mean with patina. (IMG:style_emoticons/default/happy11.gif)

Like you, I’m a bit surprised to see the induction hardening and wondered about the part. I would have thought they would be oven treated which results in a black / blue oxidation over the entire part. But it is plausible that it was induction hardened, Germany used to be a manufacturing powerhouse. Or, could be a part produced later for service after induction hardening became more common place and better suited to small production runs vs oven heat treat.

It is interesting to see one untouched like this. (IMG:style_emoticons/default/beerchug.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Aug 9 2024, 04:49 PM
Post #12


914 Wizard
**********

Group: Members
Posts: 10,823
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
box says one flange.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sechszylinder
post Aug 10 2024, 05:24 AM
Post #13


Member
**

Group: Members
Posts: 260
Joined: 9-April 03
From: /earth/europe/germany/berlin
Member No.: 545
Region Association: None
aftermarket product, original box…

original flanges feature at least a part number besides the fact that these are typically made from cast iron that have been turned to spec…

br
benno
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Aug 10 2024, 05:57 AM
Post #14


914-6 GT in waiting
***************

Group: Members
Posts: 19,876
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(sechszylinder @ Aug 10 2024, 07:24 AM) *

aftermarket product, original box…

original flanges feature at least a part number besides the fact that these are typically made from cast iron that have been turned to spec…

br
benno

(IMG:style_emoticons/default/agree.gif) I think CMS or someone similar made them.

We bought a shops inventory of air cooled parts. There were many used parts taken out of cars and put in the original Porsche box of the replacement part. We did get a lot of nos parts in original boxes (nos 928 4 valve heads) but the majority of the parts were the used part, placed into the Porsche box of the new part and placed back on the parts shelf. It did make it easier to identify the part but sometimes disappointing that it was used.

I’ve also never heard of a stub that’s specific to an lsd. I’ll have to ask the higher powers on that one.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Aug 10 2024, 06:11 AM
Post #15


914 Guru
*****

Group: Members
Posts: 7,031
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
QUOTE(mepstein @ Aug 10 2024, 07:57 AM) *

QUOTE(sechszylinder @ Aug 10 2024, 07:24 AM) *

aftermarket product, original box…

original flanges feature at least a part number besides the fact that these are typically made from cast iron that have been turned to spec…

br
benno

(IMG:style_emoticons/default/agree.gif) I think CMS or someone similar made them.


I’m not enough of an expert to disagree but we also know Porsche distributes parts made by certain aftermarket suppliers as Porsche parts complete with Porsche part numbers on the packaging. We also know with certainly some of those parts were not made to the same quality and fit & finish of the “original” parts.


Could this be similar situation? (IMG:style_emoticons/default/confused24.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
mepstein
post Aug 10 2024, 07:57 AM
Post #16


914-6 GT in waiting
***************

Group: Members
Posts: 19,876
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region

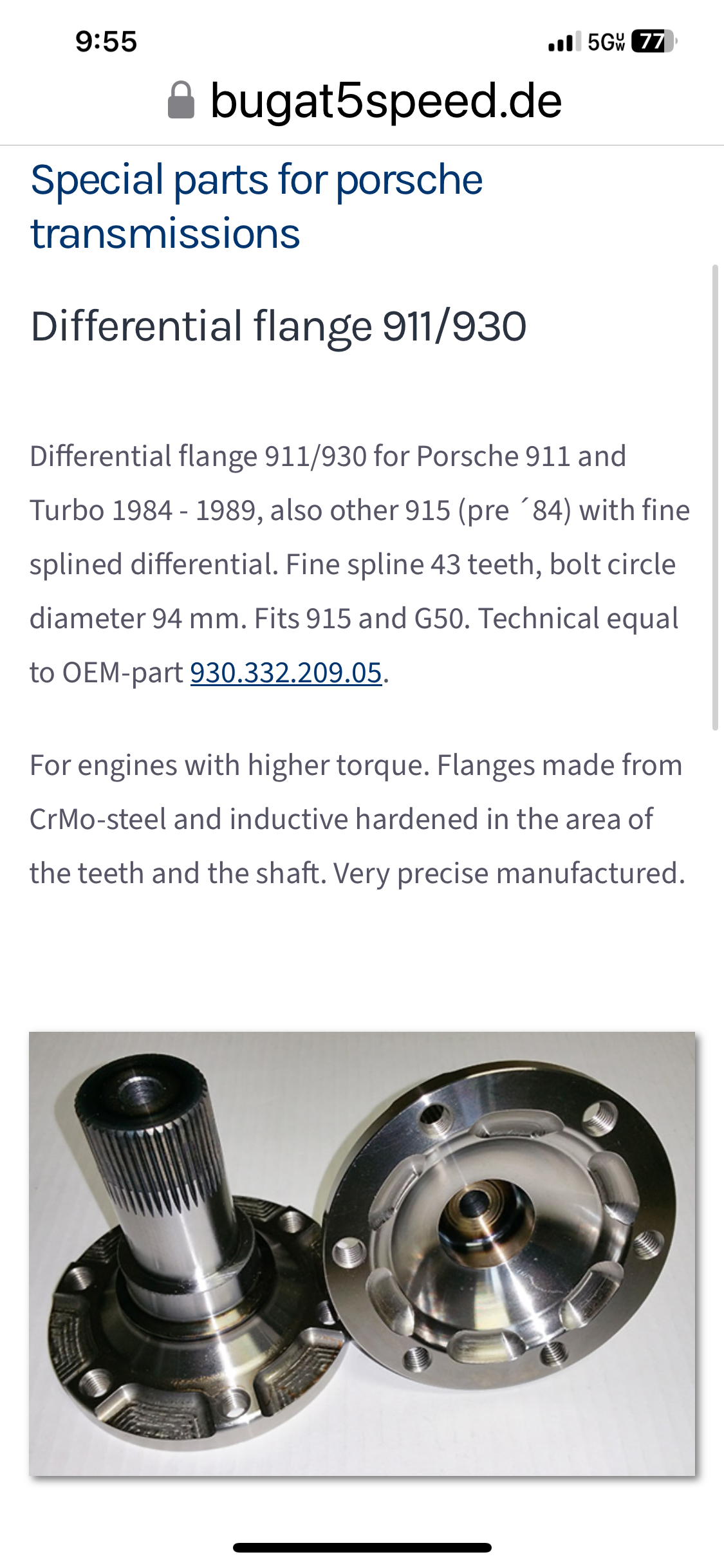

I would bet money on aftermarket.
I’m not saying it’s a Martin Bott product but it looks nothing like a Porsche part.
Seller might have bought it in the Porsche boxes and been sold a story along with the part.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixaddict
post Aug 10 2024, 08:34 AM
Post #17


Senior Member
***

Group: Members
Posts: 927
Joined: 22-January 09
From: Panama City Beach, FL
Member No.: 9,961
Region Association: South East States
I have a gearbox with an ZF LSD……output flanges look normal.
Wondering what Chris Foley or Mike (Dr E) would say…
Not sure how to ping them
User is online!Profile CardPM
Go to the top of the page
+Quote Post
oldie914
post Aug 10 2024, 10:09 AM
Post #18


Member
**

Group: Members
Posts: 113
Joined: 2-May 10
From: Germany
Member No.: 11,680
Region Association: None
As far as I know, the 914/6 transmissions were built using the internal parts from the 2.2 liter 911 transmission. 914/6 gear ratios are the same as the 2.2 911.
I went on a factory tour in 1971 and saw a 914/6 on the assembly line and also saw a 914/6 engine being assembled. Did not notice any 914s on the transmission line.
That being said, the only difference between flanges for 2.2 with factory LSD and stock is the length. The LSD is about 15mm longer.
The LSD flanges are rare and valuable so this may be a reproduction being offered, perhaps by Porsche. I wouldn't touch it unless the seller could provide dimensions. The box shows a sales date 03.11.97 (3Nov1997) and does not belong to the flanges.
Look at the Pelican 911 Forum for tech information on flanges.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Aug 10 2024, 11:29 AM
Post #19


914 Guru
*****

Group: Members
Posts: 7,031
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
QUOTE(mepstein @ Aug 10 2024, 09:57 AM) *

I would bet money on aftermarket.
I’m not saying it’s a Martin Bott product but it looks nothing like a Porsche part.
Seller might have bought it in the Porsche boxes and been sold a story along with the part.

(IMG:style_emoticons/default/aktion035.gif) Alright I’m convinced by that picture.

Still look like nice parts but agree, almost certainly not NOS.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
technicalninja
post Aug 10 2024, 12:34 PM
Post #20


Advanced Member
****

Group: Members
Posts: 2,531
Joined: 31-January 23
From: Granbury Texas
Member No.: 27,135
Region Association: Southwest Region
Maybe it's just ME!

The dowel pin holes look oversized to me...


Those look nice but I'm in agreement with everyone else.

Those DON"T look "Porsche" to me either!
(IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
