 Engine harness question- heater fan power |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
  |
| roundtwo |
 Jun 19 2026, 04:52 PM
Post
#1
|
|
Member  Group: Members Posts: 356 Joined: 9-February 20 From: Petaluma, CA Member No.: 23,905 Region Association: Central California
 |
Hello,

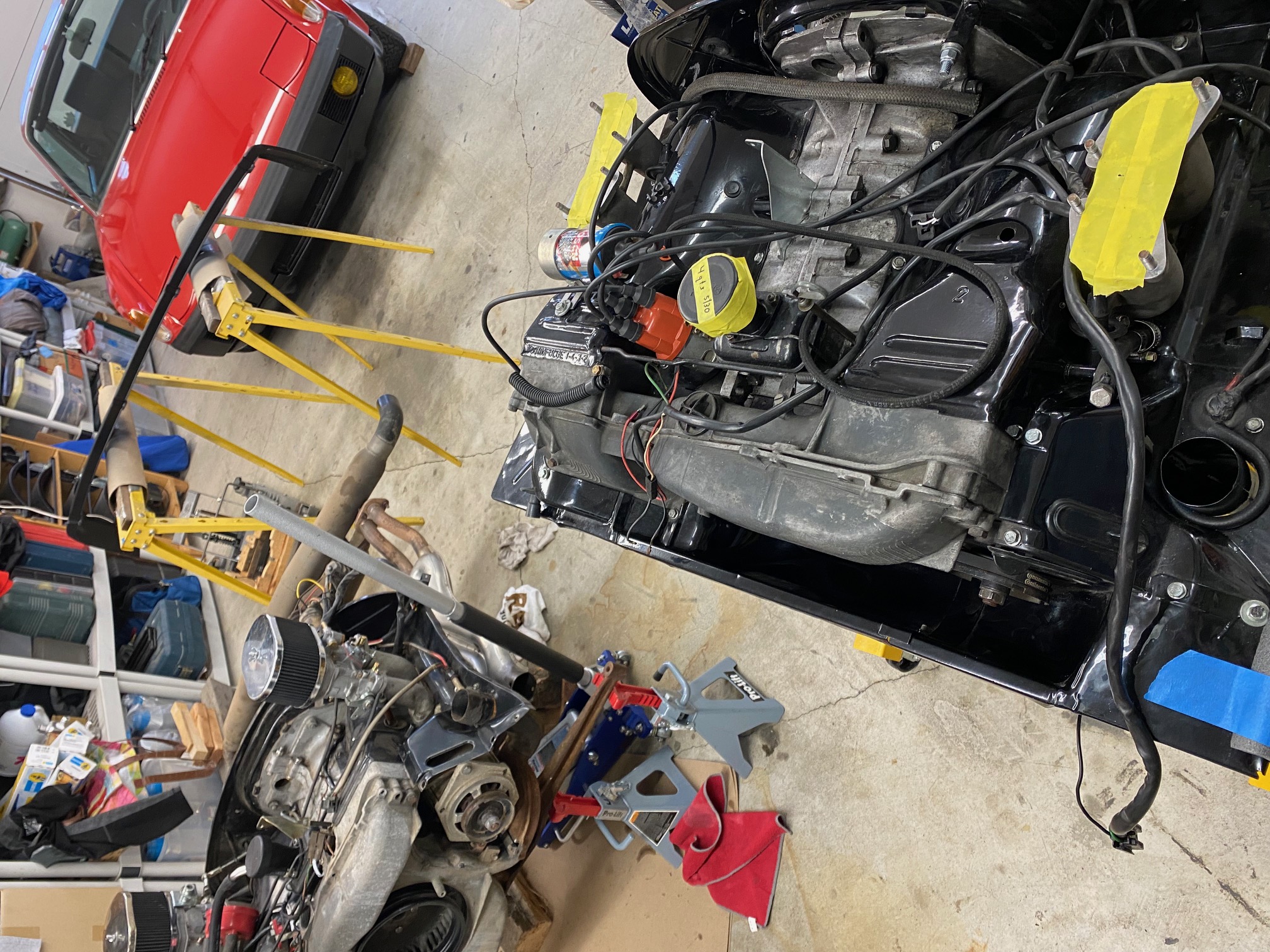

Swapping out the 2.0 l engine in my 1971 for another 2.0 l ...Has lower miles (35k) and documented build. Both engines carbed I see the engine harness in a bit different at the end that connects to fan blower. Pic 1 is the from the existing engine that had the fan blower mounted. Has the two wire connector to plug into the fan plug... Pic 2 is from the replacement engine. I only see a white wire that is spare. Could this be the fan power and then I use a common ground? In understand what the other wires in the pic connect to. Thanks the help going forward pic 1  pic 2  car  |
   |

|
| JeffBowlsby |
Jun 19 2026, 05:14 PM
Post
#2
|
|
914 Wiring Harnesses & Beekeeper Group: Members Posts: 9,286 Joined: 7-January 03 From: San Ramon CA Member No.: 104 Region Association: None
|
Use the ignition harness in Pic 1 on your 1971 car, its correct for your set-up, with the fan mounted to the engine. The Pic 2 harness is for 1973-76 cars with the heater fan mounted to a stand on chassis.
|
|
|
|
| JeffBowlsby |
Jun 19 2026, 05:14 PM
Post
#3
|
|
914 Wiring Harnesses & Beekeeper Group: Members Posts: 9,286 Joined: 7-January 03 From: San Ramon CA Member No.: 104 Region Association: None
|
Use the ignition harness in Pic 1 on your 1971 car, its correct for your set-up, with the fan mounted to the engine. The Pic 2 harness is for 1973-76 cars with the heater fan mounted to a stand on chassis.
|
|
|
|
| roundtwo |
Jun 19 2026, 08:07 PM
Post
#4
|
|
Member Group: Members Posts: 356 Joined: 9-February 20 From: Petaluma, CA Member No.: 23,905 Region Association: Central California
|
@JeffBowlsby
I knew you would know and was hoping you weren't on vacation!!! Thanks Jeff Assume all I have to do is disconnect both from the alternators?  |
|
|
|
| JeffBowlsby |
Jun 19 2026, 08:56 PM
Post
#5
|
|
914 Wiring Harnesses & Beekeeper Group: Members Posts: 9,286 Joined: 7-January 03 From: San Ramon CA Member No.: 104 Region Association: None
|
Alternator? The ignition harness connects to the relay board, not the Alternator.
You can find diagrams of the two harnesses on my harness website. |
|
|
|
|
