> Yet another "no power to fuel pump" thread...
kpfoten
post Jul 6 2009, 09:03 PM
Post #1


Member
**

Group: Members
Posts: 220
Joined: 15-April 08
From: Escanaba, MI
Member No.: 8,927
Region Association: None


'73 1.7L D Jet

I'm not getting voltage to the fuel pump. Continuity from relay board connector to pump. Pump works with direct voltage.

I'm getting 12V to relays. Both pump relay and main relay are good (run headlights and click). 12V to fuse both sides, new fuse.

Tried measuring voltage to pump when I power on the key and crank. Looks like a small registration on my voltmeter (in the mV range). Also tried test light--no power.

Visits to websites for fuel pump troubleshooting given in previous forums (testing relay board, etc) seem normal.

Considering fuel injection harness/III connector--I can jump this to ground to see if the pump runs, correct??

Any other options?

Thanks!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jul 7 2009, 01:23 PM
Post #2


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
QUOTE
Considering fuel injection harness/III connector--I can jump this to ground to see if the pump runs, correct??

This terminal must be grounded to trigger the FP relay. Otherwise, no worky. You had the solution already. (IMG:style_emoticons/default/cool.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
swl
post Jul 7 2009, 06:14 PM
Post #3


Senior Member
***

Group: Members
Posts: 1,409
Joined: 7-August 05
From: Kingston,On,Canada
Member No.: 4,550
Region Association: Canada
yes you're good to go with pulling that four pin connector and grounding pin III. That is what the ECU does. Key must be on of course. Consider lifting the power to your coil when testing to protect your points.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Jul 7 2009, 07:16 PM
Post #4


Send me your transmission!
***************

Group: Members
Posts: 23,038
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
Make sure that your AAR is not shorting your system, or your heater. Same circuit.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914_teener
post Jul 7 2009, 07:21 PM
Post #5


914 Guru
*****

Group: Members
Posts: 5,264
Joined: 31-August 08
From: So. Cal
Member No.: 9,489
Region Association: Southern California
QUOTE(Dr Evil @ Jul 7 2009, 06:16 PM) *

Make sure that your AAR is not shorting your system, or your heater. Same circuit.



I second the Good Dr's comment. That is what happened to my car.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jimkelly
post Jul 7 2009, 08:13 PM
Post #6


Delaware USA
****

Group: Members
Posts: 4,969
Joined: 5-August 04
From: Delaware, USA
Member No.: 2,460
Region Association: MidAtlantic Region

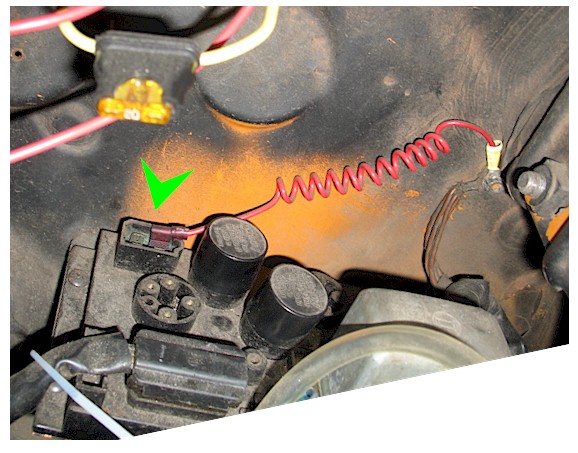

pin 3


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Jul 7 2009, 08:22 PM
Post #7


Send me your transmission!
***************

Group: Members
Posts: 23,038
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region

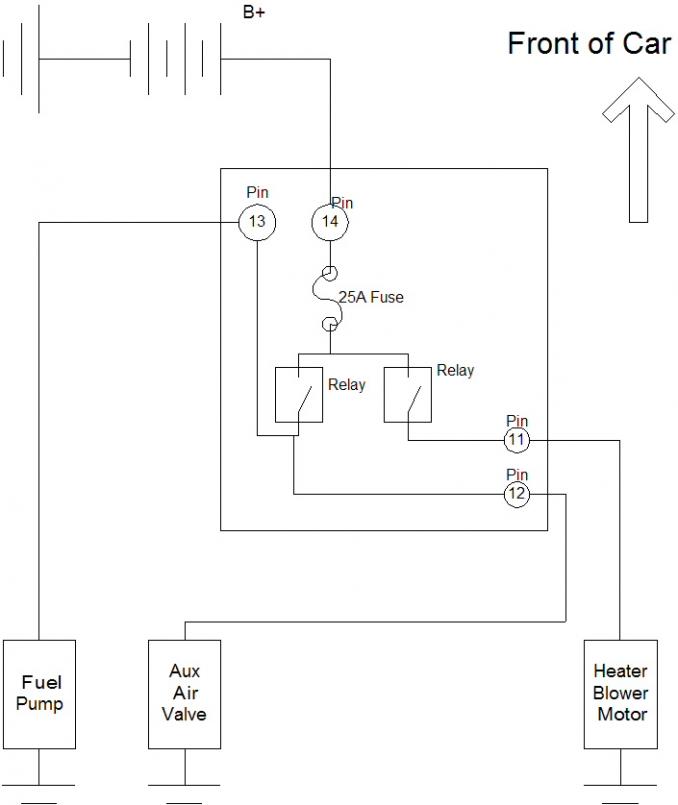

Here is my schematic to show what I was talking about.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
kpfoten
post Jul 7 2009, 08:43 PM
Post #8


Member
**

Group: Members
Posts: 220
Joined: 15-April 08
From: Escanaba, MI
Member No.: 8,927
Region Association: None

Great--thanks guys.

The heater was disconnected and removed long ago.

I will check the AAR.

Will ground III and see what happens.

Tell me about ECU ground??
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
kpfoten
post Jul 7 2009, 09:16 PM
Post #9


Member
**

Group: Members
Posts: 220
Joined: 15-April 08
From: Escanaba, MI
Member No.: 8,927
Region Association: None

Grounding III results in power to fuel pump.

What's the next step? ECU/Harness?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
swl
post Jul 7 2009, 10:07 PM
Post #10


Senior Member
***

Group: Members
Posts: 1,409
Joined: 7-August 05
From: Kingston,On,Canada
Member No.: 4,550
Region Association: Canada
Yup - that's what I would do. Pull the harness off at the ECU (awkward if you have a backpad). Test the continuity of the wire that goes to III.

Not likely that the harness has gone bad but you may find the connector is corroded. If you go to Brad Anders site you'll find a complete list of checks that you can use to check the wiring harness. In addition to the III wire the +12V has to be good and the ground as well. Brad documents which pin is which on the harness.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
kpfoten
post Jul 8 2009, 10:11 AM
Post #11


Member
**

Group: Members
Posts: 220
Joined: 15-April 08
From: Escanaba, MI
Member No.: 8,927
Region Association: None

Yet another newbie mistake!

I mis-read a thread about some white wires that come off the FI harness as being something associated with an altitude compensator (?). After further investigating and head scratching (because I KNEW there had to be grounds somewhere) and a quick review of Jeff Bowlsby's wiring harness map (thank you for that, Jeff), I realized that these three wires were actually grounds (numbers are clearly stamped on the wire)!!

I was testing the FI harness and knew something was up because I wasn't getting a reading for the FI's and ECU ground...

Anyway, I think I'll be in business when I ground these wires--where is the stock location for the grounds for these? I can't seem to find anything in the area other than maybe the coil ground??

Also there are two black wires that come out of the same harness as the oil temp wire (green/red?). I can't see any other coloring on the wires--Is the smaller one a ground to the coil and the fatter one positive to coil (Tach)?

Thanks again guys--I might have this running soon!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
underthetire
post Jul 8 2009, 11:00 AM
Post #12


914 Guru
*****

Group: Members
Posts: 5,062
Joined: 7-October 08
From: Brentwood
Member No.: 9,623
Region Association: Northern California

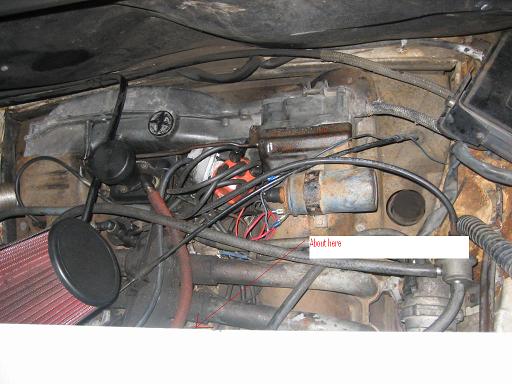

Mine grounded on a spade terminal on the engine. Under the plenum on the ECU side. If good there check your trans to body strap.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
