I finally got to drive my 914 again! (IMG:style_emoticons/default/mueba.gif) (IMG:style_emoticons/default/biggrin.gif) Back in June I was having fits with the L-Jet system that was on my car so I decided it was time to tackle a project I was wanting to do for some time, a CIS conversion.

I retrofitted a CIS Basic system to my stock 1.8L engine using parts from various VWs and Mercedes and today I fired it up for the first time and was able to take it for a long drive. It felt AWESOME. Smooth reliable power all the way to redline. It has a nice growl to it too. (IMG:style_emoticons/default/evilgrin.gif) I'm quite impressed. I still have to make some small adjustments but at least now I can get back to driving the car daily and the best part, NO MORE JACKSTANDS! I'm going to drive the snot out of the car this week to get the system dialed in and hopefully next weekend I will take it for a day drive in the mountains. (IMG:style_emoticons/default/driving.gif) More details and pics to come later.


The cat is happy too!
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
5 Pages V  1 2 3 > »
 Reply to this topicStart new topic
Replies(1 - 19)
rick 918-S
post Jul 17 2011, 09:43 PM
Post #2


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,948
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
(IMG:style_emoticons/default/popcorn[1].gif) I always thought CIS off a VW Rabbit would work nicely. Post lots of details! (IMG:style_emoticons/default/first.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Prospectfarms
post Jul 17 2011, 09:47 PM
Post #3


Member
**

Group: Members
Posts: 495
Joined: 7-March 11
From: Louisville, KY
Member No.: 12,801
Region Association: Upper MidWest
(IMG:style_emoticons/default/aktion035.gif)

Great idea and congratulations. I'll bet a lot of folks will be interested in hearing about what you did.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post Jul 17 2011, 10:30 PM
Post #4


Resident Electrician
*****

Group: Members
Posts: 8,347
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None
Were's all the pictures from the build?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
VaccaRabite
post Jul 18 2011, 06:07 AM
Post #5


En Garde!
**********

Group: Admin
Posts: 13,729
Joined: 15-December 03
From: Dallastown, PA
Member No.: 1,435
Region Association: MidAtlantic Region
Information please!

Zach
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ripper911
post Jul 18 2011, 06:24 AM
Post #6


corde pulsum tangite
****

Group: Members
Posts: 2,920
Joined: 25-April 10
From: Powder Springs, GA
Member No.: 11,654
Region Association: South East States
Smokey wants more pictures!
(IMG:http://www.914world.com/bbs2/uploads_offsite/i921.photobucket.com-11654-1305734643.4.jpg)

Here kitty kitty.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BKLA
post Jul 18 2011, 08:11 AM
Post #7


Really old member
***

Group: Members
Posts: 1,253
Joined: 14-August 05
From: OR
Member No.: 4,590
Region Association: Pacific Northwest
CIS ='CALICO IS SLEEPING' ???

(IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jake Raby
post Jul 18 2011, 08:39 AM
Post #8


Engine Surgeon
*****

Group: Members
Posts: 9,398
Joined: 31-August 03
From: Lost
Member No.: 1,095
Region Association: South East States
CIS works great on TIV engines.. I had the set up on my Grey shop Bus 10 years ago along with a stroked TIV.. The torque was phenomenal and so was the MPG.. The simplicity of the system is what I appreciated most.

I didn't touch it for 7 solid years.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cap'n Krusty
post Jul 18 2011, 08:51 AM
Post #9


Cap'n Krusty
**********

Group: Members
Posts: 10,794
Joined: 24-June 04
From: Santa Maria, CA
Member No.: 2,246
Region Association: Central California
CIS? Would that be "Cat In Situ"?

The Cap'n, typing with a cat on my shoulder.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rwilner
post Jul 18 2011, 08:57 AM
Post #10


No Ghosts in the Machine
***

Group: Members
Posts: 953
Joined: 30-March 10
From: Boston, MA
Member No.: 11,530
Region Association: North East States
you guys are nuts...I don't let the cats on my cars because they scratch the sh$t out of the paint!

Easy to train them. Just wait till they're settled in on the hood and fire it up!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
montoya 73 2.0
post Jul 18 2011, 01:05 PM
Post #11


Lack of consideration to others, and Selfish!
***

Group: Members
Posts: 1,791
Joined: 27-October 04
From: Paso Robles, Ca.
Member No.: 3,016
Region Association: Central California
I am working on the same thing except from what Rick suggested, from a Rabbit. Actually, Someone else is working on it (already installed one on his son's Teener) to teach me how to do it. I absolutlely love what he did.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ripper911
post Jul 18 2011, 01:09 PM
Post #12


corde pulsum tangite
****

Group: Members
Posts: 2,920
Joined: 25-April 10
From: Powder Springs, GA
Member No.: 11,654
Region Association: South East States
QUOTE(rwilner @ Jul 18 2011, 10:57 AM) *

you guys are nuts...I don't let the cats on my cars because they scratch the sh$t out of the paint!

Easy to train them. Just wait till they're settled in on the hood and fire it up!


You should see the top on my 1973 911 targa, they love that soft top for sleeping and clawing.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post Jul 18 2011, 09:27 PM
Post #13


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956
Okay here is a break down of everything I used.

Fuel distributor – VW Rabbit
Warm up Regulator- VW Rabbit
Fuel lines-Audi
Fuel Injectors-Audi
Fuel Pump, Filter, and Accumulator – Mercedes 300 class
And assorted flexible hoses and fittings from various German cars

I used stuff that was readily available at the local junkyard and I spent less than $150 putting this system together. The easiest route though would have been to just get everything off a VW rabbit and be done with it but the junkyard didn't have a complete Rabbit at the time.

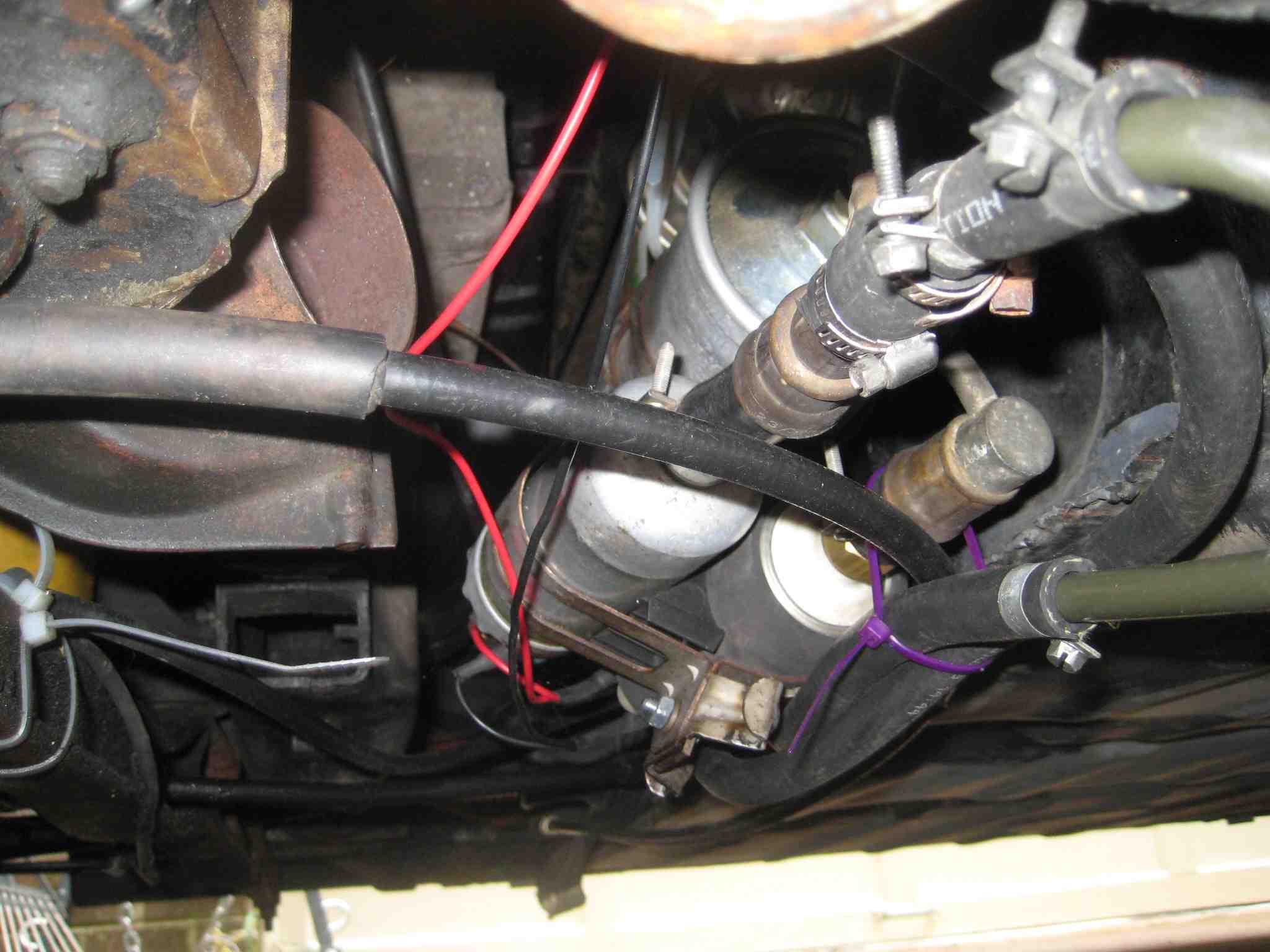

The pictures show my initial installation of everything. I’ll clean up some of my workings now that I know the system works to my liking. The airbox/ fuel distributor is simply bolted to the intake runners, the warm up regulator is mounted to the firewall, and the Mercedes fuel pump assembly is mounted on the firewall under the engine.

Attached Image

Attached Image

Attached Image


Sorry for the crappy pics... (IMG:style_emoticons/default/dry.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post Jul 18 2011, 09:29 PM
Post #14


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956
For the injectors I had to fab up some brackets and spacers so that they sit at the correct depth.
Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post Jul 18 2011, 09:32 PM
Post #15


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956

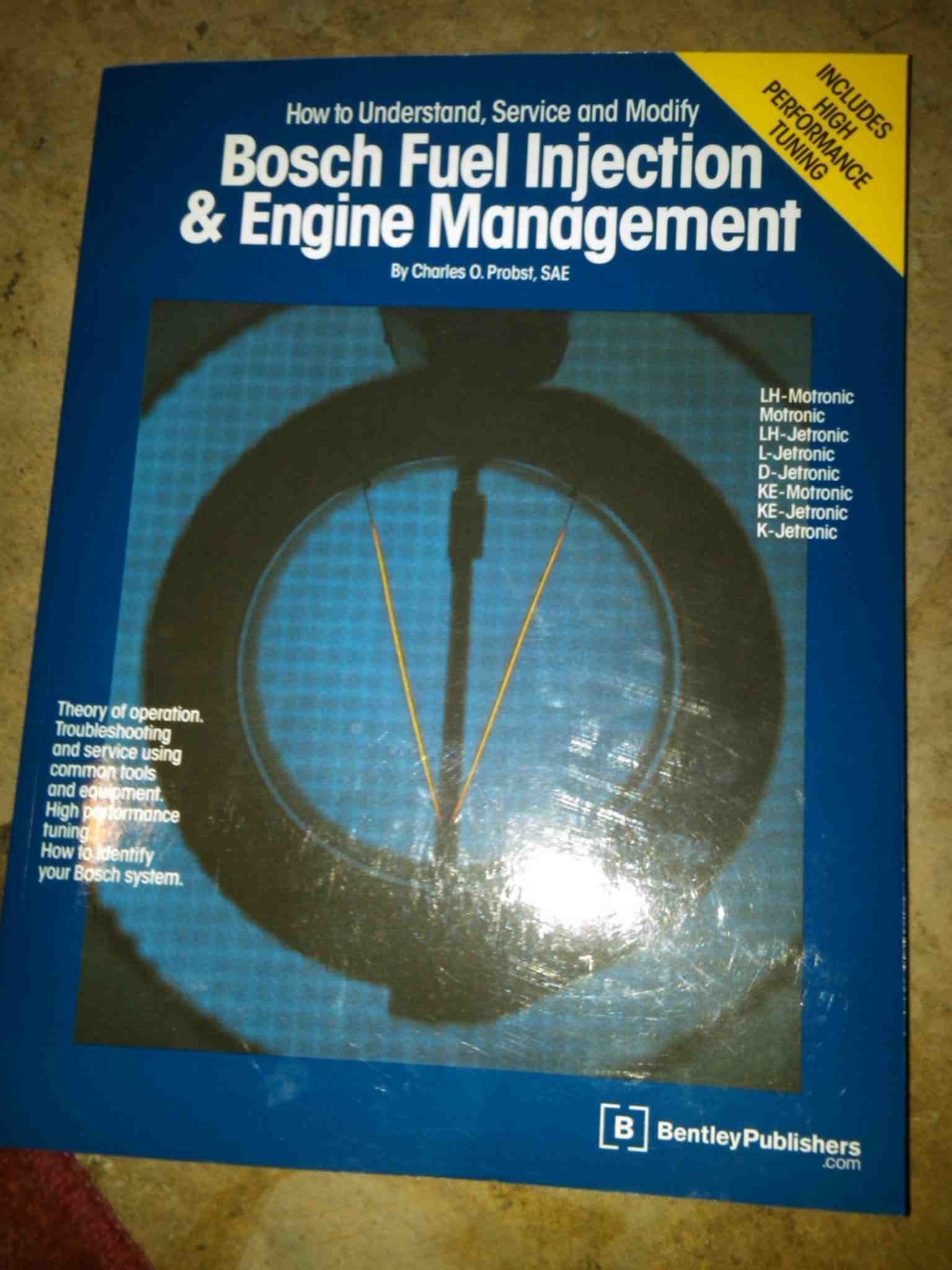

And finally since I was completely new to anything CIS, this book was a great reference!

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post Jul 18 2011, 09:36 PM
Post #16


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956
Oh and the cat is 18 years old and a HUGE 914 fan (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
montoya 73 2.0
post Jul 18 2011, 09:44 PM
Post #17


Lack of consideration to others, and Selfish!
***

Group: Members
Posts: 1,791
Joined: 27-October 04
From: Paso Robles, Ca.
Member No.: 3,016
Region Association: Central California
One of these Volvo 240 Aluminum Air Box Tray's would probably fit in there a little better than the Plastic box.

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dlee6204
post Jul 18 2011, 09:47 PM
Post #18


Howdy
****

Group: Members
Posts: 2,162
Joined: 30-April 06
From: Burnsville, NC
Member No.: 5,956
QUOTE
One of these Volvo 240 Aluminum Air Box Tray's would probably fit in there a little better than the Plastic box.


Yeah I need to do something about that. I had to remove the rain tray just so it would fit. I was thinking about fabbing up a new box. I'll have to look into the Volvo tray though.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
montoya 73 2.0
post Jul 18 2011, 09:53 PM
Post #19


Lack of consideration to others, and Selfish!
***

Group: Members
Posts: 1,791
Joined: 27-October 04
From: Paso Robles, Ca.
Member No.: 3,016
Region Association: Central California
Jeffs914/6 was or is installing CIS on his 3.0.

Volvo Intake with Porsche Injection... Click Here

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ThinAir
post Jul 18 2011, 10:37 PM
Post #20


Best friends
****

Group: Members
Posts: 2,564
Joined: 4-February 03
From: Flagstaff, AZ
Member No.: 231
Region Association: Southwest Region
I was drooling over Dan & Jeff Dixon's CIS setup on Dan's Type IV at WCR and asked for detailed info. Jeff sent me this great site Ferrari400parts.com. The is a lot of documentation there.

Volvo 1800s also used this system and I've found some info by searching for it.

This is definitely something that is in my future since I've got my own 914, my son's 914 and my other son's VW Bus to think about. It certainly looks superior to anything VW/Porsche ever put on a Type IV!

Are there particular years of Rabbits that you want to find for this?

Thanks for all the photos!
