How do you avoid kinking the fuel lines below the gas tank?

Now that I'm installing a new fuel pump, I thought it might be a good idea to be sure that the new SS fuel lines were not obstructed. So I poured a gallon of gas into the tank to confirm gas flow back to below the engine. No gas came out. I then put in about 5 gallons of gas and visually confirmed that the fuel was completely covering the sock. Still no flow. Ugh.

In retrospect, my old fuel pump may have been OK; it was just starved for fuel. (That's OK as a new fuel pump is probably a good idea anyway.)

So out with the fuel tank again. As I pulled the tank, I could see that the larger line was kinked. With the tank out, I blew air thru the lines; no obstruction.

So what is the secret?

Is there a standard length of hose between the tank and the SS lines? Once the tank is back in place, it's really hard to examine the hoses.

FYI I'm using the 5/16 and 3/8 fuel lines that Tangerine supplied (Gates Barricade MPI Fuel Injection hose).

Any advise is appreciated.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
2 Pages V  1 2 >
 Reply to this topicStart new topic
Replies(1 - 19)
pete000
post Apr 15 2016, 04:28 PM
Post #2


Senior Member
***

Group: Members
Posts: 1,887
Joined: 23-August 10
From: Bradenton Florida
Member No.: 12,094
Region Association: South East States

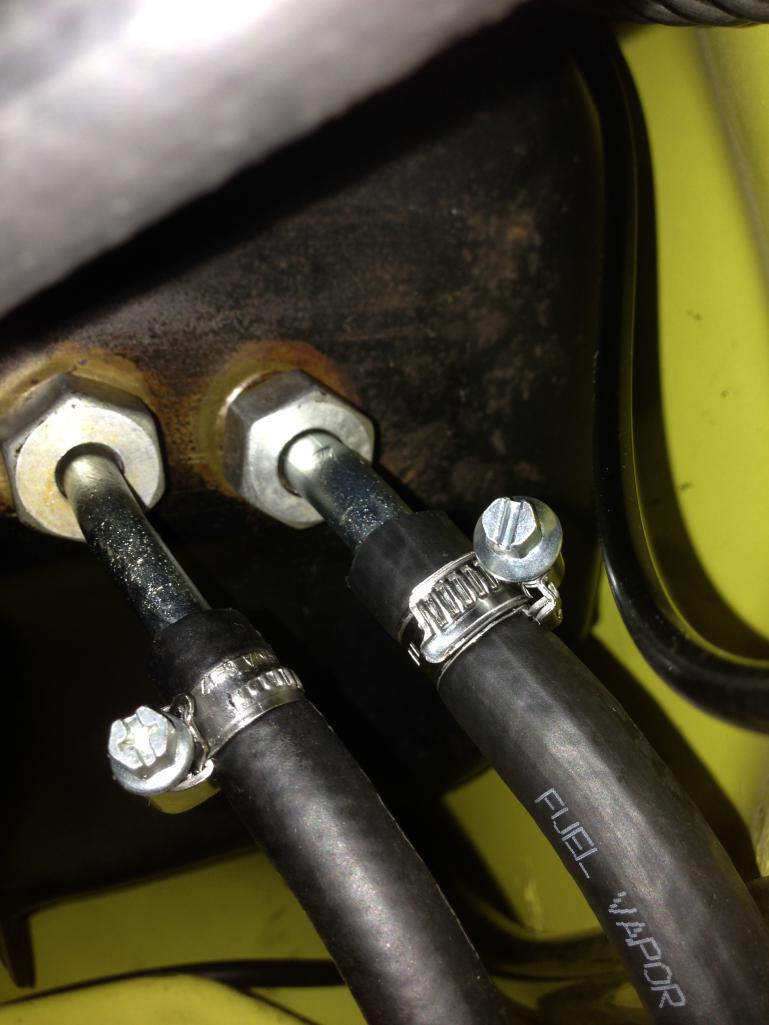

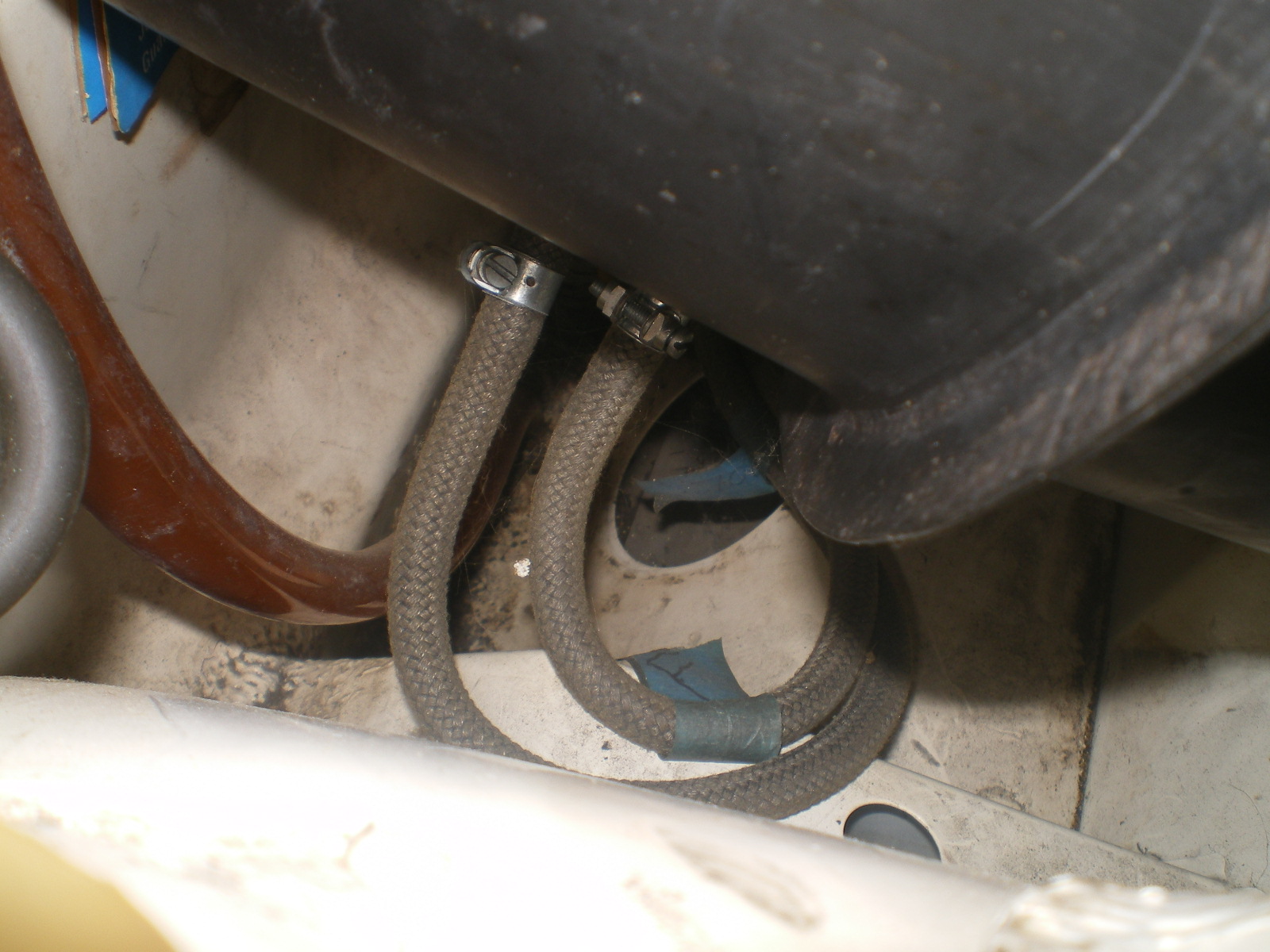

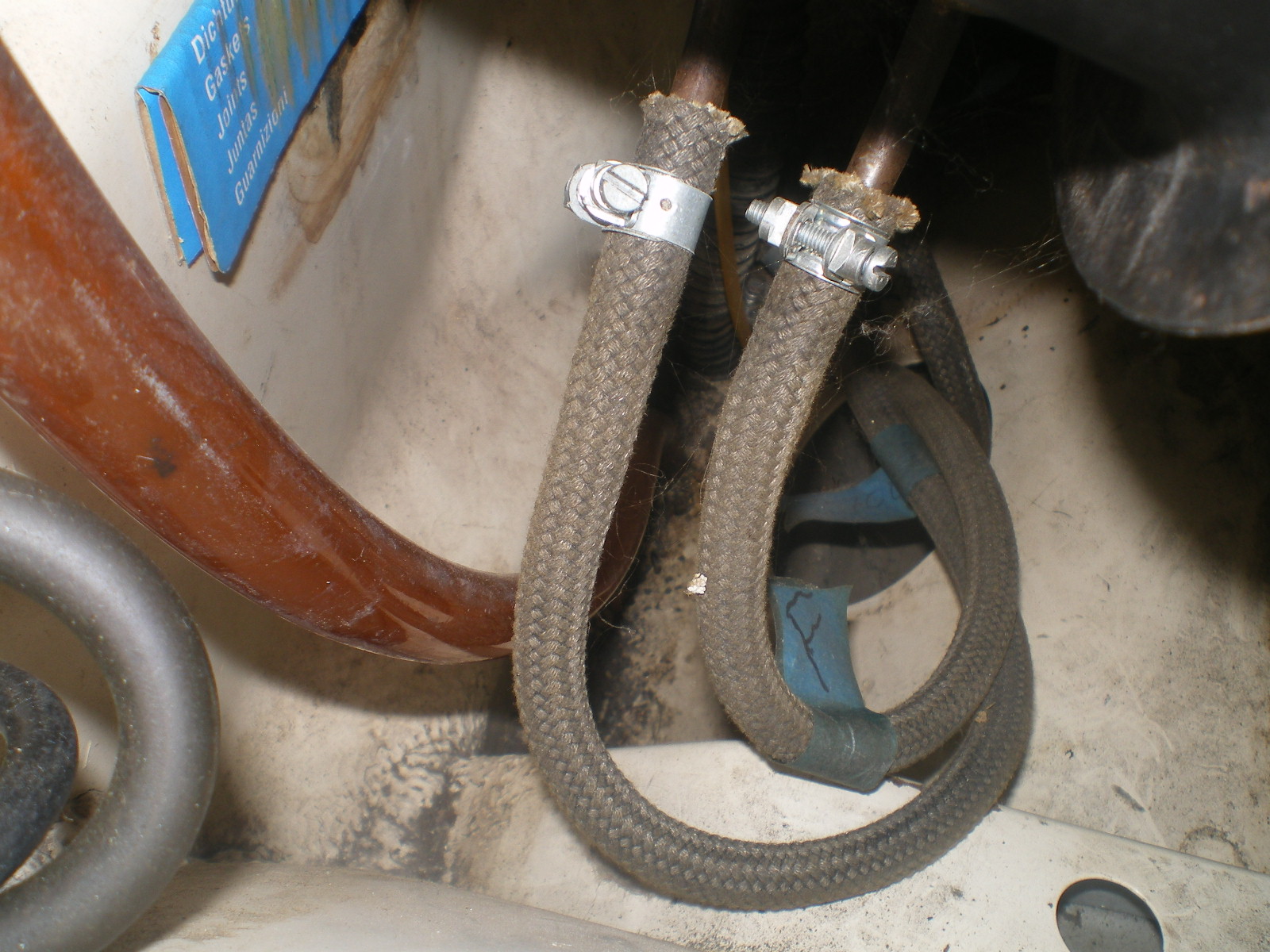

I have seen people put the lines in a loop. I tried it but was unsuccessful.

I ended up just making them just the right length. I mounted the hoses to the SS fuel lines in the body first, lowered in the tank and then cut them to length and attached them from the access hole under the car.

Good Luck !



Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
pilothyer
post Apr 15 2016, 04:34 PM
Post #3


Member
***

Group: Members
Posts: 838
Joined: 21-May 08
From: N. Alabama
Member No.: 9,080
Region Association: South East States
(IMG:style_emoticons/default/agree.gif) Best method is to attach the lines after the tank is installed. This is easily done thru the access hole under the car.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ndfrigi
post Apr 15 2016, 04:36 PM
Post #4


Advanced Member
****

Group: Members
Posts: 2,965
Joined: 21-August 11
From: Orange County
Member No.: 13,474
Region Association: Southern California
yes make the other end of the fuel hose (tank side) on a loop hose position. And check while lowering the tank, the fuel hose will make the loop by itself. Did it 3x on 3 different cars and I all went well.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
ejm
post Apr 15 2016, 05:07 PM
Post #5


I can see the light at the end of the tunnel
****

Group: Members
Posts: 2,707
Joined: 3-February 03
From: Massachusetts
Member No.: 224
Region Association: None
QUOTE(pilothyer @ Apr 15 2016, 06:34 PM) *
Best method is to attach the lines after the tank is installed. This is easily done thru the access hole under the car.

Yep... did this the other day..in 3/8" hose it took about 22" in a loop to span the 6" from the tank outlet to the SS line..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Apr 15 2016, 05:13 PM
Post #6


914-6 GT in waiting
***************

Group: Members
Posts: 19,874
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(pilothyer @ Apr 15 2016, 06:34 PM) *

(IMG:style_emoticons/default/agree.gif) Best method is to attach the lines after the tank is installed. This is easily done thru the access hole under the car.

That's what I did. Just cut to length. Make sure the lines and tank ends are positioned as smooth as possible.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Apr 15 2016, 05:15 PM
Post #7


Resident German
*************************

Group: Admin
Posts: 42,205
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
I make sure they are long enough to coil under the tank and then double check through the bottom access hole.

If needed you can move them around through the hole until they are kink-free ...
(IMG:style_emoticons/default/smile.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
napasteve
post Apr 15 2016, 05:29 PM
Post #8


914 driving winemaker
***

Group: Members
Posts: 510
Joined: 2-January 13
From: Napa, CA
Member No.: 15,327
Region Association: Northern California
Another dumb question: I can see there's a hole down under the fuel tank toward the front of the car. Does one need to remove the panel (some kind of rock guard?) bolted to the bottom that partially covers the access hole? Looks like 4 bolts?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
EdwardBlume
post Apr 15 2016, 05:31 PM
Post #9


914 Wizard
**********

Group: Members
Posts: 12,338
Joined: 2-January 03
From: SLO
Member No.: 81
Region Association: Central California
QUOTE(napasteve @ Apr 15 2016, 04:29 PM) *

Another dumb question: I can see there's a hole down under the fuel tank toward the front of the car. Does one need to remove the panel (some kind of rock guard?) bolted to the bottom that partially covers the access hole? Looks like 4 bolts?

Yes. OK to take off and access under there.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Steve
post Apr 15 2016, 05:59 PM
Post #10


914 Guru
*****

Group: Members
Posts: 5,857
Joined: 14-June 03
From: Laguna Niguel, CA
Member No.: 822
Region Association: Southern California
I've used wire protector crap and tie wrapped it to the fuel line. This makes the fuel line more rigid and helps prevent it from kinking.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Apr 15 2016, 06:39 PM
Post #11


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,700
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
QUOTE(SirAndy @ Apr 15 2016, 04:15 PM) *

I make sure they are long enough to coil under the tank and then double check through the bottom access hole.

If needed you can move them around through the hole until they are kink-free ...
(IMG:style_emoticons/default/smile.gif)

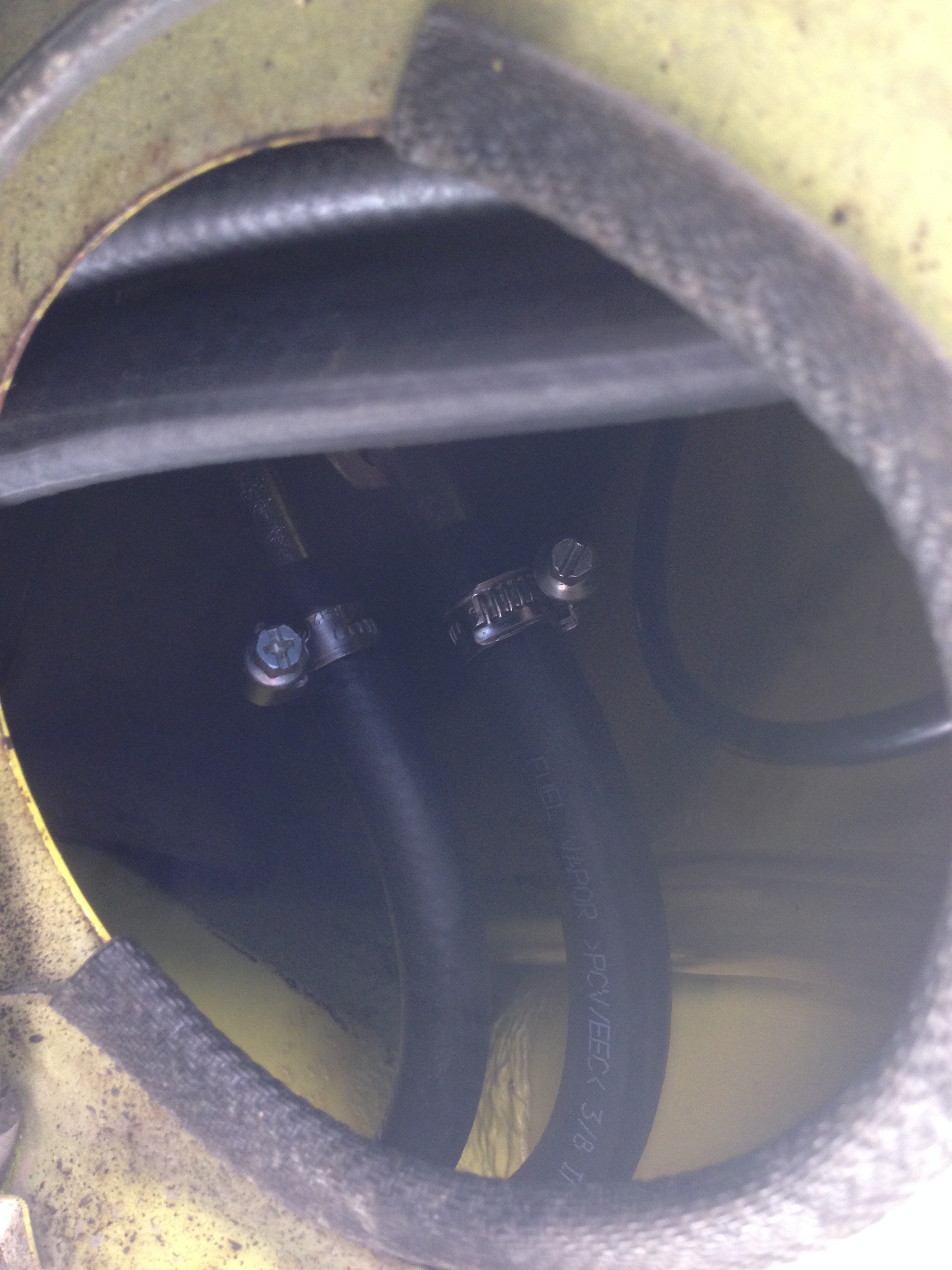

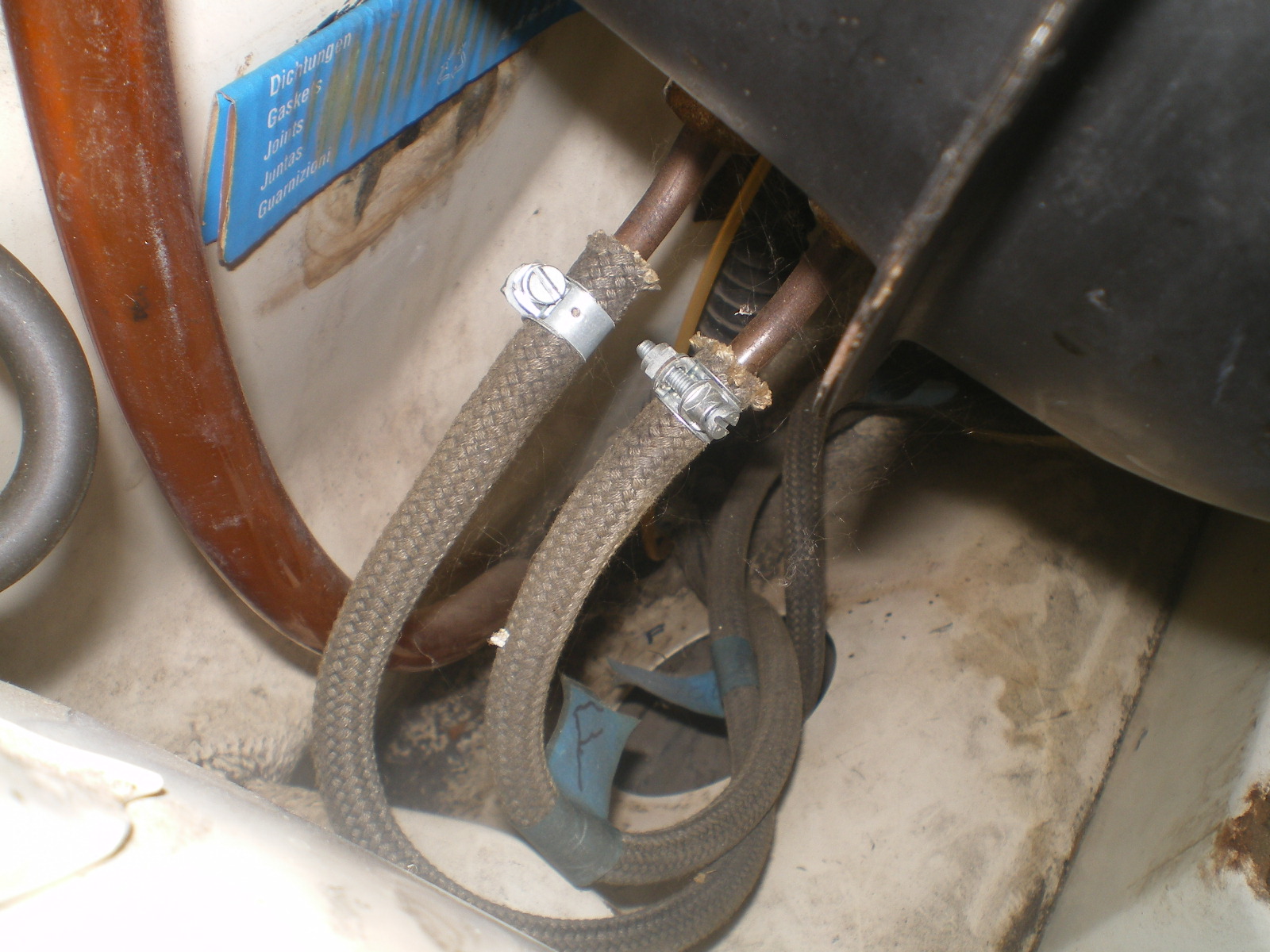

(IMG:style_emoticons/default/agree.gif) This is off a 75-76 so one line takes off under the tank to the filter/pump but you can see the coil Andy mentioned. As the tank is lowered the coil becomes a complete 360. This way you do it all from the top. Another trick is to "influence" coil by giving the hose a slight twist before you tighten the clamp. (IMG:style_emoticons/default/beerchug.gif)


Attached thumbnail(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Amphicar770
post Apr 15 2016, 07:20 PM
Post #12


Senior Member
***

Group: Members
Posts: 1,216
Joined: 20-April 10
From: PA, USA
Member No.: 11,639
Region Association: MidAtlantic Region
Getting tank back in without kinking lines was a major PIA for me as well. One thing that helped was the harbor freight borescope / inspection cameras. It let me get a good look at the hoses before and after setting the tank in place.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Apr 16 2016, 09:16 AM
Post #13


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,907
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None

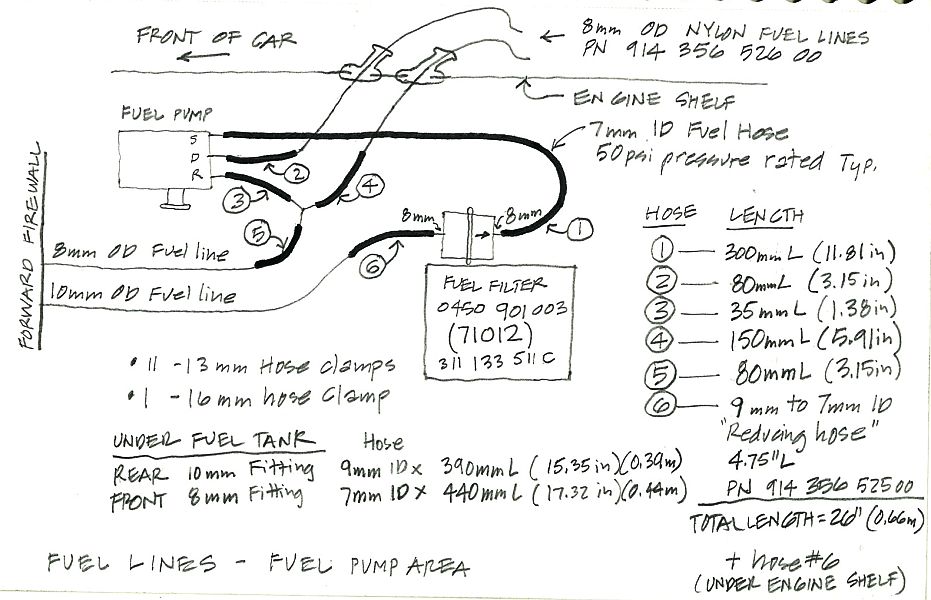

The FWSM has the lengths of these two hoses, summarized here from my Tech Notebook page:



Attached image(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Apr 16 2016, 10:11 AM
Post #14


I am Tangerine Racing
*****

Group: Members
Posts: 7,986
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
5/16" hose isn't much of a problem, but the 3/8" kinks pretty easily in a tight radius.
In places where there isn't room for a smooth bend I can offer a coil spring that fits over the Gates 3/8" hose and holds the round shape to prevent a kink.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JPA914
post Apr 16 2016, 10:17 AM
Post #15


Member
**

Group: Members
Posts: 81
Joined: 30-June 15
From: Houston, TX
Member No.: 18,905
Region Association: Southwest Region
QUOTE(pete000 @ Apr 15 2016, 05:28 PM) *

I have seen people put the lines in a loop. I tried it but was unsuccessful.

I ended up just making them just the right length. I mounted the hoses to the SS fuel lines in the body first, lowered in the tank and then cut them to length and attached them from the access hole under the car.

Good Luck !



Am I seeing this correctly? Did you angle the hard lines out of the tank towards the passenger side/rear of the car at about 45 degrees?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
napasteve
post Apr 16 2016, 12:17 PM
Post #16


914 driving winemaker
***

Group: Members
Posts: 510
Joined: 2-January 13
From: Napa, CA
Member No.: 15,327
Region Association: Northern California
Success!

The tank is back in and the lines are clear. I confirmed this by blowing into both SS lines under the engine where they come out. I used the loop method and did not need to use the access hole down at the bottom of the tank.

FYI I used 22" of each hose to make the connection.

So now the new fuel pump and filter go in and then we'll see if it starts. Fingers crossed.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914_teener
post Apr 16 2016, 08:20 PM
Post #17


914 Guru
*****

Group: Members
Posts: 5,264
Joined: 31-August 08
From: So. Cal
Member No.: 9,489
Region Association: Southern California
I used the loop method as well but zip tied them together to make sure the smaller line doesn.t kink.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
boxsterfan
post Apr 16 2016, 08:49 PM
Post #18


914's are kewl
***

Group: Members
Posts: 1,776
Joined: 6-June 03
From: San Ramon, CA
Member No.: 791
Region Association: Northern California
I tried and tried and tried with the 30R9 fuel hose. Very stiff stuff. Very difficult to get to loop without kinking. I ended up tearing the entire car apart in my garage. I'll cross that "get the fuel lines in" problem again when I put the car back together.

Should also note that you may have it looped without a kink but once the fuel pump apply suction it may kink on you....so be aware of that. Ask me how I know.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
napasteve
post Apr 17 2016, 11:04 AM
Post #19


914 driving winemaker
***

Group: Members
Posts: 510
Joined: 2-January 13
From: Napa, CA
Member No.: 15,327
Region Association: Northern California
Fuel pump and filter in. After some brief coughing and sputtering, she runs just like before this whole SS fuel line/new fuel pump adventure started.

Much thanks to the community for tolerating all my rookie questions.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
napasteve
post Apr 17 2016, 11:10 AM
Post #20


914 driving winemaker
***

Group: Members
Posts: 510
Joined: 2-January 13
From: Napa, CA
Member No.: 15,327
Region Association: Northern California

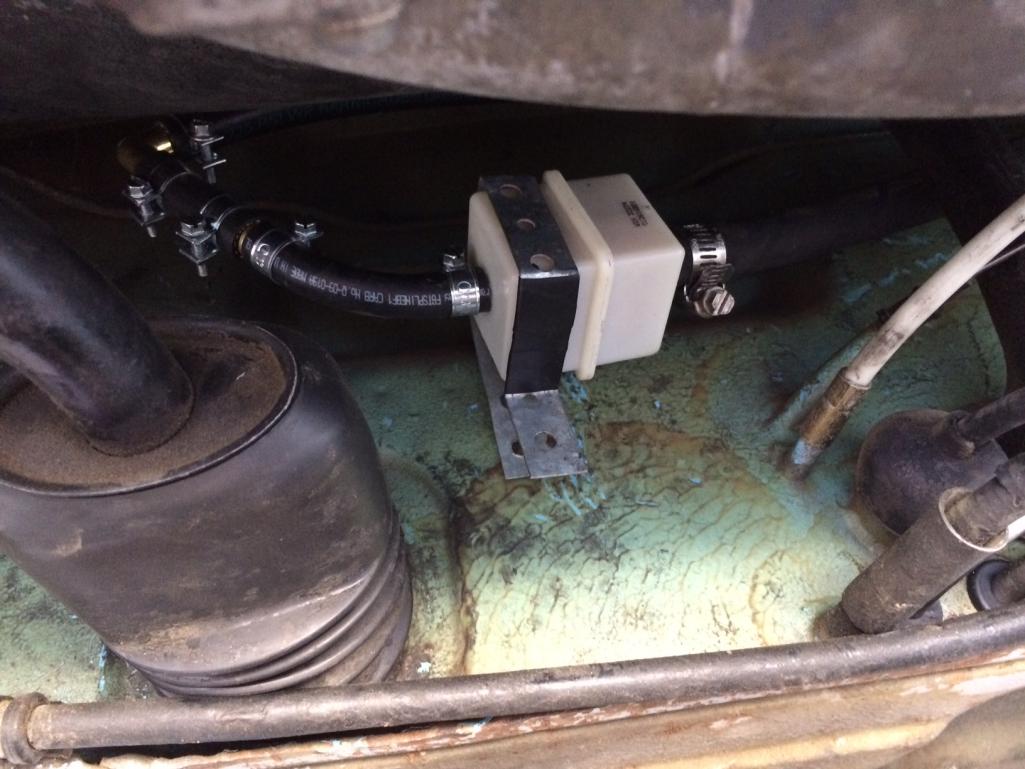

Now another question: I'm thinking I should hold the fuel filter in a bracket and I fashioned one using some metal ducting strap. Here is where I'd like to put it:

Attached Image
