Do I have the rear engine seal upside-down? |
bkrantz |
May 24 2022, 08:28 PM
Post
#1
|
914 Guru Group: Members Posts: 7,792 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

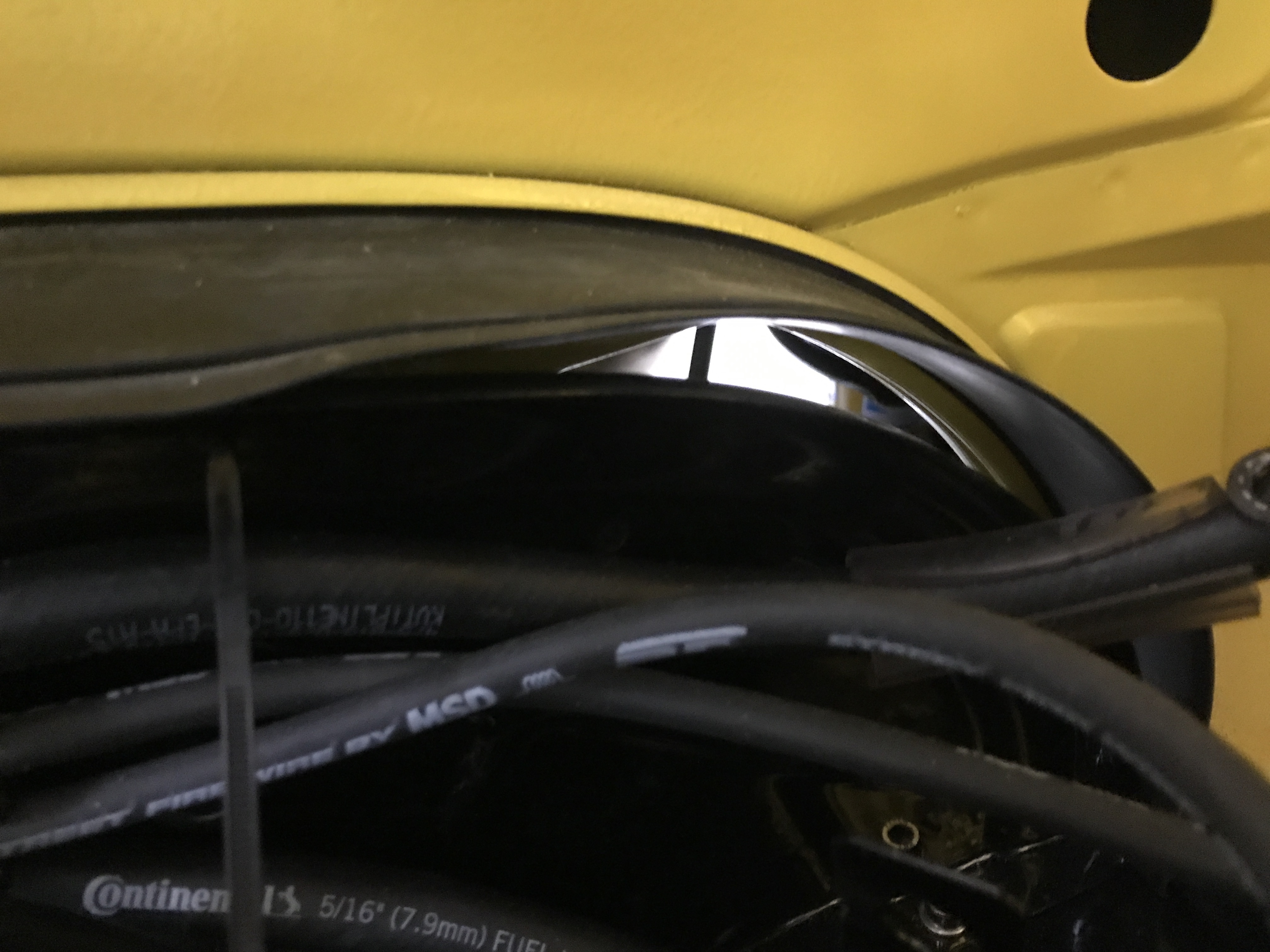

I noticed (and then forgot) this when I first installed the engine, but the rear seal across the vertical sheet metal does not lie close to sealing along the sides. Did I install the rubber upside-down? The shorter flap is on top.
Attached thumbnail(s) |
914werke |
May 24 2022, 09:48 PM
Post
#2
|
"I got blisters on me fingers" Group: Members Posts: 10,119 Joined: 22-March 03 From: USofA Member No.: 453 Region Association: Pacific Northwest |
Looks correct but you need to coax the back flap to the Trans side of the R. tin
|
mgphoto |
May 25 2022, 08:49 AM
Post
#3
|
"If there is a mistake it will find me" Group: Members Posts: 1,339 Joined: 1-April 09 From: Los Angeles, CA Member No.: 10,225 Region Association: Southern California |
The engine tin fits between the two flaps, one flap in the engine compartment and one in the transmission section.
|
