 Female Spade Crimp Connector?, Looking for ones with enough "meat"... |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
| FlacaProductions |
 Jun 10 2022, 03:56 PM
Post
#1
|
|
Advanced Member  Group: Members Posts: 2,033 Joined: 24-November 17 From: LA Member No.: 21,628 Region Association: Southern California
 |
Looking for a source for 10-12 and 14-16 .250 AWG female flag (90 degree) crimp-on insulated connectors.
I've done a lot of searching (digikey, amazon, waytek, etc...) and I keep coming up with connectors that appear to have little-to-no crimping "meat" on the leg where the wire inserts. It looks like it's all insulation and the they get crimped in-line with the female connector instead of "around the corner" on the 90. How do I crimp these - I have a Klein 3005CR crimper...do they fit? Thank you! |
   |

|
  |
Replies(1 - 8)
| Root_Werks |
Jun 10 2022, 04:05 PM
Post
#2
|
|
Village Idiot Group: Members Posts: 8,785 Joined: 25-May 04 From: About 5NM from Canada Member No.: 2,105 Region Association: Pacific Northwest
|
If I remember the name, it's called a Flag Crimping Tool. I have one, super handy for the "90" or flag female spade connectors.
|
|
|
|
| Root_Werks |
Jun 10 2022, 04:06 PM
Post
#3
|
|
Village Idiot Group: Members Posts: 8,785 Joined: 25-May 04 From: About 5NM from Canada Member No.: 2,105 Region Association: Pacific Northwest
|
Here you go:
https://powerwerx.com/insulated-flag-terminal-crimping-tool Mine's not the same brand, but that's what you need. How they work: https://www.youtube.com/watch?v=mQrItE6_2O4 Mine is a non-insulated version, can't find one of those as an example. |
|
|
|
| FlacaProductions |
Jun 10 2022, 05:14 PM
Post
#4
|
|
Advanced Member Group: Members Posts: 2,033 Joined: 24-November 17 From: LA Member No.: 21,628 Region Association: Southern California
|
That's great - perfect. Thank you!
Now who has the quality connectors? (It's SO easy to get blinded by all the choices....) or just make it a package deal and go with Powerwerx connectors, too? |
|
|
|
| windforfun |
Jun 10 2022, 05:51 PM
Post
#5
|
|
Advanced Member Group: Members Posts: 2,063 Joined: 17-December 07 From: Blackhawk, CA Member No.: 8,476 Region Association: None
|
QUOTE(Root_Werks @ Jun 10 2022, 03:06 PM)  Here you go: https://powerwerx.com/insulated-flag-terminal-crimping-tool Mine's not the same brand, but that's what you need. How they work: https://www.youtube.com/watch?v=mQrItE6_2O4 Mine is a non-insulated version, can't find one of those as an example. And why wouldn't this work for male connectors? |
|
|
|
| Mark Henry |
Jun 11 2022, 03:58 AM
Post
#6
|
|
that's what I do! Group: Members Posts: 20,065 Joined: 27-December 02 From: Port Hope, Ontario Member No.: 26 Region Association: Canada |
Panduet connectors are much heavier than the average FLAP no name connectors.
|
|
|
|
| JeffBowlsby |
Jun 11 2022, 09:47 AM
Post
#7
|
|
914 Wiring Harnesses & Beekeeper Group: Members Posts: 9,034 Joined: 7-January 03 From: San Ramon CA Member No.: 104 Region Association: None
|
Some may not appreciate my opinion, but I would never use the pre-insulated terminals on automotive wiring. One of my personal pet peeves about automotive wiring repairs.
-They are not factory correct, for several good technical reasons -They do not provide stress relief to the wire -They are foreign to automotive wiring -The insulation conceals corrosion and makes access impossible to burnish the terminal -The different available colors should be used to mean something but they just look bad, like some kind of little girls play jewelry -The insulation is only useful for power wires to keep them from shorting out to a ground condition. Old school method was to use heat shrink over the terminal to insulate it. I dont like to insulate them at all because the insulation conceals corrosion which is inaccessible to burnish. Just turn off the power when moving terminals around. -Did I mention they look bad? |
|
|
|
| IronHillRestorations |
Jun 11 2022, 10:21 AM
Post
#8
|
|
I. I. R. C. Group: Members Posts: 6,861 Joined: 18-March 03 From: West TN Member No.: 439 Region Association: None
|

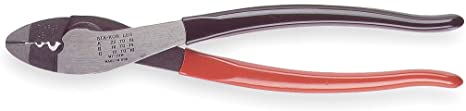

I'm with Jeff on this. I never use insulated terminals, nor did the factory. If insulation is required, I use heavy duty dual wall heat shrink tubing. I have a variety of crimpers, but I use my Sta-Kon most. Flag terminals do require a special crimper. Some terminations I solder as well.
Attached image(s)
|
|
|
|
| FlacaProductions |
Jun 11 2022, 10:28 AM
Post
#9
|
|
Advanced Member Group: Members Posts: 2,033 Joined: 24-November 17 From: LA Member No.: 21,628 Region Association: Southern California
|
Thanks for all of this input - my biggest takeaway is that flag terminals require a different crimper - makes sense, I just didn't realize it.
|
|
|
|
|
