Starting a new thread in response to @emeryGT 350 comment in another thread as follow up

Here’s the background:
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
2 Pages V  1 2 >
Reply to this topicStart new topic
Replies(1 - 19)
Superhawk996
post Jun 24 2024, 07:34 PM
Post #2


914 Guru
*****

Group: Members
Posts: 7,219
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch



I have two gauges, tested both at a variety of voltages

Both do have some “sticktion” in the needle due to damping that results in a minor delay between the time voltage hits the gauge and when the needle moves.

This is more pronounced the lower the voltage. At 8v it is very noticeable. At 11v it is hardly noticeable. At anything 12v or above, I’d say the needle movement is almost instantaneous with initial needle over shoot and then the needle quickly damps out to the indicated voltage.

Both gauges read a bit on the high side vs actual voltage. Approx .5v high. This diminishes as the voltage approaches full scale.

Pictures to follow
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jun 24 2024, 07:36 PM
Post #3


914 Guru
*****

Group: Members
Posts: 7,219
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch

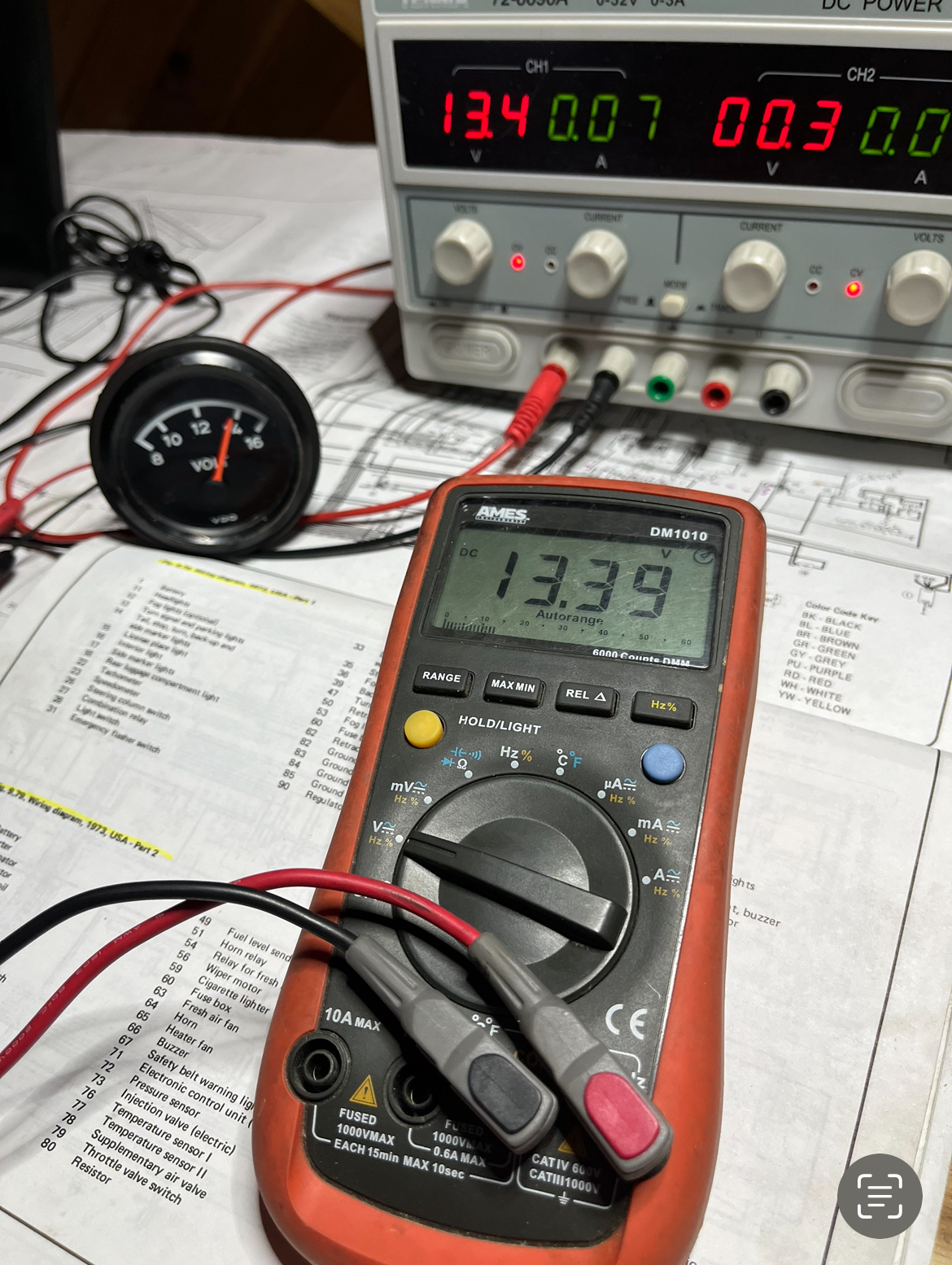

Gauge #1
Attached ImageAttached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
emerygt350
post Jun 24 2024, 07:39 PM
Post #4


Advanced Member
****

Group: Members
Posts: 3,016
Joined: 20-July 21
From: Upstate, NY
Member No.: 25,740
Region Association: North East States



Very interesting! Could you do some readings around 13.4-13.7? I was chatting with another teener at the northeast gathering and his gauge was looking quite a bit like mine, reading low when at the battery it was fine. Not sure if his is wired direct like mine, but when we were looking at it, the turn signals and other lights were not on...

I need to pull mine and verify what I see at the battery is what it is seeing at the posts.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jun 24 2024, 07:42 PM
Post #5


914 Guru
*****

Group: Members
Posts: 7,219
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch



Yup will do

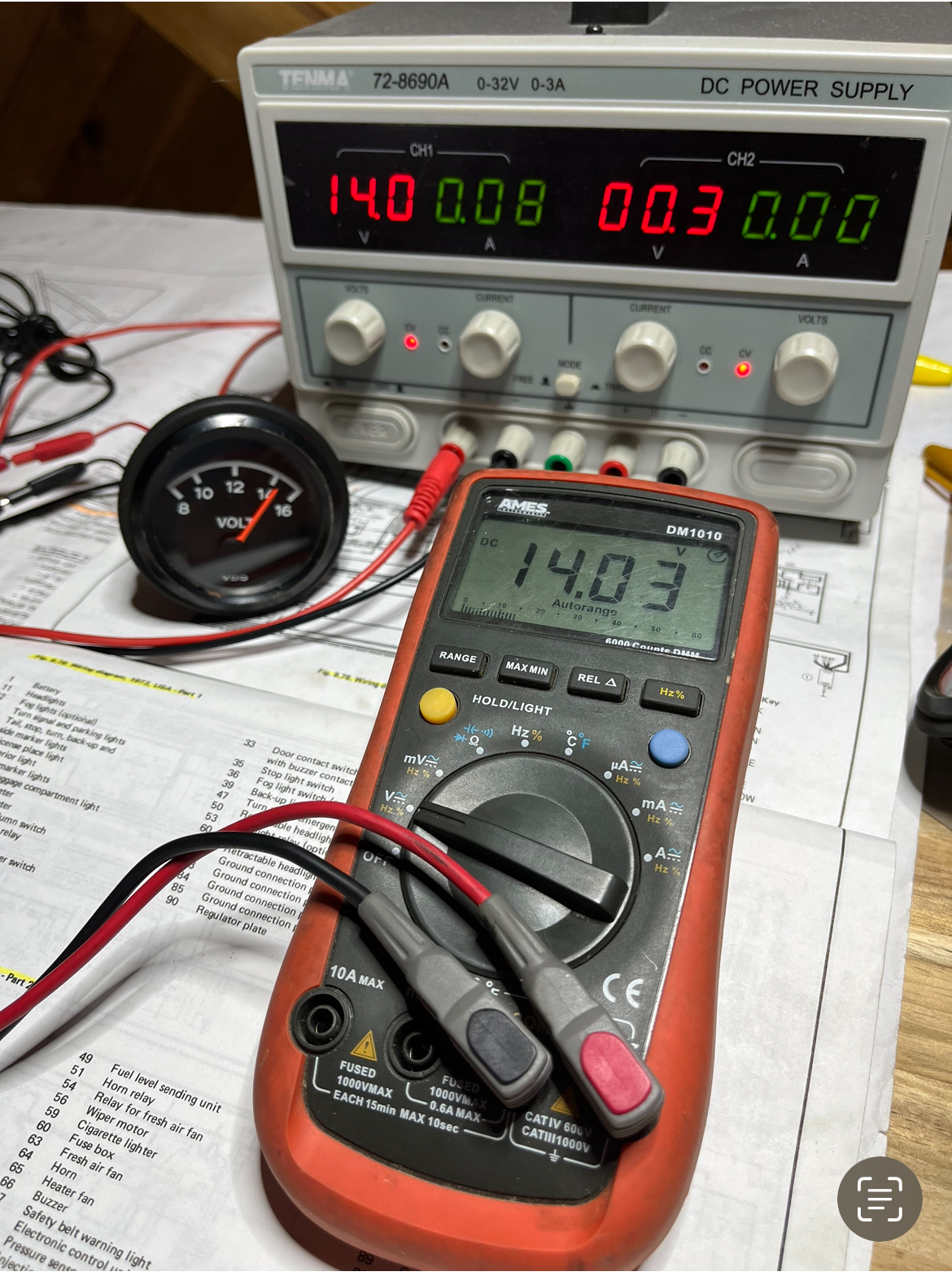

Here’s 14v. Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jun 24 2024, 07:46 PM
Post #6


914 Guru
*****

Group: Members
Posts: 7,219
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch

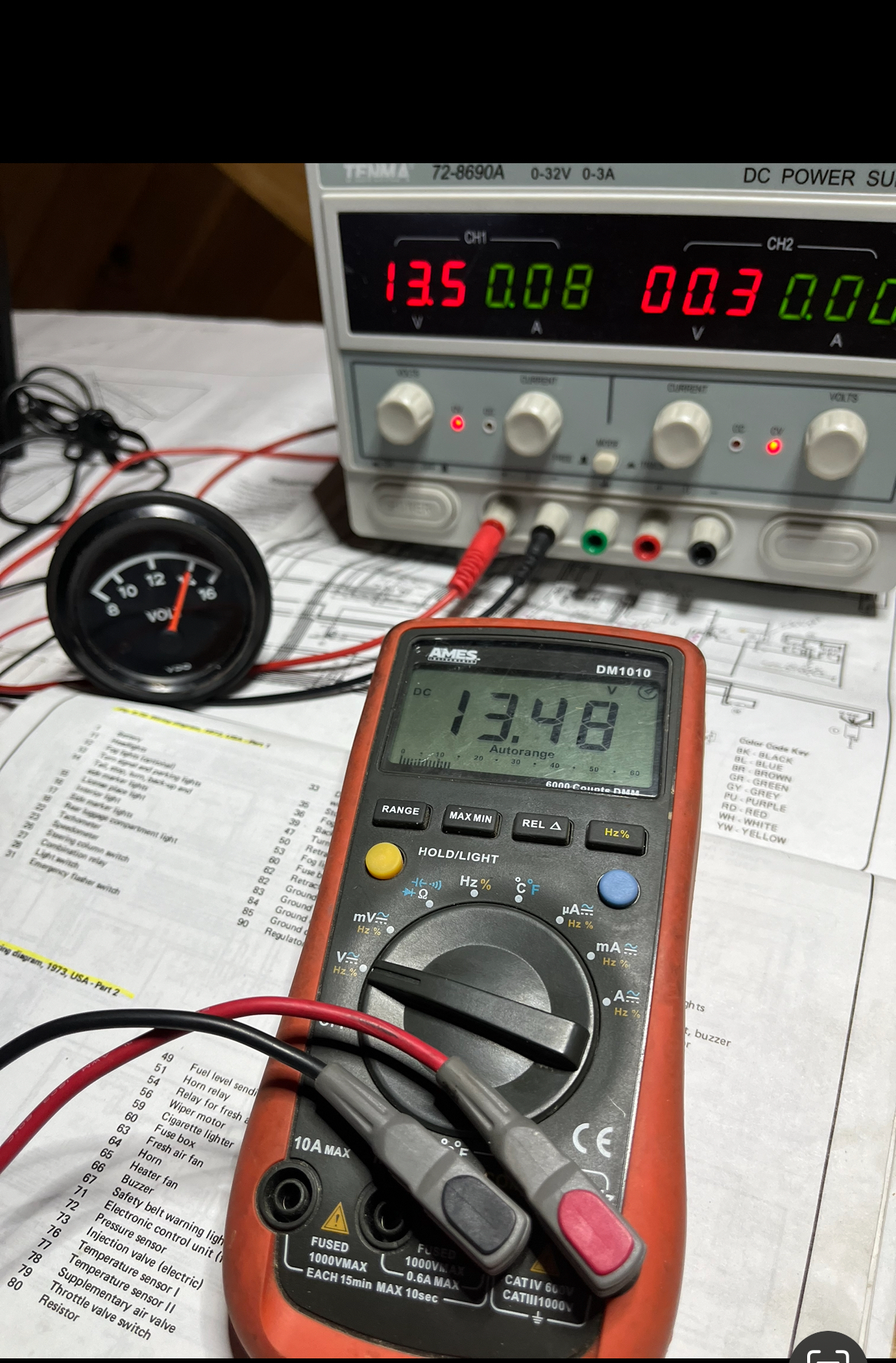

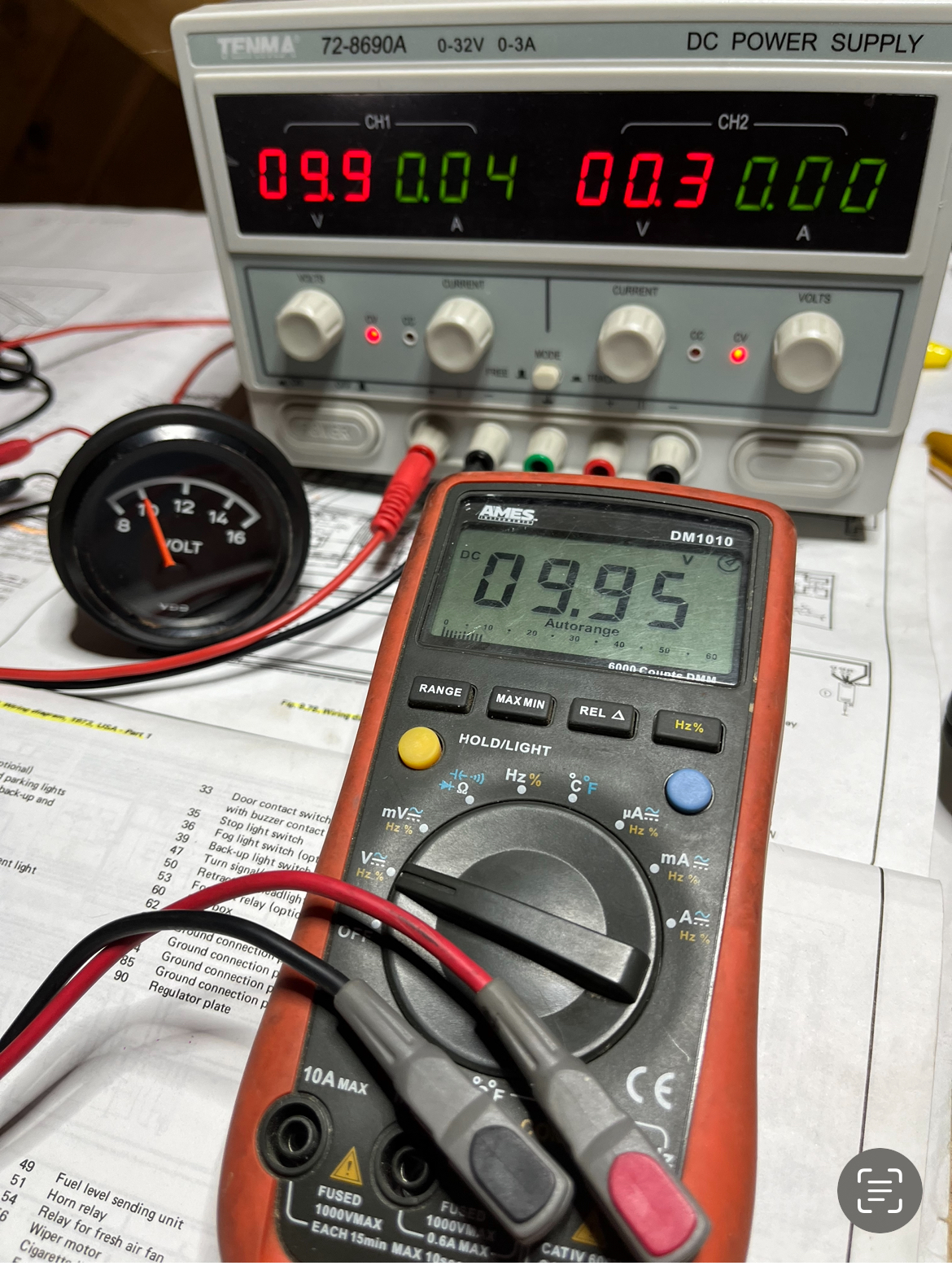

Attached ImageAttached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jun 24 2024, 07:54 PM
Post #7


914 Guru
*****

Group: Members
Posts: 7,219
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch



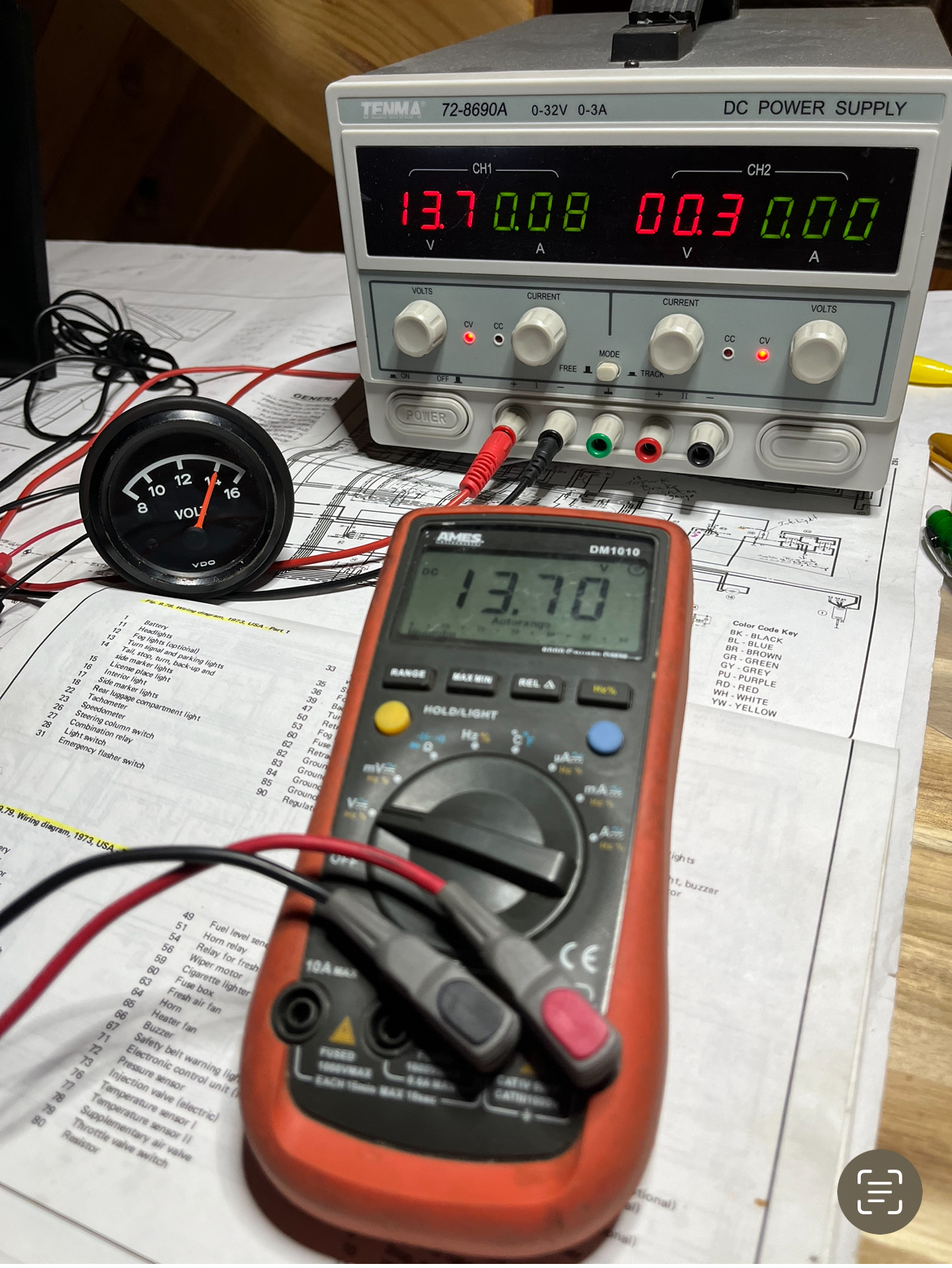

Gauge #1 at 13.7v

Attached Image

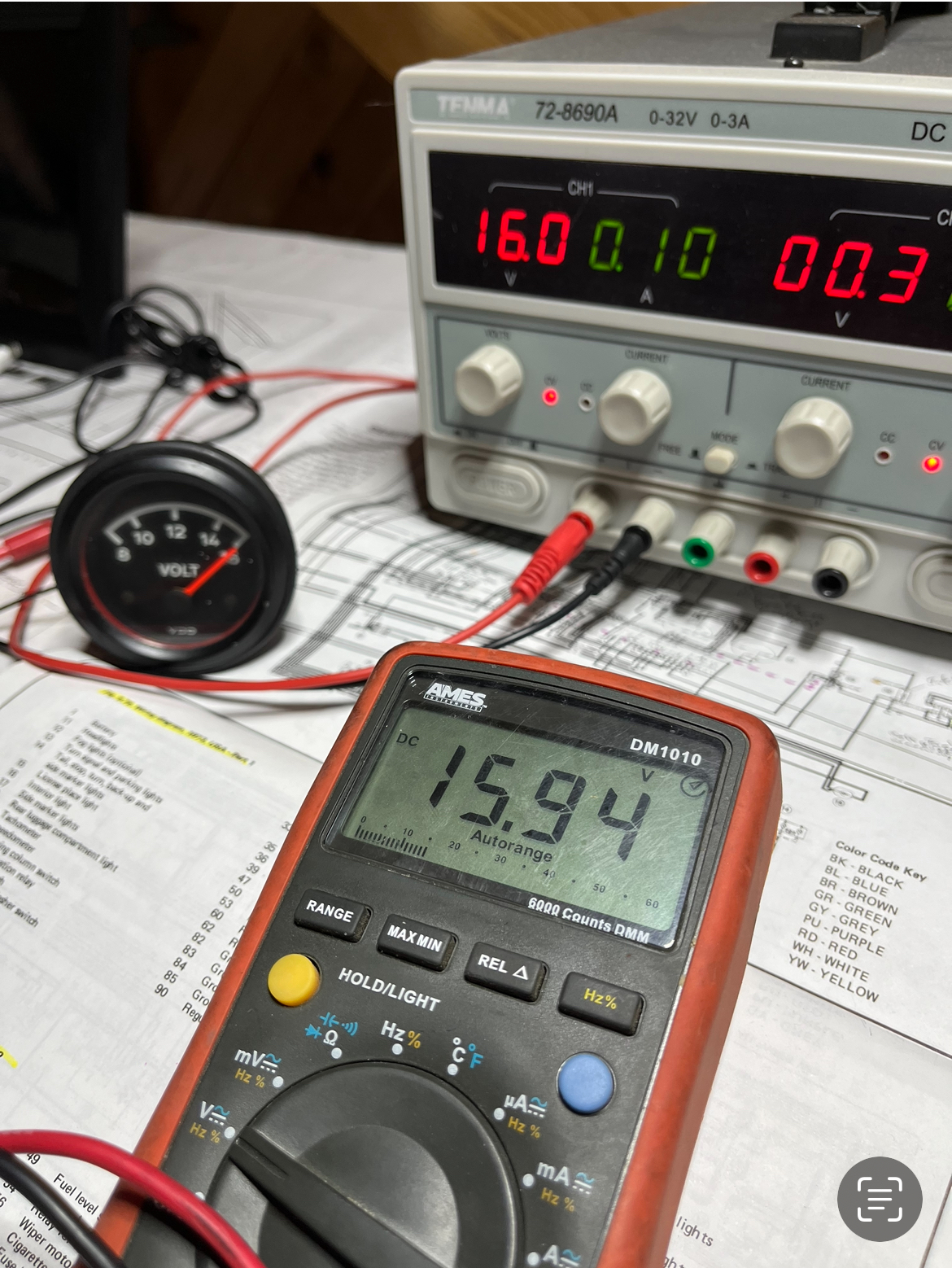

Gauge #2 at full scale - was basically same indicated display as gauge #1 as I ran up through the voltages.

Attached Image

Will post video of the damping behavior if it is needed.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jun 24 2024, 08:09 PM
Post #8


914 Guru
*****

Group: Members
Posts: 7,219
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch

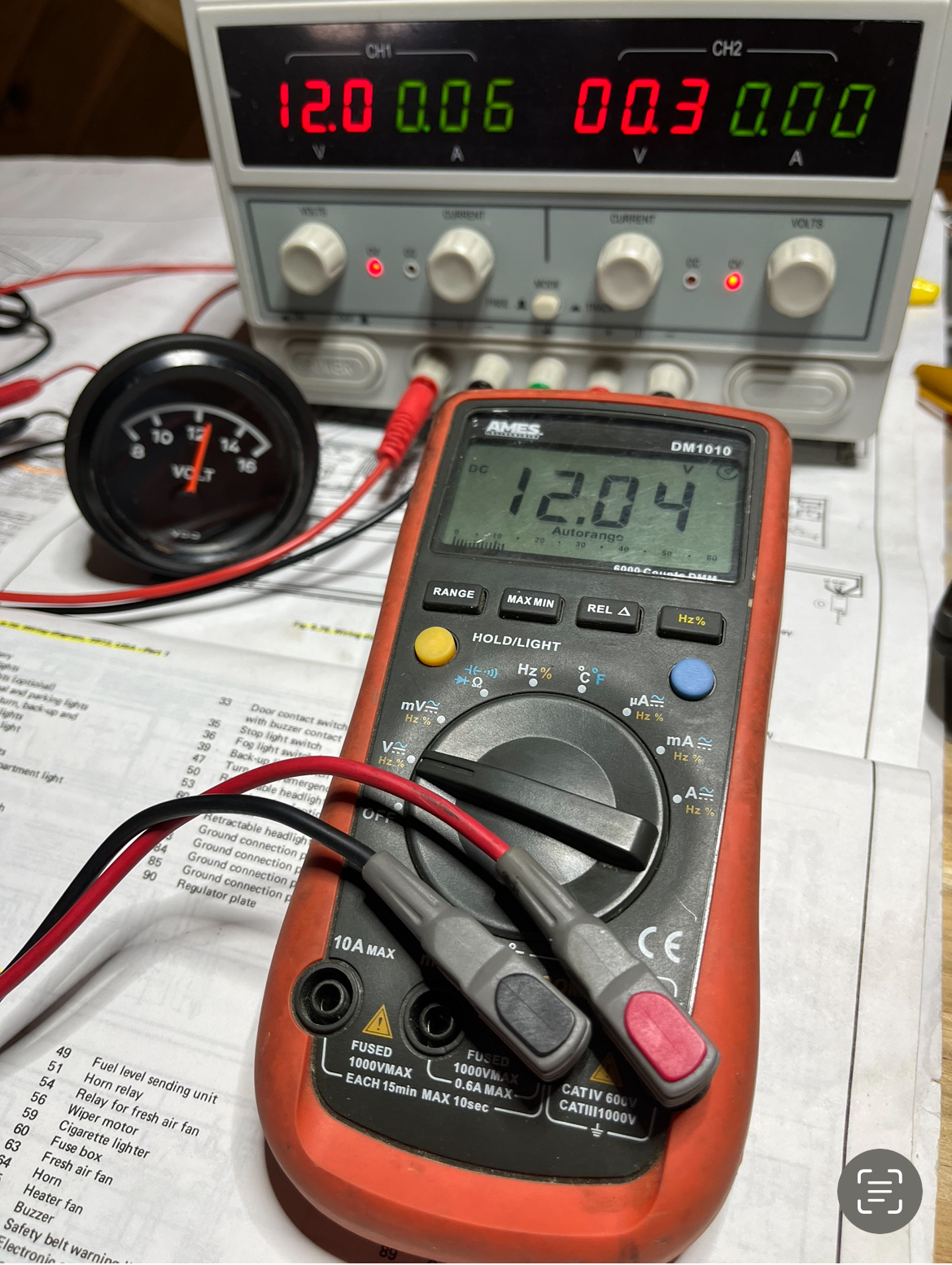

Gauge #2 12v nominal
