This is a Type I head, but it'll give you an idea for the 914 /4 motors.

Paul Guard, of Guard Transmission (maker of bitch'n parts for Porsche transmissions)
loaned me this head to get an idea on how to twin-plug my motor.

The secondary plug is a 10mm motocycle plug.

A modified distributor cap from a Nissan 4 cyl truck engine is adapted to fit on the stock /4 distributor...the rotor is from Nissan as well. I have the drawings for this modification somewhere in my garage (IMG:style_emoticons/default/smile.gif)

Using an aftermarket distributorless ignition would be ideal, but for cost savings, the above will work.

There is a company that'll machine these heads for about 300 dollars or so (they do this for aircraft...not for performance, but for redundancy (saftey))

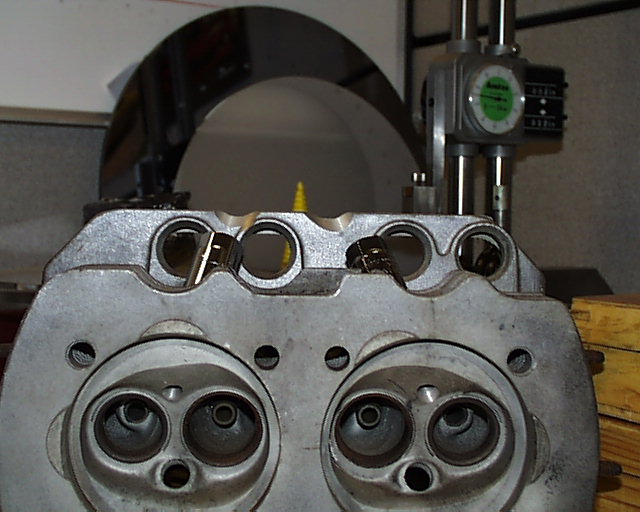

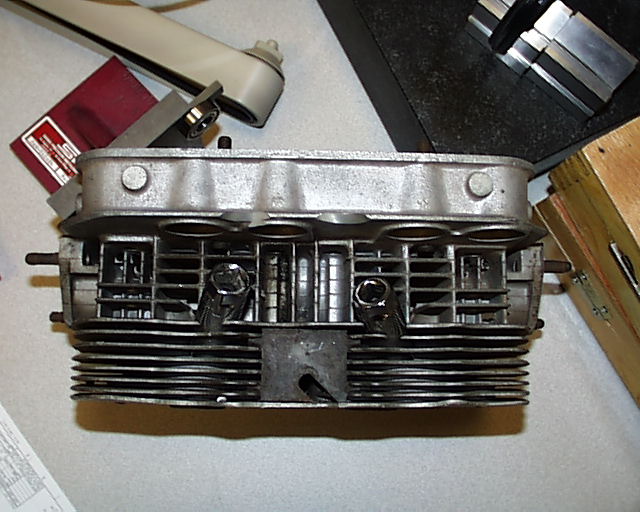

The sockets in the head are to give you an idea of the angles.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
2 Pages V  1 2 >
 Reply to this topicStart new topic
Replies(1 - 19)
Mueller
post Jul 30 2003, 10:49 AM
Post #2


914 Freak!
***************

Group: Members
Posts: 17,146
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None

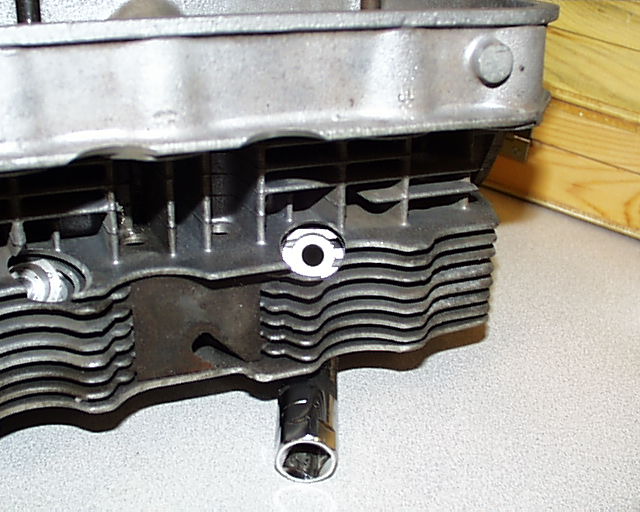

another one:


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Jul 30 2003, 10:50 AM
Post #3


914 Freak!
***************

Group: Members
Posts: 17,146
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
********


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Jul 30 2003, 10:50 AM
Post #4


914 Freak!
***************

Group: Members
Posts: 17,146
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
*********


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
post Jul 30 2003, 10:56 AM
Post #5





Group:
Posts: 0
Joined: --
Member No.: 0
Curious, what are the advantages of a twin plug engine?
User is offlinePM
Go to the top of the page
+Quote Post
Brad Roberts
post Jul 30 2003, 10:57 AM
Post #6


914 Freak!
***************

Group: Members
Posts: 19,148
Joined: 23-December 02
Member No.: 8
Region Association: None
He just woke up.


B
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
J P Stein
post Jul 30 2003, 11:03 AM
Post #7


Irrelevant old fart
*****

Group: Members
Posts: 8,797
Joined: 30-December 02
From: Vancouver, WA
Member No.: 45
Region Association: None
QUOTE(L8Apex @ Jul 30 2003, 08:56 AM)
Curious, what are the advantages of a twin plug engine?

One can run higher compression without detonation....and spend more money.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
redshift
post Jul 30 2003, 11:17 AM
Post #8


Bless the Hell out of you!
**********

Group: Members
Posts: 10,926
Joined: 29-June 03
Member No.: 869
Also the redundancy, you don't want to be unredundant, or totally redunduntless.



M
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
J P Stein
post Jul 30 2003, 11:33 AM
Post #9


Irrelevant old fart
*****

Group: Members
Posts: 8,797
Joined: 30-December 02
From: Vancouver, WA
Member No.: 45
Region Association: None
Not to be redundant, but....Mueller is talking airplanes which have 2 seperate ignition systems....magnetos, me thinks.
The down side of twin plugs & high compression is if one plug fails and the other keeps on firing, detonation will occur, you may not notice and keep on truckin'. At some point, you will notice the hole in your piston, tho.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Jul 30 2003, 11:45 AM
Post #10


"I got blisters on me fingers"
**********

Group: Members
Posts: 10,119
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
Given the propensity for the heads to crack at the spark plug hole in stock form why not weld up and re-tap for the 10mm plugs anyway?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Brad Roberts
post Jul 30 2003, 12:12 PM
Post #11


914 Freak!
***************

Group: Members
Posts: 19,148
Joined: 23-December 02
Member No.: 8
Region Association: None
Oh.. that is a good one Rich. (IMG:style_emoticons/default/clap56.gif)

B
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post Jul 30 2003, 12:17 PM
Post #12


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 120,967
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None
Two things:

1. Is there really enough HP gain to justify the cost and PITA factor?

2. You're adding more weight (plugs, wire, cap, etc)

OK, maybe item 2 isn't that big of a deal to most of you.

Paul
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
redshift
post Jul 30 2003, 12:25 PM
Post #13


Bless the Hell out of you!
**********

Group: Members
Posts: 10,926
Joined: 29-June 03
Member No.: 869
QUOTE(URY914 @ Jul 30 2003, 10:17 AM)

2. You're adding more weight (plugs, wire, cap, etc)

OK, maybe item 2 isn't that big of a deal to most of you.

Paul

LMAO

It just hit me, you drive a kite.



M
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Brad Roberts
post Jul 30 2003, 12:31 PM
Post #14


914 Freak!
***************

Group: Members
Posts: 19,148
Joined: 23-December 02
Member No.: 8
Region Association: None
Words that I thought I would never see "together"

Drive a kite.

Sooner later Paul will make the car remote controlled so he can remove his weight.


B
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Aaron Cox
post Jul 30 2003, 12:56 PM
Post #15


Professional Lawn Dart
***************

Group: Retired Admin
Posts: 24,541
Joined: 1-February 03
From: OC
Member No.: 219
Region Association: Southern California
QUOTE
Today is a good day to die

kiefer sotherland- flatliners right?...anyway, im back from a week long lurking experience........
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Jul 30 2003, 01:05 PM
Post #16


914 Freak!
***************

Group: Members
Posts: 17,146
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
From what I understand, the addition of the second plug was needed due to the increased cylinder pressure when RPM(?) installed the supercharger(s)* on the 914's.

*not sure how many had been installed, I have a copy of a magazine article with the /4 supercharged powered 914, it does not say if it was a one-off or if more had been built and sold.

On a bone stock motor I'm sure you'd see some gain from the second plug, but it is cost effective??? I doubt it.

Even in a run of mill aircraft powerplant, there is noticeble change in the running of the motor when one set of plugs is turned off while doing a magneto check.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Targa
post Jul 30 2003, 01:09 PM
Post #17


V Member
**

Group: Members
Posts: 180
Joined: 26-December 02
From: San Mateo, CA
Member No.: 18
It looks as though you would have to remove your rocker assemblies, push rods & tubes to have enough room to change those 10mm plugs. Is this true? (IMG:style_emoticons/default/unsure.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Jul 30 2003, 01:17 PM
Post #18


914 Freak!
***************

Group: Members
Posts: 17,146
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE
It looks as though you would have to remove your rocker assemblies, push rods & tubes to have enough room to change those 10mm plugs. Is this true?


Nope, that is one of the reasons for the 10mm plug instead of the 14mm(?) size of the factory plug.

The location of the new plugs have to be dead-nuts on however to ensure that dis. will not be needed.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Jul 30 2003, 01:19 PM
Post #19


Resident German
*************************

Group: Admin
Posts: 41,669
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(acox914 @ Jul 30 2003, 11:56 AM)
QUOTE
Today is a good day to die

kiefer sotherland- flatliners right?...anyway, im back from a week long lurking experience........

Worf in Enterprise TNG ...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PatW
post Jul 30 2003, 01:24 PM
Post #20


Wassup?
***

Group: Benefactors
Posts: 565
Joined: 19-February 03
From: Rocklin, CA
Member No.: 317
Region Association: Northern California
QUOTE(Mueller @ Jul 30 2003, 08:48 AM)

A modified distributor cap from a Nissan 4 cyl truck engine is adapted to fit on the stock /4 distributor...the rotor is from Nissan as well. I have the drawings for this modification somewhere in my garage (IMG:style_emoticons/default/smile.gif)


I'd like to see the set-up for that Ignition. The WOW factor for this is good. Thoughts also about timing, cams, run with D-Jet?, etc. Would make a powerfull motor. My.02 (IMG:style_emoticons/default/wink.gif)

Pat
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
