> Long, sordid tale w/ a question at end, how did my dizzy get 90deg off?
nebreitling
post Jan 4 2004, 03:38 PM
Post #1


Member Emeritus
****

Group: Members
Posts: 3,314
Joined: 26-March 03
From: San Francisco
Member No.: 478
being equal parts idiot and newbie, i've got myself into a bit of a predicament. basically, my dizzy is off 90degrees from TDC.


last month, i pulled my distributor out to install a crane xr700 and just do a bit of general cleaning, greasing, etc. i lined up the rotor over the mark on the dizzy body (~TDC) before pulling it. i didnt bother to check for TDC on the fan, thought i'd be close enough.

i completed the installs and cleaning, etc. put the dizzy back in. cranked it, didn't start. i'd forgoten to plug in the FI points. tried again, nothing. pulled the dizzy, messed with it, replaced it-->nothing. then i had to leave the country.

now i'm back messing w/ it, and have resolved to get it done right. i found TDC by the scribe on the flywheel, confirmed it at the impeller, and then opened up my distributor cap. whoa!: the rotor was pointing 90degrees foward from TDC; i.e. it was pointing at wire 4.

the distributor body is oriented correctly, with the vacuum unit pointing towards the drivers side, the #1 wire at the front left, etc. how the hell did i do this? how can i fix it? (IMG:style_emoticons/default/headbang.gif)

thanks in advance (no pun intended) for your replies....

nathan

sorry, no camera; no pics.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

 Reply to this topicStart new topic
Replies(1 - 14)
nebreitling
post Jan 4 2004, 04:01 PM
Post #2


Member Emeritus
****

Group: Members
Posts: 3,314
Joined: 26-March 03
From: San Francisco
Member No.: 478
okay, i'm guessing that my distributor drive shaft is out of wack

how can this be set back?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fiid
post Jan 4 2004, 05:19 PM
Post #3


Turbo Megasquirted Subaru Member
****

Group: Members
Posts: 2,827
Joined: 7-April 03
From: San Francisco, CA
Member No.: 530
Region Association: Northern California
errr... can't you just re-plug the wires into the right holes?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nebreitling
post Jan 4 2004, 05:23 PM
Post #4


Member Emeritus
****

Group: Members
Posts: 3,314
Joined: 26-March 03
From: San Francisco
Member No.: 478
QUOTE(fiid @ Jan 4 2004, 03:19 PM)
errr... can't you just re-plug the wires into the right holes?

ha! i was just thinking that... but it seems like it might throw off the FI points. if it were 180deg off, i might actually try it!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fiid
post Jan 4 2004, 05:43 PM
Post #5


Turbo Megasquirted Subaru Member
****

Group: Members
Posts: 2,827
Joined: 7-April 03
From: San Francisco, CA
Member No.: 530
Region Association: Northern California
I reckon you're plugged in wrong. I think if you replug it so it is correct, it will work. I suspect that the injection is firing correctly - and the wires are wrong.

Besides, it's easy to try and test, and I don't think you'll break anything if it is wrong. (Caveat emptor)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nebreitling
post Jan 4 2004, 06:07 PM
Post #6


Member Emeritus
****

Group: Members
Posts: 3,314
Joined: 26-March 03
From: San Francisco
Member No.: 478
huh. maybe. i double checked my plug wires 'n such, all was orthodox.

in anycase it doesn't really matter now. i just (gulp) used a pair of needle nose pliers to partially pull out the dizzy drive shaft and re-orient it. that really sucked. here's me crossing my fingers.... (IMG:style_emoticons/default/sad.gif) n
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jan 4 2004, 06:15 PM
Post #7


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
It's actually pretty easy. Once you've done it a few times, that is.

1. Pull out the distributor.
2. Make sure you're at TDC on the compression stroke for cylinder 1.

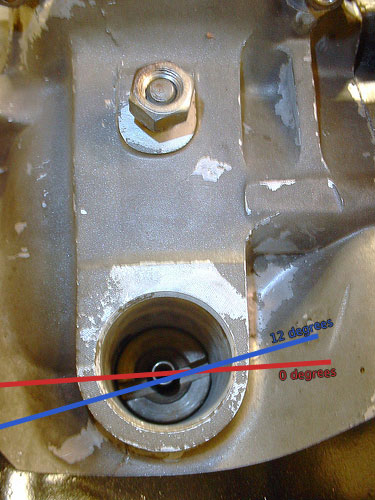

3. Look down the hole, the groove in the distributor should be 12 degrees off the center line of the case.
(IMG:http://www.914world.com/bbs2/uploads/post-419-1177360297.jpg)
4. If it's not, remove the spring.
5. Get a tappet puller from an auto parts store, or if you wanna "fake it" get a long pair of needle nose plyers and stick them in the center hole of the distributor drive and open them to grab the drive.

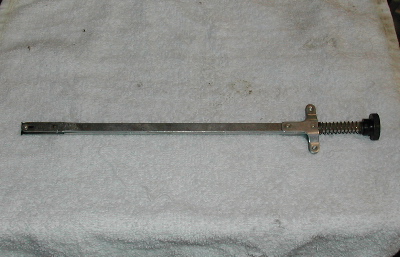

Tappet puller:
(IMG:http://www.914world.com/bbs2/uploads_offsite/homepage.mac.com-179-1296436279.1.jpg)

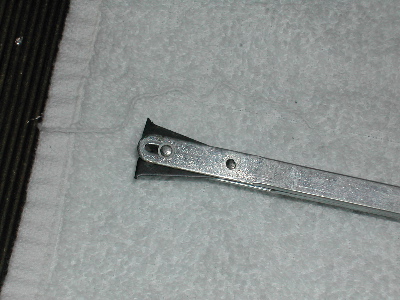

Tapper puller in the "open" position:
(IMG:http://www.914world.com/bbs2/uploads_offsite/homepage.mac.com-179-1296436279.2.jpg)
6. Lift the drive up. It will try to turn a bit as you lift and this will take awhile.
7. Don't take it all the way out, just turn it enough so that it's pointing the right way. Remember that it will turn a bit as it drops in, so you can't point it to the viewing hole and then drop it in. You must compensate ahead of time.

Take a few tries to get the drive raised up enough to turn. But you can do it. Make sure the groove is oriented correctly. It is off set to one side, so make sure the "small side" is down. Be careful not to drop the washer down into the case. There is a ledge that will keep it if it does fall off (most of the time) so don't stress too much over it. Just be aware.

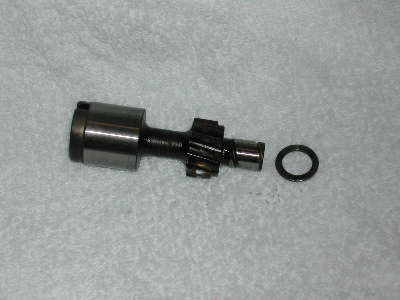

Distributor drive and washer:
(IMG:http://www.914world.com/bbs2/uploads_offsite/homepage.mac.com-179-1296436280.3.jpg)

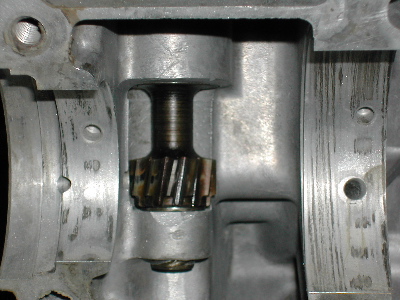

View of drive from "inside" the case
(IMG:http://www.914world.com/bbs2/uploads_offsite/homepage.mac.com-179-1296436280.4.jpg)

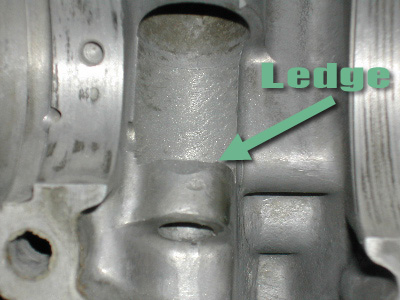

View of where the drive sit, notice the ledge where the washer will fall most of the time.
(IMG:http://www.914world.com/bbs2/uploads_offsite/homepage.mac.com-179-1296436280.5.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nebreitling
post Jan 4 2004, 07:16 PM
Post #8


Member Emeritus
****

Group: Members
Posts: 3,314
Joined: 26-March 03
From: San Francisco
Member No.: 478
Mark, you are my hero. (IMG:style_emoticons/default/pray.gif)

seriously. thanks.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gint
post Jan 4 2004, 07:23 PM
Post #9


Mike Ginter
***************

Group: Admin
Posts: 16,096
Joined: 26-December 02
From: Denver CO.
Member No.: 20
Region Association: Rocky Mountains
Those are some really nice pics Mark. Classic thread material?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nebreitling
post Jan 4 2004, 07:25 PM
Post #10


Member Emeritus
****

Group: Members
Posts: 3,314
Joined: 26-March 03
From: San Francisco
Member No.: 478
that's what i was thinking... if an admin could edit/clean up the thread a little, i think it would be a great addition to the classic threads.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gint
post Jan 4 2004, 07:27 PM
Post #11


Mike Ginter
***************

Group: Admin
Posts: 16,096
Joined: 26-December 02
From: Denver CO.
Member No.: 20
Region Association: Rocky Mountains
Let the thread play out.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Curvie Roadlover
post Jan 4 2004, 07:31 PM
Post #12


Two trunks are better than one!
****

Group: Members
Posts: 2,025
Joined: 29-December 02
From: Southeast Michigan
Member No.: 42
Mark (IMG:style_emoticons/default/clap56.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Jan 4 2004, 07:45 PM
Post #13


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,240
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
good job mark.

kevin
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jan 4 2004, 09:06 PM
Post #14


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Thanks for the compliments. Sometimes I get inspired. The tappet puller is a stroke of luck. We had one headed for the trash at work, so I had it in my car and thought of it as I read the thread. Turns out it works pretty well.
(IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
redshift
post Jan 4 2004, 09:36 PM
Post #15


Bless the Hell out of you!
**********

Group: Members
Posts: 10,926
Joined: 29-June 03
Member No.: 869
That is an excellent write up, with pics..

There should be a chart, with clickable areas on a 914, that pops up the related parts in that area, and maybe an engine with something like that too.. and a transaxle..

Seriously, with something like that, I could build an engine, and never think twice.. (IMG:style_emoticons/default/smilie_pokal.gif)



M
