 914-4 vacuum hose locations |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
| monkei |
 Sep 11 2004, 12:34 PM
Post
#1
|
|
slave to rust....  Group: Members Posts: 137 Joined: 10-August 04 From: Pleasanton, CA Member No.: 2,504  |

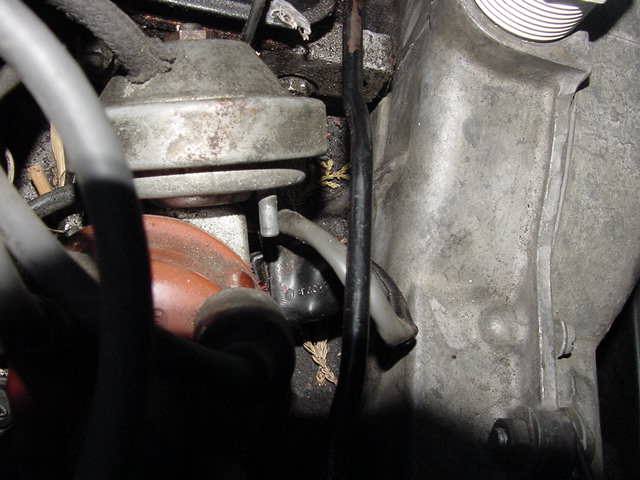

hello, patrick a. here. just accquired a 1974 1.8l 914-4 and i have a good bit of work to do to make this vehicle in any sort of shape to go long distance cruisin/autocrossing. various electrical gremlins/nasty old rubber fuel lines and a lot of general tune up needs to be taken care of. im having trouble figuring out where some loose vacuum lines are to be routed. this first picture shows some vacuum valve that i believe is routed to that evap. can that looks like a tiny muffler and has a cut line that im not sure where to put:
Attached image(s)
|
   |

|
  |
Replies
| monkei |
Sep 11 2004, 12:40 PM
Post
#2
|
|
slave to rust.... Group: Members Posts: 137 Joined: 10-August 04 From: Pleasanton, CA Member No.: 2,504 |
btw that rediculous white thing is some plastic plug the previous owner jammed in there, not quite sure whats supposed to go there. the last pic is a very small vacuum port, i think on the vacuum advance for the the dist., that i need to figure out...
Attached image(s)
|
|
|
|
Posts in this topic
monkei 914-4 vacuum hose locations Sep 11 2004, 12:34 PM
monkei the next pic shows an open vacuum port (middle fro... Sep 11 2004, 12:37 PM monkei looked through the complete shop manual set my dad... Sep 11 2004, 12:42 PM SpecialK PP to the rescue....if you haven't already, bo... Sep 11 2004, 12:47 PM SirAndy also, don't worry about that second vac-port o... Sep 11 2004, 01:11 PM monkei im gonna print up the PP diagrams and see what i c... Sep 11 2004, 01:57 PM monkei well, i feel kind of stupid. i was getting pretty ... Sep 17 2004, 08:09 PM 2-OH! If it really is a 2.0, then the port on the back o... Sep 17 2004, 08:32 PM mike_the_man Here's a pic that might help you out. Sep 17 2004, 09:46 PM Jeff Bowlsby By the boot in your photo, your wiring harness is ... Sep 17 2004, 10:12 PM SpecialK Here ya go!
http://www.pelicanparts.com/914/t... Sep 17 2004, 10:17 PM Bruce Allert Anyone know why some 2.0 throttle bodies have just... Sep 17 2004, 11:22 PM monkei thanks for the pic and the link! i should be a... Sep 19 2004, 12:30 AM monkei both the picture and the PP diagram dont show a ch... Sep 19 2004, 12:36 AM SLITS 1. Take the smog crap off (but save it for a whil... Sep 19 2004, 08:22 AM monkei fuel burns!!!!! next time i re... Sep 19 2004, 02:07 PM monkei my 2.0 has the single vacuum port on the throttle ... Sep 19 2004, 04:39 PM 2-OH! Monkei:
I have found the Pelican diagram to be...... Sep 20 2004, 07:56 AM
monkei i totally empathize with it being hard to describe... Sep 20 2004, 05:48 PM |
