i have a 1975 914 roller and a a few ej22 engines and a couple of suby 5 spd transaxles
https://www.diyautotune.com/shop/megasquirt...ed/microsquirt/ microsquirt with 8" harness $370 GM clt sensor 3/8 npt $17 GM iat sensor 3/8 npt $22 GM map sensor $75 3/8 npt tap $10 18x1.5 tap $12 18x1.5 bung for aem o2 sensor $4 AEM 30-4110 $165 Set of 6 Pcs Spark Plug Ignition Wire Lead For 2.8L VW Passat $30 VW bug Beetle golf oem 2.0 ignition coil pack assembly 032905106b $20 Subaru WRX OEM Crankshaft Timing Sprocket pn-13021AA141 $30 celica radiator 2 row - $170 (see post #2 and my v8 thread) exhaust header - $35 ebay (see post #152) (decided to go with wrx oem stock header for compactness) stainless fuel lines - $99 tangerine - 8mm supply and 8mm return stopper drive pinion - made myself http://www.914world.com/bbs2/index.php?showtopic=104513 stock 914 axles machined on one end - $150 Dutchman tires - 185x50x15 - $300+-[/b] engine cradle and trans hangars - mepstein $550 (see post #32) mr2 shifter - $35 ebay shift knob ebay $12 (see post #170) front bumper grills - $35 dflesburg stock style fuses - ebay $13 set of speed bleeders - $30 pelican brake peddle switch - $24 pelican ebrake handle assy with cable and equalizer - $56 bdstone914 lug bolts to roll car around my garage - free mark epstein set of nice complete late model doors - $150 (thanks lorin, series9, rat rod charlie) center section of fuse box - free mark epstein a front steel bumper - free mark epstein late model tach with single directional indicator - cabinetmaker $40 shipped : ) two pair front amber lens bought from 914rubber for both my cars. https://weddleindustries.com/products/1000186/1001853 - flange $50 shipped type 1 to type 2/4 starter 23300AA560 - http://www.914world.com/bbs2/index.php?showtopic=303903 /////////////////////////////////////////////////////////////////////////////////////////// looking forward to... good fuel mileage modern fuel injection modern 5spd transaxle - useable 1st gear for taking off from dead stop & in traffic light weight car big space in engine bay running some low profile 15 inch tires on 5.5" wheels - maybe 185x50x15 ////////////////////////////////////////////////////////////////////////////////////////// reference materials and links... http://www.shoptalkforums.com/viewtopic.php?t=136053 http://www.surrealmirage.com/subaru/swap/electrical.html http://legacycentral.org/ http://www.northursalia.com/modifications/...lschematics.pdf http://www.main.experiencetherave.com/subaru_manual_scans/ vanagon related links... http://subaruvanagon.com/conversion_services_Wiring.htm https://smallcar.com/vanagon/subaru-vanagon...cation-kit.html http://www.kennedyenginc.com/Pages/SubaruVanagonGen.aspx http://www.rockymountainwesty.com/v/vspfil...nstructions.pdf http://www.weidefamily.net/vanagon/HTML/05/main.html http://www.ultimatesubaru.org/forum/topic/...iring-diagrams/ http://www.numbchuxconversions.com/Files/Harness%20info.pdf http://consumerguide.com/used/1990-94-subaru-legacy/ pulling ej22 harness from subaru (Tim Seward) per tim 90 and 91 harnesses are same https://www.youtube.com/watch?v=GfQJnZBljsw be sure to watch all (busaru) segments https://www.youtube.com/watch?v=ENm6S3WkKJc Subaru engine test stand (Jeff Robenolt) https://www.youtube.com/watch?v=_IN5rfK9a_8 |
   |

|
  |
Replies
| jimkelly |
Nov 1 2015, 08:03 AM
Post
#2
|
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |

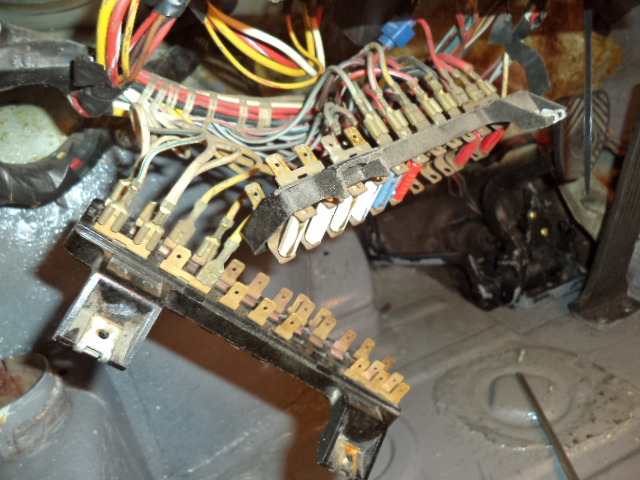

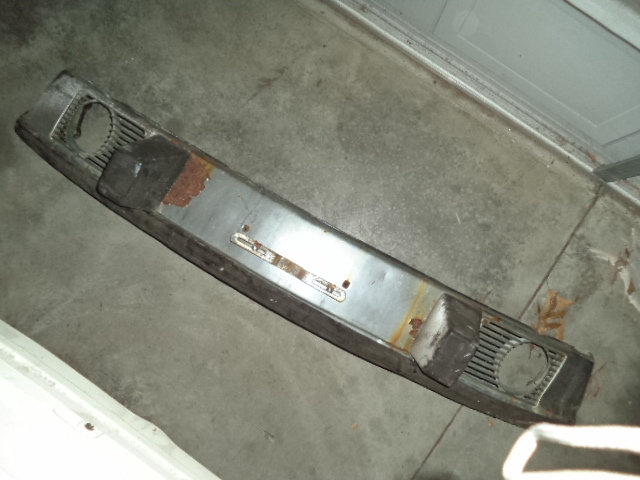

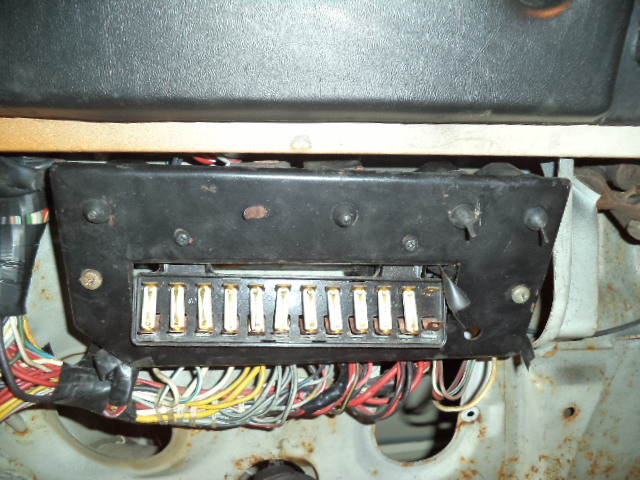

yesterday I picked up a fuse box section and a front bumper from mark Epstein (thanks mark!). my center fuse box section had a broken ear, so I replaced it today (one wire at a time). I put white fuses in all for now, but will replace with higher amp fuses as required asap. so far I can see I have, headlights low and high beams, marker lights, brake lights, wipers. I think I have a faulty horn relay?
I do not have my dash gauges in and am wondering if this could be stopping my directionals and hazards from functioning? Attached image(s)
|
|
|
|
