 Dec 28 2010, 09:12 PM
Post
#1
|
|
Member  Group: Members Posts: 77 Joined: 25-October 09 From: Texas Member No.: 10,980 Region Association: None  |
Someone, please, the equation for determining the diameter of a bellcrank to be used on a Weber 40 setup. Standard 914 accelerator cable length/throw (full close/full open) and standard Weber 40 butterfly. Also, anyone know of a source for such a bellcrank? Hope not to have to farbricate one myself. No lathe so will have to be with an electric drill for turning power. Extremely primitive.
|
   |

|
  |
Replies
| porschetub |
Sep 14 2019, 11:26 PM
Post
#2
|
|
Advanced Member Group: Members Posts: 4,817 Joined: 25-July 15 From: New Zealand Member No.: 18,995 Region Association: None |
Speedworks (?) have one but its a front mount that means not on bellhousing bolts,wouldn't work for me with short manifolds,looks like a fine piece however.

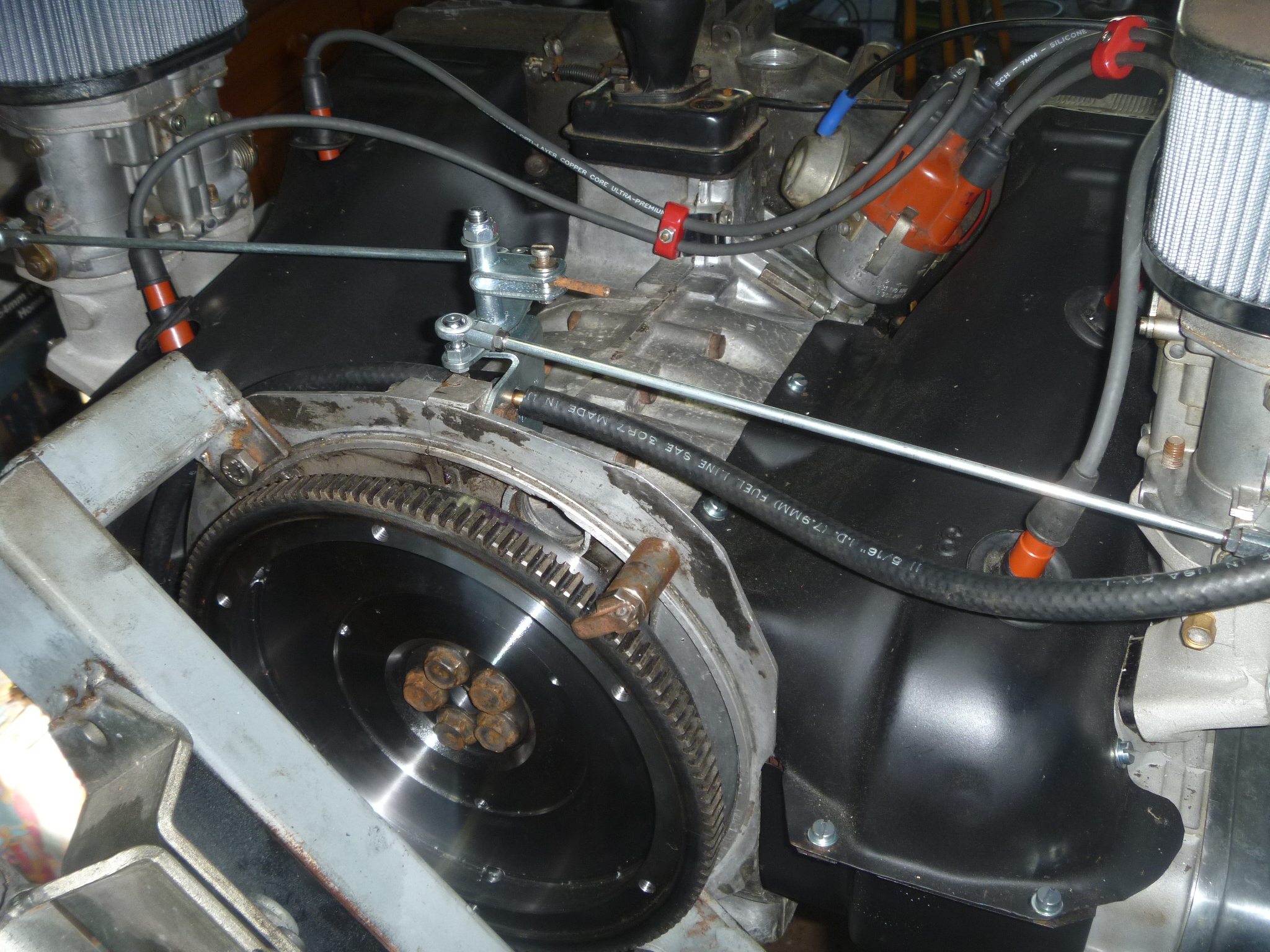

IMO any setup @ the flywheel end of the motor is better and the one I showed is that,finished setting up and its not easy but it works great . Full throttle achieved and no 'tip in issues',hardest part is getting linkages the same length...fine tuning.  It works very well and The Dellorto's have great throttle return springs so no third spring needed. Ready for a flaming (IMG:style_emoticons/default/av-943.gif) (IMG:style_emoticons/default/av-943.gif) . |
|
|
|
