> Dipstick Temp Gauge, Where to find one
PanelBilly
post Oct 29 2018, 12:29 PM
Post #1


914 Guru
*****

Group: Members
Posts: 5,883
Joined: 23-July 06
From: Kent, Wa
Member No.: 6,488
Region Association: Pacific Northwest



I recall reading about a dipstick that reads the temperature. I have a new gauge in the car and it would like to know what I'm actually running. If you have one I can borrow, that would be even better

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

Reply to this topicStart new topic
Replies
Frankvw
post Jul 24 2020, 04:25 AM
Post #2


working on my first 914 !
***

Group: Members
Posts: 653
Joined: 13-April 16
From: Holland, the Netherlands
Member No.: 19,896
Region Association: Europe

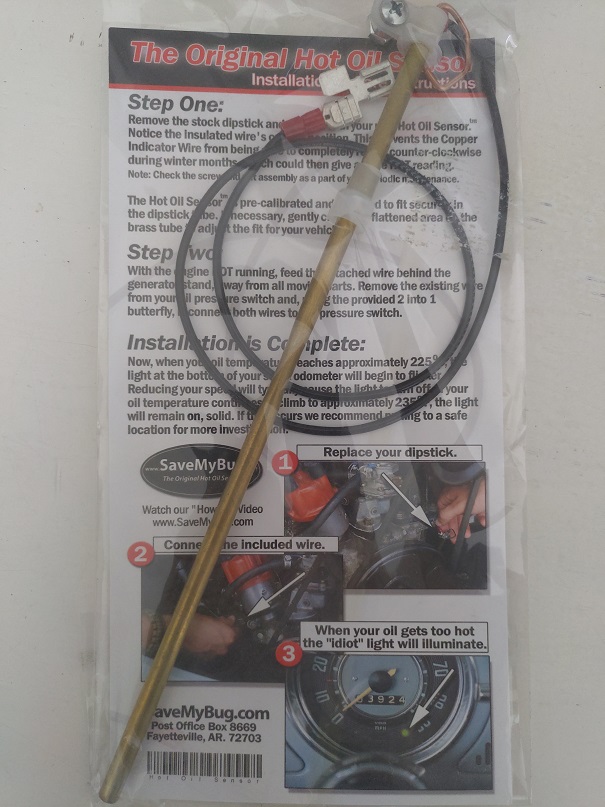

a dipstick temp device was for the type1 (beetle) engines sold by GeneBerg for a long time till they stopped selling it. I think it was build for them by a company that took over the sales themselves after that and they also developed a type4 engine version. It is not a gauge. It replaces the dipstick with another dipstick with sensor that closes at a certain temp and it uses one of the lights in the dash (on beetles and busses the oilpressure light) to warn you.
I can use it on my Beetle, but also on my VW T2b Bus type4 2.0 liter, and use the oilpressure light in the dash for warning me. Downside: you cannot measure your oillevel anymore...you need to put your original dipstick in the glovebox in case you need it......
Another downside is that it warns at a certain temp and without the reached alert you have no clue about the temp, but what a gauge would tell you....
Just wanted to show it.....not promote it as the solution.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

Posts in this topic
PanelBilly   Dipstick Temp Gauge   Oct 29 2018, 12:29 PM
GregAmy   http://www.mainelycustombydesign.com/ I seem to r...   Oct 29 2018, 12:40 PM
jim_hoyland   I was hoping 914Rubber might make these again; the...   Oct 29 2018, 12:52 PM
jim_hoyland   Originsal face size:   Oct 29 2018, 12:54 PM
jim_hoyland   Preferred size: @Mikey914   Oct 29 2018, 12:55 PM
PanelBilly   This is for my 3.0 so I need something that will g...   Oct 29 2018, 01:09 PM
GregAmy   This is for my 3.0 so I need something that will ...   Oct 29 2018, 01:26 PM
porschetub   This is for my 3.0 so I need something that will ...   Jul 23 2020, 07:23 PM
IronHillRestorations   This is for my 3.0 so I need something that will ...   Jul 24 2020, 05:49 AM
Ferg   I don't think the temp of the oil in the tank ...   Oct 29 2018, 01:43 PM
dr914@autoatlanta.com   I think that VDO still makes one I recall readi...   Oct 29 2018, 04:08 PM
mb911   For a -6 the tank could be modified for a temp sen...   Oct 29 2018, 04:48 PM
SO.O.C914er   I would absolutely buy one. I looked for this abou...   Oct 29 2018, 06:05 PM
wndsrfr   Here's an angle to try....food temperature pro...   Oct 29 2018, 06:45 PM
Valy   @panelbilly I have a dipstick one from the last r...   Oct 29 2018, 07:38 PM
Rob-O   [b]@[url=http://www.914world.com/bbs2/index.php?s...   Oct 29 2018, 08:50 PM
Valy   [b]@[url=http://www.914world.com/bbs2/index.php?...   Oct 29 2018, 09:43 PM
Rob-O   Could happen a few ways. But probably most common...   Oct 30 2018, 05:33 AM
rmdinmd   [b]@[url=http://www.914world.com/bbs2/index.php?...   Oct 30 2018, 06:17 AM
dcheek   Mainely was bought by Precision Matters. They sti...   Oct 30 2018, 07:21 AM
VaccaRabite   If you can get one of the Mainely units get one. ...   Oct 30 2018, 09:31 AM
GregAmy   Ditto. It originally allowed me to verify my oil t...   Oct 30 2018, 11:34 AM
Aualexa1   I’ve got a ‘73 1.7 L and recently picked up a ...   Jul 23 2020, 05:24 PM
Craigers17   I’ve got a ‘73 1.7 L and recently picked up a...   Jul 23 2020, 05:54 PM
Aualexa1   I picked mine up from the classifieds. Did yours ...   Jul 23 2020, 05:56 PM
Craigers17   I picked mine up from the classifieds. Did yours...   Jul 23 2020, 06:10 PM
jim_hoyland   I was hoping 914 Rubber would make these; a critic...   Jul 23 2020, 06:28 PM
PanelBilly   Have a gauge but it doesn't have numbers on it...   Jul 23 2020, 07:37 PM
Mikey914   I initially did some research on this and a lot of...   Jul 23 2020, 11:47 PM
jim_hoyland   I initially did some research on this and a lot o...   Jul 24 2020, 05:00 AM
Frankvw   a dipstick temp device was for the type1 (beetle) ...   Jul 24 2020, 04:25 AM
GregAmy   I'd be interested in a replacement. I managed ...   Jul 24 2020, 07:22 AM
jim_hoyland   I'd be interested in a replacement. I managed...   Jul 24 2020, 09:01 AM
djotron   @Mikey914 - Following up to see if there is any u...   Jan 1 2023, 09:09 PM
Mikey914   Yes, Just haven't been able to do much over th...   Jan 2 2023, 02:56 AM
second wind   Yes, Just haven't been able to do much over t...   Jan 2 2023, 02:46 PM
