Defrost fan rehab and rebuild thread (fresh air fan), or How the heck do if fix this thing? Options

[DRPHIL914]

I have been dealing with this for 12 years, a non-running defrost fan. i even pulled this out 2 years ago and rebuilt it with new flapper seals and main body seal then made sure fan turned but didnt bench test the motor or resisitors, so as a result it still does not work properly. i will be documenting this because 914rubber and Mark will soon be putting together a kit for this that includes all the hardware seals and even a motor i believe, BUT i still have problems and questions!!! so i am starting this thread to get information on diagnosing the common causes of it not working and how to fix it, and then document the rebuild and replacement of the motor, fan, resistor and maybe the control unit in dash. Others have documented the reinstallation of the fan and the cables so i will not duplicate that. and we may want to link other threads hear that have done that as well.
Mark is sending me a kit soon, so while i wait for it, i will have to get some more information about the wiring and resistors function and how to test them .

I had this out last week and tested 3 different control units due to thinking that my issue was a control issue, because it runs on one speed, #2, and anything else does not work and it will then throw the fuse. most assume this would be caused by bad slider unit but i tested 3 of them and 2 are like new with no wear on the sliders , still same result. so i am suspecting the resistors /plug aparatus .
If anyone has done this and cares to share how to examine and test that for proper function, lets start there.


Resistor function, which lead is which and examination of the control units
I will take pictures of mine tonight and post those soon. once this figured out and fixed i will do a full step bystep on reassembly too.

Looking for lots of help and input on this, thanks!!!

Dr. Phil

[Mikey914]

Actually I've been working on a more complete kit for this type of We have made the seal you speak of. That and a bunch more parts.
@drphil914 has a care package I sent him you will see shortly. I will be opening up a GB as soon as he completes the build.
Mark

[DRPHIL914]

Actually I've been working on a more complete kit for this type of We have made the seal you speak of. That and a bunch more parts.
@drphil914 has a care package I sent him you will see shortly. I will be opening up a GB as soon as he completes the build.
Mark

@Mikey914
@Superhawk996

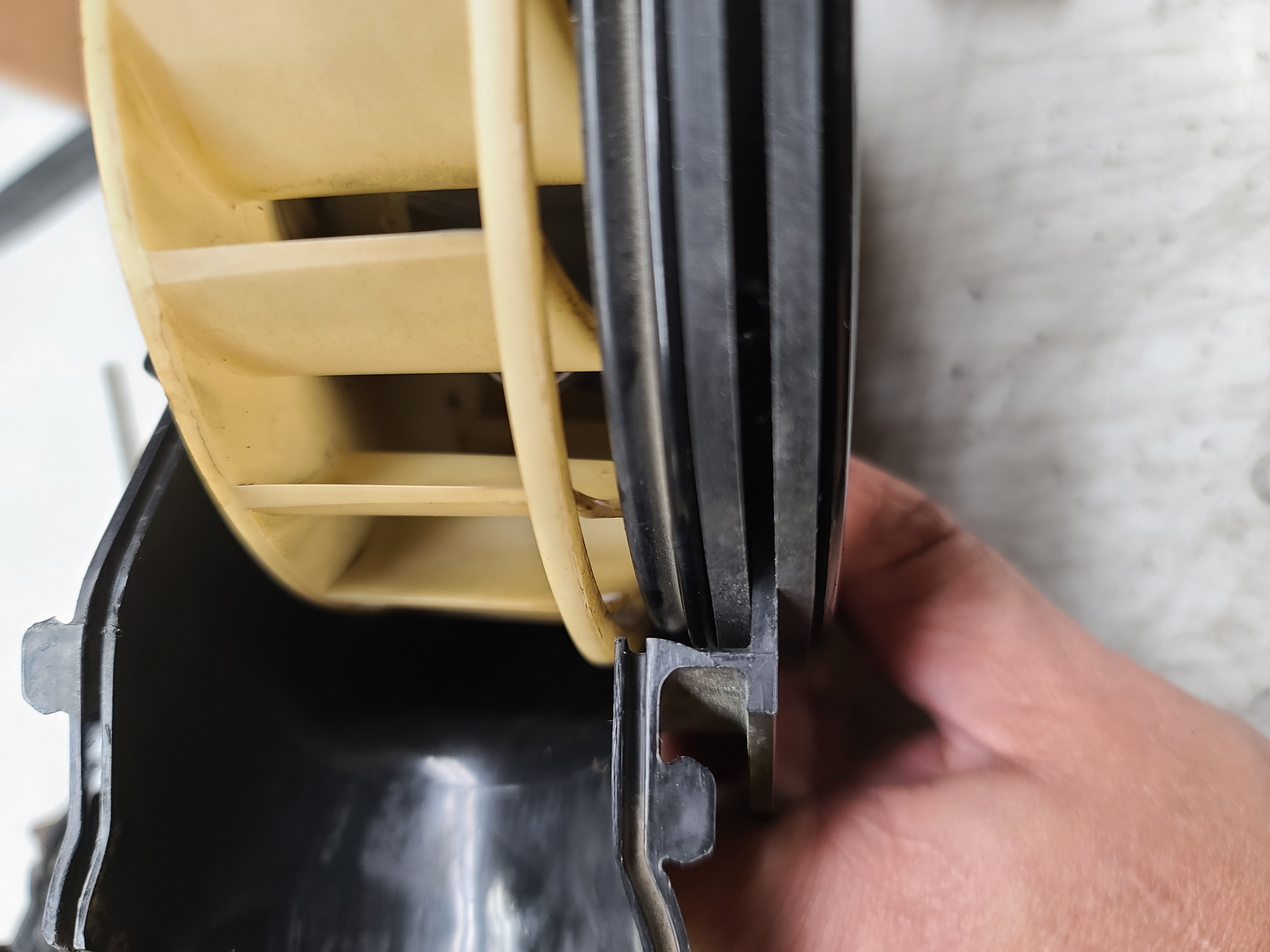

man that seal looks good, that’s awesome you had made these you know they are not made by anyone else!!!
i am still going to try and figure out why the values on my fan are not correct and high circuit does not conduct, or complete a circuit but i got a good used one from Al Merideth, and it spins free, fins are perfect, and the test on the circuits is promising, so that will be the one we rebuild and put new seals in with the new kit coming.

Phil
