I was fixing a pedal board issue, no hardware, wrong hardware, poor alignment, etc. Once I got all that worked out, I was going for a drive and the clutch was barely engaging. Made for a tough drive. 1st and Rev were grinding and the others were not much better.
I did find a list of things to check for issues like this and I am going through those. I also saw the Dr Evil drawing for clutch engagement. Mine seems to engage just off the pedal stop now. Is there a real spec for clutch adjustment or is it just by feel? How could this be related to the pedal board? It was fine before I moved it around. |
   |

|
  |
Replies
| NARP74 |
Aug 25 2022, 03:50 PM
Post
#2
|
|
Senior Member Group: Members Posts: 1,446 Joined: 29-July 20 From: Colorado, USA, Earth Member No.: 24,549 Region Association: Rocky Mountains |

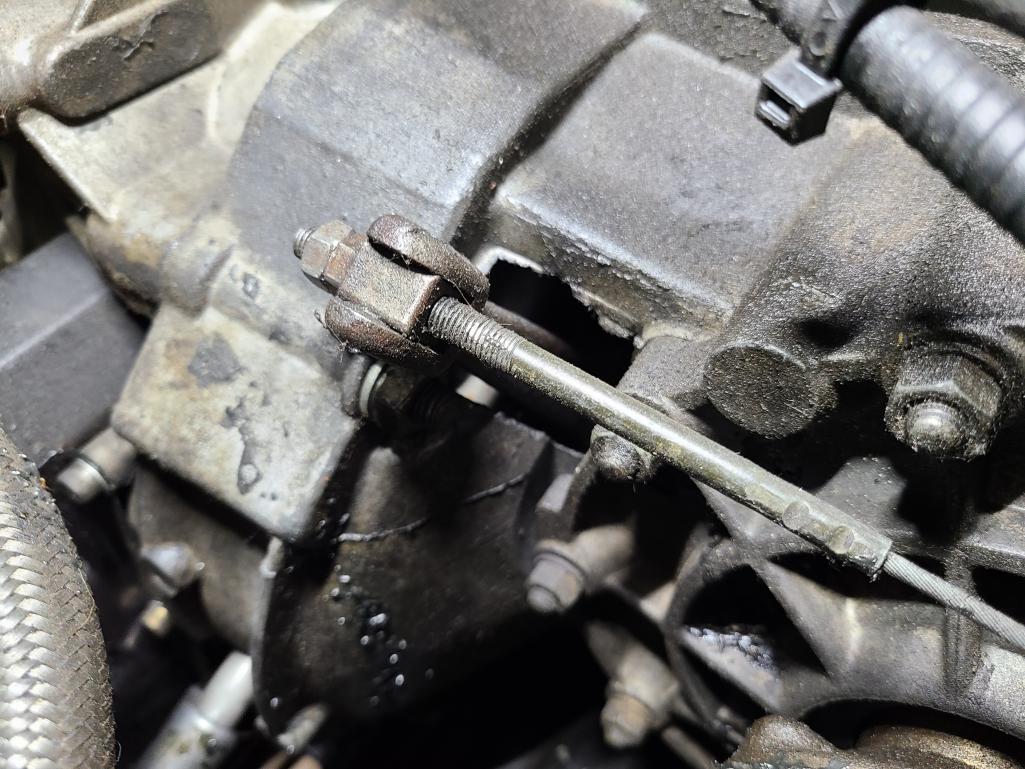

Is it possible for this adjustment to be correct and function properly? It is not loose and I have not changed anything.
 |
|
|
|
| mgphoto |
Aug 25 2022, 05:26 PM
Post
#3
|
|
"If there is a mistake it will find me" Group: Members Posts: 1,375 Joined: 1-April 09 From: Los Angeles, CA Member No.: 10,225 Region Association: Southern California |
QUOTE(NARP74 @ Aug 25 2022, 02:50 PM)  Is it possible for this adjustment to be correct and function properly? It is not loose and I have not changed anything. The adjustments on the pedal board are to restrict the maximum pull on the cables, clutch and accelerator. The clutch pedal stop is to prevent over pulling the cable so the fork does not contact the transmission case. If this happens it will tear the clutch tube right out of the tunnel. The photo looks as though you are at the beginning of cable adjustment. The clutch should have 3 or so inches of play from the top of the pedal, it should be slightly loose until it engages. I usually set the stop on the pedal board to a bit more than half way to maximum. Adjust the clutch and engage it, if there is gear clash with the pedal pushed to the maximum, loosen the stop and push it back until the clash disappears, just make sure the fork doesn’t strike the transmission case. |
|
|
|
| BeatNavy |
Aug 25 2022, 05:29 PM
Post
#4
|
|
Certified Professional Scapegoat Group: Members Posts: 2,959 Joined: 26-February 14 From: Easton, MD Member No.: 17,042 Region Association: MidAtlantic Region
|
QUOTE(mgphoto @ Aug 25 2022, 07:26 PM) QUOTE(NARP74 @ Aug 25 2022, 02:50 PM) Is it possible for this adjustment to be correct and function properly? It is not loose and I have not changed anything. The photo looks as though you are at the beginning of cable adjustment. (IMG:style_emoticons/default/agree.gif) You have a lot of room left to tighten that cable. |
|
|
|
Posts in this topic
NARP74 Pedal Board Adjustment Aug 25 2022, 10:07 AM
BeatNavy Just a swag, but maybe in the process of adjusting... Aug 25 2022, 10:10 AM
NARP74
Just a swag, but maybe in the process of adjustin... Aug 25 2022, 10:27 AM NARP74 I agree, I just don't know what changed since ... Aug 25 2022, 05:33 PM JamesM
I agree, I just don't know what changed since... Aug 25 2022, 06:56 PM NARP74 I tightened one side of the pedal stop that was lo... Aug 25 2022, 07:36 PM JamesM
I tightened one side of the pedal stop that was l... Aug 25 2022, 07:45 PM NARP74 The plot thickens... I am missing the stop plate w... Aug 25 2022, 08:54 PM JamesM
The plot thickens... I am missing the stop plate ... Aug 25 2022, 09:13 PM NARP74 How do you install this washer?
https://914rubber.... Aug 25 2022, 09:52 PM BeatNavy
How do you install this washer?
https://914rubber... Aug 26 2022, 05:09 AM targa72e Your clutch cable is not engaged properly. The cab... Aug 25 2022, 10:59 PM ClayPerrine We always called that washer a "Beer Tab... Aug 26 2022, 07:54 AM NARP74 Thanks all. The cable was in the U shaped slot be... Aug 26 2022, 08:42 AM ClayPerrine
All's well that ends well. I was thinking of... Aug 26 2022, 11:58 AM jfort when the cable is in its housing, safety wire it i... Aug 26 2022, 12:55 PM NARP74 Got the repair parts, thanks Mikey. Took it all a... Sep 3 2022, 05:03 PM BeatNavy :trophy:
Everything I touch is a learning process... Sep 3 2022, 06:34 PM |
