| bondo |
 Jan 12 2006, 03:42 PM
Post
#1
|
|
Practicing my perpendicular parking  Group: Members Posts: 4,277 Joined: 19-April 03 From: Los Osos, CA Member No.: 587 Region Association: Central California  |
I rearranged the LT1 wiring harness to terminate at a plug with all the connections I need for the engine. This plug plugs into the 18 pin socket on the side of the box. Below that is an 8 pin socket for the trans (starter, reverse lights, trans cooler pump).
Attached image(s)
|
   |

|
  |
Replies
| bondo |
Jan 12 2006, 03:46 PM
Post
#2
|
|
Practicing my perpendicular parking Group: Members Posts: 4,277 Joined: 19-April 03 From: Los Osos, CA Member No.: 587 Region Association: Central California |

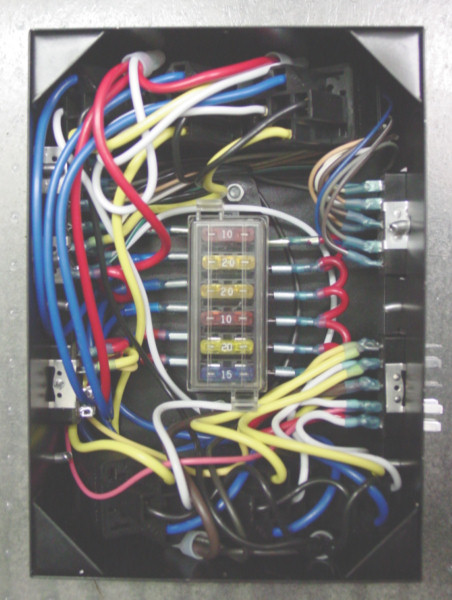

The inside has 6 relays, for switching everything controlled by the ECU, and one for the starter solenoid power. Everything is fused through that fuse panel in the center. The whole thing will mount about where the original relay board was.
Attached image(s)
|
|
|
|
Posts in this topic
bondo Random LT1 progress post Jan 12 2006, 03:42 PM
bondo On the other side is a power connector where the m... Jan 12 2006, 03:44 PM Mueller looks good...what kind of connectors are those?
d... Jan 12 2006, 03:46 PM bondo They're old school "Cinch Jones" connectors. W... Jan 12 2006, 03:48 PM TonyAKAVW Very nicely done.... Except for the wire nuts. <... Jan 12 2006, 03:54 PM bondo Those aren't wire nuts! Those are crimps f... Jan 12 2006, 03:59 PM fiid Wow. That looks like my wiring doesn't |
