Took a picture of the caliper I'm rebuilding. Maybe this is common knowledge, but hopefully someone will find it useful.
Attached image(s)
|
   |

|
  |
Replies
| McMark |
Oct 25 2003, 01:19 AM
Post
#2
|
|
914 Freak! Group: Retired Admin Posts: 20,179 Joined: 13-March 03 From: Grand Rapids, MI Member No.: 419 Region Association: None |
Okay, fine. (IMG:style_emoticons/default/smile.gif) Here we go again.

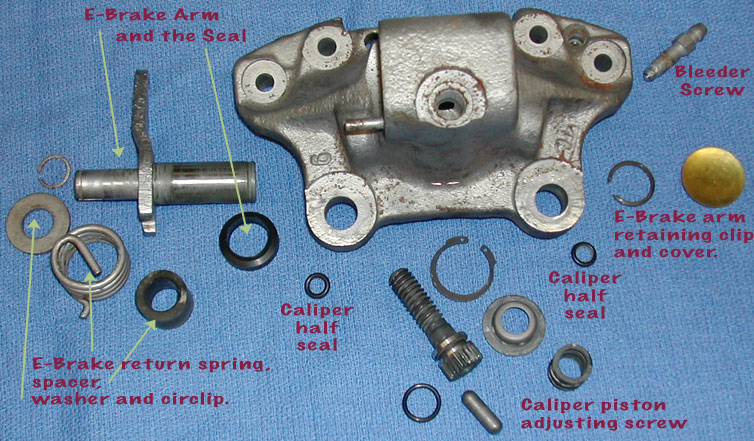

Here's the info that's not in the image: The little pill looking thing is what get's pushed out by the ebrake arm and it pushes the adjusting screw out. To the right of the adjusting screw is the spring, cover and circlip that holds the adjusting screw in place in the caliper. Attached image(s)
|
|
|
|
Posts in this topic
McMark Exploded 914-6 Rear Caliper Oct 25 2003, 12:58 AM
Brad Roberts We need arrows telling us what EVERY part is..LOL
... Oct 25 2003, 01:00 AM J P Stein Entirely too many "fiddly bits" there for my taste... Oct 25 2003, 01:04 AM
thesey914 Good pic Mark, very interesting so see as I've... Oct 25 2003, 04:40 AM |
