> Rain hats (6-cyl): Does right side fit without cutting?, couldn't find any pictures
mskala
post Apr 24 2013, 07:27 PM
Post #1


R
***

Group: Members
Posts: 1,942
Joined: 2-January 03
From: Massachusetts
Member No.: 79
Region Association: None
Anyone done this? Couldn't find any pictures showing if they will fit
without hitting the trunk wall.

Thanks,
Mark S.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post Apr 24 2013, 07:32 PM
Post #2


Advanced Member
****

Group: Members
Posts: 2,738
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest
QUOTE(mskala @ Apr 24 2013, 08:27 PM) *

Anyone done this? Couldn't find any pictures showing if they will fit
without hitting the trunk wall.

Thanks,
Mark S.

If you have tall intake manifolds (PMO or 906) and full size filter it will probably rub.
If you use the A/C height filters it should clear with the tall manifolds
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Apr 24 2013, 07:42 PM
Post #3


Advanced Member
****

Group: Members
Posts: 4,847
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
I think I will have the same issue. Tall manifolds with the rain shields. I haven't got to it yet, but I'm figuring on trimming the inside of the trunk lid to make it happen. I should be doing this in the next couple of weeks so I can report back.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bcheney
post Apr 24 2013, 08:13 PM
Post #4


Senior Member
***

Group: Members
Posts: 1,341
Joined: 16-November 03
From: Orlando, FL
Member No.: 1,348
Region Association: South East States

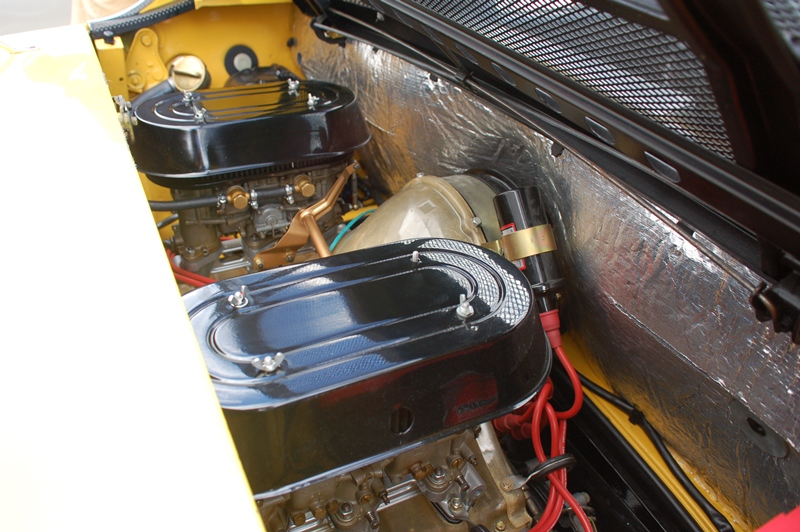

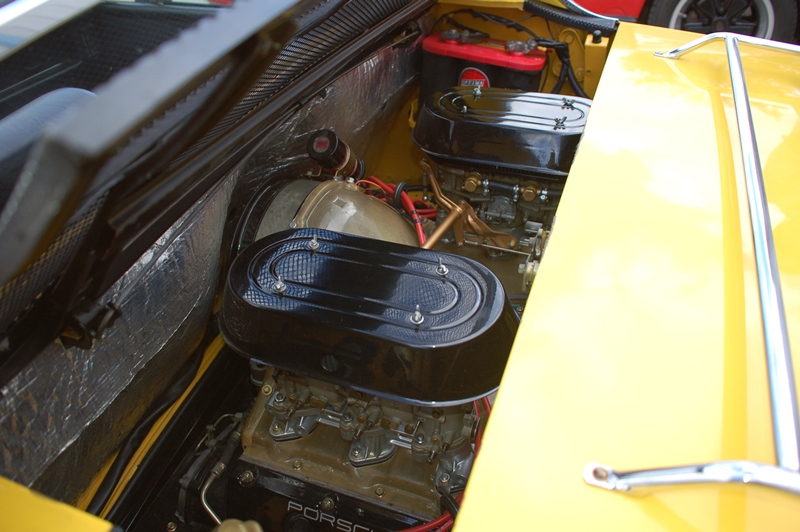

I have standard 914/6 manifolds and a GT engine lid. Everything fits with no issues.



Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GeorgeRud
post Apr 24 2013, 08:20 PM
Post #5


Advanced Member
****

Group: Members
Posts: 3,725
Joined: 27-July 05
From: Chicagoland
Member No.: 4,482
Region Association: Upper MidWest
It's a tight fit, but they do just make it. When installing or removing the passenger side hat, it helps to slightly raise the filter element so you can slide the element and hat slightly forward, then tilt the forward edge of the hat up to slide it up and out.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mskala
post Apr 24 2013, 08:59 PM
Post #6


R
***

Group: Members
Posts: 1,942
Joined: 2-January 03
From: Massachusetts
Member No.: 79
Region Association: None
Thanks all, good to know. I will be dealing with this on the
weekend.

My only abnormal thing is that I have a 1/4" taller air filter
(not K&N, real paper). Oh and also the thin phenolic spacers
for heat isolation that some don't have.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GeorgeRud
post Apr 24 2013, 09:21 PM
Post #7


Advanced Member
****

Group: Members
Posts: 3,725
Joined: 27-July 05
From: Chicagoland
Member No.: 4,482
Region Association: Upper MidWest
I also have the phenolic spacers, but don't know about the paper element.

What is the name or part number of the paper air filter element? I'm not that impressed with the K&N filter elements.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mskala
post Apr 24 2013, 09:52 PM
Post #8


R
***

Group: Members
Posts: 1,942
Joined: 2-January 03
From: Massachusetts
Member No.: 79
Region Association: None
QUOTE(GeorgeRud @ Apr 24 2013, 11:21 PM) *

I also have the phenolic spacers, but don't know about the paper element.

What is the name or part number of the paper air filter element? I'm not that impressed with the K&N filter elements.


It's probably easiest to refer you to the thread on pelican below: my post is
about half-way down.
pelican thread
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tomeric914
post Apr 26 2013, 06:59 PM
Post #9


One Lap of America in a 914!
***

Group: Members
Posts: 1,321
Joined: 25-May 08
From: Syracuse, NY
Member No.: 9,101
Region Association: North East States
I had to bend my right rain hat slightly to fit without rubbing. Didn't take much.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mskala
post Apr 28 2013, 03:42 PM
Post #10


R
***

Group: Members
Posts: 1,942
Joined: 2-January 03
From: Massachusetts
Member No.: 79
Region Association: None

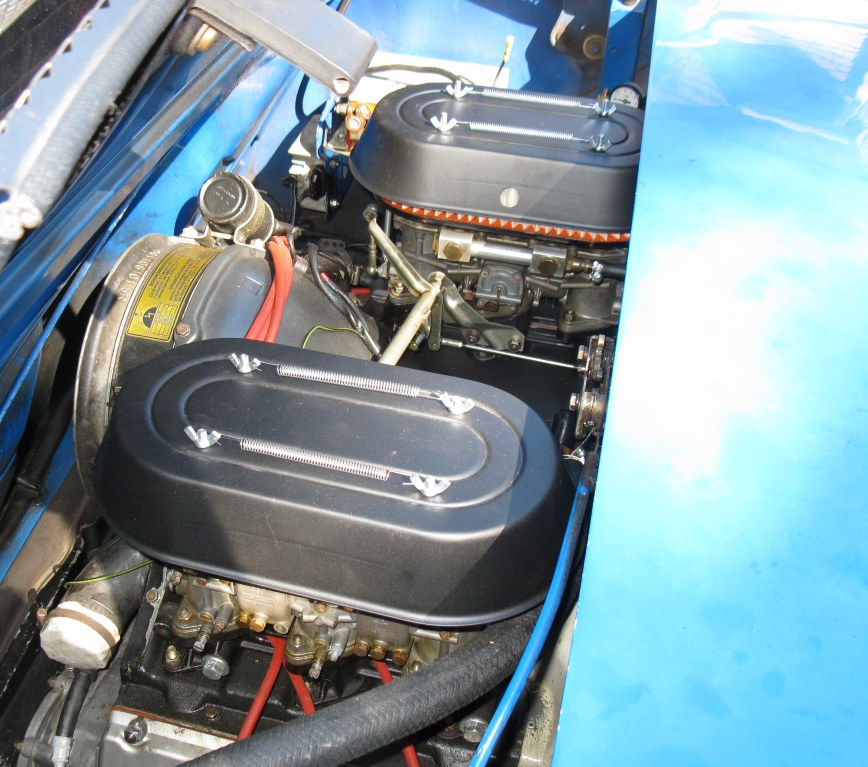

Success. It hits the trunk wall going in, but not when fully seated.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post May 11 2013, 06:09 PM
Post #11


Advanced Member
****

Group: Members
Posts: 4,847
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
Nice! Same result for mine installed today. Tall manifolds, phenolic spacers and PMO rain hats. About 4mm clearance.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post May 11 2013, 06:36 PM
Post #12


914 Wizard
**********

Group: Members
Posts: 11,184
Joined: 12-September 04
Member No.: 2,744
Region Association: NineFourteenerVille
PMO's are taller than factory, But not R / 906 tall FYI
User is online!Profile CardPM
Go to the top of the page
+Quote Post
rfuerst911sc
post May 12 2013, 04:04 AM
Post #13


Advanced Member
****

Group: Members
Posts: 2,158
Joined: 4-May 06
From: Dahlonega , Georgia
Member No.: 5,980
Region Association: South East States
QUOTE(mskala @ Apr 24 2013, 07:52 PM) *

QUOTE(GeorgeRud @ Apr 24 2013, 11:21 PM) *

I also have the phenolic spacers, but don't know about the paper element.

What is the name or part number of the paper air filter element? I'm not that impressed with the K&N filter elements.


It's probably easiest to refer you to the thread on pelican below: my post is
about half-way down.
pelican thread


Mark thank you for the post on the over the counter filter elements ! When you say you " clipped " the outer mesh screen how exactly did you do that ? Once you get the screen removal started does it just peel out or do you have to clip each pleat ?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mskala
post May 12 2013, 10:14 AM
Post #14


R
***

Group: Members
Posts: 1,942
Joined: 2-January 03
From: Massachusetts
Member No.: 79
Region Association: None
QUOTE(rfuerst911sc @ May 12 2013, 06:04 AM) *

Mark thank you for the post on the over the counter filter elements ! When you say you " clipped " the outer mesh screen how exactly did you do that ? Once you get the screen removal started does it just peel out or do you have to clip each pleat ?


The wire and paper are both encased in the silicone gasket material. I didn't do
a lot of experimentation but found that cutting off the entire outer wire mesh,
which is a lot of clipping, makes it very flexible. It may be possible to just cut
the mesh vertically in a few places instead, or it could look better and be handled
without risk of cutting yourself if the inner mesh was removed instead. Let us
know.
