> Rocker set question?
NCRider
post Dec 21 2013, 05:17 PM
Post #1


Newbie
*

Group: Members
Posts: 18
Joined: 5-June 10
From: Apex NC
Member No.: 11,809
Region Association: South East States

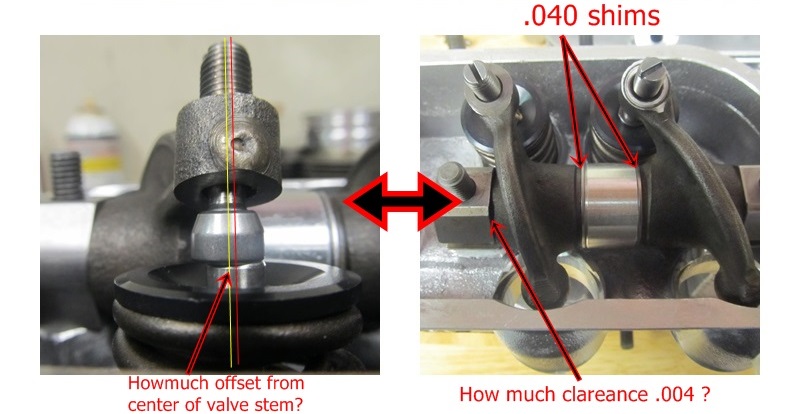

Hi all I'm building my 2270 Raby kit. I might be over thinking this but looking at the way the swivel foot seats on the valve stem is off center. Im thinking this is so that the valve rotates and I should not try and line it up on the valve center line. I can do that if it is necessary. How much offset is to much? I ask because some valves are visually different as far as the off set goes. Also how much clearance should I have between the rocker stack and the end block?

JeffAttached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
AndyB
post Dec 21 2013, 05:29 PM
Post #2


The Governor is watching me
***

Group: Members
Posts: 1,115
Joined: 10-April 10
From: Philadelphia New York
Member No.: 11,595
Region Association: North East States
QUOTE(NCRider @ Dec 21 2013, 06:17 PM) *

Hi all I'm building my 2270 Raby kit. I might be over thinking this but looking at the way the swivel foot seats on the valve stem is off center. Im thinking this is so that the valve rotates and I should not try and line it up on the valve center line. I can do that if it is necessary. How much offset is to much? I ask because some valves are visually different as far as the off set goes. Also how much clearance should I have between the rocker stack and the end block?

JeffAttached Image

Doesn't the Raby kit come complete with everything you need? That's how its advertised or was or is the kit back? I know he is offering them still at the Club site. Or at least the advertisement says so. Just curious.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Dec 21 2013, 05:43 PM
Post #3


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
QUOTE(NCRider @ Dec 21 2013, 06:17 PM) *

.....I might be over thinking this.....

Yep.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NCRider
post Dec 21 2013, 08:49 PM
Post #4


Newbie
*

Group: Members
Posts: 18
Joined: 5-June 10
From: Apex NC
Member No.: 11,809
Region Association: South East States
Thanks Mark


".... Doesn't the Raby kit come complete ..."

Scarlet75 Yes it does .... but as stated many times ... you are the motor builder
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
stugray
post Dec 22 2013, 10:43 AM
Post #5


Advanced Member
****

Group: Members
Posts: 3,825
Joined: 17-September 09
From: Longmont, CO
Member No.: 10,819
Region Association: None
The offset is ok.

When you are done I would be very interested in what you measure for Cam lift and Valve lift. Both intake & exhaust.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Dec 22 2013, 03:54 PM
Post #6


Custom Member
***************

Group: Members
Posts: 24,705
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
The offset if fine and it's there to turn the valve each fit.

I am curious though,
Has anyone checked this setup out to make sure the valve is turning.
Who is to say that frictional force would not just turn the swivel foot instead of the valve?
Seems like it would be easier to turn that swivel foot, just base on mass, versus all the side friction that is on the valve stem at that moment.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Dec 23 2013, 09:06 PM
Post #7


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
QUOTE(r_towle @ Dec 22 2013, 04:54 PM) *

The offset if fine and it's there to turn the valve each fit.

I am curious though,
Has anyone checked this setup out to make sure the valve is turning.
Who is to say that frictional force would not just turn the swivel foot instead of the valve?
Seems like it would be easier to turn that swivel foot, just base on mass, versus all the side friction that is on the valve stem at that moment.


Valve is going to turn no matter what. I grind the keepers so they shouldn't be able to turn, they still do. They at least twist enough that it has never been an issue.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
messix
post Dec 23 2013, 11:07 PM
Post #8


AKA "CLUTCH KILLER"!
*****

Group: Members
Posts: 6,995
Joined: 14-April 05
From: between shit kickers and pinky lifters/ puget sound wa.north of Seattle south of Canada
Member No.: 3,931
Region Association: Pacific Northwest
I read some where that the valve spring is what induces the valve to rotate

http://courses.washington.edu/engr100/Sect...lve%20Train.htm
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Dec 24 2013, 08:42 AM
Post #9


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
QUOTE(messix @ Dec 24 2013, 12:07 AM) *

I read some where that the valve spring is what induces the valve to rotate

http://courses.washington.edu/engr100/Sect...lve%20Train.htm


Either an educator or engineer wrote that. (IMG:style_emoticons/default/rolleyes.gif)
Easier way of explaining this is "as the valve spring wraps and unwraps it induces valve rotation".
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jake Raby
post Dec 24 2013, 08:52 AM
Post #10


Engine Surgeon
*****

Group: Members
Posts: 9,398
Joined: 31-August 03
From: Lost
Member No.: 1,095
Region Association: South East States
.004 lateral clearance is perfect for the rocker assembly, some adjustment may be necessary to the aluminum spacer to allow for this.

The contact point of the swivel foot adjuster to the valve stem isn't critical, as long as the entire stem of the valve is covered by the adjuster, there are no issues. The picture that was posted is OK, but barely.

I sold my Type 4 Store to LN Engineering, Charles plans on bringing the kits back ASAP. I discontinued them 3 years ago and life has been much better since I did. With the store gone and my only focus on developing products and building engines, it will be even better!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NCRider
post Dec 24 2013, 04:58 PM
Post #11


Newbie
*

Group: Members
Posts: 18
Joined: 5-June 10
From: Apex NC
Member No.: 11,809
Region Association: South East States
Thanks Jake

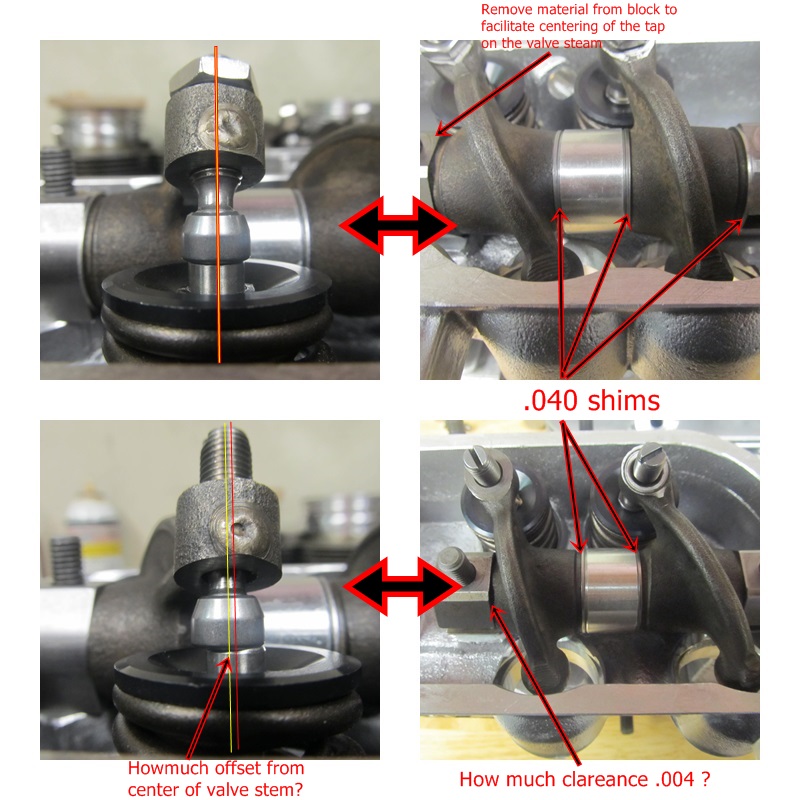

I have been playing around with getting the foot centered on the stem and yes I have had to remove material from the spacer & block to get both rockers centered on the stem. You will need a few extra shims. I was able to source some stainless steel Rockwell C25 from MSC. Had to flap the ID to get the shaft clearance right.

Mark

The spring rotating the valve makes more since than a off center foot on the stem.

Jeff

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gothspeed
post Dec 24 2013, 11:57 PM
Post #12


Senior Member
***

Group: Members
Posts: 1,539
Joined: 3-February 09
From: SoCal
Member No.: 10,019
Region Association: None
QUOTE(messix @ Dec 23 2013, 09:07 PM) *

I read some where that the valve spring is what induces the valve to rotate

http://courses.washington.edu/engr100/Sect...lve%20Train.htm

+1 ........ the entire valve, spring, retainer and keepers would rotate together .... (IMG:style_emoticons/default/smile.gif)

But the valves will indeed rotate a little, with or without swivel adjusters.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
euro911
post Dec 25 2013, 12:19 AM
Post #13


Retired & living the dream. God help me if I wake up!
*****

Group: Members
Posts: 8,937
Joined: 2-December 06
From: So.Cal. & No.AZ (USA)
Member No.: 7,300
Region Association: Southern California
If that's your engine, don't forget the lock nuts (IMG:style_emoticons/default/sad.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jake Raby
post Dec 25 2013, 06:46 AM
Post #14


Engine Surgeon
*****

Group: Members
Posts: 9,398
Joined: 31-August 03
From: Lost
Member No.: 1,095
Region Association: South East States
I prefer the swivel foot a little off center.. Thats just me.
It worked for 160K in my personal engine just fine.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
stugray
post Dec 25 2013, 01:30 PM
Post #15


Advanced Member
****

Group: Members
Posts: 3,825
Joined: 17-September 09
From: Longmont, CO
Member No.: 10,819
Region Association: None
I would really like to hear what the valve vs cam lift measurements are.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914_teener
post Dec 26 2013, 06:15 PM
Post #16


914 Guru
*****

Group: Members
Posts: 5,270
Joined: 31-August 08
From: So. Cal
Member No.: 9,489
Region Association: Southern California
QUOTE(gothspeed @ Dec 24 2013, 09:57 PM) *

QUOTE(messix @ Dec 23 2013, 09:07 PM) *

I read some where that the valve spring is what induces the valve to rotate

http://courses.washington.edu/engr100/Sect...lve%20Train.htm

+1 ........ the entire valve, spring, retainer and keepers would rotate together .... (IMG:style_emoticons/default/smile.gif)

But the valves will indeed rotate a little, with or without swivel adjusters.



+2

Are the shims "spring" type or just flat shims?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NCRider
post Dec 27 2013, 08:53 AM
Post #17


Newbie
*

Group: Members
Posts: 18
Joined: 5-June 10
From: Apex NC
Member No.: 11,809
Region Association: South East States
They are flat stainless steel shims that come in the solid spacer kit.
