> 4 big brown wires connected to pos battery terminal, What the Fuch ???
barefoot
post Dec 22 2014, 11:30 AM
Post #1


Senior Member
***

Group: Members
Posts: 1,488
Joined: 19-March 13
From: Charleston SC
Member No.: 15,673
Region Association: South East States

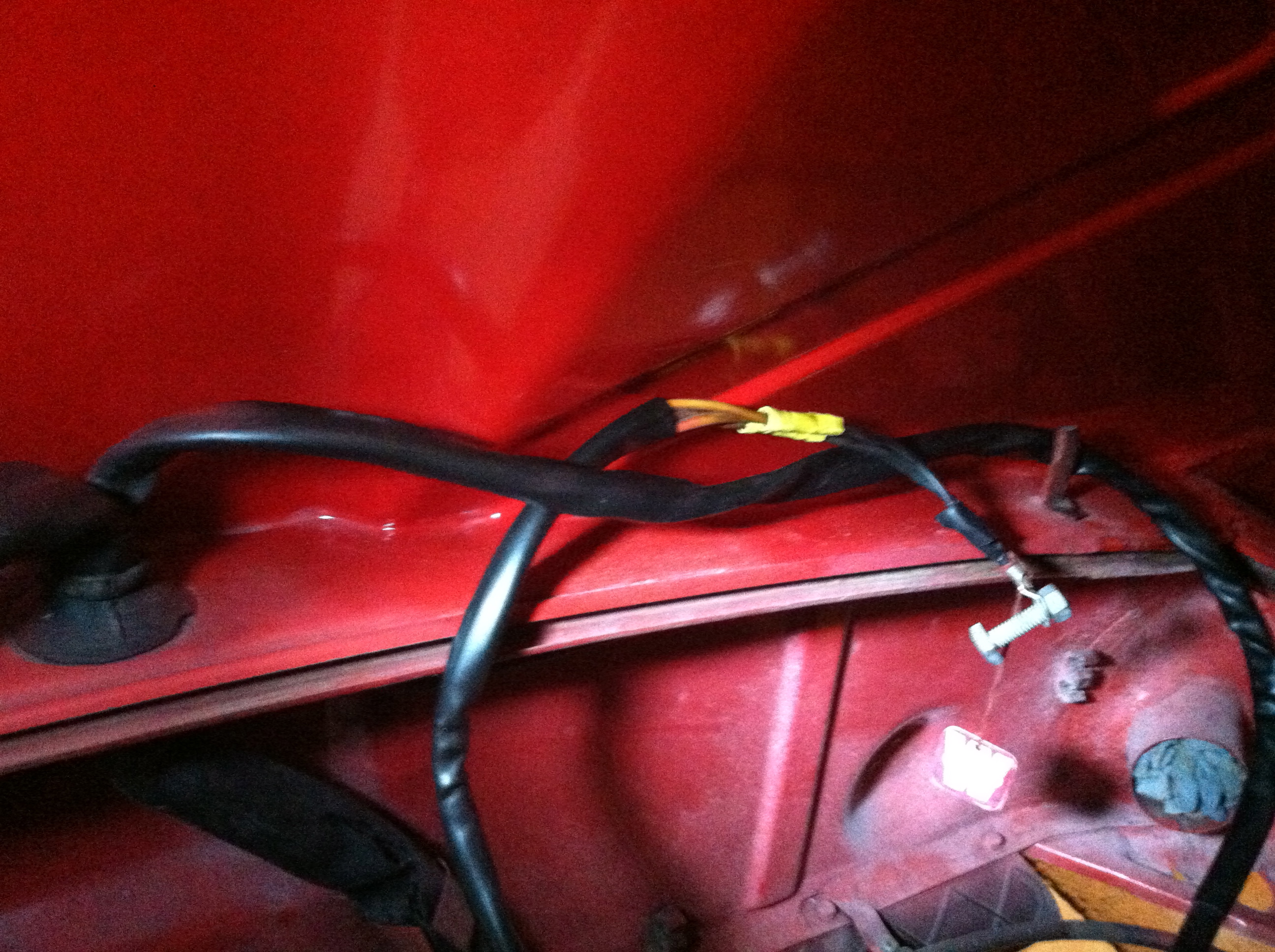

Still going thru wiring and now notice that there are 4 large gage brown wires extending from what seems to be the OEM harness into the engine bay on pass side that were connected to the + batt terminal. These 4 brown wires do not enter the center tunnel, so where do thy go and why brown wires to a + terminal ????
I've never had the car running or electrically powered up, but that's the way it was wired when i got it. I don't like the idea of cutting into the harness protective cover to try tracing these wires. The wire for the oil temp x-ducer in the taco can comes out of this same harness. The car is a 76, if that helps.
Anyone got some ideas ??

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
zambezi
post Dec 22 2014, 11:53 AM
Post #2


Senior Member
***

Group: Members
Posts: 711
Joined: 14-April 08
From: Lafayette, LA
Member No.: 8,920
Region Association: South East States
I think they were red originally and have faded into a brown color
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Dec 22 2014, 12:07 PM
Post #3


Custom Member
***************

Group: Members
Posts: 24,705
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
should be four red wires, and they do indeed enter the center tunnel.

Get an ohm meter.
Get a sewing needle.

Find the four RED wires in the tunnel, right around the shifter you can get to them.
stick the needle through the middle of the wire.

Ohm out the other end in the engine bay.

Do all four
You can then follow them to the correct end at the ignition switch of fuse panel.
They go to both places.

rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Dec 22 2014, 12:29 PM
Post #4


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 9,222
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
Why do you need 'ideas' from the mob? Have you looked at the wiring schematic?

The 1975-76 schematic shows four red wires. Two go to the relay board. One goes to the fuse panel. One goes to the headlight switch.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
barefoot
post Dec 22 2014, 12:58 PM
Post #5


Senior Member
***

Group: Members
Posts: 1,488
Joined: 19-March 13
From: Charleston SC
Member No.: 15,673
Region Association: South East States
QUOTE(Jeff Bowlsby @ Dec 22 2014, 01:29 PM) *

Why do you need 'ideas' from the mob? Have you looked at the wiring schematic?

The 1975-76 schematic shows four red wires. Two go to the relay board. One goes to the fuse panel. One goes to the headlight switch.


Jeff:
Thanks just got freaked out by the brown, pulling back the cover a little and they are now showing red. Yes I have color schematics, problem solved
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Dec 22 2014, 03:33 PM
Post #6


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,876
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
(IMG:style_emoticons/default/av-943.gif) (IMG:style_emoticons/default/lol-2.gif) (IMG:style_emoticons/default/laugh.gif) (IMG:style_emoticons/default/sheeplove.gif) As soon as I saw "brown" I knew what you were looking at. They do discolour, don't they. You need to get those 4 wires fused.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Dec 22 2014, 05:35 PM
Post #7


Custom Member
***************

Group: Members
Posts: 24,705
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
Speaking of this...

For this specific issue, and another car, does anyone know of a secure mono block type unit that could be mounted to the inner fender specifically for these wires.
It would need a cover, and screws to hold down not only the small wires, but one larger wire from the battery.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Dec 22 2014, 06:15 PM
Post #8


Resident German
*************************

Group: Admin
Posts: 42,469
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(r_towle @ Dec 22 2014, 03:35 PM) *
For this specific issue, and another car, does anyone know of a secure mono block type unit that could be mounted to the inner fender specifically for these wires.
It would need a cover, and screws to hold down not only the small wires, but one larger wire from the battery.

There was a group buy a few years back, that's where i got mine ...
(IMG:style_emoticons/default/shades.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Dec 22 2014, 06:17 PM
Post #9


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,876
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
Rich, I have 3 of these installed. Search Amazon & eBay for better pricing. IIRC, I paid $15 for this style w/ fuses. 8ga pigtail and screw terminasl which I prefer over spade fittings. JMHO
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Dec 22 2014, 06:19 PM
Post #10


Custom Member
***************

Group: Members
Posts: 24,705
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
Great, any keywords that might narrow my search down????
Plastic thing with screws and fuses....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
wndsnd
post Dec 22 2014, 06:22 PM
Post #11


You wanted a horse, but got a goat. Nobody wants a goat....
****

Group: Members
Posts: 2,861
Joined: 12-February 12
From: North Shore, MA
Member No.: 14,124
Region Association: North East States
Power distribution blocks.

T&B, Taylor, Bussman
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Dec 22 2014, 06:22 PM
Post #12


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,876
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
Sorry Rich, brain fart, (IMG:style_emoticons/default/chair.gif) http://www.ebay.com/itm/New-Slimline-12V-6...ac2&vxp=mtr
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Dec 22 2014, 06:42 PM
Post #13


Custom Member
***************

Group: Members
Posts: 24,705
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
http://www.aliexpress.com/item/4-Gang-Mari...2229509558.html
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
barefoot
post Dec 24 2014, 04:12 PM
Post #14


Senior Member
***

Group: Members
Posts: 1,488
Joined: 19-March 13
From: Charleston SC
Member No.: 15,673
Region Association: South East States
Also look at West Marine lots of buss bars with or without fuzes
User is offlineProfile CardPM
Go to the top of the page
