> What's this nest of wires?
advman89
post Jul 23 2019, 08:29 PM
Post #1


Member
**

Group: Members
Posts: 120
Joined: 8-July 19
From: Chicago, IL
Member No.: 23,286
Region Association: Upper MidWest

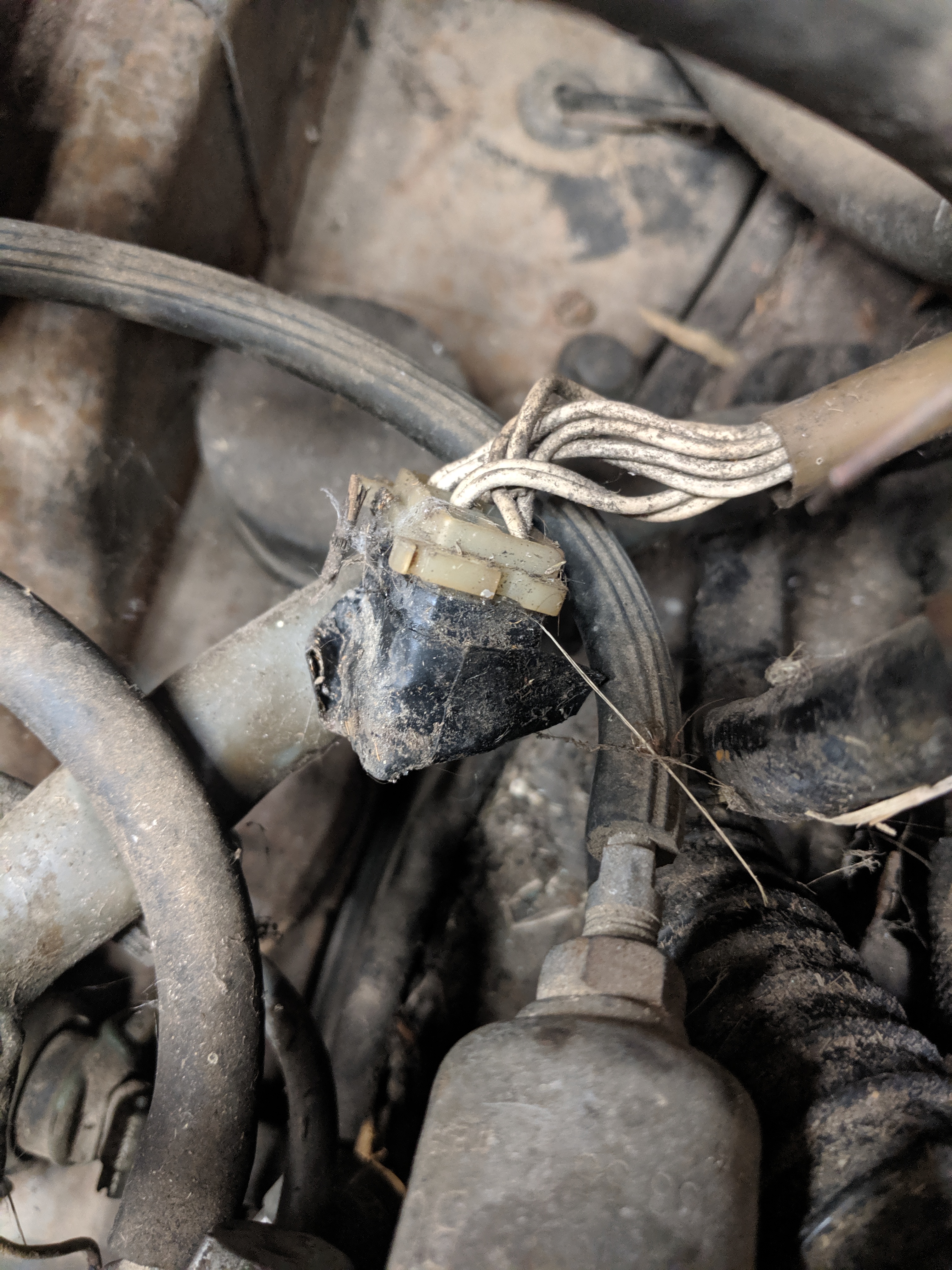

Found this mess stuffed back in a corner of the engine bay (top of the motor, under the airbox-ish, passenger side).

It was "sealed" off with a piece of black electrical tape. So, decommissioned, I'm assuming.


Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
76-914
post Jul 23 2019, 08:31 PM
Post #2


Repeat Offender & Resident Subaru Antagonist
**********

Group: Members
Posts: 13,876
Joined: 23-January 09
From: Temecula, CA
Member No.: 9,964
Region Association: Southern California
grounds from the DJet system.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
advman89
post Jul 23 2019, 08:41 PM
Post #3


Member
**

Group: Members
Posts: 120
Joined: 8-July 19
From: Chicago, IL
Member No.: 23,286
Region Association: Upper MidWest
This 1971 with a 1975 2.0 that I'm currently trying to sort out....I'm finding some very bodgy work that's been preformed. Not sure what's what.

So that leads me to my next question....

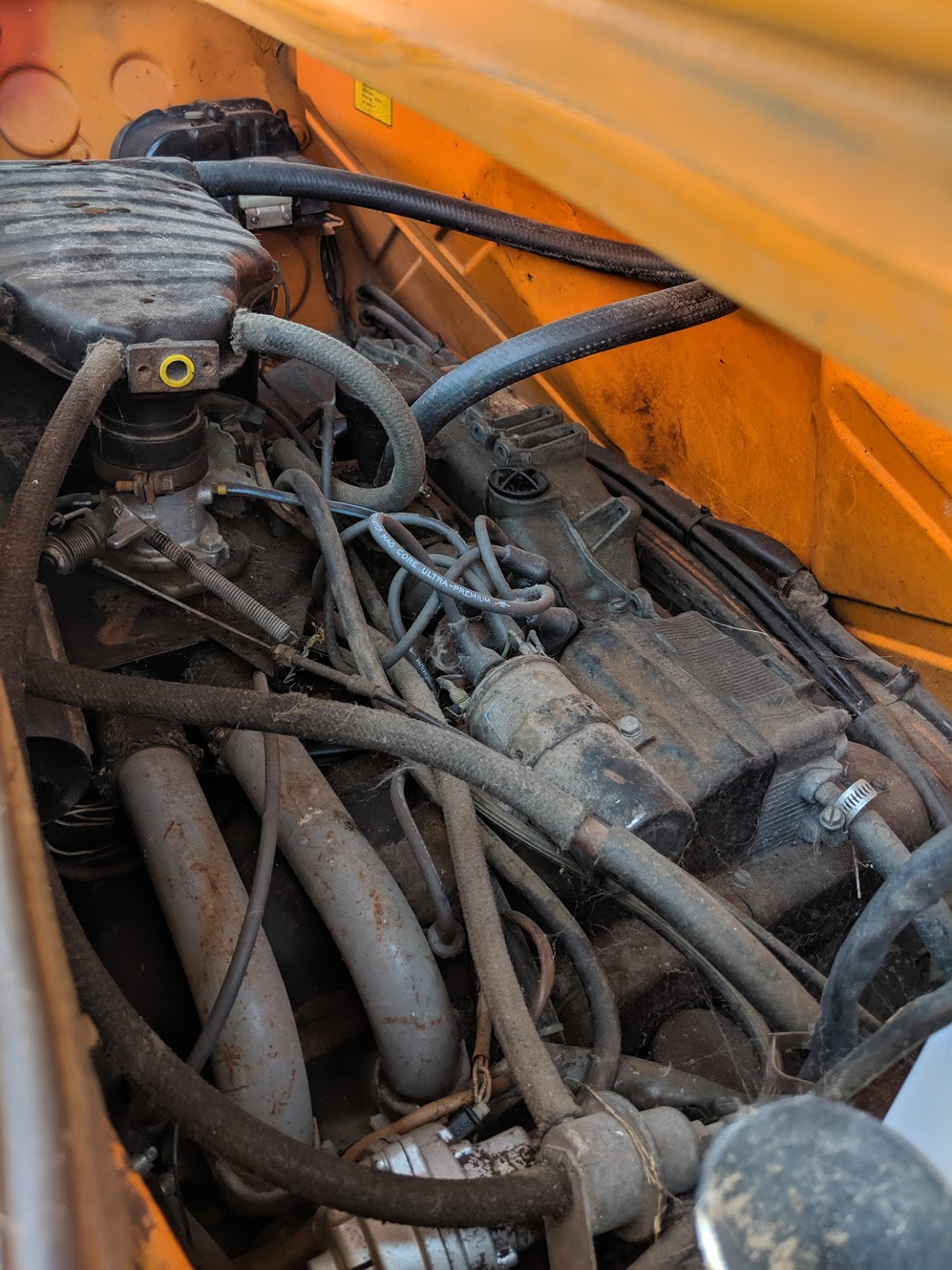

How do I identify my FI system? Can you tell from these pics?

Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jcd914
post Jul 23 2019, 10:10 PM
Post #4


Advanced Member
****

Group: Members
Posts: 2,096
Joined: 7-February 08
From: Sacramento, CA
Member No.: 8,684
Region Association: Northern California
You don't really show much of the engine/intake/fuel injection system.
The control unit you show and the harness at the relay panel is D-jet.

Is the connector in your first picture part of the FI harness going to the control unit¿

Jim
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
advman89
post Jul 24 2019, 06:59 AM
Post #5


Member
**

Group: Members
Posts: 120
Joined: 8-July 19
From: Chicago, IL
Member No.: 23,286
Region Association: Upper MidWest

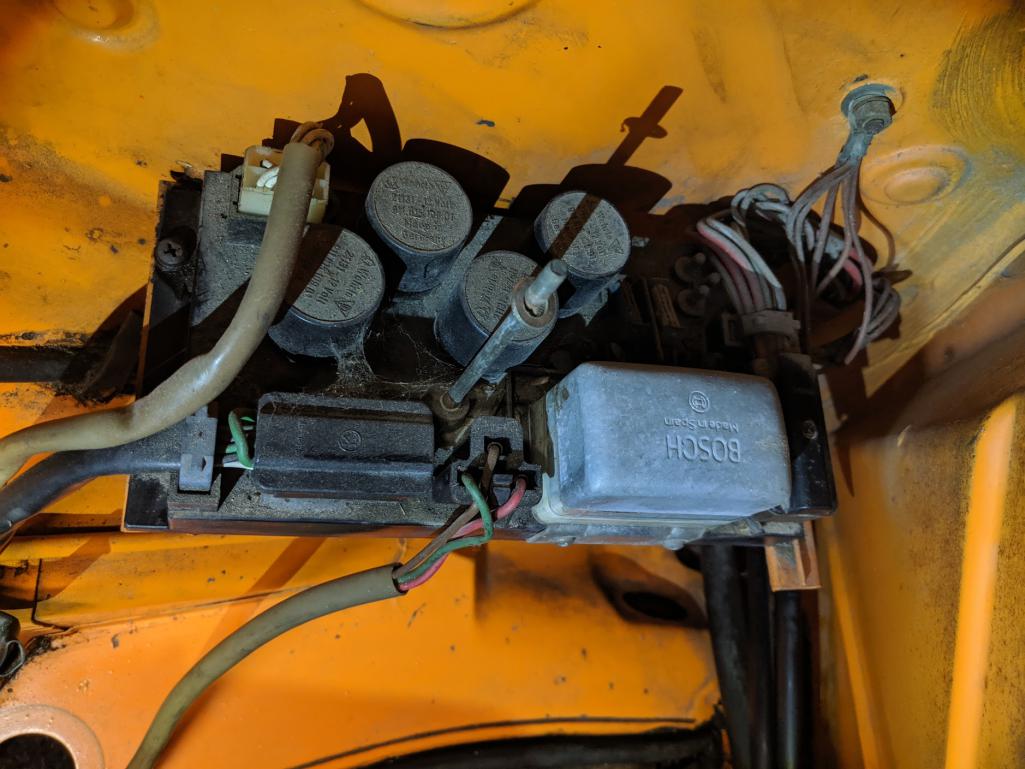

Attached Image

Does this help?

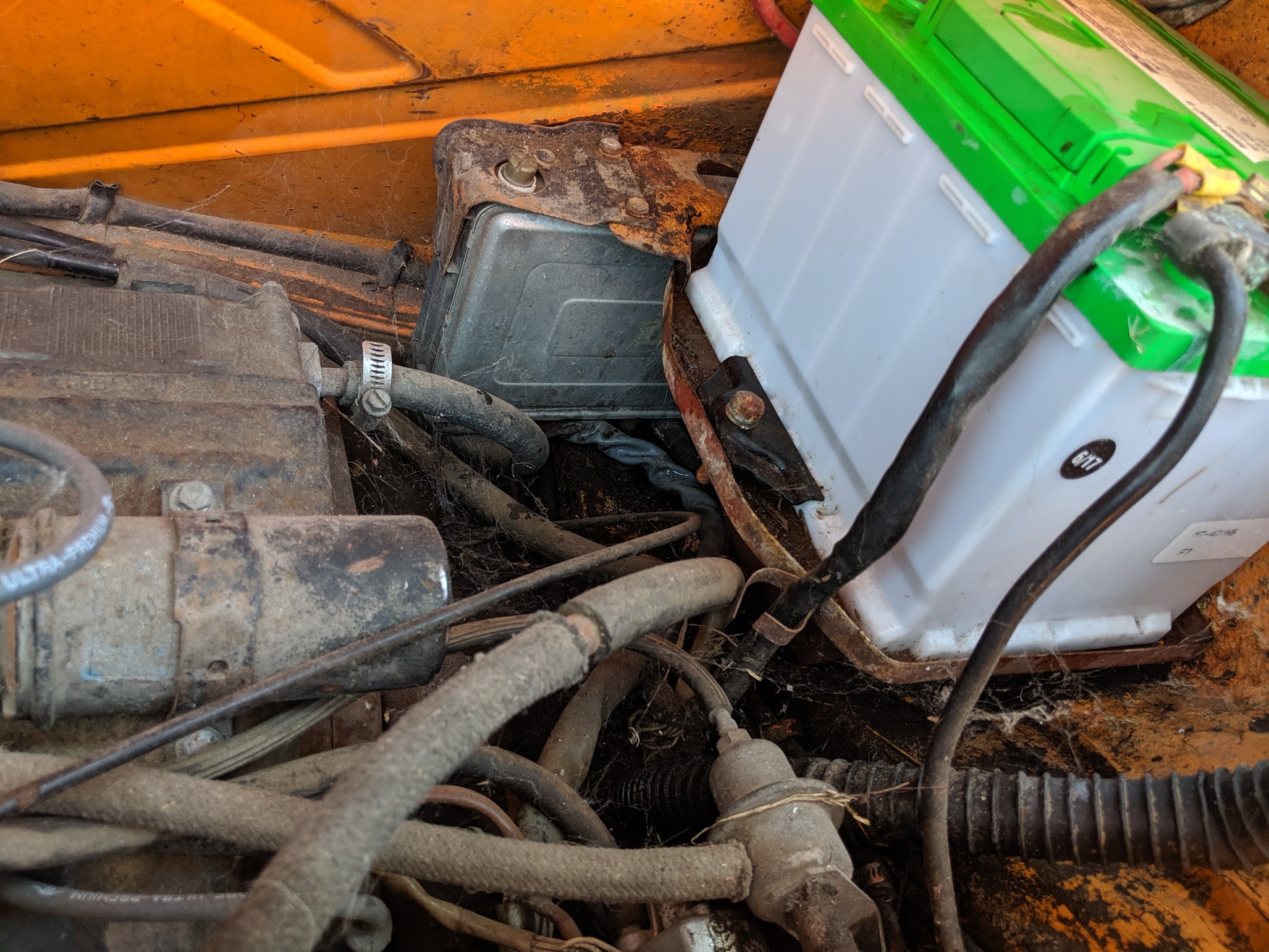

The original pic of the white wires was disconnected and stuffed up under the airbox, near the rear of the car with black tape on it. I'll need to trace it back, but looks as if it went to the box nearest the battery.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Jul 24 2019, 07:04 AM
Post #6


914 Wizard
**********

Group: Members
Posts: 11,184
Joined: 12-September 04
Member No.: 2,744
Region Association: NineFourteenerVille
GC-code engine, with Speed Limiter branch (CA-only).


http://bowlsby.net/914/WiringHarnesses/
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jul 24 2019, 08:18 AM
Post #7


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 9,222
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
QUOTE(sixnotfour @ Jul 24 2019, 06:04 AM) *

GC-code engine, with Speed Limiter branch (CA-only).


http://bowlsby.net/914/WiringHarnesses/


Maybe. But that 6 pole connector housing should’ve near to the ECU, not the engine grounds under the air filter box
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Jul 24 2019, 09:31 AM
Post #8


914 Wizard
**********

Group: Members
Posts: 11,184
Joined: 12-September 04
Member No.: 2,744
Region Association: NineFourteenerVille
QUOTE
Found this mess stuffed back in a corner of the engine bay (top of the motor, under the airbox-ish, passenger side).


"airbox-ish" (IMG:style_emoticons/default/idea.gif) (IMG:style_emoticons/default/popcorn[1].gif) (IMG:style_emoticons/default/shades.gif)

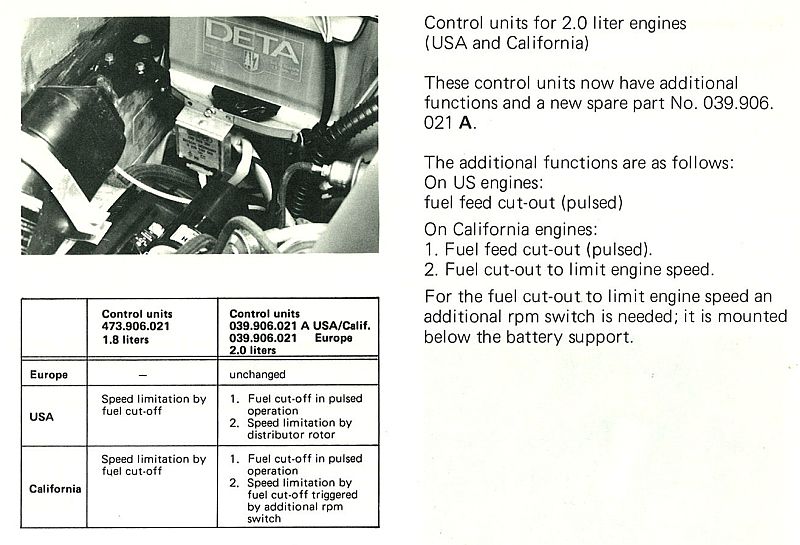

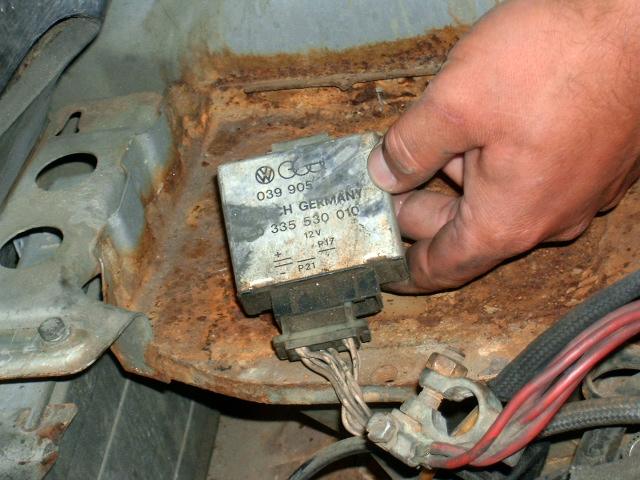

Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
advman89
post Jul 24 2019, 11:41 AM
Post #9


Member
**

Group: Members
Posts: 120
Joined: 8-July 19
From: Chicago, IL
Member No.: 23,286
Region Association: Upper MidWest
There is a connection stuffed under the battery-ish that probably plugged into a box similar...but that was also disconnected and stuffed there (from my poking around there last night, I remember seeing the other side of the connector there).

The engine was swapped and maybe some bodgey stuff was done...that's what I'm trying to sort out.

The car does run, but it's not what I'd consider to be running at top form.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Jul 25 2019, 12:13 PM
Post #10


914 Wizard
**********

Group: Members
Posts: 11,184
Joined: 12-September 04
Member No.: 2,744
Region Association: NineFourteenerVille
the un plugged box affects nothing except emissions....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
