> Late Model Access Panel For Fuel Pump Installed, Pictures of where I placed a late model panel in my 1970
kenshapiro2002
post Nov 28 2009, 07:39 PM
Post #1


Senior Member
***

Group: Members
Posts: 1,441
Joined: 23-July 09
From: Bawlmer, MD
Member No.: 10,598
Region Association: MidAtlantic Region

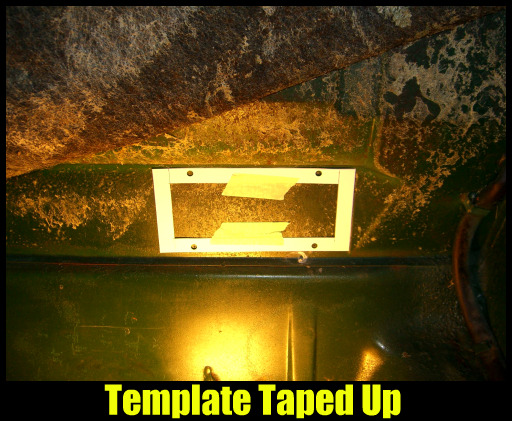

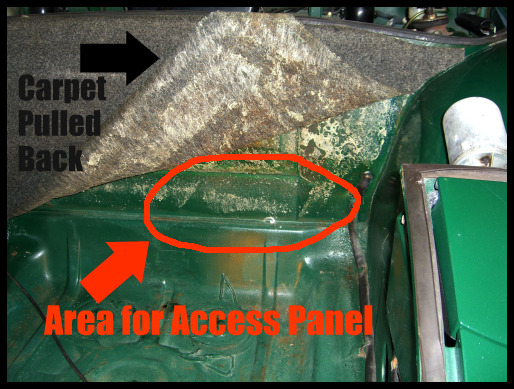

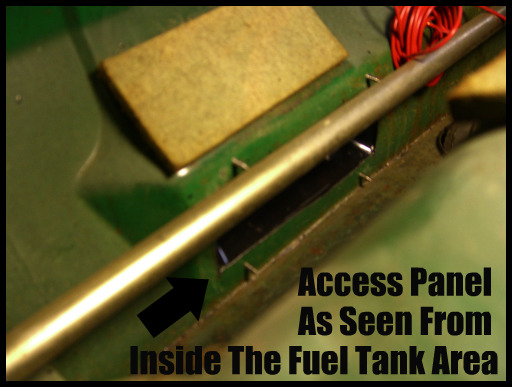

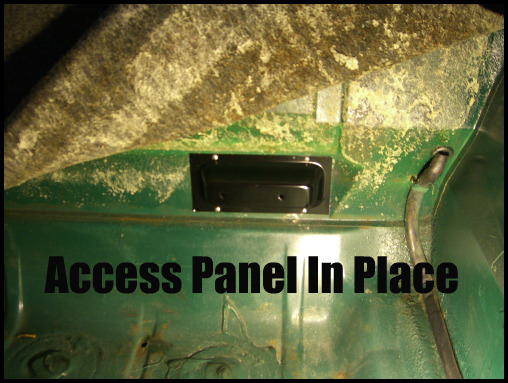

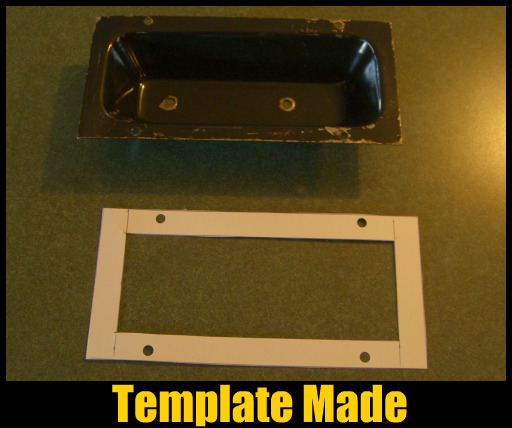

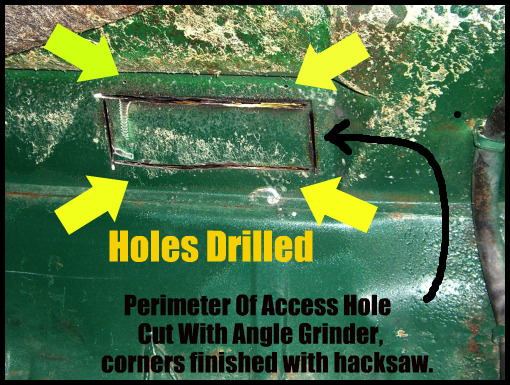

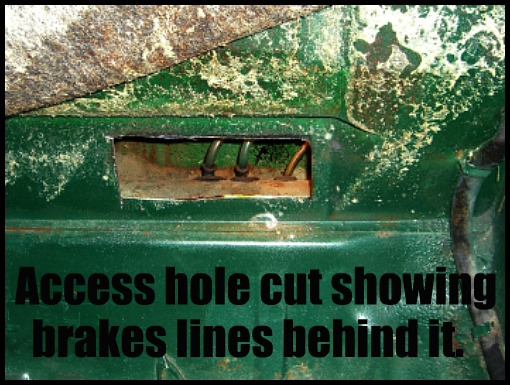

Thought I'd throw up six shots (in three posts) of where, and how, I installed the fuel access panel form a late model (75/76) into the firewall between the front trunk and the fuel tank recess, in my 1970 914.
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
2 Pages V  1 2 >
 Reply to this topicStart new topic
Replies(1 - 19)
kenshapiro2002
post Nov 28 2009, 07:40 PM
Post #2


Senior Member
***

Group: Members
Posts: 1,441
Joined: 23-July 09
From: Bawlmer, MD
Member No.: 10,598
Region Association: MidAtlantic Region
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
kenshapiro2002
post Nov 28 2009, 07:42 PM
Post #3


Senior Member
***

Group: Members
Posts: 1,441
Joined: 23-July 09
From: Bawlmer, MD
Member No.: 10,598
Region Association: MidAtlantic Region
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
kenshapiro2002
post Nov 28 2009, 07:43 PM
Post #4


Senior Member
***

Group: Members
Posts: 1,441
Joined: 23-July 09
From: Bawlmer, MD
Member No.: 10,598
Region Association: MidAtlantic Region
Attached Image

Prime and paint the edges and holes that you cut.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tod914
post Nov 28 2009, 07:44 PM
Post #5


Advanced Member
****

Group: Members
Posts: 3,755
Joined: 19-January 03
From: Lincoln Park, NJ
Member No.: 170
Very nice and professionally done Ken. Think you'll start a new trend now (IMG:style_emoticons/default/drunk.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
VaccaRabite
post Nov 28 2009, 08:15 PM
Post #6


En Garde!
**********

Group: Admin
Posts: 13,444
Joined: 15-December 03
From: Dallastown, PA
Member No.: 1,435
Region Association: MidAtlantic Region
Awesome. make sure you round off the metal you just cut with a grinder or a file. You don't want to slice a finger or fuel line on a sharp jaggie.

Zach
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
kenshapiro2002
post Nov 28 2009, 08:47 PM
Post #7


Senior Member
***

Group: Members
Posts: 1,441
Joined: 23-July 09
From: Bawlmer, MD
Member No.: 10,598
Region Association: MidAtlantic Region
Used a file on the edges right away. May even glues some caps or pieces of plastic tubing over the backs of the screw holes so the protruding sheet metal screws can't touch the fuel lines either.Really shouldn't be a problem, but may just do it to be extra careful.

QUOTE(Vacca Rabite @ Nov 28 2009, 09:15 PM) *

Awesome. make sure you round off the metal you just cut with a grinder or a file. You don't want to slice a finger or fuel line on a sharp jaggie.

Zach
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tod914
post Nov 28 2009, 09:13 PM
Post #8


Advanced Member
****

Group: Members
Posts: 3,755
Joined: 19-January 03
From: Lincoln Park, NJ
Member No.: 170
Ken how about JB welding on some nuts on the back wall so you don't need the sheet metal screws? Think that would work?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
kenshapiro2002
post Nov 28 2009, 10:13 PM
Post #9


Senior Member
***

Group: Members
Posts: 1,441
Joined: 23-July 09
From: Bawlmer, MD
Member No.: 10,598
Region Association: MidAtlantic Region
Sounds good to me. You like JB better than epoxy?

QUOTE(tod914 @ Nov 28 2009, 10:13 PM) *

Ken how about JB welding on some nuts on the back wall so you don't need the sheet metal screws? Think that would work?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
VaccaRabite
post Nov 28 2009, 10:20 PM
Post #10


En Garde!
**********

Group: Admin
Posts: 13,444
Joined: 15-December 03
From: Dallastown, PA
Member No.: 1,435
Region Association: MidAtlantic Region
Why?

Sheet metal screws work like a champ in this application, and have for 30+ years. And JB might not hold when torqued and vibrated against constantly.

K.I.S.S.

Zach
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
kenshapiro2002
post Nov 28 2009, 10:25 PM
Post #11


Senior Member
***

Group: Members
Posts: 1,441
Joined: 23-July 09
From: Bawlmer, MD
Member No.: 10,598
Region Association: MidAtlantic Region
Zach...I'd trust you 100% if it weren't for the ends of the mustache turning up like that..that Snidely Whiplash thing. If I promise to stay with the sheet metal screws will you promise not to tie my car to the railroad tracks?

QUOTE(Vacca Rabite @ Nov 28 2009, 11:20 PM) *

Why?

Sheet metal screws work like a champ in this application, and have for 30+ years. And JB might not hold when torqued and vibrated against constantly.

K.I.S.S.

Zach
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MrKona
post Nov 28 2009, 10:32 PM
Post #12


Senior Member
***

Group: Members
Posts: 597
Joined: 25-July 05
From: Santa Rosa, CA
Member No.: 4,469
Region Association: None
Consider Rivet nuts. You've already got the hole locations started, you could make them big enough to install the rivets. Then you could use machine screws to attach the mount to the firewall. (IMG:style_emoticons/default/white914.jpg)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jmill
post Nov 28 2009, 10:33 PM
Post #13


Green Hornet
****

Group: Members
Posts: 2,449
Joined: 9-May 08
From: Racine, Wisconsin
Member No.: 9,038
Region Association: Upper MidWest

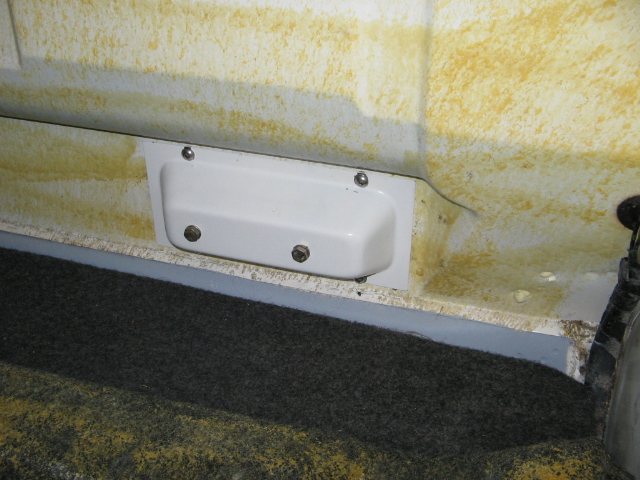

I'd go with a nut clip. Cheap and easy without the sharp point next to your fuel line. You don't need the nut cert (riv-nuts) tool either. I've had them spin on me.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
kenshapiro2002
post Nov 29 2009, 06:09 AM
Post #14


Senior Member
***

Group: Members
Posts: 1,441
Joined: 23-July 09
From: Bawlmer, MD
Member No.: 10,598
Region Association: MidAtlantic Region
Yeah...maybe...
QUOTE(jmill @ Nov 28 2009, 11:33 PM) *

I'd go with a nut clip. Cheap and easy without the sharp point next to your fuel line. You don't need the nut cert (riv-nuts) tool either. I've had them spin on me.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JFJ914
post Nov 29 2009, 01:07 PM
Post #15


Senior Member
***

Group: Benefactors
Posts: 813
Joined: 13-June 03
From: Alpharetta, GA
Member No.: 814
Region Association: South East States
The factory used sheet metal screws. Why get fancy?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Drums66
post Nov 29 2009, 01:19 PM
Post #16


914 Rudiments
*****

Group: Members
Posts: 5,321
Joined: 15-January 03
From: Coronado,Cali
Member No.: 151
Region Association: Southwest Region
QUOTE(kenshapiro2002 @ Nov 28 2009, 08:25 PM) *

Zach...I'd trust you 100% if it weren't for the ends of the mustache turning up like that..that Snidely Whiplash thing.

QUOTE(Vacca Rabite @ Nov 28 2009, 11:20 PM) *

Why.

K.I.S.S.

Zach




(IMG:style_emoticons/default/biggrin.gif) Maybe a rubber moulding edge around the access door?
other than that tip, looks great!! (good humor man) (IMG:style_emoticons/default/biggrin.gif)


User is offlineProfile CardPM
Go to the top of the page
+Quote Post
IronHillRestorations
post Nov 30 2009, 12:00 PM
Post #17


I. I. R. C.
*****

Group: Members
Posts: 6,719
Joined: 18-March 03
From: West TN
Member No.: 439
Region Association: None
A couple things that have helped me with sheet metal screws.

When re-installing a sheet metal screw, put the tip in the hole and press down lightly, the turn counter clockwise until you feel it click, then turn clockwise. This lines up the threads so you don't cut new ones.

I was working on a customer's car and showed him this tip. He sells medical hardware for bone implants and joint repair and said this is exactly the same thing they teach the Dr's to align the threads on the bone hardware.

The other thing I've done is tap the sheet metal by drilling the hole 1/8" smaller than needed, and then bugle the hole with a tapered punch to the correct size needed for the tap, using the correct size drill bit (for the tap) as a guide.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
kenshapiro2002
post Dec 4 2009, 09:42 AM
Post #18


Senior Member
***

Group: Members
Posts: 1,441
Joined: 23-July 09
From: Bawlmer, MD
Member No.: 10,598
Region Association: MidAtlantic Region

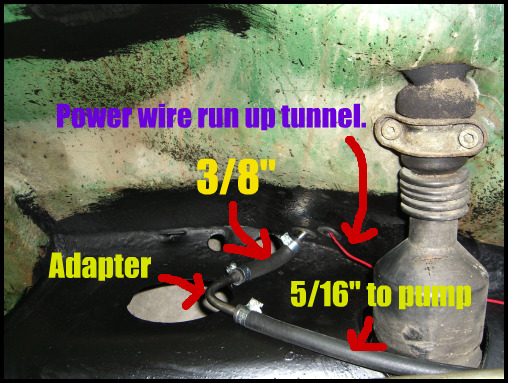

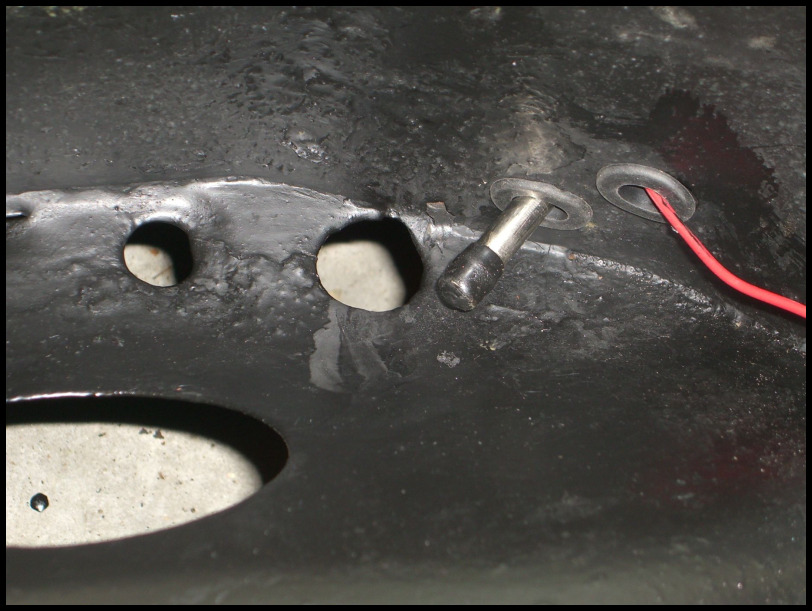

Ok...I coated the bottom of the whole fuel tank well with POR15. I sued rubber grommets to "cushion" where the new fuel line exited as well as where the hot wire for the fuel pump exits the old return line hole.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
kenshapiro2002
post Dec 11 2009, 12:12 PM
Post #19


Senior Member
***

Group: Members
Posts: 1,441
Joined: 23-July 09
From: Bawlmer, MD
Member No.: 10,598
Region Association: MidAtlantic Region

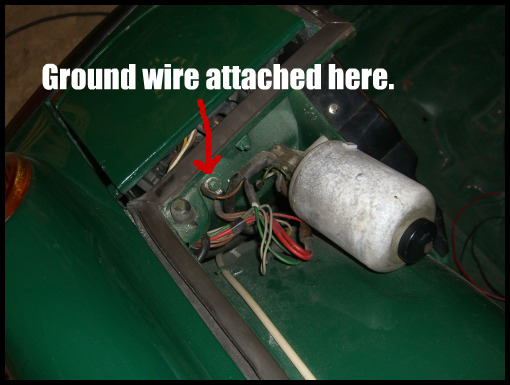

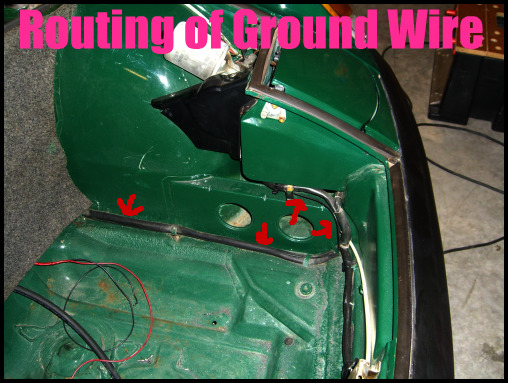

Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
kenshapiro2002
post Dec 11 2009, 12:13 PM
Post #20


Senior Member
***

Group: Members
Posts: 1,441
Joined: 23-July 09
From: Bawlmer, MD
Member No.: 10,598
Region Association: MidAtlantic Region

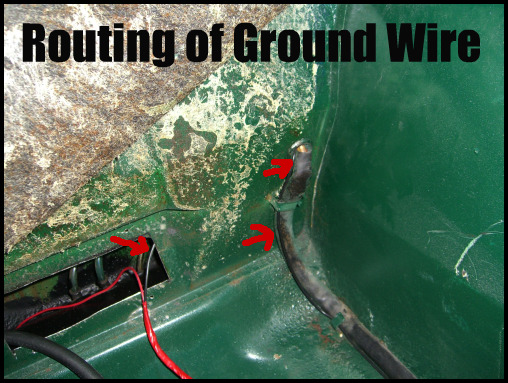

Attached Image
