> Turbo Boost Pressure / Comp Ratio, Useful data chart
Maltese Falcon
post Dec 7 2009, 08:50 PM
Post #1


Advanced Member
****

Group: Members
Posts: 4,645
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None

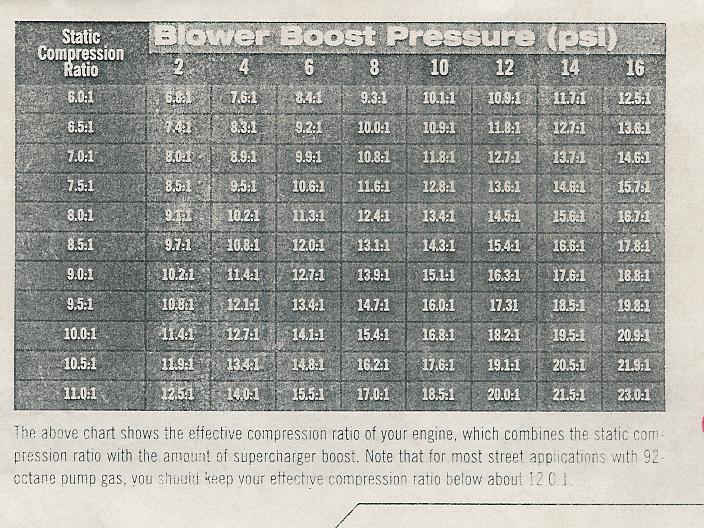

I found this chart (from Holley/ Weiand) in my archives and it basically calculates your actual total C/R by adding boost pressure to your static C/R. So my biturbo is running 7.0 static and at 22 psi boost pressure the engine is running at 17.3:1 total c/r. I use 100 octane for anything over 16 psi.
Sorry for the print quality of the chart.
Marty

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Sleepin
post Dec 7 2009, 09:08 PM
Post #2


Advanced Member
****

Group: Members
Posts: 3,647
Joined: 20-November 07
From: Grand Junction, Co.
Member No.: 8,357
Region Association: Rocky Mountains
So when I was running 14psi on my Honda engine with 11.5:1....wow...that is scary! (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Numbchux
post Dec 8 2009, 02:15 AM
Post #3


Newbie
*

Group: Members
Posts: 33
Joined: 3-September 09
From: Duluth, MN
Member No.: 10,758
Region Association: Upper MidWest
hehe cool, our rally car is running 17psi on 11:1. that's almost 24:1 effective

of course, we're running 102 octane.



my built subie motor is shooting for 6psi at 9.5:1 (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Zardozz
post Dec 9 2009, 12:21 PM
Post #4


Member
**

Group: Members
Posts: 107
Joined: 31-March 08
From: Orange County, CA
Member No.: 8,874
Region Association: None
So...

At 7.5:1 + 12# = 13.6:1 on pump gas with no audible detonation, not bad. I might have to try some 104oct and take it up to 16# just for fun.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Dec 9 2009, 12:50 PM
Post #5


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
QUOTE
I might have to try some 104oct and take it up to 16# just for fun.

You've got more balls than I do. That sentence sounds like a blown motor to me, but I'm probably just chicken. (IMG:style_emoticons/default/unsure.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Dec 9 2009, 04:28 PM
Post #6


Custom Member
***************

Group: Members
Posts: 24,574
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
QUOTE(Maltese Falcon @ Dec 7 2009, 09:50 PM) *

I found this chart (from Holley/ Weiand) in my archives and it basically calculates your actual total C/R by adding boost pressure to your static C/R. So my biturbo is running 7.0 static and at 22 psi boost pressure the engine is running at 17.3:1 total c/r. I use 100 octane for anything over 16 psi.
Sorry for the print quality of the chart.
Marty

Attached Image


Thank you....now make the header again.
The one for a turbo...

Rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Dec 9 2009, 07:06 PM
Post #7


Advanced Member
****

Group: Members
Posts: 4,645
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
QUOTE
QUOTE
Attached Image
Thank you....now make the header again.
The one for a turbo...

Rich
Hi Rich, did you mean these headers ??
Marty
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Dec 9 2009, 07:16 PM
Post #8


Custom Member
***************

Group: Members
Posts: 24,574
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States
two many cylinders.

The old kit you made for the Djet turbo setup....
I want one.

Rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Dec 12 2009, 11:37 AM
Post #9


Advanced Member
****

Group: Members
Posts: 4,645
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
Rich, we just couldn't re-introduce THAT kit (IMG:style_emoticons/default/driving.gif)
Marty

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
iamchappy
post Dec 12 2009, 11:53 AM
Post #10


It all happens so fast!
****

Group: Members
Posts: 4,893
Joined: 5-November 03
From: minnetonka, mn
Member No.: 1,315
Region Association: Upper MidWest
Looks like i must be running around 14....
