early 914 and 914-6 induction, did early cars all have carbs from factory |
pete-stevers |
Dec 11 2009, 07:11 PM
Post
#1
|
saved from fire! Group: Members Posts: 2,641 Joined: 10-October 04 From: Abbotsford,BC, Canada Member No.: 2,914 Region Association: Pacific Northwest |
it is of interest to me to know what early 914s had carbs, was it only sixes, or did early fours have carbs too? If so what modles came from the factory with carbs
|
tod914 |
Dec 11 2009, 07:13 PM
Post
#2
|
Advanced Member Group: Members Posts: 3,755 Joined: 19-January 03 From: Lincoln Park, NJ Member No.: 170 |
Think just the 914-6's and the euro 1.8's.
|
SirAndy |
Dec 11 2009, 07:16 PM
Post
#3
|
Resident German Group: Admin Posts: 41,651 Joined: 21-January 03 From: Oakland, Kalifornia Member No.: 179 Region Association: Northern California |
it is of interest to me to know what early 914s had carbs, was it only sixes, or did early fours have carbs too? If so what modles came from the factory with carbs http://www.914world.com/specs/engnumbs.php All 914-6 had carbs. All 914-4 1.7L had D-Jet. All 914-4 2.0L had D-Jet. All US-spec 914-4 1.8L had L-Jet. All (some?) Euro spec 914-4 1.8L had carbs. (IMG:style_emoticons/default/bye1.gif) Andy PS: Note that the carbed euro 1.8L had two single carbs, not the commonly seen dual webers. |
GeorgeRud |
Dec 11 2009, 07:18 PM
Post
#4
|
Advanced Member Group: Members Posts: 3,725 Joined: 27-July 05 From: Chicagoland Member No.: 4,482 Region Association: Upper MidWest |
Many years ago, I saw a factory carbed 914 in a wrecking yard in New Hampshire. No camera was available, so I never got a picture of the setup. I wonder now if by chance Canada also got the carbed ones as we were fairly close to the border? I have never seen another one in person (other than the numerous aftermarket ones), and wonder if anyone has photos of the factory setup?
|
ME733 |
Dec 11 2009, 07:38 PM
Post
#5
|
Senior Member Group: Members Posts: 842 Joined: 25-June 08 From: Atlanta Ga. Member No.: 9,209 Region Association: South East States |
(IMG:style_emoticons/default/popcorn[1].gif) ....Many , many, years ago a friend had a type IV BUS ,( i rebuilt the engine for him ) that had a (small sized) dual carburator setup. It was a factory installation. I often wondered if that was the carburator setup in the european model 914,s... (IMG:style_emoticons/default/popcorn[1].gif)
|
McMark |
Dec 11 2009, 09:52 PM
Post
#6
|
914 Freak! Group: Retired Admin Posts: 20,179 Joined: 13-March 03 From: Grand Rapids, MI Member No.: 419 Region Association: None |

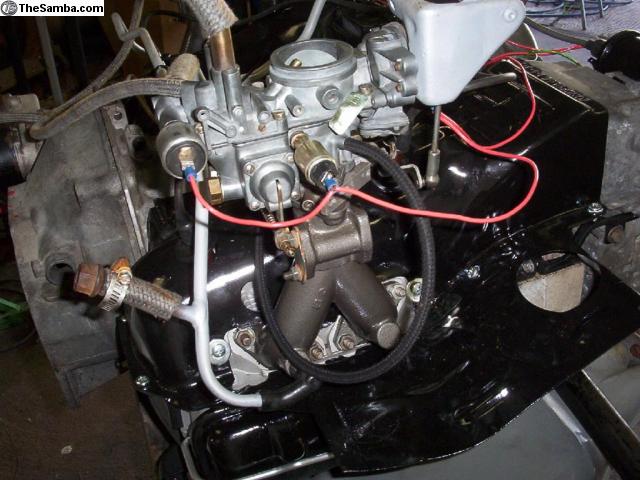

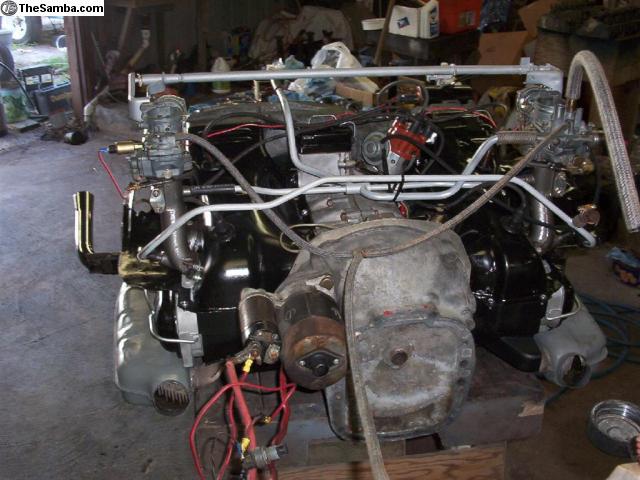

Looked pretty much like these. Dual single throat solexs. Also came on early Type IV busses.
Attached image(s) |
Mark Henry |
Dec 11 2009, 10:30 PM
Post
#7
|
that's what I do! Group: Members Posts: 20,065 Joined: 27-December 02 From: Port Hope, Ontario Member No.: 26 Region Association: Canada |
My canadian 74 1.8 is (was) L-jet. The bus carbs are OK in good shape, but the bushings wear out and they get sloppy. Not a very good performance set-up.
|
davep |
Dec 12 2009, 08:30 AM
Post
#8
|
914 Historian Group: Benefactors Posts: 5,144 Joined: 13-October 03 From: Burford, ON, N0E 1A0 Member No.: 1,244 Region Association: Canada |
Canadian cars were much the same as USA versions; essentially they were North American versions. Canada did not get any 70 or 71 914's of any sort in quantity; they were special order for some reason. There were a few 1970 914/4 that got carbs, but they were demonstrator units only and not for retail sale. I know of one only, and it was a race car all it's life.
|
Bleyseng |
Dec 12 2009, 09:05 AM
Post
#9
|
Aircooled Baby! Group: Members Posts: 13,034 Joined: 27-December 02 From: Seattle, Washington (for now) Member No.: 24 Region Association: Pacific Northwest |
The Euro 1.8L got 40mm dual solexes just like the bus 32mm dual solexes.
|
ME733 |
Dec 12 2009, 10:19 AM
Post
#10
|
Senior Member Group: Members Posts: 842 Joined: 25-June 08 From: Atlanta Ga. Member No.: 9,209 Region Association: South East States |
Looked pretty much like these. Dual single throat solexs. Also came on early Type IV busses. (IMG:style_emoticons/default/popcorn[1].gif) .....YES......looks like the one I rebuilt. the actual carb size I do not remember. (IMG:style_emoticons/default/popcorn[1].gif) |
Mark Henry |
Dec 12 2009, 11:18 AM
Post
#11
|
that's what I do! Group: Members Posts: 20,065 Joined: 27-December 02 From: Port Hope, Ontario Member No.: 26 Region Association: Canada |
In good shape then work well on a stock engine. In bad shape they're imposable to tune. See all the fuel cut-off solenoids? The bigger one is NLA and without them you will wash down the cylinders every shut down. Solex had a design issue (fuel shut off) right from the beetle PICT-30. The solenoid(s) solve this issue, but those solenoids are now 40yrs old.
|
