> Tubular Space Frame?, How would you do it?
plymouth37
post Mar 10 2010, 02:12 PM
Post #41


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE(jd74914 @ Mar 10 2010, 06:42 AM) *

Are you still in school? If you are you should grab a copy of SolidWorks and model what you are building. Then you can use the integrated FEA software to mess with tube sizes. Its quite easy to use (and there are some great tutorials about building tube frames in it on Youtube), and would really help you out with choosing tube size. (IMG:style_emoticons/default/smile.gif)


That is actually a really good idea, the formula sae teams use solidworks to analyze their frames so I should be able to find a computer in the engineering building that has it on it. Solidworks also offers a student edition for $100 ($2900 less than retail).
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
WRX914
post Mar 11 2010, 09:17 AM
Post #42


2.5 WRX STI hybrid powered beast
***

Group: Members
Posts: 782
Joined: 16-September 04
From: Las Vegas, NV
Member No.: 2,771
Region Association: Southwest Region
Ohhh to have the time to entertain these things!!!

Dana,

How's my old rommie doin? How is Becky? How is Laurie? Hope all is well.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Mar 11 2010, 09:34 AM
Post #43


Its alive
****

Group: Members
Posts: 4,864
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States
QUOTE(plymouth37 @ Mar 10 2010, 03:12 PM) *

That is actually a really good idea, the formula sae teams use solidworks to analyze their frames so I should be able to find a computer in the engineering building that has it on it. Solidworks also offers a student edition for $100 ($2900 less than retail).


Yep, I've used it on a few frames. The beam analysis feature works really well.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Mar 11 2010, 09:58 AM
Post #44


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
QUOTE(WRX914 @ Mar 11 2010, 08:17 AM) *

Ohhh to have the time to entertain these things!!!

Dana,

How's my old rommie doin? How is Becky? How is Laurie? Hope all is well.


Plugging away at my architecture degree and looking at grad school, Beckie and my mom are doing well. We have a little house and a couple dogs, Life is good!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
YksKrad
post Mar 14 2010, 01:47 AM
Post #45


Member
**

Group: Members
Posts: 72
Joined: 14-February 05
From: Rolla, MO
Member No.: 3,602
Region Association: Upper MidWest
I'm not too good with this kind of stuff, but as far as solid works goes they have a nice set of tutorials on youtube http://www.youtube.com/user/solidworks... I believe they explicitly cover frame design in the tutorials. The FSAE team I'm on uses NX for frame design, I'm not sure what is used to analyze it though....

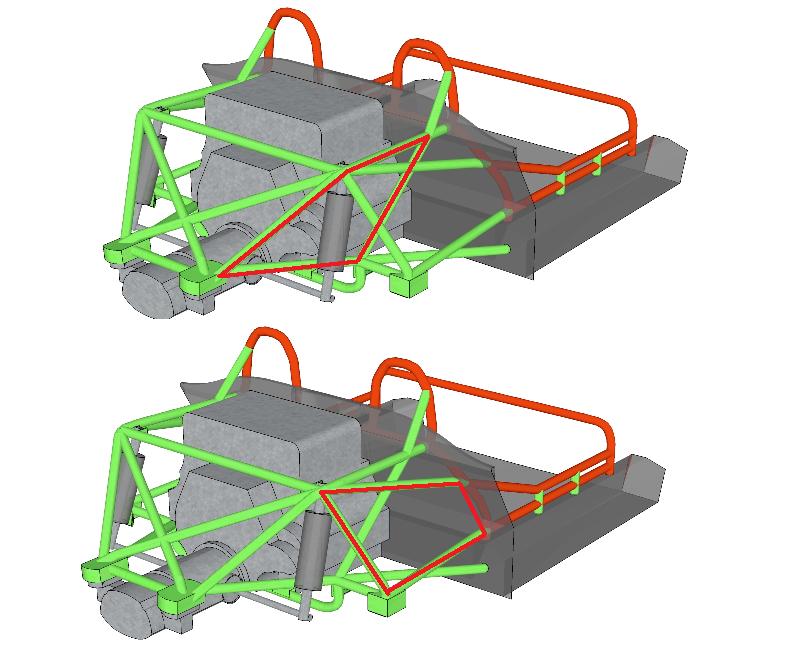

As I said I'm not very good at this, but squares are bad, triangles are good. These two seem to jump out at me.

Attached Image

Sorry, but I can't give you much better advice. I haven't really been involved in that aspect of our car's design...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rand
post Mar 14 2010, 10:46 PM
Post #46


Cross Member
*****

Group: Members
Posts: 7,413
Joined: 8-February 05
From: OR
Member No.: 3,573
Region Association: None

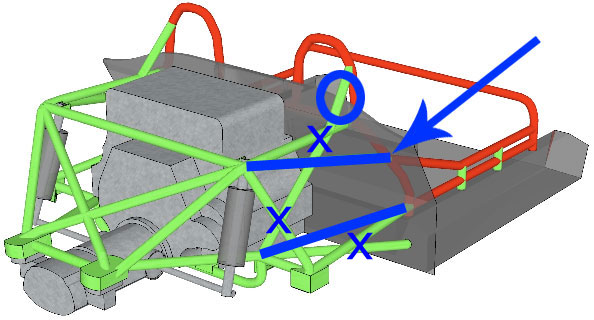

My Qs are in blue. You already have the crosses to the tranny points done so those are redundant for this conversation.

Inside the blue circle... Why would you go up there? To me, the strong point to tie into is the tip of the blue arrow as that's what ties forward. I would ignore anything above it.

So top of shock tower forward to that point (my blue bar) is the strongest and most important piece in my mind.

Outer suspension point is strong by default. Inner ear needs some bracing. Doesn't make a huge difference where you go with it, I just put a blue bar to the strongest point in my thinking. Your green bar that goes lower is fine. Or just use Chris's kit (Tangerine).

Given that weight is important in your build, I just want to see you only add bracing where it's most effective, and not where it's really superfluous.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Mar 14 2010, 10:54 PM
Post #47


914 Wizard
**********

Group: Members
Posts: 11,086
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains

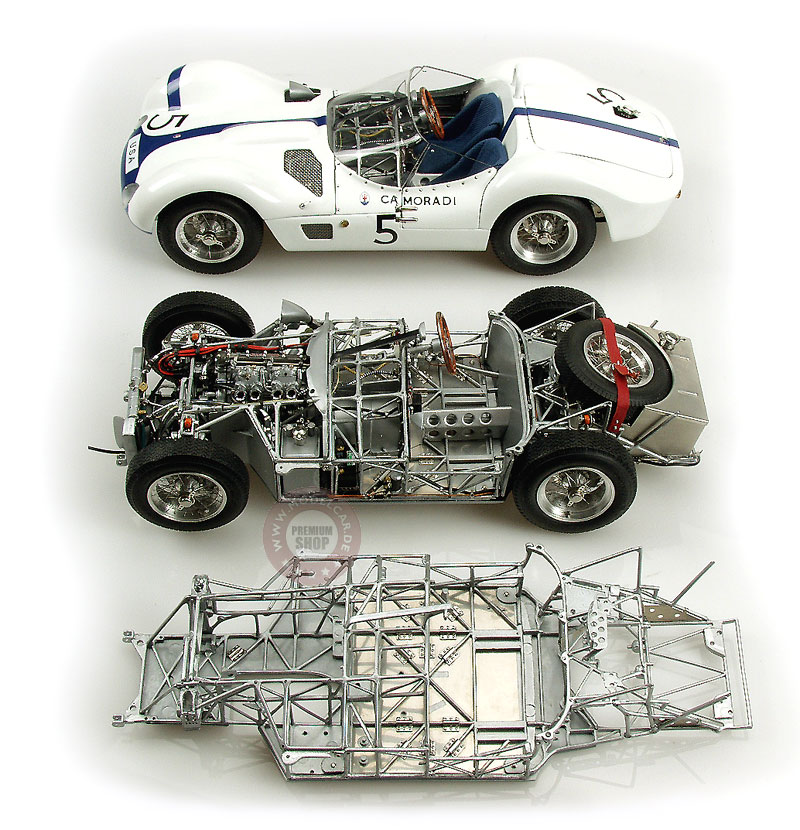

(IMG:style_emoticons/default/idea.gif)


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Mar 14 2010, 11:54 PM
Post #48


914 Idiot
***************

Group: Members
Posts: 15,308
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California
IIRC, the "Birdcage" Maser was a very early tube-frame design, and not necessarily all that successful I think. You'd probably do much better to check a modern racer, or maybe one of the Sports Racer (e.g., DSR) cars for ideas rather than the Maser.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Mar 15 2010, 02:06 AM
Post #49


914 Wizard
**********

Group: Members
Posts: 11,086
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains

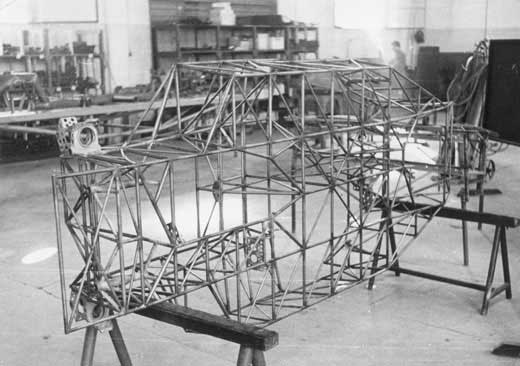

(IMG:style_emoticons/default/poke.gif) 200 tubes


Attached image(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
jd74914
post Mar 15 2010, 07:50 AM
Post #50


Its alive
****

Group: Members
Posts: 4,864
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States
QUOTE(sixnotfour @ Mar 15 2010, 03:06 AM) *

(IMG:style_emoticons/default/poke.gif) 200 tubes

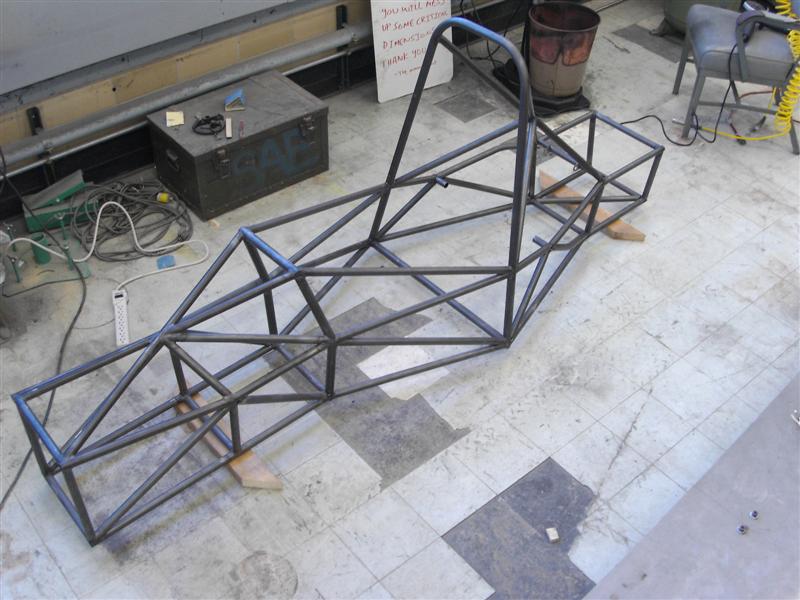

Eh, those are easy joints. They are almost all nice and square. Try this one, its 8 bars into one in the front and 6 into one in the back with about a 1/16" gap for welding. (IMG:style_emoticons/default/poke.gif) (IMG:style_emoticons/default/blink.gif)

Sorry for the hyjack Dana. I'll use it as an excuse to say that triangles are good, though this frame is overbuilt. Most of the tubes should be .035" wall. For reference, with all 1x.065" tubes this frame weighed 65lbs.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sean_v8_914
post Mar 15 2010, 04:00 PM
Post #51


Chingon 601
****

Group: Members
Posts: 4,011
Joined: 1-February 05
From: San Diego
Member No.: 3,541

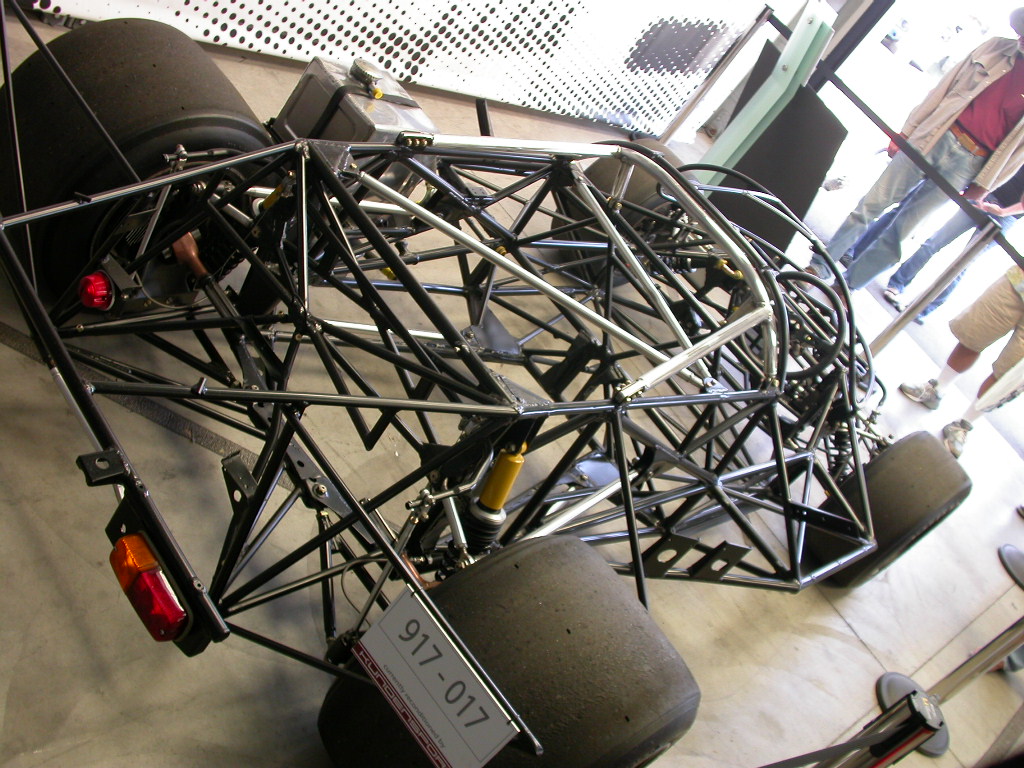

chop chop!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sean_v8_914
post Mar 15 2010, 04:01 PM
Post #52


Chingon 601
****

Group: Members
Posts: 4,011
Joined: 1-February 05
From: San Diego
Member No.: 3,541

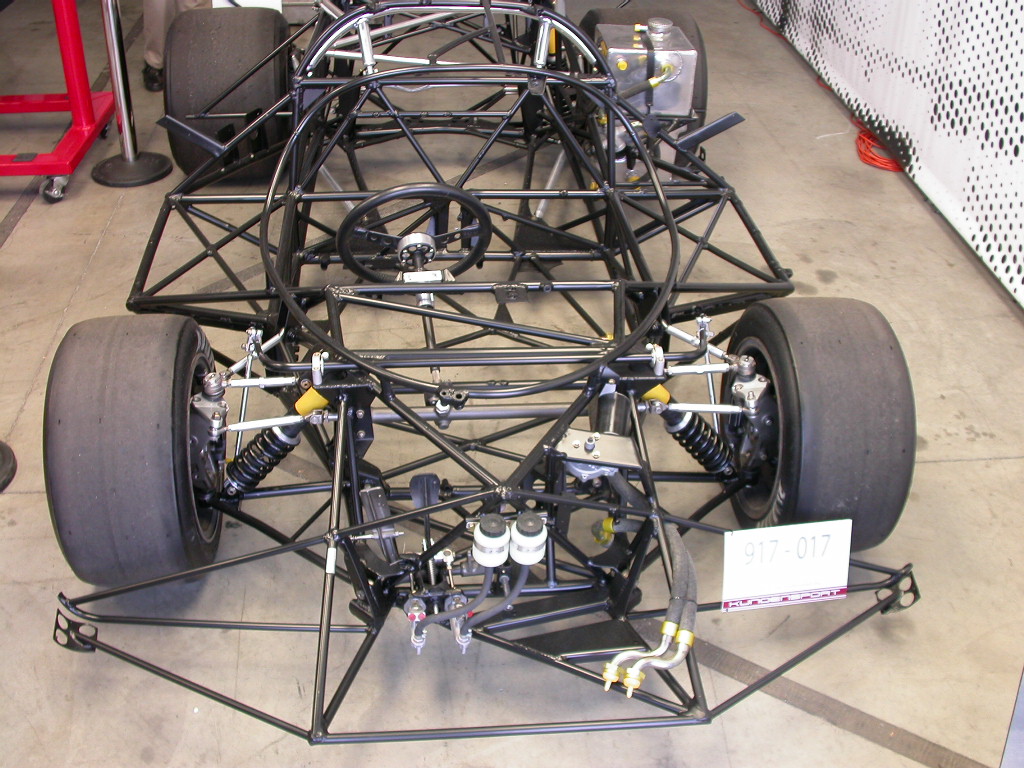

how much wire do ya think they used here?


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
