 N 012.645.2, E-brake cable attachment pin retainer clips |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
Posts in this area are restricted to the following format. If you have a general question, please post it in the Garage.
1. All new threads MUST be titled with a part number only. (i.e. 901.351.801.17)
2. Thread description should be an english description of the part. (i.e. Brake Dust Shields)
3. Replies to the thread are only restricted by pertinence. Some examples are original finish of the part (painted, cad plated, etc), common failures (cracking at the mount points), repair information or tips, pictures (stock or custom), upgrades, etc.
If you have any questions regarding the rules of this forum, please PM McMark.
  |
| McMark |
 Mar 24 2010, 09:21 PM
Post
#1
|
|
914 Freak!  Group: Retired Admin Posts: 20,179 Joined: 13-March 03 From: Grand Rapids, MI Member No.: 419 Region Association: None  |
These clips secure the pin (999.166.055.02) that attaches the e-brake cable to the caliper arm. The clip has two 'fingers' which slide into a groove in the pin (999.166.055.02). The clip also has a 'tab' which slides over the end of the pin (999.166.055.02) and keeps the clip from vibrating loose.

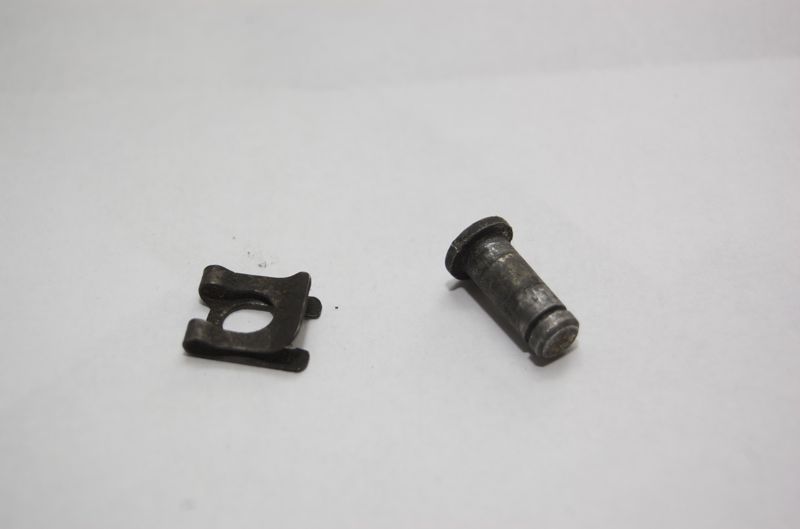

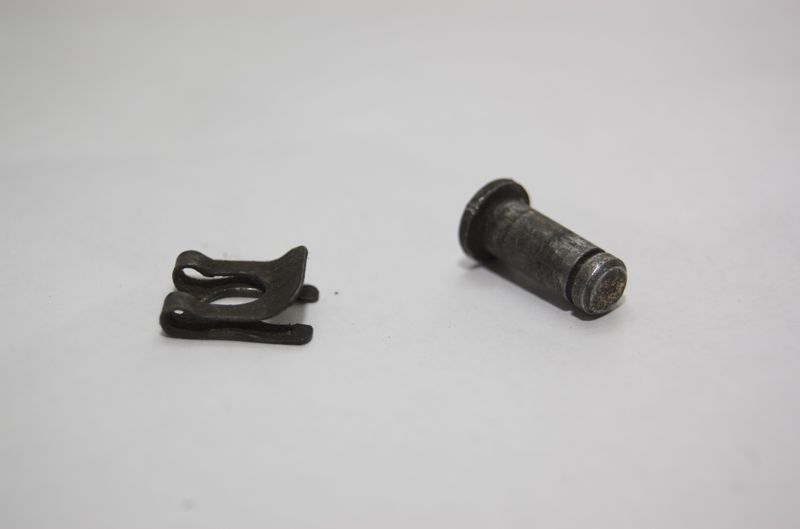

The clip is made of spring steel and was originally cad plated. The clip 'fingers' are often bent farther open than they should be through years of abuse. They can be bent back into shape carefully with pliers. Deformed clips can fall off unexpectedly. The clip is pictured on the left, and the pin (999.166.055.02) is pictured on the right. Attached image(s)
|
   |

|
|
