> My Trailer Hitch Receiver, and.....kayak carrier
Joe Owensby
post Mar 30 2010, 10:14 PM
Post #1


JoeO
***

Group: Members
Posts: 527
Joined: 7-January 06
From: Spartanburg, SC
Member No.: 5,385
Region Association: South East States
Attached Image

Attached Image

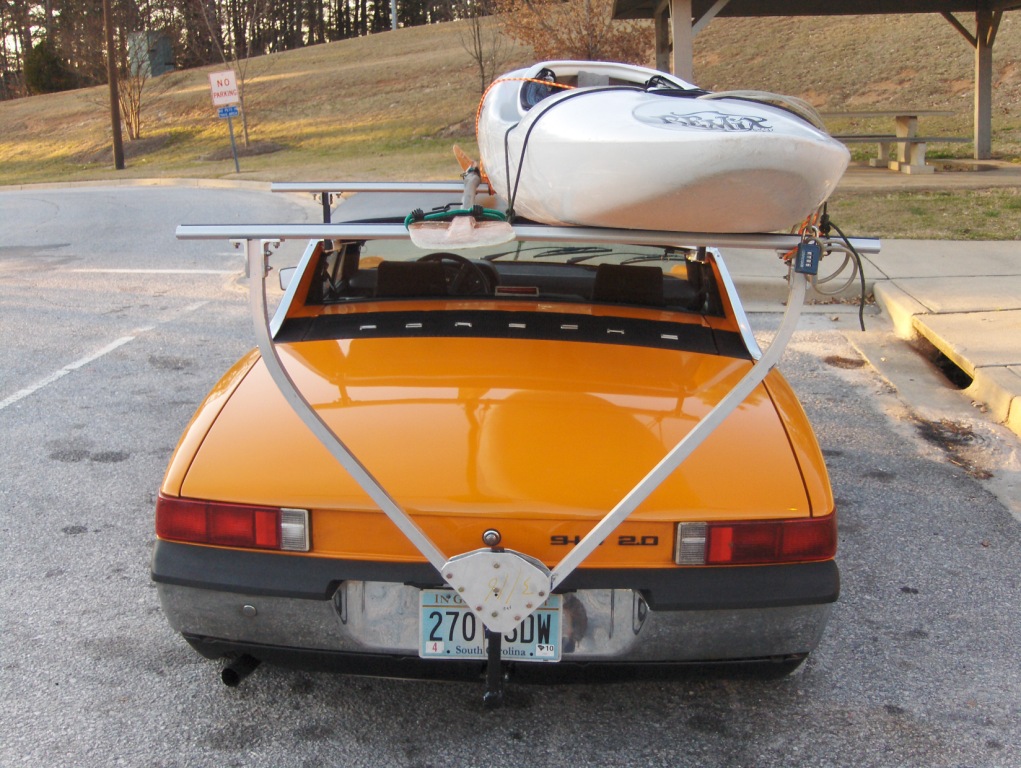

Here are some photos of my trailer hitch, along with some of my kayak carrier. My hobby is whitewater kayaking in the NC and Tn mountains. With this setup, I can enjoy the drive to the rivers as well as the time spent on the rivers.

I made a 1 1/4" tubular hitch receiverfor a trailer hitch. This can hold a trailer ball, a bike rack, or the rig I show to hold up the back of the kayaks. The reciever is supported on the rear by the two bars that I bent up to hug the rear of the car, and go beneath the bumper. These are shown in the photo. The inside of the tube is welded to a 2" by 1/2" inch bar that I heated and bent to follow the underside of the trunk up to the point below the center trunk reinforcement, where I have it bolted through the trunk floor. I cut a notch in the sheet metal heat shield for the muffler to allow this bar to hug the trunk floor. This bar then easily clears a stock muffler, tranny, etc. I notched out the back valence to clear the receiver tube.

For the front kayak support, I made two aluminum receiver blocks that bolt into the existing tapped holes under the roll bar. These blocks have a notch cut into them that accepts a 3/4 inch square tubular element which is held in place by a simple quick lock 1/4 inch pin. I leave the blocks on all the time. The pins are pulled to allow the crossbar to be simply removed. Works great, carrying up to two kayaks. I was curious to see if the wind from trucks, etc. would cause any problems when I was going down the road at 70 or so. But, no problems. JoeO
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joe Owensby
post Mar 30 2010, 10:17 PM
Post #2


JoeO
***

Group: Members
Posts: 527
Joined: 7-January 06
From: Spartanburg, SC
Member No.: 5,385
Region Association: South East States

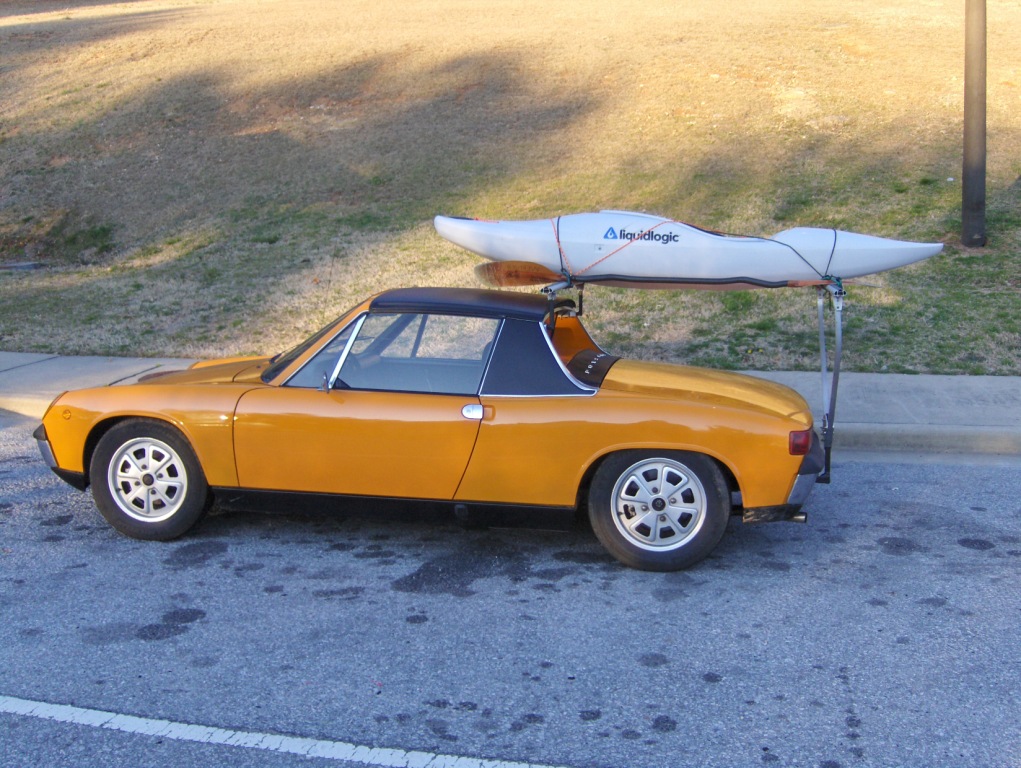

Other photos. Note in the rear view that the rear upward tubing members are not symmetrical. I bent the curves using a pair of trees to hold the1" square aluminum tube while I bent them by pushing as hard as I could. I couldn't get the curves to exactly fit, so I made the attachments to fit the uprights. Note that this arrangement allows full access to the trunk and engine compartment while boats are loaded. It also allows removal of the top if desired. JoeO


Attached thumbnail(s)
Attached Image

Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
arkitect
post Mar 30 2010, 11:21 PM
Post #3


Senior Member
***

Group: Members
Posts: 617
Joined: 3-March 10
From: Stockton, CA
Member No.: 11,426
Region Association: None
Pretty cool setup. Never thought I'd see a trailer hitch on a 914.

Dave
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jt914-6
post Mar 31 2010, 06:12 AM
Post #4


Driving & working on teeners 41 years
***

Group: Members
Posts: 1,785
Joined: 3-May 08
From: Bryant, Arkansas
Member No.: 9,003
Region Association: South East States
Nice setup...I see you are using the "ski rack" mounting threaded holes underneath the targa bar. I'll bet most 914 owners don't even know they are there....

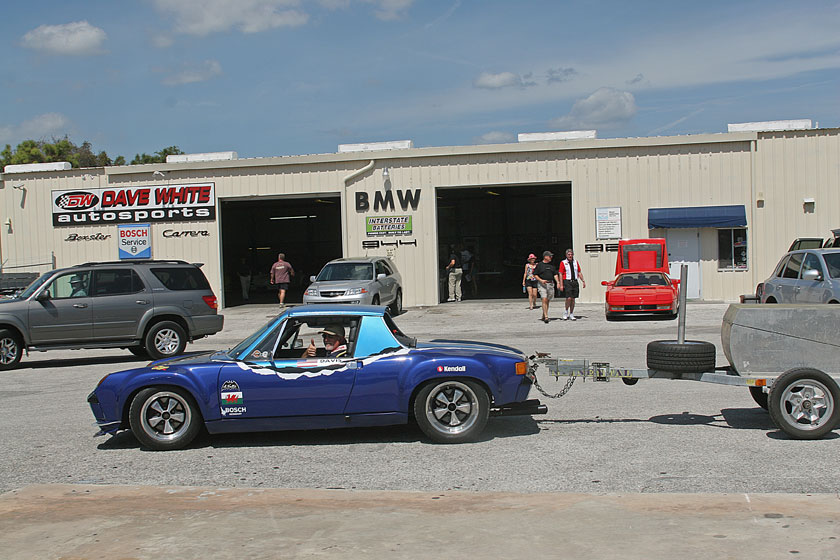

Semi-related....my receiver hitch cover....."show what you tow"

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GaroldShaffer
post Mar 31 2010, 07:00 AM
Post #5


You bought another 914?
*****

Group: Benefactors
Posts: 7,620
Joined: 27-June 03
From: Portage, IN
Member No.: 865
Region Association: None
Nice setup. Like the color of the 914 also. (IMG:style_emoticons/default/smilie_pokal.gif)

Sorry (IMG:style_emoticons/default/biggrin.gif) (IMG:style_emoticons/default/hijacked.gif) I have a hidden hitch on my 914 behind my rear plate to pull my AX trailer.


Attached image(s)
Attached Image Attached Image Attached Image Attached Image Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
EdwardBlume
post Mar 31 2010, 09:45 AM
Post #6


914 Wizard
**********

Group: Members
Posts: 12,338
Joined: 2-January 03
From: SLO
Member No.: 81
Region Association: Central California
Both are friggen awesome! Nice work!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
zymurgist
post Mar 31 2010, 09:55 AM
Post #7


"Ace" Mechanic
*****

Group: Members
Posts: 7,411
Joined: 9-June 05
From: Hagerstown, MD
Member No.: 4,238
Region Association: None
QUOTE(RobW @ Mar 31 2010, 11:45 AM) *

Both are friggen awesome! Nice work!


(IMG:style_emoticons/default/agree.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
KELTY360
post Mar 31 2010, 10:46 AM
Post #8


914 Neferati
*****

Group: Members
Posts: 5,028
Joined: 31-December 05
From: Pt. Townsend, WA
Member No.: 5,344
Region Association: Pacific Northwest
Nice work. I like that you can still take the top off. Here's my crude but effective method.

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
EdwardBlume
post Mar 31 2010, 11:55 AM
Post #9


914 Wizard
**********

Group: Members
Posts: 12,338
Joined: 2-January 03
From: SLO
Member No.: 81
Region Association: Central California
QUOTE(KELTY360 @ Mar 31 2010, 09:46 AM) *

Nice work. I like that you can still take the top off. Here's my crude but effective method.

Attached Image

Attached Image


I'd be afraid of the two strap method... myself..

Kayak the Snoqualmie or Skykomish?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
carr914
post Mar 31 2010, 12:31 PM
Post #10


Racer from Birth
****************************************************************************************************

Group: Members
Posts: 118,029
Joined: 2-February 04
From: Tampa,FL
Member No.: 1,623
Region Association: South East States
I used to put my Kayak on my trailer - Now I just use my Civic with a Thule rack

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
KELTY360
post Mar 31 2010, 12:45 PM
Post #11


914 Neferati
*****

Group: Members
Posts: 5,028
Joined: 31-December 05
From: Pt. Townsend, WA
Member No.: 5,344
Region Association: Pacific Northwest
QUOTE(RobW @ Mar 31 2010, 10:55 AM) *

QUOTE(KELTY360 @ Mar 31 2010, 09:46 AM) *

Nice work. I like that you can still take the top off. Here's my crude but effective method.

Attached Image

Attached Image


I'd be afraid of the two strap method... myself..

Kayak the Snoqualmie or Skykomish?


Neither - it's not a whitewater boat. I just use the 2 straps for the 2 mile drive to a put-in on Lk Washington. For longer trips it gets tied down front and back. I am planning on customizing a spare top for a more solid arrangement.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joe Owensby
post Mar 31 2010, 04:10 PM
Post #12


JoeO
***

Group: Members
Posts: 527
Joined: 7-January 06
From: Spartanburg, SC
Member No.: 5,385
Region Association: South East States
I seriously considered doing what Garold did, ie using a tube inside the trunk. I already had made most of the below trunk hardware before I had seen his. The deciding factor was my being able to leave the tag on for quick installs of a hitch bike carrier, etc.

I also seriously considered adding mounts to an old top. I think this would work fine. Years ago I used the foam and rope methods to carry a hang glider.

Thanks for the comments. JoeO
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
EdwardBlume
post Mar 31 2010, 05:40 PM
Post #13


914 Wizard
**********

Group: Members
Posts: 12,338
Joined: 2-January 03
From: SLO
Member No.: 81
Region Association: Central California
QUOTE(KELTY360 @ Mar 31 2010, 11:45 AM) *

QUOTE(RobW @ Mar 31 2010, 10:55 AM) *

QUOTE(KELTY360 @ Mar 31 2010, 09:46 AM) *

Nice work. I like that you can still take the top off. Here's my crude but effective method.


I'd be afraid of the two strap method... myself..

Kayak the Snoqualmie or Skykomish?


Neither - it's not a whitewater boat. I just use the 2 straps for the 2 mile drive to a put-in on Lk Washington. For longer trips it gets tied down front and back. I am planning on customizing a spare top for a more solid arrangement.


Is there still a kayak polo game near Carillon Point?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
1968Cayman
post Mar 31 2010, 07:18 PM
Post #14


Redacted by Irving Washington
**

Group: Members
Posts: 116
Joined: 5-February 10
From: Holly Springs, GA
Member No.: 11,332
Region Association: South East States
Somebody post a pic of a 914 roof-mounted 17 ft. Perception Essence here and I'm in.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
KELTY360
post Mar 31 2010, 07:27 PM
Post #15


914 Neferati
*****

Group: Members
Posts: 5,028
Joined: 31-December 05
From: Pt. Townsend, WA
Member No.: 5,344
Region Association: Pacific Northwest
QUOTE(RobW @ Mar 31 2010, 04:40 PM) *

QUOTE(KELTY360 @ Mar 31 2010, 11:45 AM) *

QUOTE(RobW @ Mar 31 2010, 10:55 AM) *

QUOTE(KELTY360 @ Mar 31 2010, 09:46 AM) *

Nice work. I like that you can still take the top off. Here's my crude but effective method.


I'd be afraid of the two strap method... myself..

Kayak the Snoqualmie or Skykomish?


Neither - it's not a whitewater boat. I just use the 2 straps for the 2 mile drive to a put-in on Lk Washington. For longer trips it gets tied down front and back. I am planning on customizing a spare top for a more solid arrangement.


Is there still a kayak polo game near Carillon Point?


Never heard of kayak polo. Wouldn't it be kinda hard to replace the divots?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JTarver
post Apr 11 2010, 11:01 PM
Post #16


Medium pimpin
**

Group: Members
Posts: 54
Joined: 4-April 10
From: Benton Arkansas
Member No.: 11,559
Region Association: South East States
QUOTE(1968Cayman @ Mar 31 2010, 05:18 PM) *

Somebody post a pic of a 914 roof-mounted 17 ft. Perception Essence here and I'm in.



Totally doable. Just get a rack for the top, and make yourself a small receiver hitch in the back, with a straight bar and a cradle frame at the top of it to help support the length of the boat. I will be doing one in the future, and I'm gonna make sure I can carry my seayak (16 foot prijon ) with me if need be.

Joe
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
EdwardBlume
post Apr 12 2010, 08:48 AM
Post #17


914 Wizard
**********

Group: Members
Posts: 12,338
Joined: 2-January 03
From: SLO
Member No.: 81
Region Association: Central California
QUOTE(KELTY360 @ Mar 31 2010, 06:27 PM) *

QUOTE(RobW @ Mar 31 2010, 04:40 PM) *

QUOTE(KELTY360 @ Mar 31 2010, 11:45 AM) *

QUOTE(RobW @ Mar 31 2010, 10:55 AM) *

QUOTE(KELTY360 @ Mar 31 2010, 09:46 AM) *

Nice work. I like that you can still take the top off. Here's my crude but effective method.


I'd be afraid of the two strap method... myself..

Kayak the Snoqualmie or Skykomish?


Neither - it's not a whitewater boat. I just use the 2 straps for the 2 mile drive to a put-in on Lk Washington. For longer trips it gets tied down front and back. I am planning on customizing a spare top for a more solid arrangement.


Is there still a kayak polo game near Carillon Point?


Never heard of kayak polo. Wouldn't it be kinda hard to replace the divots?


The horses do all the work... (IMG:style_emoticons/default/beer3.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joe Bob
post Apr 12 2010, 09:05 AM
Post #18


Retired admin, banned a few times
***************

Group: Members
Posts: 17,427
Joined: 24-December 02
From: Boulder CO
Member No.: 5
Region Association: None
I had a tube monted in the trunk of the old "Rocket"....got the wierdest looks while towing. Pics are on the site someplace....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
stevegm
post Sep 29 2016, 06:40 PM
Post #19


Advanced Member
****

Group: Members
Posts: 2,111
Joined: 14-July 14
From: North Carolina
Member No.: 17,633
Region Association: South East States
These pictures are very helpful. I have a slightly different idea though. Most of these hitches seem based on the square tubing protruding through the rear bulkhead that is just behind the bumper, and then going under or inside the trunk.

Has anybody seen a hitch that is on or through the bumper, and is supported with a large bracket/plate behind the bumper that bolts to the bulkhead, instead of going through it. I don't want to cut a big hole in the bulkhead. And I just need a hitch for a very small trailer.

Other ideas?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914forme
post Sep 29 2016, 06:57 PM
Post #20


Times a wastin', get wrenchin'!
****

Group: Members
Posts: 3,896
Joined: 24-July 04
From: Dayton, Ohio
Member No.: 2,388
Region Association: None
Nope, put a hole in the bulk head for my current build.

Before that I did one that bolted into the bulkhead and came out under the bumper, had a bar that went back t the exhaust hanger on the trans. Don't think I have pictures of it.

Pretty easy you can thread a 1/4" steel behind there, I did not run a rear valance with this setup. Towed great, with my tire trailer.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
