> Brake Master Cylinder Flex, you'll be surprised
McMark
post Apr 7 2010, 10:33 AM
Post #1


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None

https://www.youtube.com/watch?v=CUdPmitJ9XQ


Took this video to post in my "Hold the phone!" build thread, but for those who might miss it, this is a repost.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Apr 7 2010, 10:42 AM
Post #2


Apex killer!
***************

Group: Members
Posts: 23,580
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California
Holy Moly! Don't we have a member vendor that has a weld in and bolt in brace?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Apr 7 2010, 10:51 AM
Post #3


I am Tangerine Racing
*****

Group: Members
Posts: 7,923
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
I think I read that the bolt-in brace is no longer being made.
Some lucky WCR attendee may be receiving one of the weld-in braces though.
(IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Apr 7 2010, 10:57 AM
Post #4


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,443
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Fix your floor pan. It's cracked around the brace. Oh, then add the brace.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Apr 7 2010, 11:07 AM
Post #5


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Eh? (IMG:style_emoticons/default/blink.gif)

I didn't see no cracking. (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
underthetire
post Apr 7 2010, 11:10 AM
Post #6


914 Guru
*****

Group: Members
Posts: 5,062
Joined: 7-October 08
From: Brentwood
Member No.: 9,623
Region Association: Northern California
Holly crap ! Think i'll make a support after seeing that.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Apr 7 2010, 11:14 AM
Post #7


Village Idiot
*****

Group: Members
Posts: 8,315
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
(IMG:style_emoticons/default/new_shocked.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Apr 7 2010, 11:19 AM
Post #8


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,443
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
QUOTE(McMark @ Apr 7 2010, 12:07 PM) *

Eh? (IMG:style_emoticons/default/blink.gif)

I didn't see no cracking. (IMG:style_emoticons/default/confused24.gif)


Look around the curve of the brace as the master flexes. The brace is stable and the pan moves. I think I can even see light around it. I could be wrong...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Apr 7 2010, 11:20 AM
Post #9


Resident German
*************************

Group: Admin
Posts: 41,625
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(McMark @ Apr 7 2010, 09:33 AM) *

you'll be surprised

Nope ... I've seen this many times. They all flex. (IMG:style_emoticons/default/shades.gif)

Back in the old days, people welded a boxed section around the back of the mounting area.
Lots of work and ugly, but effective.

The clamp-on solution worked, but didn't seem 'right'.


I've been thinking about welding a tab on the steel cross-member that would allow you to bolt on a support bracket under the MC.
That way, if you need to replace the MC, you can just unbolt the bracket.
(IMG:style_emoticons/default/popcorn[1].gif) Andy
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Apr 7 2010, 11:22 AM
Post #10


Resident German
*************************

Group: Admin
Posts: 41,625
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(rick 918-S @ Apr 7 2010, 10:19 AM) *

Look around the curve of the brace as the master flexes. The brace is stable and the pan moves. I think I can even see light around it. I could be wrong...

The metal flexes, but not because it's cracked. It's just a single layer of sheet-metal that will bend every time you hit the brakes.

All stock 914s do that ...
(IMG:style_emoticons/default/shades.gif) Andy
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ericread
post Apr 7 2010, 11:28 AM
Post #11


The Viper Blue 914
****

Group: Members
Posts: 2,177
Joined: 7-December 07
From: Irvine, CA (The OC)
Member No.: 8,432
Region Association: Southern California
There was also a bolt-on brace offered previously (I have no welding skills/eqiuipment). I have looked around but I cannot find it for sale anywhere. If anyone wants to make one, I'm first in line to purchase.

Eric
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Apr 7 2010, 12:25 PM
Post #12


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Rick, the factory bracing/box which is under the pedal assembly is open on the forward face. That crack you're seeing is just how it is.

Attached Image

This is the 'repair' that I've seen done by another 914 guy. Weld a nut to the cross member and thread a bolt against the MC to brace it. It helps, but not as much as I would like. Time to try something else.


https://www.youtube.com/watch?v=d02D8jRn7T0
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Apr 7 2010, 03:01 PM
Post #13


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Well, here's what it took to get it immobile. A sturdy brace in the vertical direction via a bar that bolts to the MC mount studs at one end and to a welded nut on the cross member. But this brace still moved forward and back, so I had to bring my original 'fix' back into contact with the MC to restrict horizontal movement. The other modifications I tried, still allowed some movement at the MC and didn't feel much more firm at the pedal. After getting this all done, the difference would pronounced at the pedal.

This is all rather ugly, so now I'll go back and replace everything with a cleaner, prettier setup.


https://www.youtube.com/watch?v=iIvAyozXx4Y
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Apr 7 2010, 03:09 PM
Post #14


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,443
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Ya, I know the brace is open. I was looking at the stamped edge. Must be the lighting. Glad it's not cracked. Your brace is working well.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Apr 7 2010, 03:11 PM
Post #15


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
There is one of those U-slits under the pedal cluster. You know, the ones that are all over the floor pan. So there is light coming through there, but it's not rust or cracking. It's just factory holes. (IMG:style_emoticons/default/wacko.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Root_Werks
post Apr 7 2010, 03:16 PM
Post #16


Village Idiot
*****

Group: Members
Posts: 8,315
Joined: 25-May 04
From: About 5NM from Canada
Member No.: 2,105
Region Association: Pacific Northwest
That's a good fix!

When mine's up in the air, I'll do something similar for sure.

(IMG:style_emoticons/default/welder.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Apr 7 2010, 04:15 PM
Post #17


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,443
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
QUOTE(McMark @ Apr 7 2010, 04:11 PM) *

There is one of those U-slits under the pedal cluster. You know, the ones that are all over the floor pan. So there is light coming through there, but it's not rust or cracking. It's just factory holes. (IMG:style_emoticons/default/wacko.gif)



OH! I knew I saw light! That's right! Anywho... Nice brace!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
veltror
post Apr 7 2010, 04:15 PM
Post #18


Senior Member
***

Group: Members
Posts: 928
Joined: 27-April 08
From: Potters Bar Herts UK
Member No.: 8,978
Region Association: None
My floor is rotten so Marek is making up a triple skinned piece as in my thread...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Apr 7 2010, 07:15 PM
Post #19


914 Wizard
**********

Group: Members
Posts: 11,622
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains
fixing the flex is a good thing
it will help firm up the "feel"

we did this on our old car about 15 years ago
and on the new one when we built it 6 years ago also

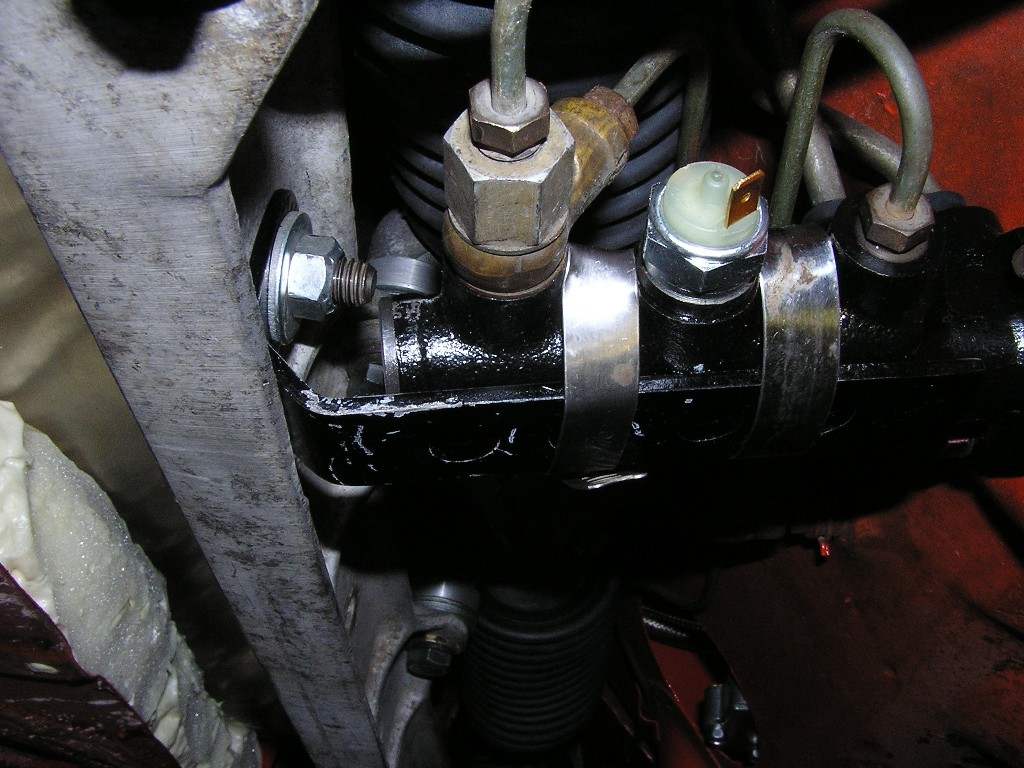

here is the new ones method with lightening holes:


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
brant
post Apr 7 2010, 07:16 PM
Post #20


914 Wizard
**********

Group: Members
Posts: 11,622
Joined: 30-December 02
From: Colorado
Member No.: 47
Region Association: Rocky Mountains

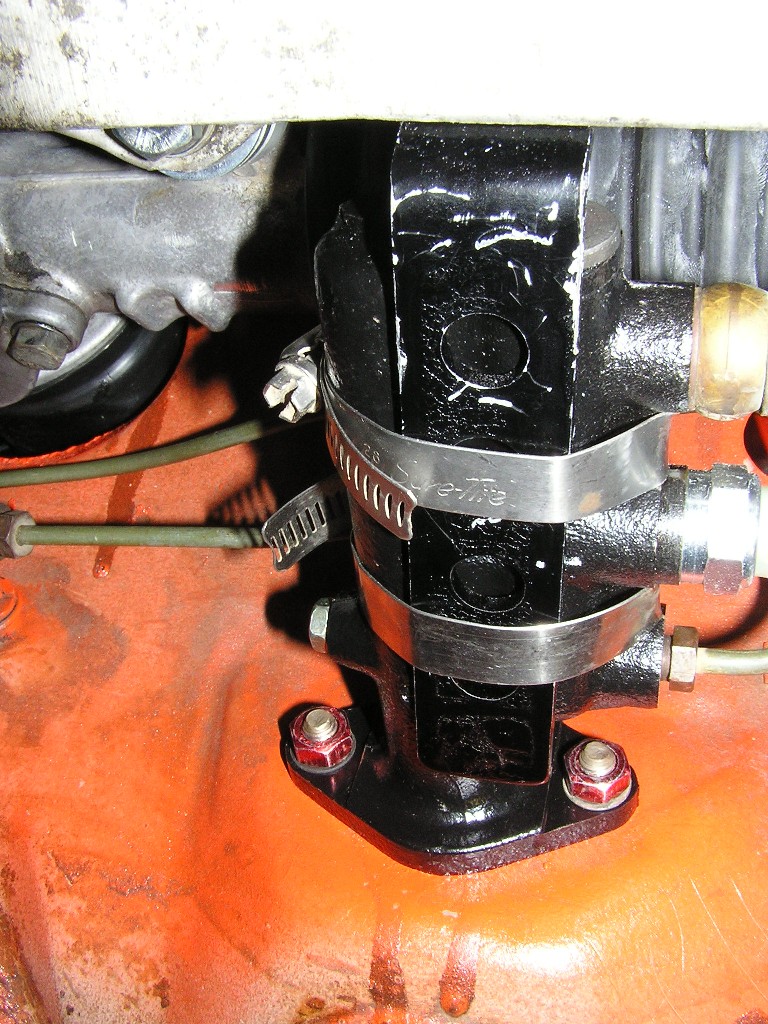

and:


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
