> Brake Master Cylinder Flex, you'll be surprised
McMark
post Apr 7 2010, 10:33 AM
Post #1


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None

https://www.youtube.com/watch?v=CUdPmitJ9XQ


Took this video to post in my "Hold the phone!" build thread, but for those who might miss it, this is a repost.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
3 Pages V < 1 2 3 >
 Reply to this topicStart new topic
Replies(20 - 39)
ChrisFoley
post Apr 7 2010, 07:35 PM
Post #21


I am Tangerine Racing
*****

Group: Members
Posts: 7,926
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
(IMG:http://www.914world.com/bbs2/uploads_offsite/www.tangerineracing.com-209-1270690536.1.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Apr 7 2010, 08:29 PM
Post #22


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Chris, how do you change the MC?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Apr 7 2010, 08:50 PM
Post #23


I am Tangerine Racing
*****

Group: Members
Posts: 7,926
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
(IMG:http://www.914world.com/bbs2/uploads_offsite/www.tangerineracing.com-209-1270695003.1.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Apr 7 2010, 08:51 PM
Post #24


I am Tangerine Racing
*****

Group: Members
Posts: 7,926
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
Actually, the pictures are of a prototype.
We added a little lip on the angle iron piece that prevents the MC from moving downwards under braking pressure.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PRS914-6
post Apr 7 2010, 09:02 PM
Post #25


Excellence Magazine Project 914 3.6
***

Group: Retired Members
Posts: 1,278
Joined: 20-May 06
From: Central California
Member No.: 6,031
Region Association: None

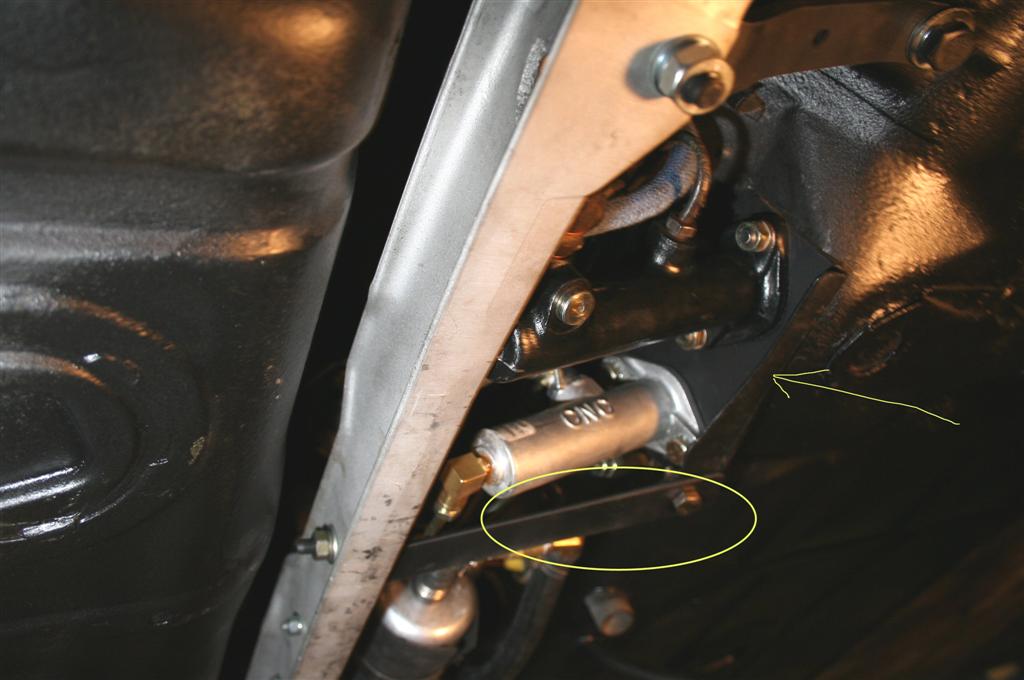

Here is my installation with a hydraulic clutch. It is quite simple to add some reinforcing with some scrap metal. It is attached to the suspension beam. Note the plate under both cylinders that is flanged.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Apr 7 2010, 09:15 PM
Post #26


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
AHA! Chris, you were hiding the details from me! (IMG:style_emoticons/default/tongue.gif)

That's much better than what I did. (IMG:style_emoticons/default/idea.gif) I'll have to order one and swap in another cross beam.

QUOTE
We added a little lip on the angle iron piece that prevents the MC from moving downwards under braking pressure.

I was wondering about that, but didn't want to offend. (IMG:style_emoticons/default/cool.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
realred914
post Apr 7 2010, 09:22 PM
Post #27


Senior Member
***

Group: Retired Members
Posts: 1,086
Joined: 1-April 10
From: california
Member No.: 11,541
Region Association: None
QUOTE(SirAndy @ Apr 7 2010, 10:20 AM) *

QUOTE(McMark @ Apr 7 2010, 09:33 AM) *

you'll be surprised

Nope ... I've seen this many times. They all flex. (IMG:style_emoticons/default/shades.gif)

Back in the old days, people welded a boxed section around the back of the mounting area.
Lots of work and ugly, but effective.

The clamp-on solution worked, but didn't seem 'right'.


I've been thinking about welding a tab on the steel cross-member that would allow you to bolt on a support bracket under the MC.
That way, if you need to replace the MC, you can just unbolt the bracket.
(IMG:style_emoticons/default/popcorn[1].gif) Andy



andy whats the clamp on solution look like, no welding needed at all would be nice!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Apr 8 2010, 08:50 PM
Post #28


PMB Performance
***************

Group: Admin
Posts: 19,275
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
Mr. Burton and I have them on our cars. Chris makes the best set-up (as usual):

(IMG:http://www.914world.com/bbs2/uploads/post-1110-1235261267.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Apr 9 2010, 01:22 AM
Post #29


"I got blisters on me fingers"
**********

Group: Members
Posts: 10,077
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
Chris do you have a similar solution for those running an aluminum x-member?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Apr 9 2010, 05:29 AM
Post #30


I am Tangerine Racing
*****

Group: Members
Posts: 7,926
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
QUOTE(rdauenhauer @ Apr 9 2010, 03:22 AM) *

Chris do you have a similar solution for those running an aluminum x-member?

I looked at it briefly but didn't come up with a good solution.
I don't consider the aluminum crossmember to be an upgrade so I doubt I'll ever install one.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
pcar916
post Apr 9 2010, 06:10 AM
Post #31


Is that a Lola?
***

Group: Members
Posts: 1,523
Joined: 2-June 05
From: Little Rock, AR
Member No.: 4,188
Region Association: None
Obviously for those with big-brakes only, the Mercedes 23mm cylinder butts up the the stock crossmember.

It was slightly long, but all I had to do was grind off a bit from the end of the MC and add a thin, stiff plastic sheath around the cross-member and it was done. This is better, no movement at all. I've never looked at it's flex directly but it's GOT to be moving a little. Time for an inspection.

I'll climb under the car sooner than expected and check for wear.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
0396
post Apr 9 2010, 08:17 AM
Post #32


Advanced Member
****

Group: Members
Posts: 2,046
Joined: 13-October 03
From: L.A. Calif
Member No.: 1,245
Region Association: Southern California
QUOTE(pcar916 @ Apr 9 2010, 04:10 AM) *

Obviously for those with big-brakes only, the Mercedes 23mm cylinder butts up the the stock crossmember.

It was slightly long, but all I had to do was grind off a bit from the end of the MC and add a thin, stiff plastic sheath around the cross-member and it was done. This is better, no movement at all. I've never looked at it's flex directly but it's GOT to be moving a little. Time for an inspection.

I'll climb under the car sooner than expected and check for wear.



Can you please post a picture so we can 'see' exactly what your referring too?

Thank you!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
realred914
post Apr 9 2010, 10:43 AM
Post #33


Senior Member
***

Group: Retired Members
Posts: 1,086
Joined: 1-April 10
From: california
Member No.: 11,541
Region Association: None
QUOTE(Eric_Shea @ Apr 8 2010, 07:50 PM) *

Mr. Burton and I have them on our cars. Chris makes the best set-up (as usual):

(IMG:http://www.914world.com/bbs2/uploads/post-1110-1235261267.jpg)



is the stud supposed to be crooked? looks that way in the photo?

anyone know whats up with the clamp on support andy mentioned? whats that like?


also how much foor pressure was required to get teh movement seem in the movie? was it a full force thing with you leg or a lesser force?

I guess if I was racing , the car would get a lot of full force breaking stops, but on regular street use, full force braking is not frequent.

does this failure happen often on street cazrs, or is this mainly a track/race car issue?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Apr 9 2010, 10:47 AM
Post #34


Resident German
*************************

Group: Admin
Posts: 41,649
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(realred914 @ Apr 9 2010, 09:43 AM) *

does this failure happen often on street cazrs, or is this mainly a track/race car issue?

It's not a failure. All stock 914s do that.

As for the clamp on solution, it's been a while since i've seen the posts (several years?) but they are here somewhere.

Basically, it's a metal brace that is clamped to the cross-member and MC holding the MC in place.
(IMG:style_emoticons/default/shades.gif) Andy
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Apr 9 2010, 10:50 AM
Post #35


Apex killer!
***************

Group: Members
Posts: 23,593
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California
The clamp on and weld on solution was made by one of our Member Vendors. You can cruise that forum and find it. This is what was used on the Grassroots Motorsports 914 Project car. I suspect that the member vendor no longer makes this since he has not spoken up.

Some level of this is happening all the time with every brake effort.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
realred914
post Apr 9 2010, 10:52 AM
Post #36


Senior Member
***

Group: Retired Members
Posts: 1,086
Joined: 1-April 10
From: california
Member No.: 11,541
Region Association: None
QUOTE(ConeDodger @ Apr 9 2010, 09:50 AM) *

The clamp on and weld on solution was made by one of our Member Vendors. You can cruise that forum and find it. This is what was used on the Grassroots Motorsports 914 Project car. I suspect that the member vendor no longer makes this since he has not spoken up.

Some level of this is happening all the time with every brake effort.

thanks, I cuse I need to get mine and my friends cars checked on teh flex and any cracks.

a clamp on soulution would be nice, I got to take a look into that!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
pcar916
post Apr 9 2010, 12:19 PM
Post #37


Is that a Lola?
***

Group: Members
Posts: 1,523
Joined: 2-June 05
From: Little Rock, AR
Member No.: 4,188
Region Association: None
QUOTE(396 @ Apr 9 2010, 06:17 AM) *

QUOTE(pcar916 @ Apr 9 2010, 04:10 AM) *

I'll climb under the car sooner than expected and check for wear.


Can you please post a picture so we can 'see' exactly what your referring too?

Thank you!


Glad to. It'll be a couple of days but I'll post it when I get it!! (IMG:style_emoticons/default/beer.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Apr 9 2010, 12:33 PM
Post #38


PMB Performance
***************

Group: Admin
Posts: 19,275
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
QUOTE
is the stud supposed to be crooked? looks that way in the photo?


Yes.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
d914
post Apr 9 2010, 01:26 PM
Post #39


Advanced Member
****

Group: Members
Posts: 2,331
Joined: 12-July 03
From: Atlanta, ga
Member No.: 904
Region Association: South East States
I have a clamp version I will not be using.. I have to put another master in for the clutch so we'll weld something up or get chris's set up..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TravisNeff
post Apr 9 2010, 02:22 PM
Post #40


914 Guru
*****

Group: Members
Posts: 5,082
Joined: 20-March 03
From: Mesa, AZ
Member No.: 447
Region Association: Southwest Region
I used to make the clamp in units a while back.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
