> Anyone have pics of a J West shift rod install?, Stock shift rod wont clear my road race oil pan
Mike Bellis
post May 27 2010, 05:33 PM
Post #1


Resident Electrician
*****

Group: Members
Posts: 8,345
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None
I installed a Road Race oil pan on my V8. Now my shift rod is in the way. I need to decide on a J West or cable setup. Anyone have pics of the J west system from the firewall to the tranny?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JWest
post May 27 2010, 05:37 PM
Post #2


Senior Member
***

Group: Members
Posts: 1,662
Joined: 6-January 03
From: Fort Worth, TX
Member No.: 97
Region Association: None
The JWest linkage will give you less room than stock and travels along the same path as the original, so I don't think it will do you any good.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post May 27 2010, 05:39 PM
Post #3


Resident German
*************************

Group: Admin
Posts: 41,641
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(kg6dxn @ May 27 2010, 04:33 PM) *

Anyone have pics of the J west system from the firewall to the tranny?


http://www.914world.com/bbs2/index.php?showtopic=70331

You make your own shift rod using the one supplied by James. On my car, it's a straight line from the firewall coupler to the sideshift console coupler.

You can make the rod any shape, as long as both ends are in the same plane ...
(IMG:style_emoticons/default/shades.gif) Andy

(IMG:http://www.914world.com/bbs2/uploads/post-179-1182814172.jpg)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post May 27 2010, 05:42 PM
Post #4


Resident Electrician
*****

Group: Members
Posts: 8,345
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None
QUOTE(JWest @ May 27 2010, 04:37 PM) *

The JWest linkage will give you less room than stock and travels along the same path as the original, so I don't think it will do you any good.


The "bend" in the stock linkage hits the pan so no 4-5 gears. it hits the If I bend the rod to clear the pan, it hits the header so no 1-R gears. I have a window of 1.5 inches to get between. I'm thinking of U-joints, bearings and strait rod. If I can make the rod spin instead of swinging, it would shift fine.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post May 27 2010, 05:48 PM
Post #5


Resident Electrician
*****

Group: Members
Posts: 8,345
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None
QUOTE(SirAndy @ May 27 2010, 04:39 PM) *

QUOTE(kg6dxn @ May 27 2010, 04:33 PM) *

Anyone have pics of the J west system from the firewall to the tranny?


http://www.914world.com/bbs2/index.php?showtopic=70331

You make your own shift rod using the one supplied by James. On my car, it's a straight line from the firewall coupler to the sideshift console coupler.

You can make the rod any shape, as long as both ends are in the same plane ...
(IMG:style_emoticons/default/shades.gif) Andy



There lies my other problem. The Renegade kit lowers the tranny 1 inch and moves it back 1.25 inches. Not on the same plain anymore. I'm going to need to offset the rod and use 3 or4 U-joints with a carrier bearing in the middle, maybe on the engine cradle. I no longer have a strait shot. The road race pan kicks out 3 inches on both sides of the pan.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post May 27 2010, 05:59 PM
Post #6


Resident German
*************************

Group: Admin
Posts: 41,641
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(kg6dxn @ May 27 2010, 04:48 PM) *

There lies my other problem. The Renegade kit lowers the tranny 1 inch and moves it back 1.25 inches. Not on the same plain anymore.

(IMG:style_emoticons/default/confused24.gif)

The JWest kit comes with U-joints on both ends. Moving the tranny around does not matter. Like i said above, as long as you get both ends in the same plane, you're good.
The same plane on the movable end of the u-joints that is.

If you can point each end of the u-joints at each other and there's nothing in-between that line, you got a straight shot, meaning both ends are in the same plane.

Plane as in 3D, not 2D.
(IMG:style_emoticons/default/shades.gif) Andy

PS: See pics in my thread linked above ...
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post May 27 2010, 05:59 PM
Post #7


Resident Electrician
*****

Group: Members
Posts: 8,345
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None

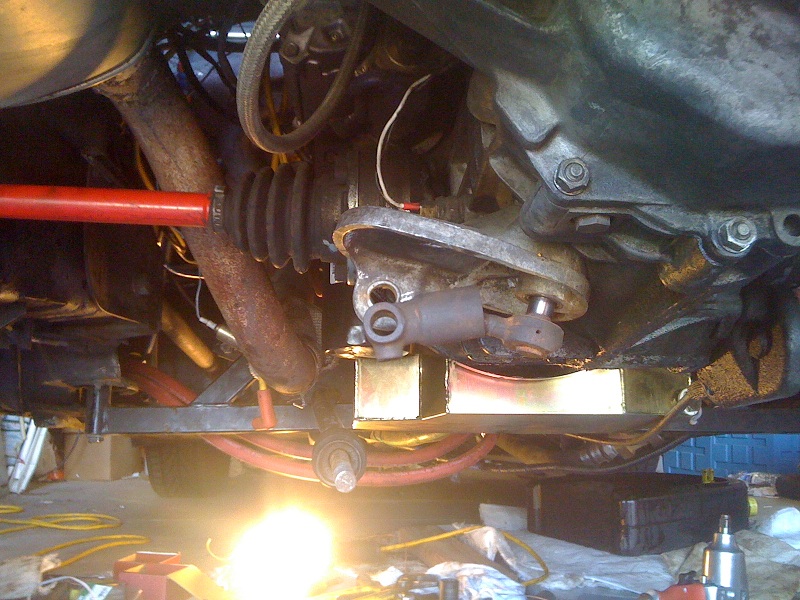

Here's my view from the rear.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post May 27 2010, 06:02 PM
Post #8


Resident German
*************************

Group: Admin
Posts: 41,641
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(kg6dxn @ May 27 2010, 04:59 PM) *

Here's my view from the rear.

No way that is going to work ... (IMG:style_emoticons/default/popcorn[1].gif)


Either go to a cable shifter setup or customize your oil pan and cut off a few inches on that side to get more clearance ...

(IMG:style_emoticons/default/smash.gif) Andy
User is online!Profile CardPM
Go to the top of the page
+Quote Post
GS Guy
post May 27 2010, 06:16 PM
Post #9


Member
**

Group: Members
Posts: 243
Joined: 8-July 04
From: Columbia, MD
Member No.: 2,325
Region Association: North East States
My solution to a similar problem - I have 0 room to run a conventional linkage.
Dog-leg goes around obstructing framework and suspension. It's still in mock-up stage, but as long as I can get the parts connected securely, I see no reason why it won't work!

(IMG:http://www.914world.com/bbs2/uploads_offsite/i140.photobucket.com-2325-1275005807.1.jpg)

The far end of the dog-leg linkage is a mirror image of the trans end - in fact I used a long solid rod to align the two end bushings for welding. U-joints at both ends naturally. Biggest problem now is figuring a way to seal it all up while still allowing flexibility. Another "project" waiting its turn.... (IMG:style_emoticons/default/idea.gif)

Jeff
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post May 27 2010, 06:18 PM
Post #10


Resident Electrician
*****

Group: Members
Posts: 8,345
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None
I really don't want to cut the pan. It is baffled and has trap doors to send the oil to the pickup. Either option, cable or multiple u-joints isn't cheap. Cable would be easyest. I think I could fab something to work. The car don't move now so I have to do something...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post May 27 2010, 06:24 PM
Post #11


Resident Electrician
*****

Group: Members
Posts: 8,345
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None
QUOTE(GS Guy @ May 27 2010, 05:16 PM) *

My solution to a similar problem - I have 0 room to run a conventional linkage.
Dog-leg goes around obstructing framework and suspension. It's still in mock-up stage, but as long as I can get the parts connected securely, I see no reason why it won't work!


Jeff


Looks cool but I already have clearance issues and don't want the linkage below the cradle. I did consider this though and it would work for me. I'm just too afraid of breaking it on something and being stuck somewhere.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post May 27 2010, 06:39 PM
Post #12


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
A plane is by definition 2D. (IMG:style_emoticons/default/tongue.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jimkelly
post May 27 2010, 06:41 PM
Post #13


Delaware USA
****

Group: Members
Posts: 4,969
Joined: 5-August 04
From: Delaware, USA
Member No.: 2,460
Region Association: MidAtlantic Region
put a standard oil pan on it - most straight forward solution.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mike Bellis
post May 27 2010, 06:44 PM
Post #14


Resident Electrician
*****

Group: Members
Posts: 8,345
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None
QUOTE(jimkelly @ May 27 2010, 05:41 PM) *

put a standard oil pan on it - most straight forward solution.


No. I just took one off.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post May 27 2010, 07:43 PM
Post #15


Resident German
*************************

Group: Admin
Posts: 41,641
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(McMark @ May 27 2010, 05:39 PM) *

A plane is by definition 2D. (IMG:style_emoticons/default/tongue.gif)

But it is oriented in 3D space. Thus you need 3 vectors to define a plane in 3D space. The 3rd being the plane normal. Or use a triangle to define the plane.

My post was trying to clarify that you don't have to have the rod mount on the transmission and the firewall at the same height as long as the two u-joint ends point at each other (being on the same plane) you're OK.
That plane can be rotated any way in 3D space. All you need is a clear shot between the two.


With his current setup, that's not the case. I'd say go cable shifter. I just saw a picture of a cable-shift setup on a 901 in another thread here ...
(IMG:style_emoticons/default/shades.gif) Andy
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Eddie914
post May 27 2010, 08:02 PM
Post #16


Unregistered
How about moving the exhaust outboard?

Eddie
Go to the top of the page
+Quote Post
Mike Bellis
post May 27 2010, 08:55 PM
Post #17


Resident Electrician
*****

Group: Members
Posts: 8,345
Joined: 22-June 09
From: Midlothian TX
Member No.: 10,496
Region Association: None
QUOTE(Eddie914 @ May 27 2010, 07:02 PM) *

How about moving the exhaust outboard?

Eddie


Right now it has a complete Renegade exhaust. I could change it if I want to re-do the entire system. I'm thinking of making it shift and move. I like the exhaust for now.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
computers4kids
post May 27 2010, 10:01 PM
Post #18


Love these little cars!
****

Group: Members
Posts: 2,443
Joined: 11-June 05
From: Port Townsend, WA
Member No.: 4,253
Region Association: None
My motor motor was built for a circle track car and came in the crate with the same oil pan. I was able to reshape my shift rod to work, you can see the bend that goes around the renegade adapter. I had shorty headers. I eventually took the pan off and replaced with a stock baffled pan. My final shift rod used a 360 degree rotational end, combined with a Renshift made for a nice shifting car.
(IMG:http://www.914world.com/bbs2/uploads/post-4253-1212336263.jpg)
(IMG:http://www.914world.com/bbs2/uploads/post-4253-1213055529.jpg)
(IMG:http://www.914world.com/bbs2/uploads/post-4253-1241308086.jpg)
