> 914.641.101.30, Combo gauge w/ Farenheit temp scale
jk76.914
post Sep 25 2010, 09:02 AM
Post #1


Senior Member
***

Group: Members
Posts: 809
Joined: 12-April 05
From: Massachusetts
Member No.: 3,925
Region Association: North East States

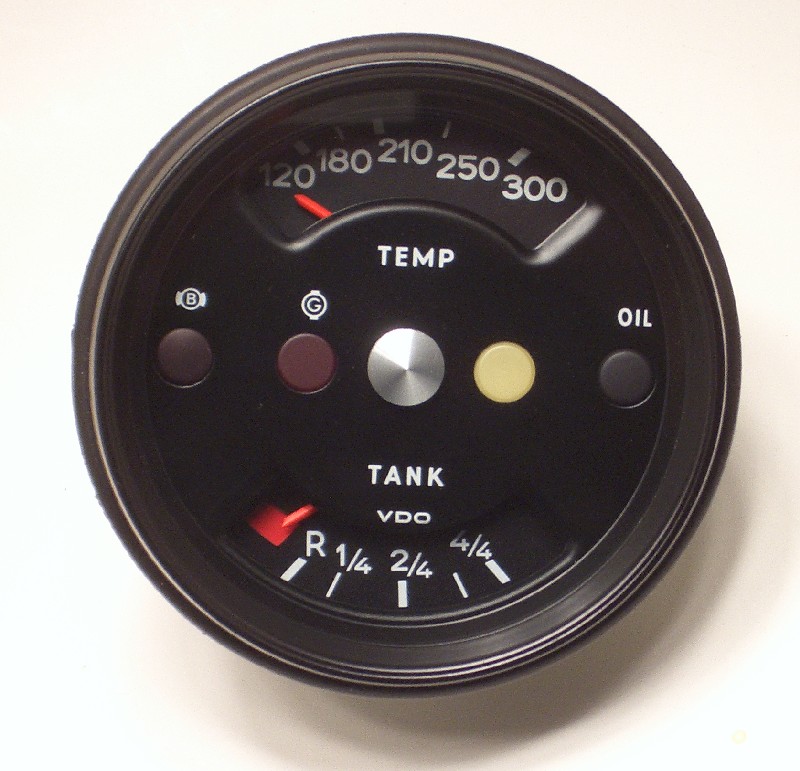

Combo gauge. The one in the picture is brand new, never had connectors pushed onto its tabs. It has the glass lens (not plastic) and the deeper trim ring, both of which go with the chrome button center.

The only ones I've seen documented before were with colored zones on the temp gauge, not degrees.

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixerdon
post Sep 25 2010, 09:31 AM
Post #2


Member
**

Group: Members
Posts: 466
Joined: 23-May 03
From: Dartmouth, MA
Member No.: 731



Can you provide a picture of the backside? Is there a date stamp?
Don
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jk76.914
post Sep 25 2010, 10:03 AM
Post #3


Senior Member
***

Group: Members
Posts: 809
Joined: 12-April 05
From: Massachusetts
Member No.: 3,925
Region Association: North East States



QUOTE(sixerdon @ Sep 25 2010, 11:31 AM) *

Can you provide a picture of the backside? Is there a date stamp?
Don

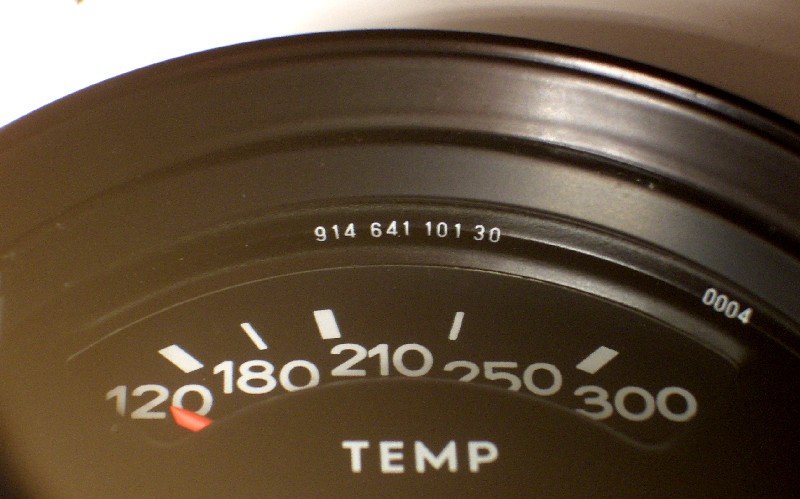

no stamp of any type. I originally wondered if it was for a 912, until I saw the part number under the bezel top in front. Maybe it's a rebuild?

(I "borrowed" two of the illumination sockets when I was putting my cluster back together.)

Jim

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Dec 14 2012, 12:02 AM
Post #4


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None



The units are interchangeable. So I suggest this is a 914 temp combo gauge with a 911 temp unit installed.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
