Well I finally got some work done over the past week or so. I have been back and forth between the car and the engine, but have made significant progress on both.

I started working on the long area/ Hell hole and as stated before the DAPO had his own idea on how to fix the rustation! However, his way "Sucked a big root!" (One of dads sayings!)
So check this out....

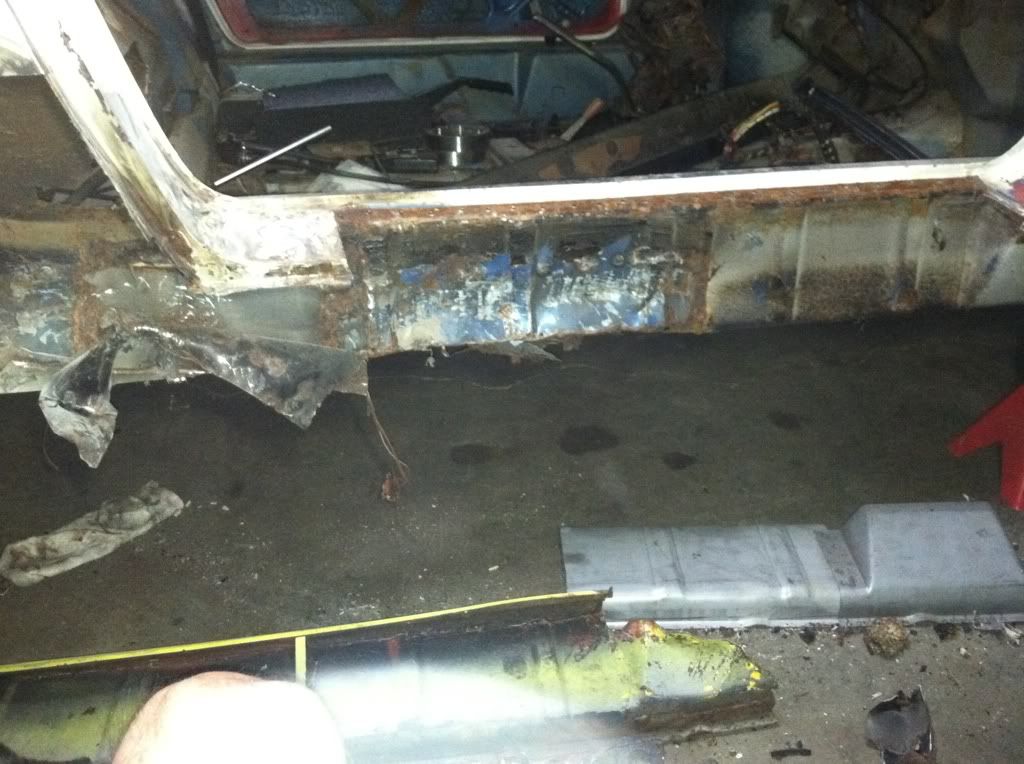

(IMG:http://i163.photobucket.com/albums/t292/Karah-lyn/Porsche/a5df483c.jpg)
and....
(IMG:http://www.914world.com/bbs2/uploads_offsite/i163.photobucket.com-12156-1318983497.1.jpg)

So ... I am still cutting away trying to get back to where the bare original pieces of the long are.

Anyhoooo. I also got back to work on the engine. As you will soon find, I am a bit OCD and will test fit, measure, re-measure, re-test fit, weigh and re-weigh about two-hundred times before I finally bolt an engine together so... I spent a while longer just to make sure.

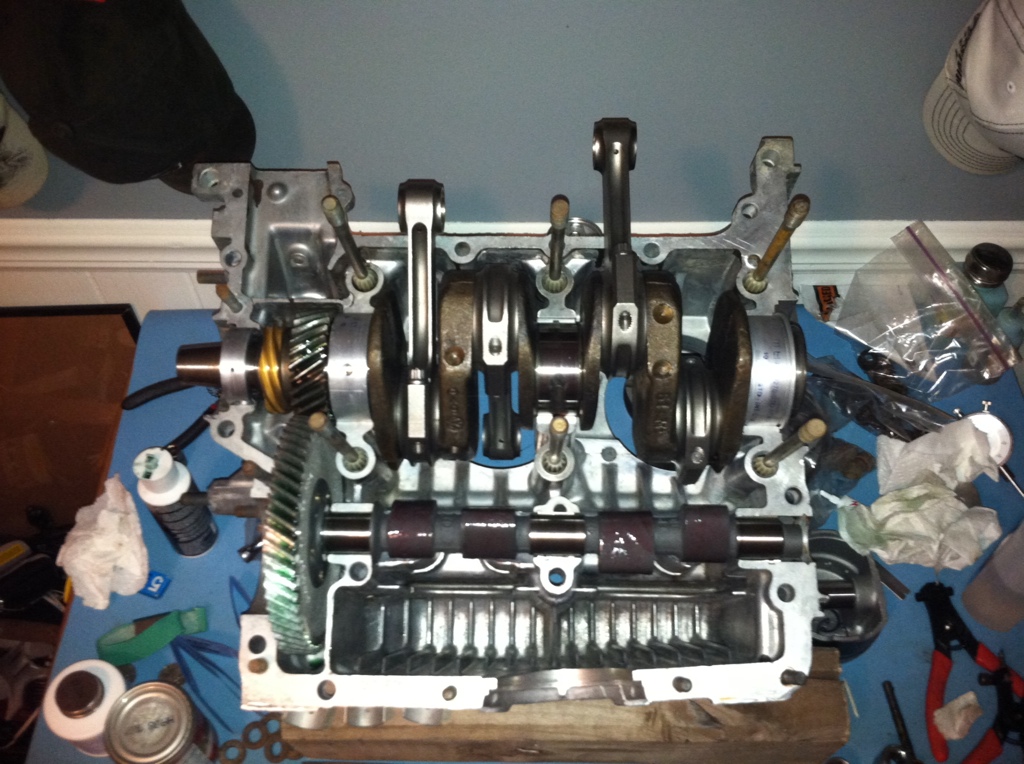

The first part of the crank & Cam going in...
(IMG:http://www.914world.com/bbs2/uploads_offsite/i163.photobucket.com-12156-1318983497.2.jpg)

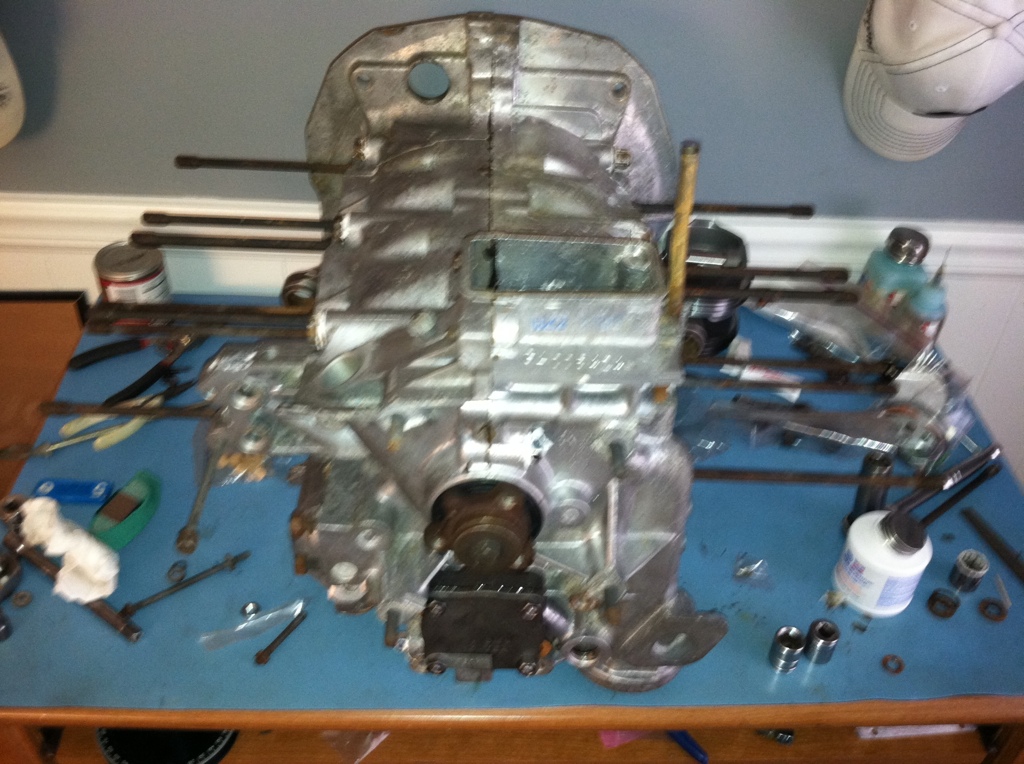

The halves together...
(IMG:http://www.914world.com/bbs2/uploads_offsite/i163.photobucket.com-12156-1318983497.3.jpg)

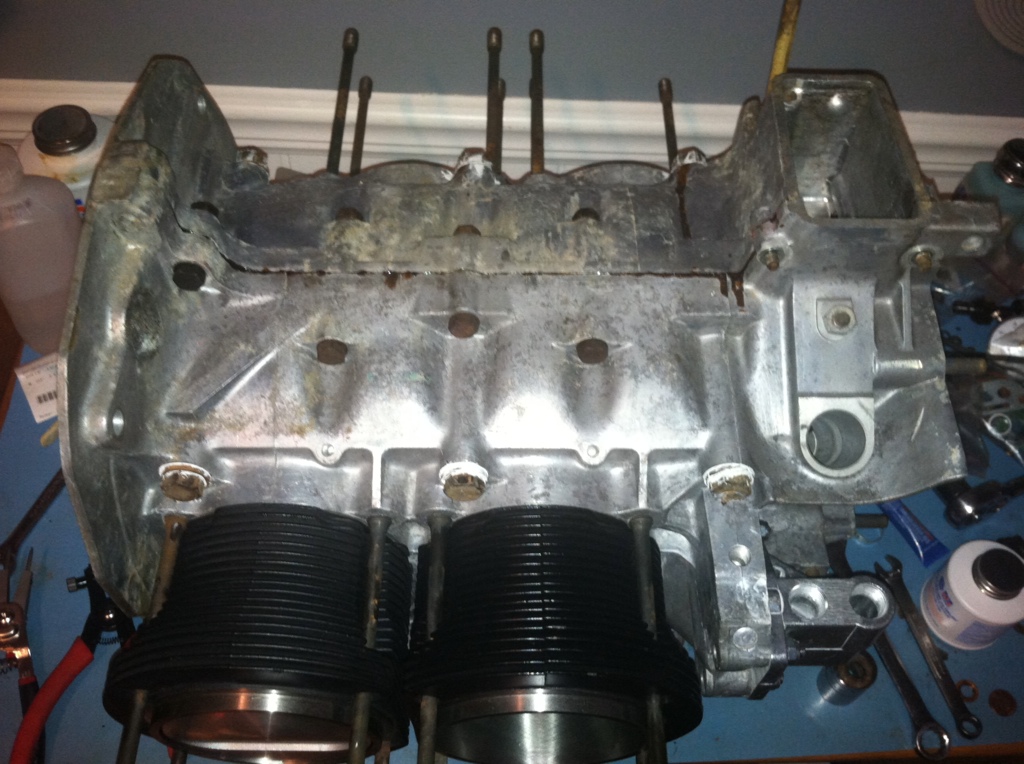

The cylinders going on....
(IMG:http://www.914world.com/bbs2/uploads_offsite/i163.photobucket.com-12156-1318983497.4.jpg)

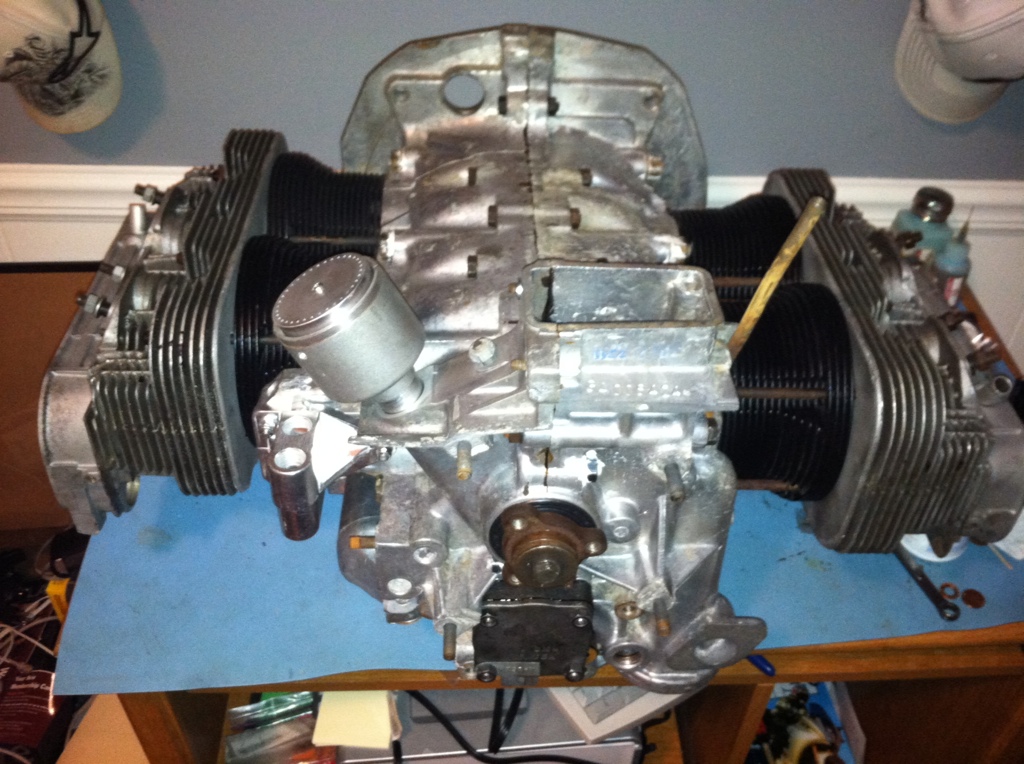

And the cylinders and heads on...
(IMG:http://www.914world.com/bbs2/uploads_offsite/i163.photobucket.com-12156-1318983497.5.jpg)


It is starting to get fun again now that there is so much to do... And for those that are inquiring... Yes I am building this engine in my office... What of it?


Well until next time ....

Keep your stick on the ice.

Cheers!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Oct 18 2011, 07:49 PM
Post #62


Michael
**********

Group: Members
Posts: 10,319
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Very nice work; you have skills. I have no problem with your engine in the office.....my wife might however. (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rnellums
post Oct 18 2011, 09:00 PM
Post #63


Professional Enthusiast
***

Group: Members
Posts: 1,670
Joined: 26-November 09
From: Littleton, CO
Member No.: 11,072
Region Association: Rocky Mountains
What is that item where the dizzy usually sits?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tscrihfield
post Oct 19 2011, 12:49 PM
Post #64


Drive Fast and Take Chances
***

Group: Members
Posts: 643
Joined: 8-September 10
From: Amelia Ohio
Member No.: 12,156
Region Association: None
QUOTE(rnellums @ Oct 18 2011, 11:00 PM) *

What is that item where the dizzy usually sits?


Well, I will get into that a little later... That is when it is proven. I have designed a trigger style dizzy with a 32 -1 tooth trigger wheel. For sequential FI....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tscrihfield
post Oct 19 2011, 12:50 PM
Post #65


Drive Fast and Take Chances
***

Group: Members
Posts: 643
Joined: 8-September 10
From: Amelia Ohio
Member No.: 12,156
Region Association: None
QUOTE(Cairo94507 @ Oct 18 2011, 09:49 PM) *

Very nice work; you have skills. I have no problem with your engine in the office.....my wife might however. (IMG:style_emoticons/default/confused24.gif)


Thanks! Yeah my wife is great really! She doesn't mind.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BajaXJ92
post Oct 19 2011, 01:14 PM
Post #66


Extended Member
****

Group: Members
Posts: 2,146
Joined: 20-April 06
From: Prescott, AZ
Member No.: 5,895
Region Association: MidAtlantic Region
QUOTE(tscrihfield @ Oct 19 2011, 02:49 PM) *

QUOTE(rnellums @ Oct 18 2011, 11:00 PM) *

What is that item where the dizzy usually sits?


Well, I will get into that a little later... That is when it is proven. I have designed a trigger style dizzy with a 32 -1 tooth trigger wheel. For sequential FI....


Now you've got my attention.... (IMG:style_emoticons/default/chowtime.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tscrihfield
post Oct 19 2011, 04:27 PM
Post #67


Drive Fast and Take Chances
***

Group: Members
Posts: 643
Joined: 8-September 10
From: Amelia Ohio
Member No.: 12,156
Region Association: None
QUOTE(BajaXJ92 @ Oct 19 2011, 03:14 PM) *

QUOTE(tscrihfield @ Oct 19 2011, 02:49 PM) *

QUOTE(rnellums @ Oct 18 2011, 11:00 PM) *

What is that item where the dizzy usually sits?


Well, I will get into that a little later... That is when it is proven. I have designed a trigger style dizzy with a 32 -1 tooth trigger wheel. For sequential FI....


Now you've got my attention.... (IMG:style_emoticons/default/chowtime.gif)


Okay, to elaborate.... For inquiring minds....

As you may know from reading my earlier posts, I am going to eventually put EFI (Megasquirt MS3X) on my car... I went with the expansion to have Seq FI. The only issue is you need both a crank and cam signal for sequential FI. Now, I know that the dizzy is ran off the crank but it is in time with the cam spinning once to the crank spinning two times... So I am going to have a crank sensor as well as the dizzy that I am making.

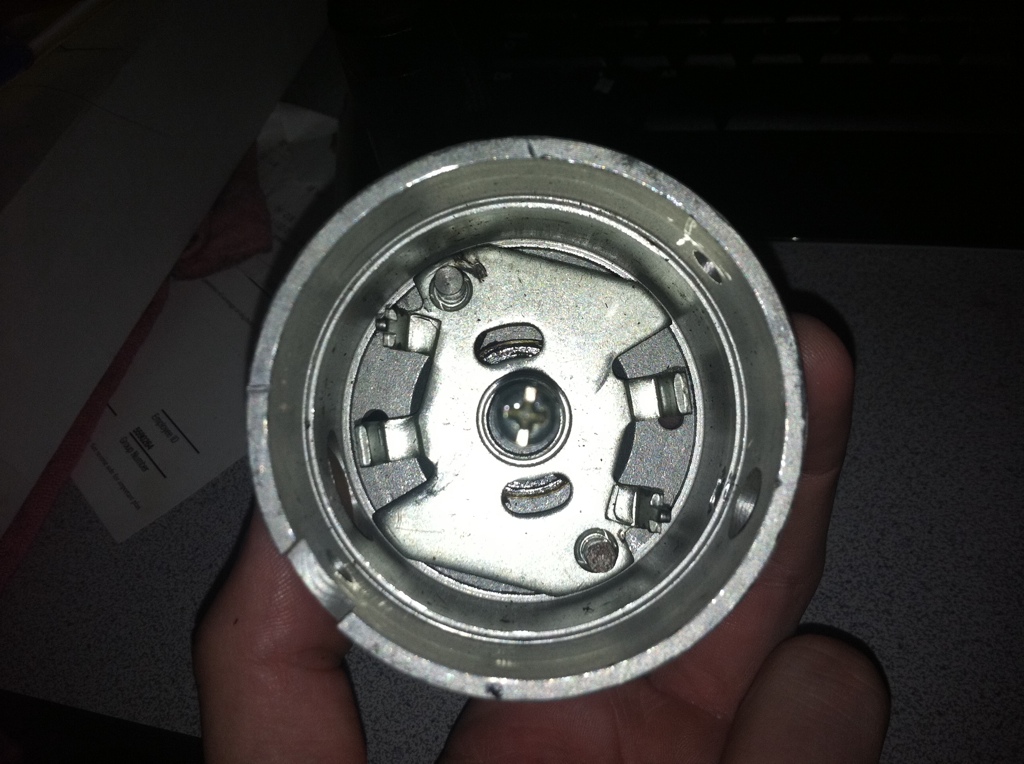

So I hollowed out a chinese made version of the Bosch
(IMG:http://www.914world.com/bbs2/uploads_offsite/i163.photobucket.com-12156-1319063275.1.jpg)

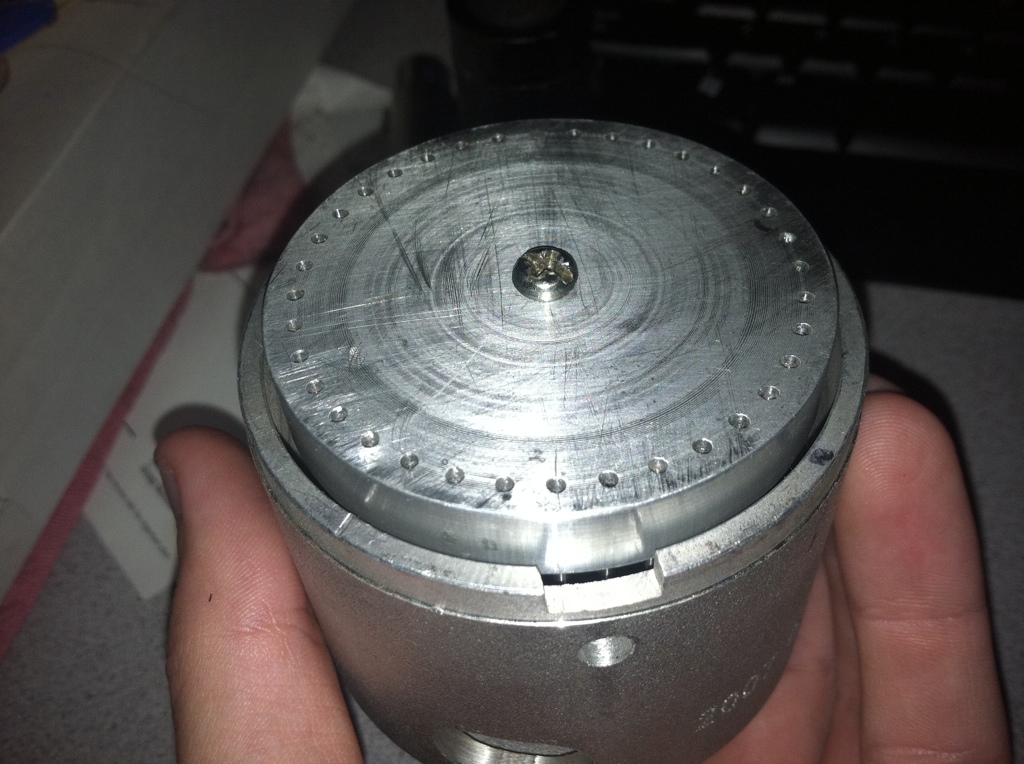

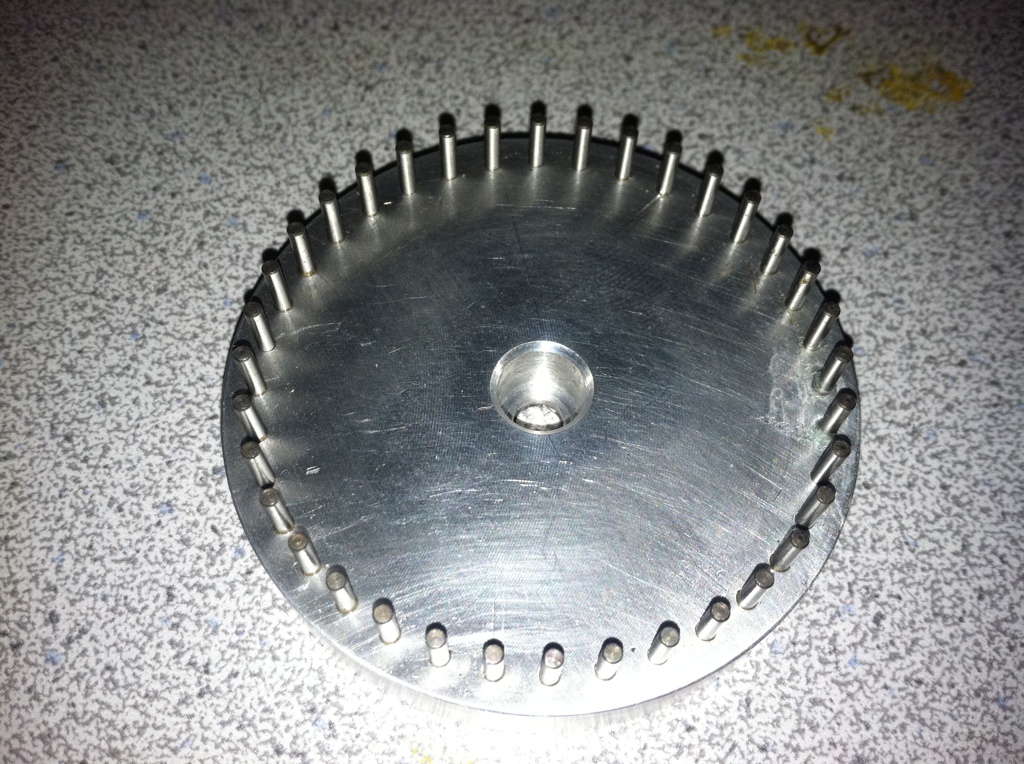

And then, I designed and built a trigger wheel... I know that it is not a traditional trigger wheel due to the roll pins but I designed it for this application. (Still has all 32 teeth for now...)
(IMG:http://www.914world.com/bbs2/uploads_offsite/i163.photobucket.com-12156-1319063275.2.jpg)

and installed on the dizzy... Not sure what I am going to do to lock it to the shaft yet but that will come later.
(IMG:http://www.914world.com/bbs2/uploads_offsite/i163.photobucket.com-12156-1319063276.3.jpg)

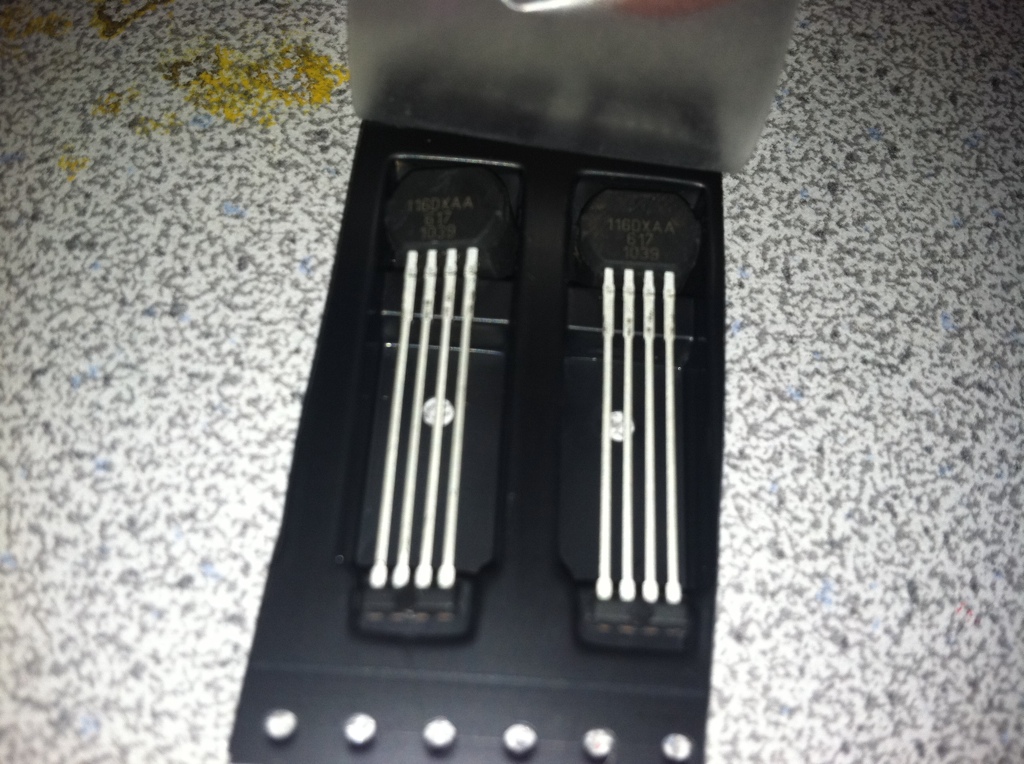

I am going to run one of these Hall effect sensors...
(IMG:http://www.914world.com/bbs2/uploads_offsite/i163.photobucket.com-12156-1319063276.4.jpg)

I am still in the process of designing the base for them to mount internal of the housing.... You can look them up here.
http://www.allegromicro.com/en/Products/Pa.../0617/index.asp
and I bought them from Digikey...

Well thats the story of it for now... Like I said it is yet to be proven but once it is I am thinking of building a few of them for folks that would want to run them on their FI systems.

Well Hope you enjoy... And remember, If women dont find you handsome they should at least find you handy!

Cheers!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rnellums
post Oct 19 2011, 10:18 PM
Post #68


Professional Enthusiast
***

Group: Members
Posts: 1,670
Joined: 26-November 09
From: Littleton, CO
Member No.: 11,072
Region Association: Rocky Mountains
That looks sweet! Copyright it quick!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tscrihfield
post Oct 20 2011, 03:11 PM
Post #69


Drive Fast and Take Chances
***

Group: Members
Posts: 643
Joined: 8-September 10
From: Amelia Ohio
Member No.: 12,156
Region Association: None
QUOTE(rnellums @ Oct 20 2011, 12:18 AM) *

That looks sweet! Copyright it quick!


Well... I would if this wasnt a hobby... Lets face it... Unless this had 300,000 people banging at my back door waiting to buy one, the effort/price to Copyright would be useless.... Plus I would rather post ideas and let others do their R&D too, we can all benefit that way! This way the more people who build one the more we have to choose from... Someone is bound to get it right!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tscrihfield
post Nov 28 2011, 09:21 PM
Post #70


Drive Fast and Take Chances
***

Group: Members
Posts: 643
Joined: 8-September 10
From: Amelia Ohio
Member No.: 12,156
Region Association: None
Well... A lot has happened since my last post. I finished assembly of the engine.

(IMG:http://www.914world.com/bbs2/uploads_offsite/i163.photobucket.com-12156-1322536884.1.jpg)

I also have been working on the longitudinal/hell hole

(IMG:http://www.914world.com/bbs2/uploads_offsite/i163.photobucket.com-12156-1322536885.2.jpg)

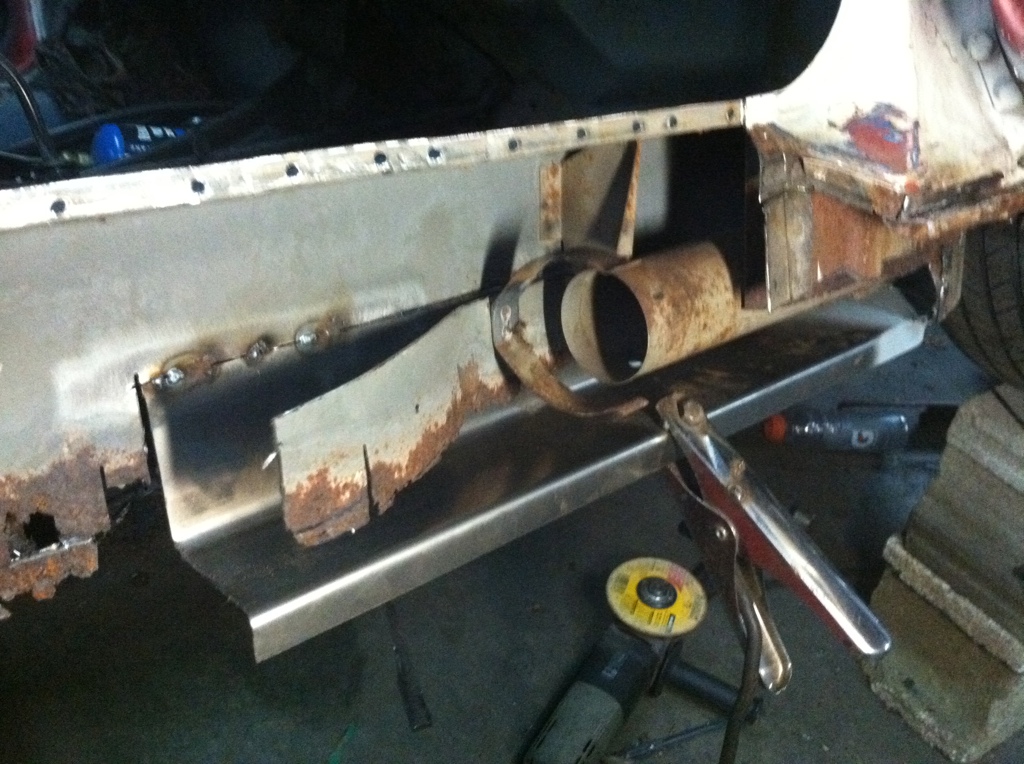

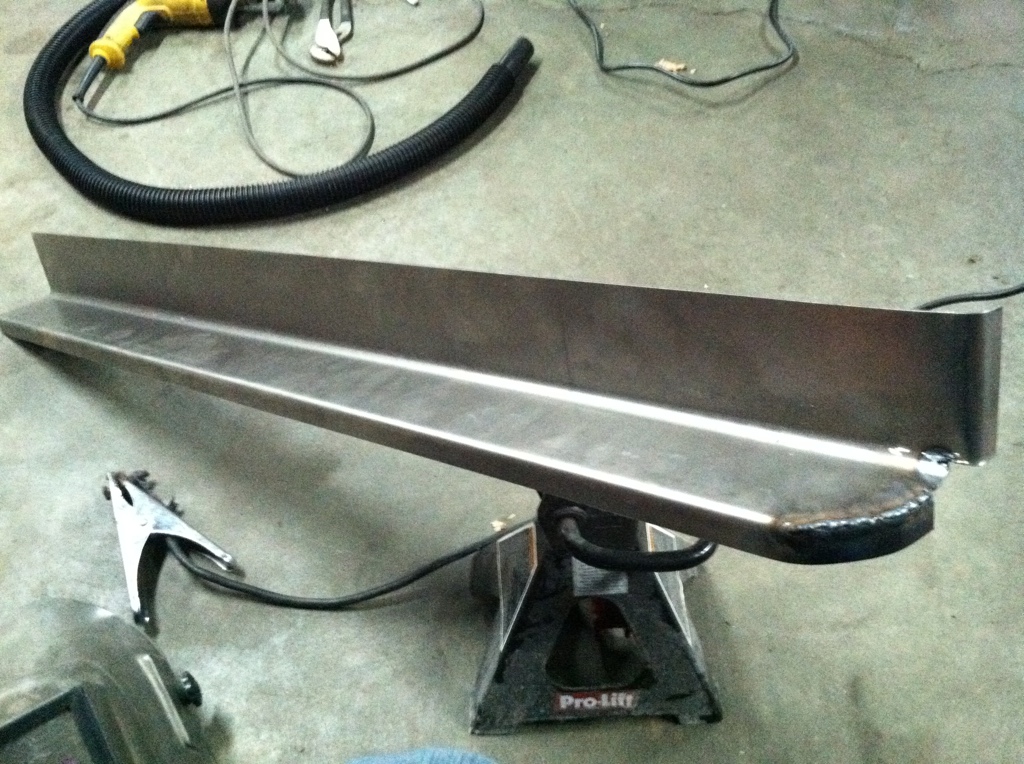

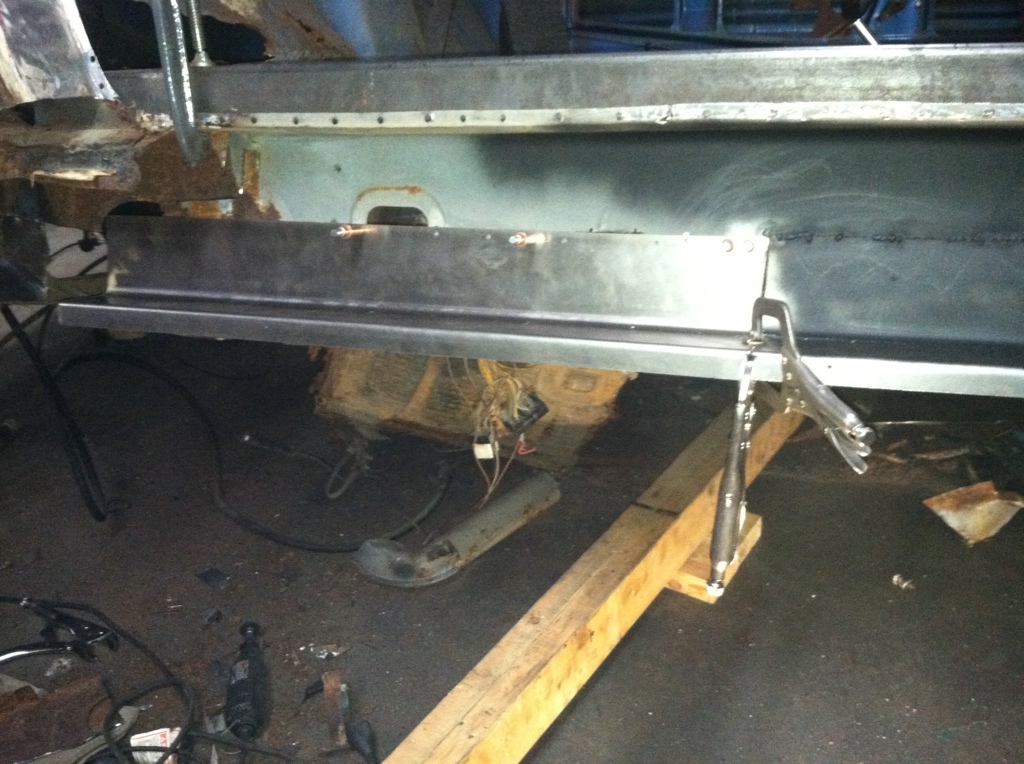

This is a part of the inner long that I fab'd

(IMG:http://www.914world.com/bbs2/uploads_offsite/i163.photobucket.com-12156-1322536886.3.jpg)

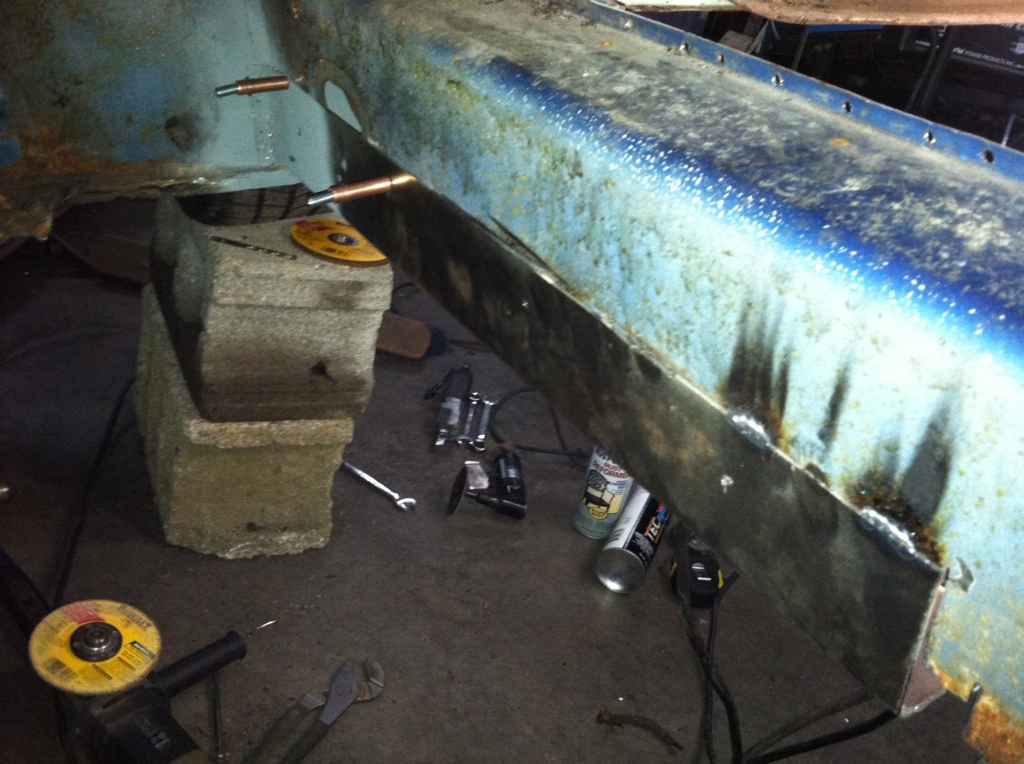

Being installed...

(IMG:http://www.914world.com/bbs2/uploads_offsite/i163.photobucket.com-12156-1322536887.4.jpg)

From the interior

(IMG:http://www.914world.com/bbs2/uploads_offsite/i163.photobucket.com-12156-1322536888.5.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bigkensteele
post Nov 28 2011, 09:32 PM
Post #71


Major Member
****

Group: Members
Posts: 2,200
Joined: 30-August 04
From: Cincinnati, OH
Member No.: 2,660
Region Association: South East States
Looking good! Did you get my PM about the floorpan?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tscrihfield
post Jan 11 2012, 07:44 PM
Post #72


Drive Fast and Take Chances
***

Group: Members
Posts: 643
Joined: 8-September 10
From: Amelia Ohio
Member No.: 12,156
Region Association: None
Well I have to say long breaks between posts are becoming the norm. I have mostly finished the long now and I am continuing on the floor.

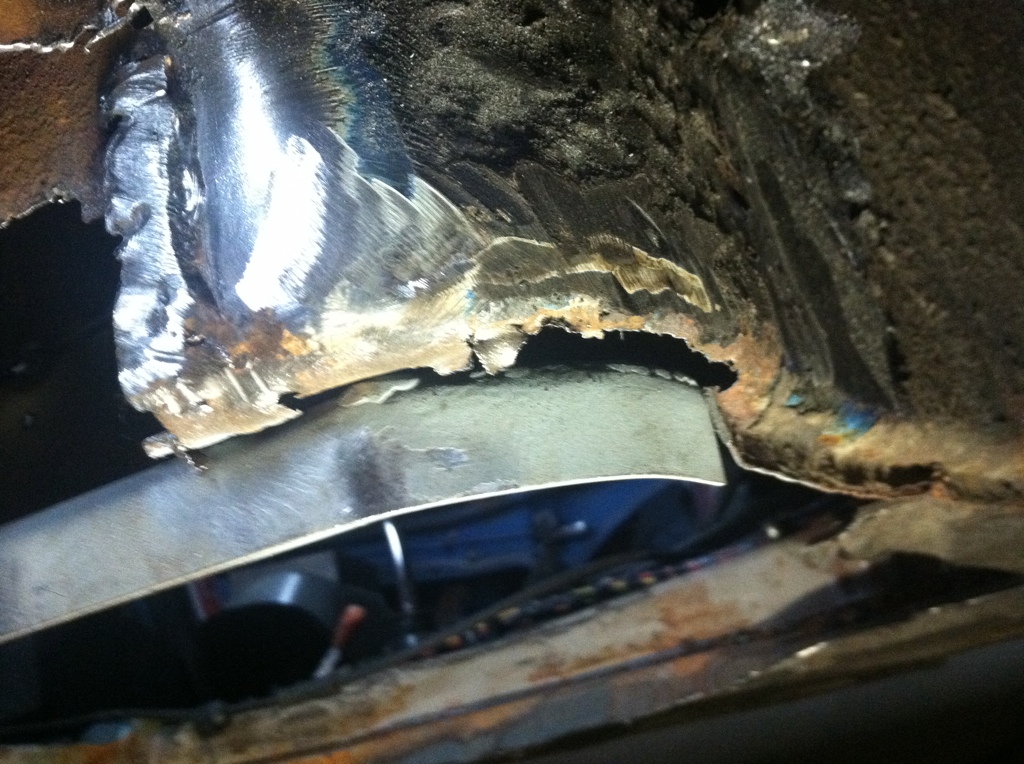

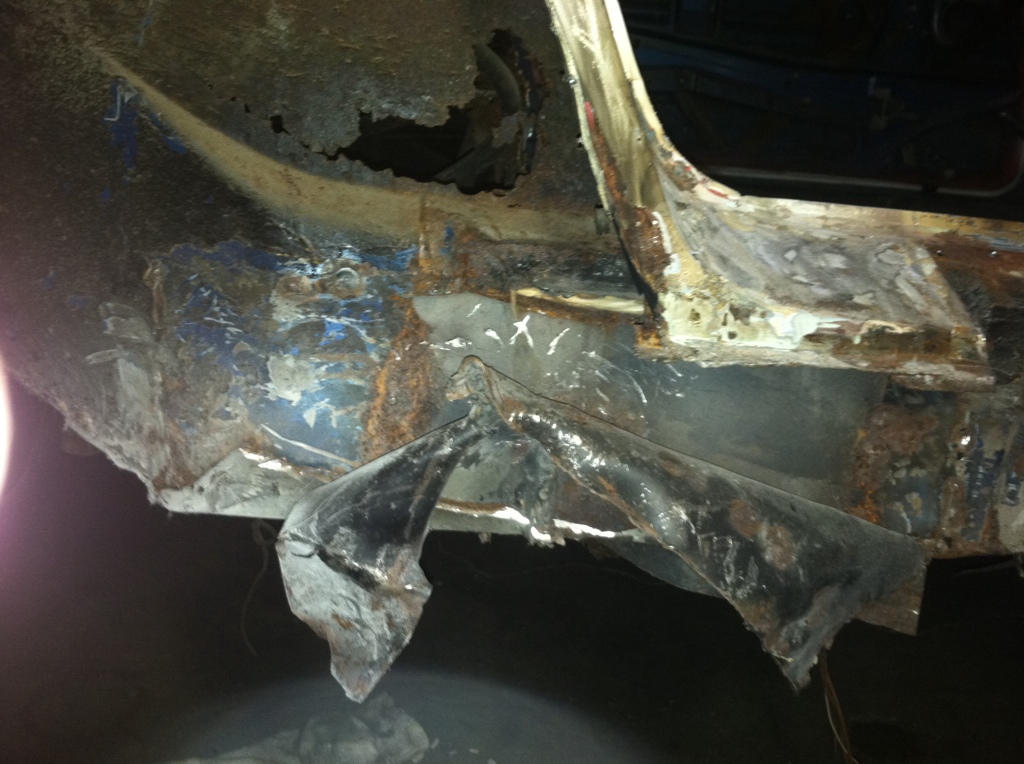

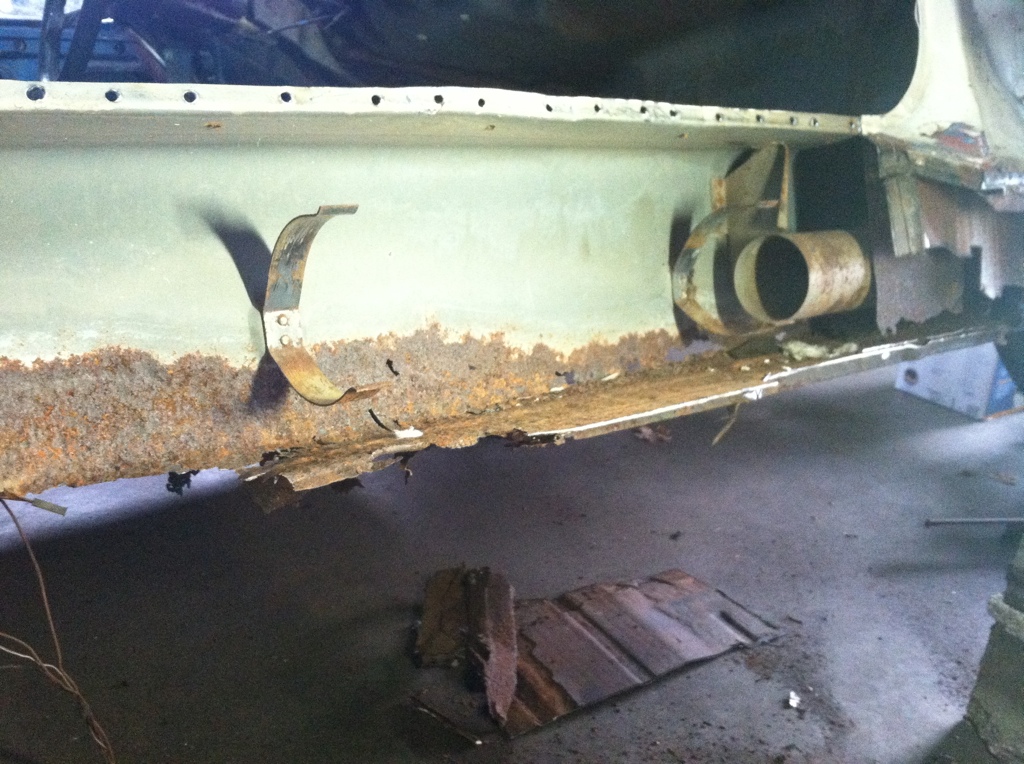

This was the wheel well...
(IMG:http://www.914world.com/bbs2/uploads_offsite/i163.photobucket.com-12156-1326332657.1.jpg)

Fitting a patch in place of the carnage

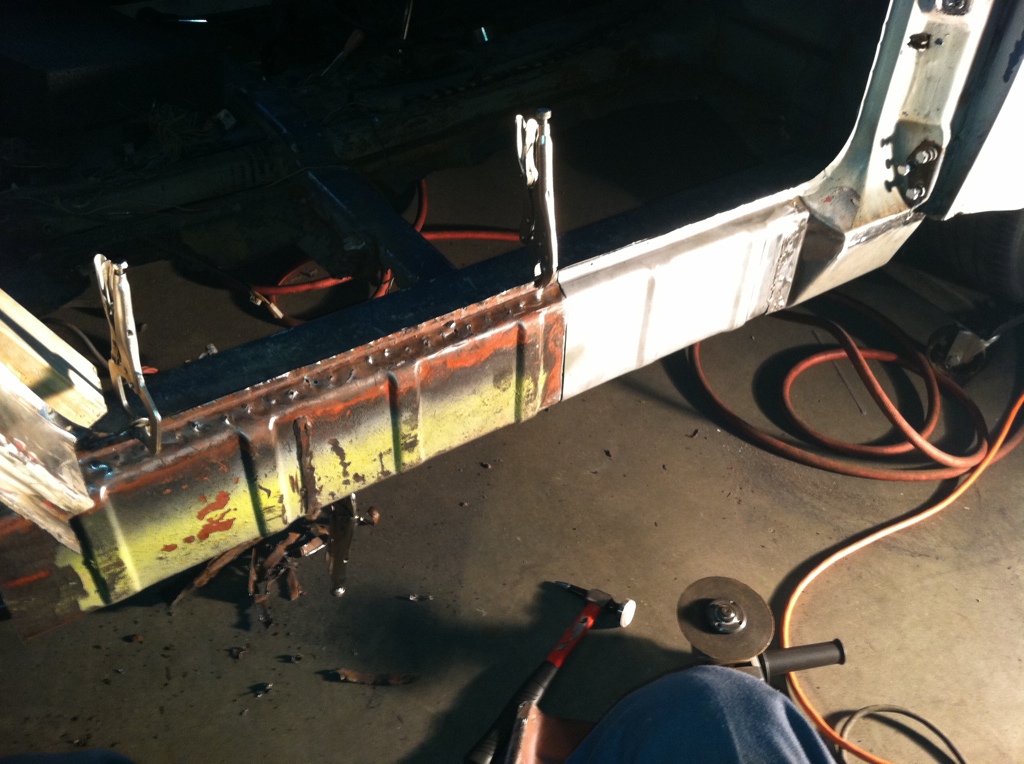

(IMG:http://www.914world.com/bbs2/uploads_offsite/i163.photobucket.com-12156-1326332657.2.jpg)

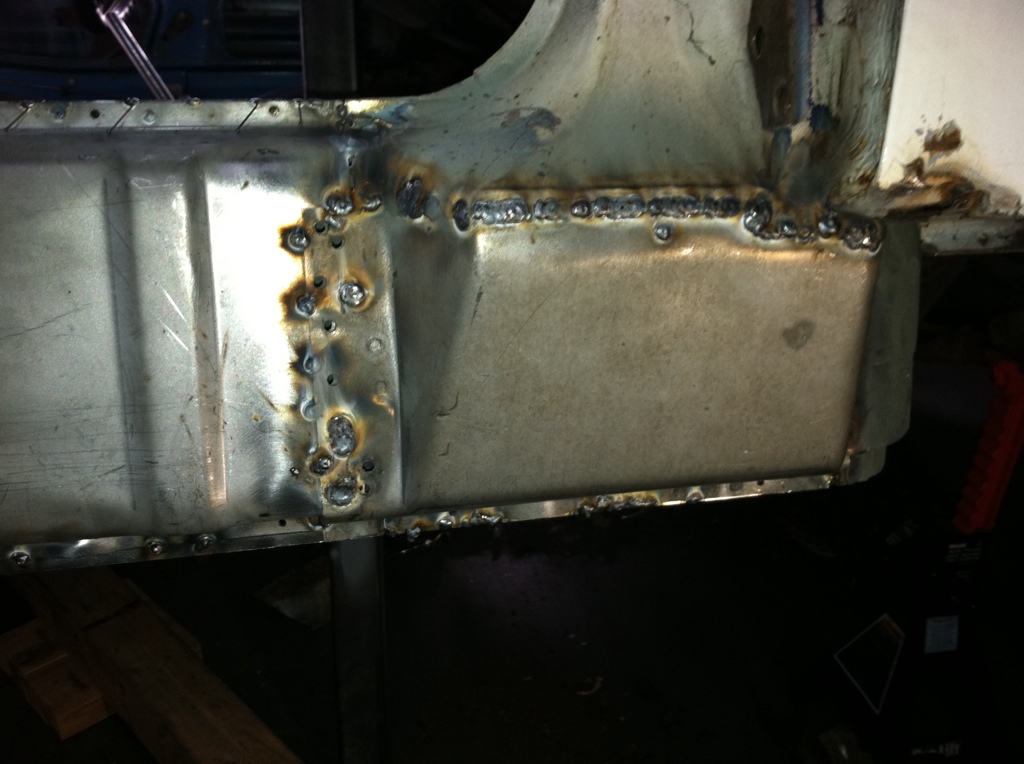

Then the patch welded in

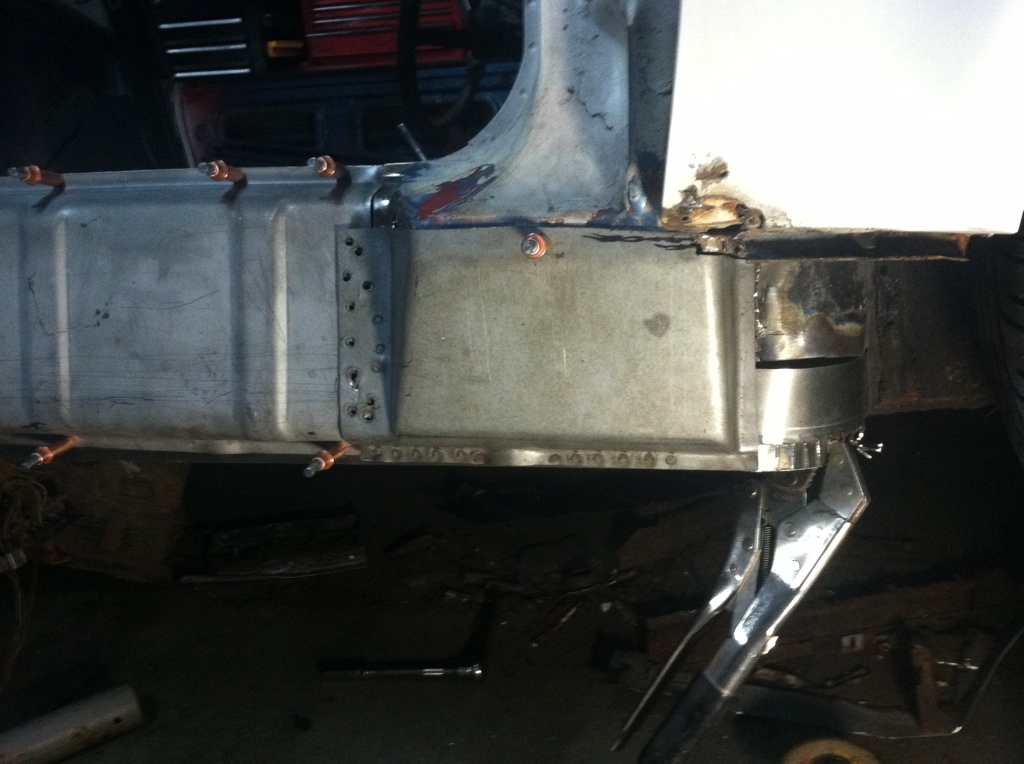

(IMG:http://www.914world.com/bbs2/uploads_offsite/i163.photobucket.com-12156-1326332657.3.jpg)

(IMG:http://www.914world.com/bbs2/uploads_offsite/i163.photobucket.com-12156-1326332657.4.jpg)

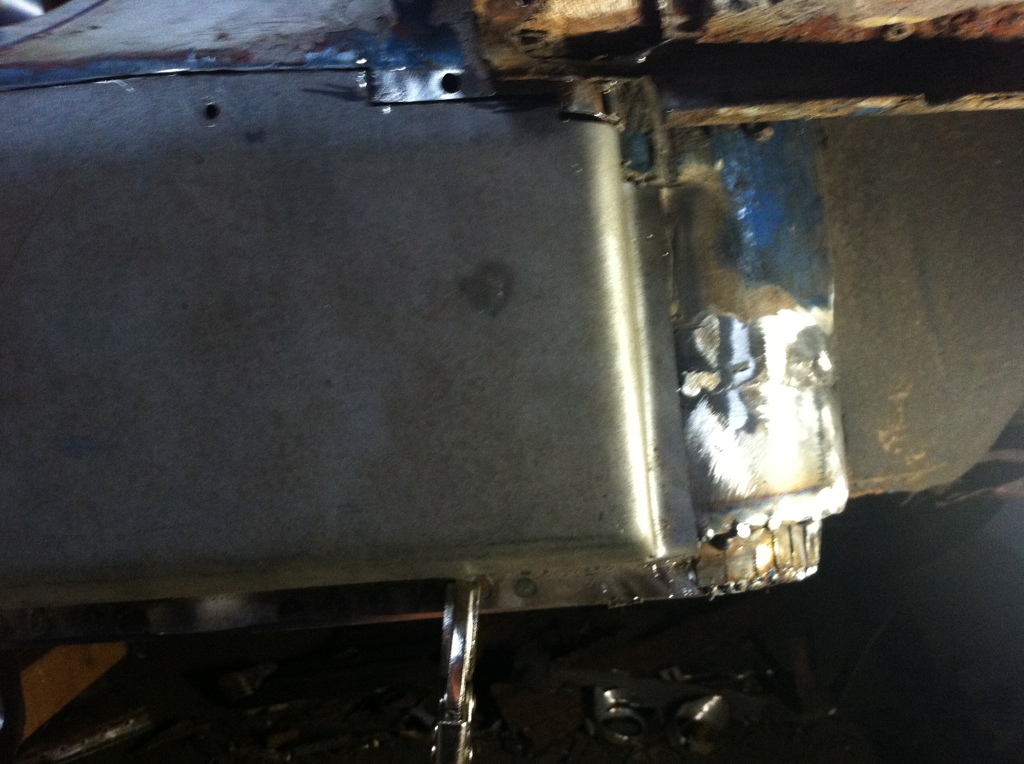

And then...
(IMG:http://www.914world.com/bbs2/uploads_offsite/i163.photobucket.com-12156-1326332657.5.jpg)

Sum it up with...
(IMG:http://www.914world.com/bbs2/uploads_offsite/i163.photobucket.com-12156-1326332657.6.jpg)

Unfortunately this doesnt have all of the steps... But you get the point.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rnellums
post Jan 11 2012, 09:06 PM
Post #73


Professional Enthusiast
***

Group: Members
Posts: 1,670
Joined: 26-November 09
From: Littleton, CO
Member No.: 11,072
Region Association: Rocky Mountains
Lookin Good!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tscrihfield
post Jan 11 2012, 09:31 PM
Post #74


Drive Fast and Take Chances
***

Group: Members
Posts: 643
Joined: 8-September 10
From: Amelia Ohio
Member No.: 12,156
Region Association: None
QUOTE(rnellums @ Jan 11 2012, 10:06 PM) *

Lookin Good!


Thanx Ross!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Jan 11 2012, 09:37 PM
Post #75


Advanced Member
****

Group: Members
Posts: 4,803
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
Good work! Some seam sealer/undercoat and it'll be like new.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Jan 11 2012, 09:46 PM
Post #76


Resident German
*************************

Group: Admin
Posts: 42,207
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
Great work! (IMG:style_emoticons/default/beerchug.gif)


And please do yourself a favor and get rid of those cinder blocks! (IMG:style_emoticons/default/icon8.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tscrihfield
post Jan 12 2012, 04:38 PM
Post #77


Drive Fast and Take Chances
***

Group: Members
Posts: 643
Joined: 8-September 10
From: Amelia Ohio
Member No.: 12,156
Region Association: None
QUOTE(SirAndy @ Jan 11 2012, 10:46 PM) *

Great work! (IMG:style_emoticons/default/beerchug.gif)


And please do yourself a favor and get rid of those cinder blocks! (IMG:style_emoticons/default/icon8.gif)


At first I was thnking "what cinder blocks"... I forgot I used them... It was difficult getting the car high enough to work on. No worries though, found some Jackstands that go about 3 1/2 feet which do the trick!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tscrihfield
post Jan 16 2012, 08:52 PM
Post #78


Drive Fast and Take Chances
***

Group: Members
Posts: 643
Joined: 8-September 10
From: Amelia Ohio
Member No.: 12,156
Region Association: None
http://www.youtube.com/watch?v=4jyJy_1O1zE

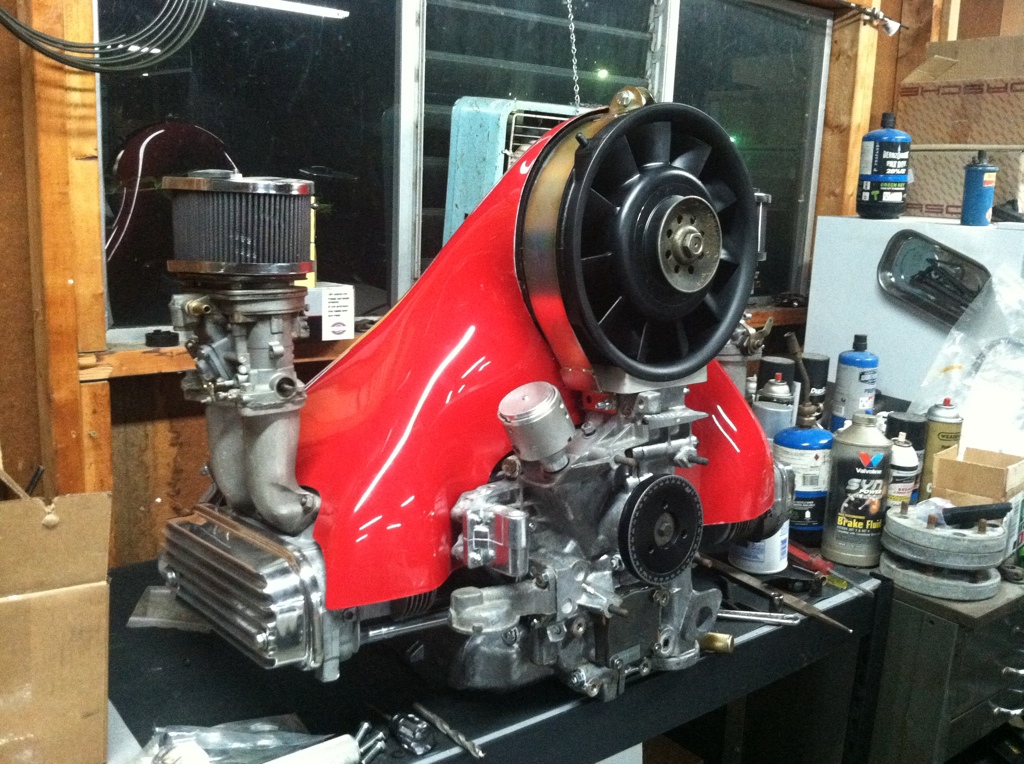

Engine is a go! I love the sound... Please no greif on the Shroud! I know some hate it, but I have some tests to run on it before I give it up!

I am so excited you cant smack the smile off of my face!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
saigon71
post Jan 16 2012, 09:25 PM
Post #79


Advanced Member
****

Group: Members
Posts: 2,014
Joined: 1-June 09
From: Dillsburg, PA
Member No.: 10,428
Region Association: MidAtlantic Region
Great work you are doing here. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rnellums
post Jan 17 2012, 09:03 AM
Post #80


Professional Enthusiast
***

Group: Members
Posts: 1,670
Joined: 26-November 09
From: Littleton, CO
Member No.: 11,072
Region Association: Rocky Mountains
Wohoo! (IMG:style_emoticons/default/smilie_pokal.gif). We need to organize a 914 rally somewhere in our area when the weather gets nice. I wanna see your handiwork in person!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
« Next Oldest · 914World Garage · Next Newest »


9 Pages V « < 2 3 4 5 6 > »
Reply to this topicStart new topic
1 User(s) are reading this topic (1 Guests and 0 Anonymous Users)
0 Members:



Display Mode: Standard · Switch to: Linear+ · Switch to: Outline

Track this topic · Email this topic · Print this topic · Subscribe to this forum

- Lo-Fi Version Time is now: 10th May 2025 - 09:08 PM
Invision Power Board v9.1.4 © 2025  IPS, Inc.
All rights reserved 914World.com © since 2002
914World.com is the fastest growing online 914 community!
We have it all, classifieds, events, forums, vendors, parts, autocross, racing, technical articles, events calendar, newsletter, restoration, gallery, archives, history and more for your Porsche 914 ...
