> New GT Half Cage, limited availability, build to order
McMark
post Nov 28 2010, 12:20 PM
Post #1


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None

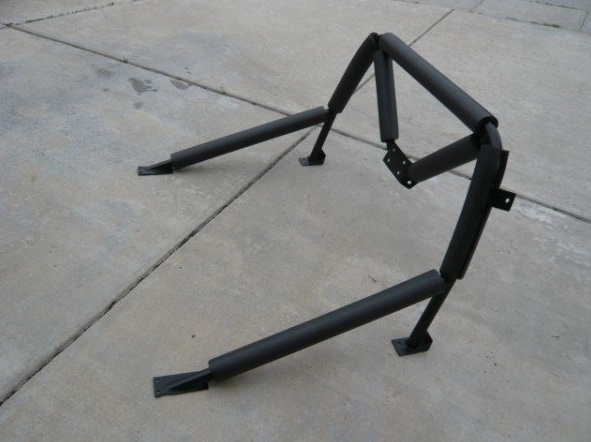

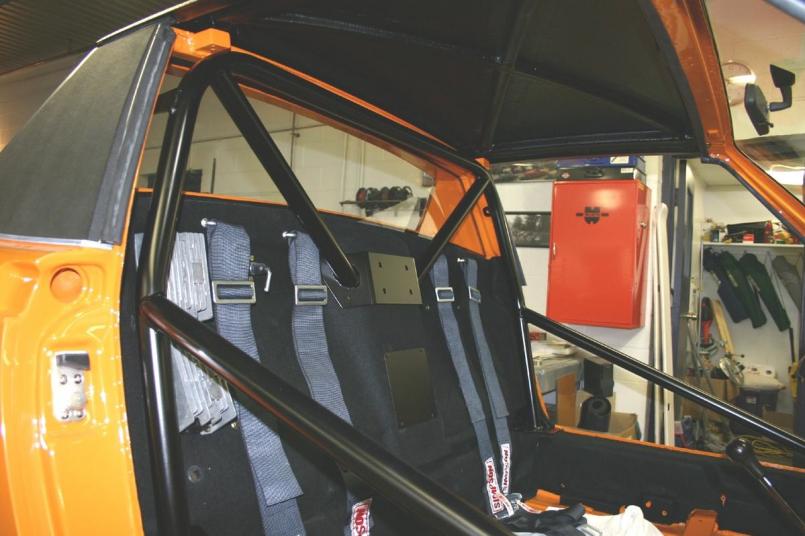

I'm got a tubing bender to make a replica GT half cage for a customer car. This is the style of bolt in cage used on some of the GT cars pictured on Armando's AWESOME GT site, as well as the style used in the PMB GT.

Material is mandrel bent 1.75" DOM 0.95", notched and will be completely welded. Plates are laser cut steel, ensuring they look great and fit perfectly. You will be required to weld the provided receiver plates onto your longs.

These cages will keep the seats from moving all the way back because of the center brace bars. I have some ideas that will adapt the cage to work better with stock seats. PM me for details. Also, these cages will obviously not work with a stock backpad, nor the door handle/pocket.

Each cage will be $xxx in bare steel, with powdercoating available. Shipping is possible, we're probably looking at crate and freight shipping, which should be around $175 (give or take $25). Cages are built to order.
--Optional Item 1-- Leave off the two bars going to the center hump. This would let you keep the backpad and knock $xxx off the price.
--Optional Item 2-- Leave off the forward/door bars. These add a lot of rigidity, but make getting in and out of the car harder. Leave these off and knock $xx off the price.
You can combine both options for just a hoop, priced at $xxx + shipping.
Custom alterations are also available at full shop rate of $125/hr for actual time spent beyond the building of the standard cage.
These cages are now special order. Contact me for details.
Attached Image
Attached Image

Installation Info:
1. Use a jack on both sides of the car, in the middle of car (between the wheels) with slight pressure simply to counteract the weight of the car. If you think about the way the weight is distributed, it's split between four wheels roughly equally. You're using the jack to try and distribute the weight six ways evenly. If you lift too much in the middle, you're changing the bias. This is not an exact science or setting. You just have to use your best judgement.

2. Test and measure the door gaps and opening closing effort before and during the welding process. Also measure between the targa bar and the windshield hoop, using the attached picture. Anything within 2-3mm is considered correct. But keep checking that measurement as you weld to make sure things aren't moving.

3. Do not run a bead longer than 1" ever on any joint. Long continuous welds are how cars get warped.

4. If you're using the bolt-in setup, weld the base plates in while they are bolted to the cage. Welding the base plates with the cage fully assembled ensures that everything lines up.

5. Get the cage to sit correctly, fully assembled, before fully welding a single piece. You cannot adjust things as you go. Get them all lined up, sitting flat, etc before you start permanently attaching things.

6. Tack weld the forward bars to the main hoop first, but fully weld the rear bottom plates first. Then weld the forward bottom plates and the forward bars to the main hoop at the same time. A little weld on each bottom plate, a little weld on the forward bar joint, then a little time to let things cool off. Then repeat.

7. Leave time for welds to cool completely between steps. This can seem long and tedious and it's REALLY hard to slow down and take your time. Ideally you'll have 30m of welding time spread out over 1.5-2h. More cooling time reduces the risk of warping the car and you can't let it cool too much. The times I just mentioned allow the welds to cool at the rate of 2-3m cooling for each minute of welding time.

8. Read #5 again. Good installs require good prep. The quality and success of your install ALL happens before you pick up the welder.

Good luck. (IMG:style_emoticons/default/welder.gif)


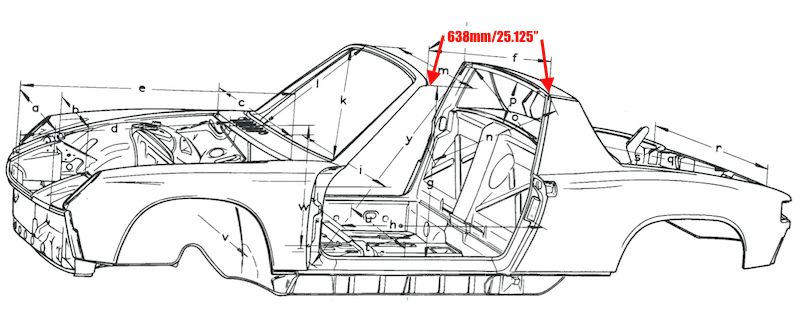

Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
pete-stevers
post Nov 28 2010, 01:07 PM
Post #2


saved from fire!
****

Group: Members
Posts: 2,641
Joined: 10-October 04
From: Abbotsford,BC, Canada
Member No.: 2,914
Region Association: Pacific Northwest
looks great!!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Nov 28 2010, 01:16 PM
Post #3


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada
If you also offered this raw without the brace bars welded in (DYI) it could save peeps a lot in shipping. Flat box might be UPS shippable.
Looks nice.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Nov 28 2010, 01:30 PM
Post #4


PMB Performance
***************

Group: Admin
Posts: 19,274
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains
I'll give testimony. When this cage is bolted in, your car changes.

The side bars extend along your longitudinals to the base of the A-Pillar tieing that area into the back wall and original targa hoop.

Great vintage look. The GT V-Bar is amazing in my book.

I also think this should be kit for for a few reasons:

1) It should be tacked and built in the vehicle (then removed, powder coated etc.).
2) Shipping.

Are you planning on including scab plates?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Brett W
post Nov 28 2010, 02:31 PM
Post #5


Advanced Member
****

Group: Members
Posts: 2,856
Joined: 17-September 03
From: huntsville, al
Member No.: 1,169
Region Association: None
Mark, you may want to check on a waiver or certs for SCCA and NASA, so that can expand your market to allow the time trial people to get in on this.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Nov 28 2010, 02:58 PM
Post #6


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
This would include scab plates and all hardware. The complete package. I could do a partially welded kit to save on shipping (IMG:style_emoticons/default/idea.gif) The cage would cost the same, but it might save $100 on shipping.

Brett - I haven't heard of these. Do you have more info or a link?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JmuRiz
post Nov 28 2010, 03:49 PM
Post #7


914 Guru
*****

Group: Members
Posts: 5,422
Joined: 30-December 02
From: NoVA
Member No.: 50
Region Association: MidAtlantic Region
Could/would you make one with the angled side-bars that are removable...so you can take them out for street driving? Would it still be stiff? Also would it be beneficial to add a Perry or Engman long stiff kit along with this?

Man I need a new job so I can afford this! I'll do some figuring and get back to you.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Nov 28 2010, 03:52 PM
Post #8


914-6 GT in waiting
***************

Group: Members
Posts: 19,223
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
Everything I have heard says you shouldn't use a cage in a street car.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Nov 28 2010, 04:01 PM
Post #9


I am Tangerine Racing
*****

Group: Members
Posts: 7,908
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
It's really a roll bar, not a cage. None of the bars in this design present the danger of side hoops and windshield crossbar of a full cage.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Randal
post Nov 28 2010, 04:23 PM
Post #10


Advanced Member
****

Group: Members
Posts: 4,446
Joined: 29-May 03
From: Los Altos, CA
Member No.: 750
QUOTE(Racer Chris @ Nov 28 2010, 02:01 PM) *

It's really a roll bar, not a cage. None of the bars in this design present the danger of side hoops and windshield crossbar of a full cage.




Absolutely right as usual Chris.

The danger of having a cage in a car is the front top bar and side top bars, neither of which Mark's combination roll bar contain.

Mark is making up a sticker, "Safe for the Street." (IMG:style_emoticons/default/laugh.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
URY914
post Nov 28 2010, 04:27 PM
Post #11


I built the lightest 914 in the history of mankind.
****************************************************************************************************

Group: Members
Posts: 120,056
Joined: 3-February 03
From: Jacksonville, FL
Member No.: 222
Region Association: None
Shipping the side bars loose would be a good thing to do. You could tape them to the main piece and ship them w/o a problem. No box required.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Nov 28 2010, 05:32 PM
Post #12


I am Tangerine Racing
*****

Group: Members
Posts: 7,908
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
QUOTE(URY914 @ Nov 28 2010, 05:27 PM) *

No box required.

FedEx and UPS have a hefty surcharge for items that are not boxed, in addition to the oversize charges for an item as large as a main roll hoop. OTOH, making a suitable box is time consuming.
If the forward braces of the "half cage" are pre-installed the shipping charges will be even higher.
I can currently ship a basic full cage kit which weighs 65lbs to CA for about $140. That includes all my direct costs and a little bit for time spent with packaging.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
EdwardBlume
post Nov 28 2010, 05:36 PM
Post #13


914 Wizard
**********

Group: Members
Posts: 12,338
Joined: 2-January 03
From: SLO
Member No.: 81
Region Association: Central California
(IMG:style_emoticons/default/aktion035.gif) (IMG:style_emoticons/default/w00t.gif) (IMG:style_emoticons/default/idea.gif)



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ONTHEGRIND
post Nov 28 2010, 06:26 PM
Post #14


Member
**

Group: Members
Posts: 286
Joined: 10-November 08
From: California
Member No.: 9,738
Region Association: None
Do I get a napa valley discount if so Im in..
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
plymouth37
post Nov 28 2010, 07:37 PM
Post #15


Senior Member
***

Group: Members
Posts: 1,825
Joined: 24-May 05
From: Snoqualmie, WA
Member No.: 4,138
Region Association: Pacific Northwest
Looks great!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
9146BRUCE
post Nov 28 2010, 07:43 PM
Post #16


Member
**

Group: Members
Posts: 57
Joined: 16-April 07
From: Northridge Calif.
Member No.: 7,670
Region Association: Southern California
Hi Mark if the setup you will make is like the one in the picture and the one Eric made I will take one how do you want me to pay. where do you live I could drive up and pick it up when I go up to Weidmans with some wheels.

Bruce
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Maltese Falcon
post Nov 28 2010, 07:49 PM
Post #17


Advanced Member
****

Group: Members
Posts: 4,629
Joined: 14-September 04
From: Mulholland SoCal
Member No.: 2,755
Region Association: None
Attached Image
McMark, if you get to where you need a small production run on the bent section let me know. We are always able to run several mandrel benders on different sizes. Pricing is not in the stratosphere (IMG:style_emoticons/default/smile.gif)
Marty
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Nov 28 2010, 08:00 PM
Post #18


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Bruce, you have a PM! (IMG:style_emoticons/default/biggrin.gif)

I need one more person to sign up for this to move forward.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Zimms
post Nov 28 2010, 08:13 PM
Post #19


Senior Member
***

Group: Members
Posts: 1,413
Joined: 11-February 06
From: Michigan
Member No.: 5,565
Region Association: Upper MidWest
QUOTE(Eric_Shea @ Nov 28 2010, 02:30 PM) *

I'll give testimony. When this cage is bolted in, your car changes.

The side bars extend along your longitudinals to the base of the A-Pillar tieing that area into the back wall and original targa hoop.

Great vintage look. The GT V-Bar is amazing in my book.

I also think this should be kit for for a few reasons:

1) It should be tacked and built in the vehicle (then removed, powder coated etc.).
2) Shipping.

Are you planning on including scab plates?


Would you recommend going this route versus a long strengthening kit to tighten up the frame or would both help?

How much of a pain in the ass is it to get in and out with the side bar of the cage? I am 6ft, 220#.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
moparrob
post Nov 28 2010, 08:13 PM
Post #20


Senior Member
***

Group: Members
Posts: 646
Joined: 27-April 10
From: Los Angeles
Member No.: 11,663
Region Association: None
Awesome! Good luck with it. (IMG:style_emoticons/default/beer.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
