> 911 9146 engine fan housings, Possible Mismatch??
bcheney
post Dec 12 2010, 09:03 AM
Post #1


Senior Member
***

Group: Members
Posts: 1,341
Joined: 16-November 03
From: Orlando, FL
Member No.: 1,348
Region Association: South East States

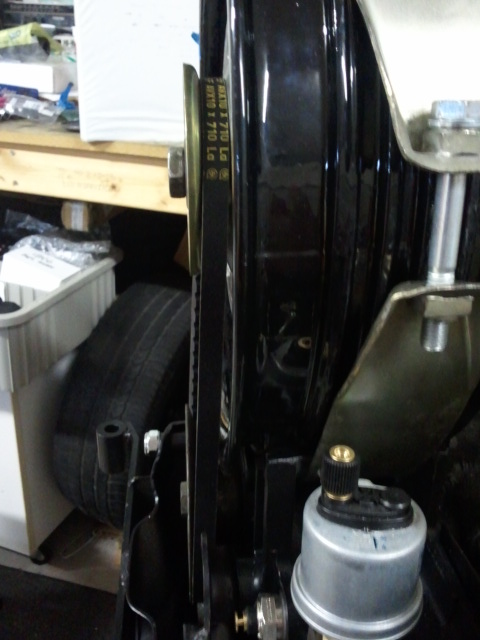

My conversion is using an original 9146 case. I am using a 911 fan housing and 55amp Bosch Alternator. I have assembled and I'm not sure if I have a problem. See pics. Belt doesnt seem to align properly. I have 5 shims under and 1 shim on the outside. I'm wondering if the housing that I'm using may be a problem as it is from a later model car. Housing number is 930106102OR and you can see it on the second pic.


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jt914-6
post Dec 12 2010, 09:20 AM
Post #2


Driving & working on teeners 41 years
***

Group: Members
Posts: 1,785
Joined: 3-May 08
From: Bryant, Arkansas
Member No.: 9,003
Region Association: South East States

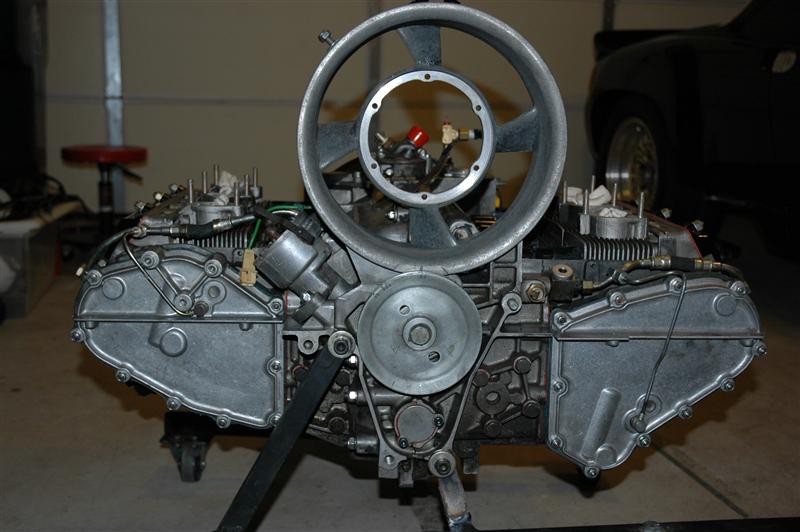

I'm using my orignal six fan housing # 901 106 101 5R. I upgraded to a larger amp alt. and my alt. stuck out too far. The opposite of your problem. I checked another six fan housing and it was deeper in the mounting area than mine. To make the new alt. work, I had my housing machined down to match the other fan housing and that made it right. It is being used on a 3.0 built on a 930/68 case (3.3 turbo). You may have to find the right fan housing or another alt. to line up the belt correctly..... a pic of my housing after it was turned down....

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Dec 12 2010, 09:27 AM
Post #3


914 Wizard
**********

Group: Members
Posts: 10,392
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains



The fan and housing are a mate, It is the alternator that is not.
You can add a spacer behind the alternator to make work as this fan assy is the 78/79 small diameter.
Or upgrade the alternator.
If you want an Origonal fan setup I will trade for the one you have.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MDG
post Dec 12 2010, 09:58 AM
Post #4


Wolf in wolf's clothing.
*****

Group: Members
Posts: 8,652
Joined: 3-February 09
From: Toronto
Member No.: 10,018
Region Association: None



QUOTE(bcheney @ Dec 12 2010, 10:03 AM) *

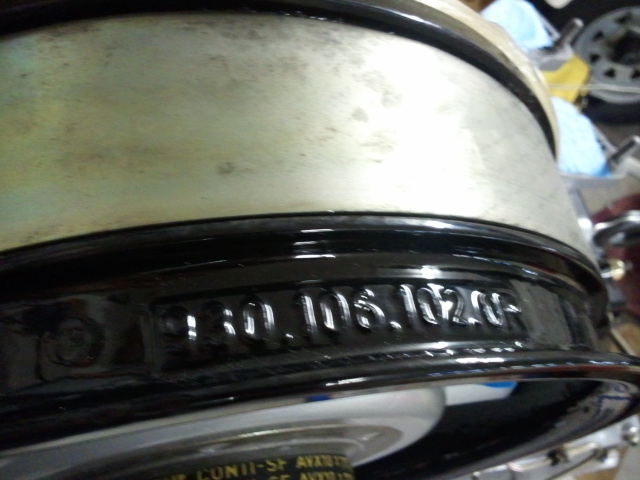

Housing number is 930106102OR and you can see it on the second pic.


If I remember correctly the later housings are too deep; you can machine some off the back. Search the bird board - lots of discussions on this topic.

For my 3.2 I am using the old housing off my 2.2 (with the 901 . . . part number)and a new alternator I got from Dave Aase (Aase brothers).

m.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Dec 12 2010, 10:48 AM
Post #5


914 Wizard
**********

Group: Members
Posts: 10,392
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains



QUOTE
If I remember correctly the later housings are too deep; you can machine some off the back.

Yes too deep , therfore you need a spacer or correct alternator.
its the early (901) that you need to machine deeper for a late alternator.

here is a thread right here;
http://www.914world.com/bbs2/index.php?s=&...st&p=669398
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bcheney
post Dec 12 2010, 11:35 AM
Post #6


Senior Member
***

Group: Members
Posts: 1,341
Joined: 16-November 03
From: Orlando, FL
Member No.: 1,348
Region Association: South East States



Do you know what could be used as a spacer if I decide to utilize the 930 numbered housing with the 55 amp alt? What would the exact height of the spacer be? Thanks for the help.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rfuerst911sc
post Dec 12 2010, 03:44 PM
Post #7


Advanced Member
****

Group: Members
Posts: 2,158
Joined: 4-May 06
From: Dahlonega , Georgia
Member No.: 5,980
Region Association: South East States



Brian I believe the proper count of shims is seven. You might want to put 7 under the pulley to see what it looks like. In regards to how thick of a spacer just put a straight edge on the face of the crank pulley and measure the distance to the alternator pulley.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tomeric914
post Dec 12 2010, 04:05 PM
Post #8


One Lap of America in a 914!
***

Group: Members
Posts: 1,259
Joined: 25-May 08
From: Syracuse, NY
Member No.: 9,101
Region Association: North East States



Fan housings changed depth as the alternator amp output increased.

http://forums.pelicanparts.com/porsche-911...ooling-fan.html
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cap'n Krusty
post Dec 12 2010, 09:52 PM
Post #9


Cap'n Krusty
**********

Group: Members
Posts: 10,794
Joined: 24-June 04
From: Santa Maria, CA
Member No.: 2,246
Region Association: Central California



The alternator sits too far back. All the pulley shims in the world aren't gonna fix that. The new housing has to be machined to allow the alternator to sit in the same position as the old housing did. The only thing the shims do is adjust the space between the pulley halves to compensate for differences in belt length. They have nothing to do with the fore-and-aft location of the vertical c/l of the pulley.

The Cap'n
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Dec 12 2010, 11:40 PM
Post #10


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada



I'm seeing I'll have a similar issue...or not...

I have two of everything, fan housing and alternator. The fans "look" exactly the same, the housings have the same numbers, but one is definitely a 1/2 inch (approx) deeper than the other. Same with the alternators the Bosch being the shorter one, the other I can't find any part/make numbers, but again about a half inch diferance.
The Bosch also has a smaller pulley nut

I thought I had kept them marked as to which came out which housing but the short alt in the deep housing would have the exact same issue you are having. So I must have swapped them?

Which would be the higher output alternator?
My deep housing ring is fuched.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Dec 13 2010, 02:57 AM
Post #11


914 Wizard
**********

Group: Members
Posts: 10,392
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains



QUOTE
What would the exact height of the spacer be? Thanks for the help.

9.5mm for your setup - bosch alt/ 930.0R ring

You can use 6 spacers I suppose as the alternator will still be centered in the recess, keeping the fan centered.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Dec 13 2010, 03:34 AM
Post #12


914 Wizard
**********

Group: Members
Posts: 10,392
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains

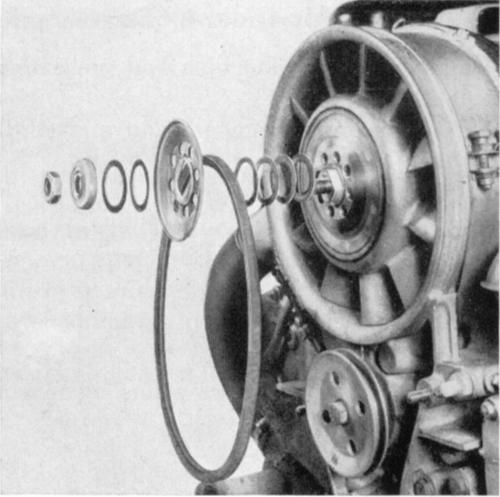

Shim count


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bcheney
post Dec 13 2010, 06:52 AM
Post #13


Senior Member
***

Group: Members
Posts: 1,341
Joined: 16-November 03
From: Orlando, FL
Member No.: 1,348
Region Association: South East States



As usual...thanks for all the replies everyone. You guys are the best. I am going to search a stash of mine to see if I have a 901 housing...that would solve the problem. Otherwise I will look into producing some 9.5 mm spacers to compensate.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Dec 13 2010, 08:07 AM
Post #14


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada



QUOTE(bcheney @ Dec 13 2010, 07:52 AM) *

As usual...thanks for all the replies everyone. You guys are the best. I am going to search a stash of mine to see if I have a 901 housing...that would solve the problem. Otherwise I will look into producing some 9.5 mm spacers to compensate.


On the housing measure the depth of where the alternator seats in the inner ring. I was wrong about the half inch, it's closer to .400 deeper on the one ring I have.
This is about the same as your 9.5mm figure so you have the wrong alternator or housing, you have to swap one of them out.

Just adding a 1cm spacer to the pulley end is a bad idea, the pulley nut will nothing left to grab onto. Last thing I'd want is to have only a couple of threads holding my pulley and fan on. Putting shims under the alternator might be sketchy as well.

BTW both of the the housings I have are the same 901 part number even though the alt mount depths are different.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Dec 13 2010, 11:01 AM
Post #15


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada

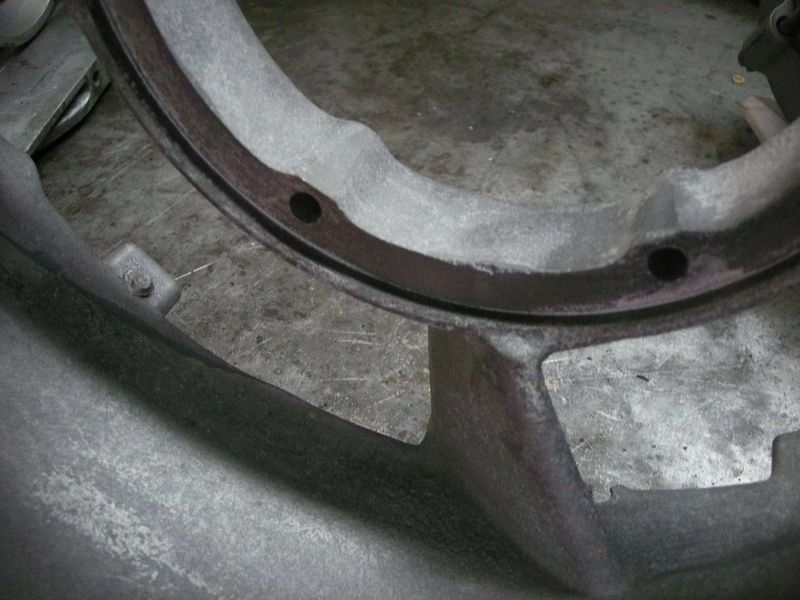

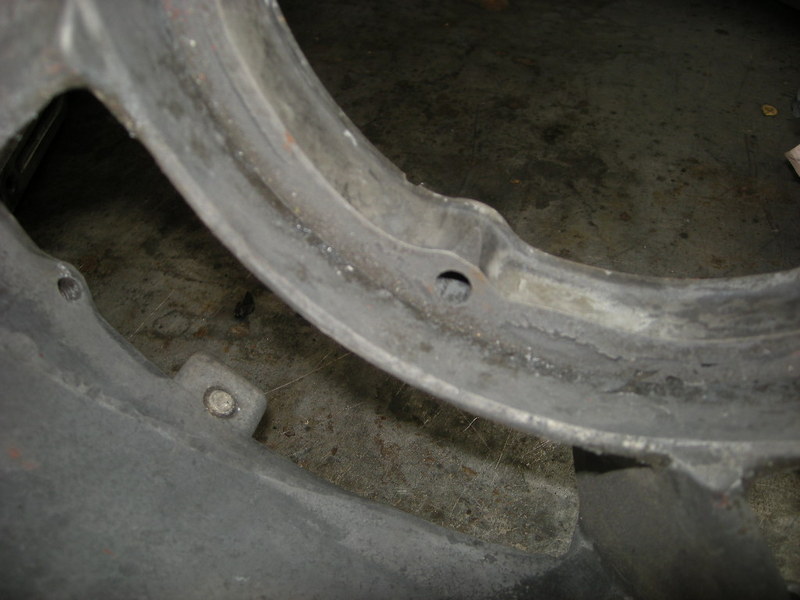

Here's what I'm talking about, both housing have the same 901 part#'s
(IMG:http://www.914world.com/bbs2/uploads_offsite/forums.pelicanparts.com-26-1292259692.1.jpg)
(IMG:http://www.914world.com/bbs2/uploads_offsite/forums.pelicanparts.com-26-1292259692.2.jpg)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Dec 14 2010, 04:57 AM
Post #16


914 Wizard
**********

Group: Members
Posts: 10,392
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains



Mark , you have an early one (bosch) and a later 74?-77 to accomadate the larger alternator as tomeric914 wrote.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mark Henry
post Dec 14 2010, 07:25 AM
Post #17


that's what I do!
***************

Group: Members
Posts: 20,065
Joined: 27-December 02
From: Port Hope, Ontario
Member No.: 26
Region Association: Canada



So how many amps on the smaller Bosch alternator?
It will be the one I'm going with, the deep housing I have is junk.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bcheney
post Dec 14 2010, 07:40 AM
Post #18


Senior Member
***

Group: Members
Posts: 1,341
Joined: 16-November 03
From: Orlando, FL
Member No.: 1,348
Region Association: South East States



55 amp Bosch alt. uses the shallow housing...5mm mount depth. Your fan and outer pulley should have 8 holes in it (just like the one in post #12 twelve above).
