> Volvo Intake with Porsche Injection, I finaly found what I was looking for!
Jeffs9146
post Dec 14 2010, 03:50 PM
Post #1


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128

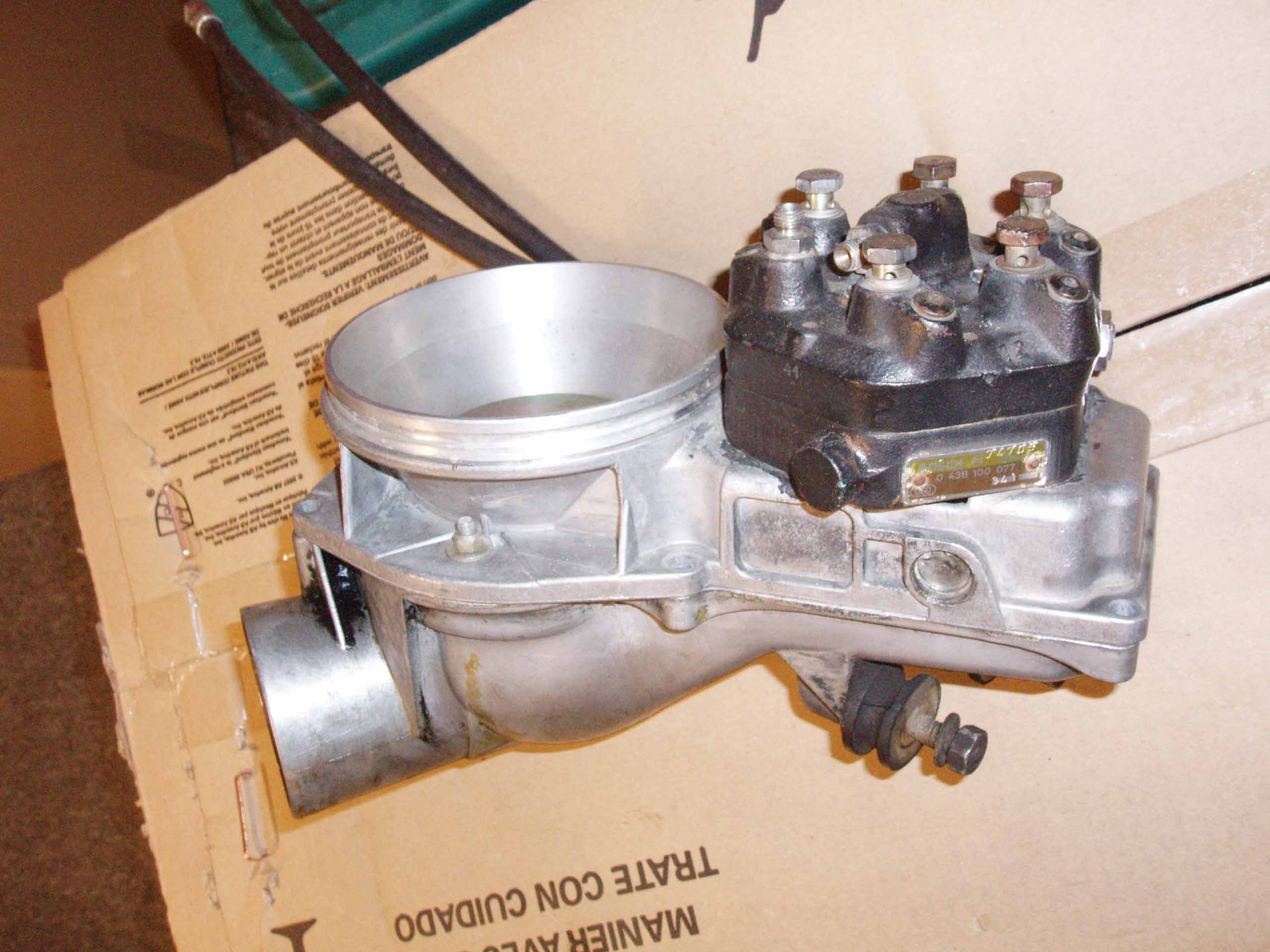

If this works it could be a cure all for the 3.0L injection in a 914!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Dec 14 2010, 04:14 PM
Post #2


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,948
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Yep, those are in the early Volvo Bertone Coupes. Couldn't find a pic but thought this link was funny and sad at the same time. Even the volvo mechanic doesn't like the CIS.... Or is it really some other issue... (IMG:style_emoticons/default/screwy.gif)

http://en.allexperts.com/q/Volvo-Repair-83...-1978-VOLVO.htm
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post Dec 14 2010, 04:21 PM
Post #3


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128
QUOTE
Yep, those are in the early Volvo Bertone Coupes.


They also come in the 78-82 240's! This one is out of a 78 242 and only cost me $11.82 tax included at pick and pull!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Dec 14 2010, 04:23 PM
Post #4


Hey nice rack! -Celette
***************

Group: Members
Posts: 20,948
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Deal!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Porcharu
post Dec 14 2010, 04:26 PM
Post #5


Senior Member
***

Group: Members
Posts: 1,314
Joined: 27-January 05
From: Campbell, CA
Member No.: 3,518
Region Association: Northern California
QUOTE(Jeffs9146 @ Dec 14 2010, 02:21 PM) *

QUOTE
Yep, those are in the early Volvo Bertone Coupes.


They also come in the 78-82 240's! This one is out of a 78 242 and only cost me $11.82 tax included at pick and pull!


I think you mean a 260 not a 240. The 240's would have the 4 port version. I have an 80 240 and am all to familiar with that item. On the 240 it is a HUGE PITA to adjust the idle mixture because the intake manifold is in the way.
Steve.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Dec 14 2010, 04:46 PM
Post #6


Send me your transmission!
***************

Group: Members
Posts: 23,038
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
Yup, 904svo hooked me up with one and it will save me some serious time/energy/$$ in my CIS fab for the bus (IMG:style_emoticons/default/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post Dec 14 2010, 04:49 PM
Post #7


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128
QUOTE
I think you mean a 260 not a 240.


Nope!! It came out of the 240 and I put the 911 six Bosch injection on it! The Bosch that was on it when I removed it was for a 4 cylinder!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
underthetire
post Dec 14 2010, 06:06 PM
Post #8


914 Guru
*****

Group: Members
Posts: 5,062
Joined: 7-October 08
From: Brentwood
Member No.: 9,623
Region Association: Northern California
Some little birdy told me you sold your -6??? (IMG:style_emoticons/default/blink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post Dec 14 2010, 07:09 PM
Post #9


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128
Yep it's going to Finland! (IMG:style_emoticons/default/wacko.gif) (IMG:style_emoticons/default/bye1.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
underthetire
post Dec 14 2010, 09:11 PM
Post #10


914 Guru
*****

Group: Members
Posts: 5,062
Joined: 7-October 08
From: Brentwood
Member No.: 9,623
Region Association: Northern California
Now what are you going to do? Ya know, with the couple spare parts and all (IMG:style_emoticons/default/lol-2.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lennies914
post Dec 14 2010, 09:42 PM
Post #11


Slacker
***

Group: Members
Posts: 828
Joined: 9-January 10
From: NorCal
Member No.: 11,216
Region Association: Northern California
I think he's biulding one backwards. Parts first, then a car. (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
montoya 73 2.0
post Dec 14 2010, 09:45 PM
Post #12


Lack of consideration to others, and Selfish!
***

Group: Members
Posts: 1,791
Joined: 27-October 04
From: Paso Robles, Ca.
Member No.: 3,016
Region Association: Central California

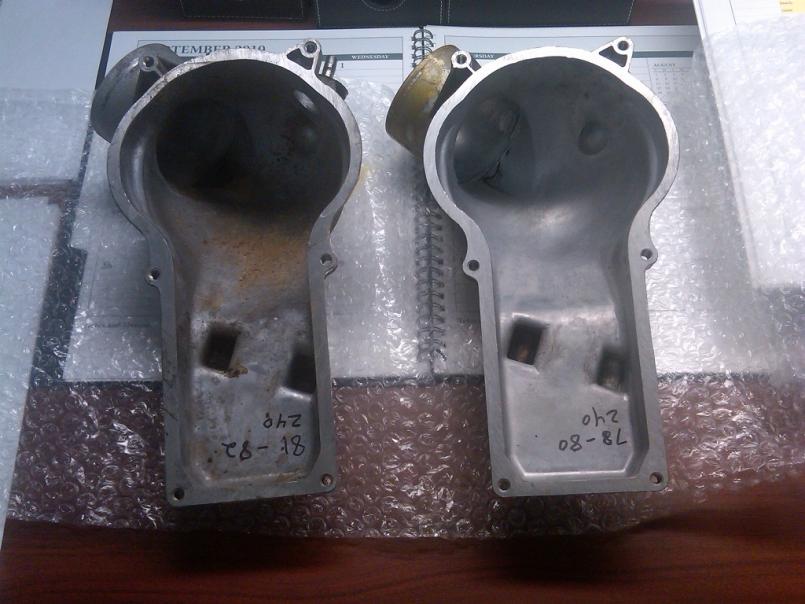

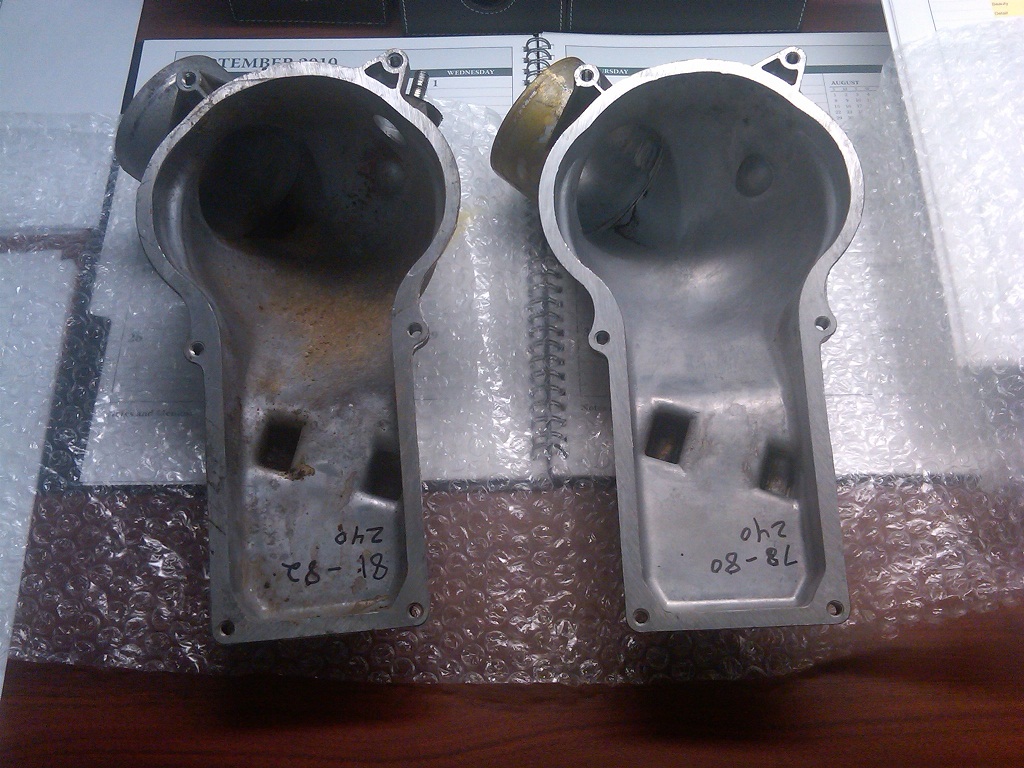

Wow! That's looks really familiar! Congrats on finding the Aluminum distributor tray (still can't find my extra). That should solve the big problem of the huge plastic box that gets in the way. I was told that alot of guys use a six fuel distributor on 4 cylinder cars. Something about using one of the extra ports for a "boost" line!

Attached Image



This post has been edited by montoya 73 2.0: Dec 15 2010, 03:26 PM
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post Dec 14 2010, 11:30 PM
Post #13


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128
QUOTE
Something about using one of the extra ports for a "boost" line!


Please do tell us more!!!???

I would like to hear more about that!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post Dec 14 2010, 11:35 PM
Post #14


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128
QUOTE
Parts first, then a car.


Yep now I have money, 3.0L motor, 911sc front suspension, lots of wheels and enough stuff to start a project that I don't feel guilty about messing up a real 6!

Should be fun! (IMG:style_emoticons/default/piratenanner.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
kfish914
post Dec 15 2010, 11:53 AM
Post #15


Member
**

Group: Members
Posts: 161
Joined: 7-May 08
From: Osceola, Indiana
Member No.: 9,026
Region Association: Upper MidWest
Don’t flame me, but would that also work with the 2.7 six??
I don’t know any better but looking at it for clearance idea without having to remove engine latch.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post Dec 15 2010, 12:28 PM
Post #16


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128
QUOTE
I don’t know any better but looking at it for clearance idea without having to remove engine latch.

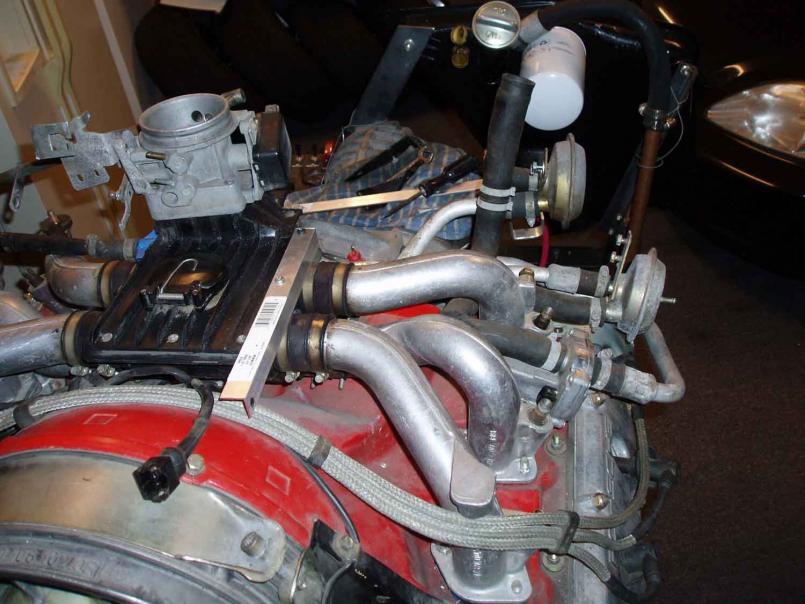

Yes it will work on any of the motors but it requires modifing the existing air box like this



Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
underthetire
post Dec 15 2010, 02:44 PM
Post #17


914 Guru
*****

Group: Members
Posts: 5,062
Joined: 7-October 08
From: Brentwood
Member No.: 9,623
Region Association: Northern California
Actually Mike Mueller and I were just talking about this. He is a big time Volva guy now. Said those were for a turbo 4 with two ports blocked off from the factory. He has a couple of them I think.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
montoya 73 2.0
post Dec 15 2010, 03:27 PM
Post #18


Lack of consideration to others, and Selfish!
***

Group: Members
Posts: 1,791
Joined: 27-October 04
From: Paso Robles, Ca.
Member No.: 3,016
Region Association: Central California

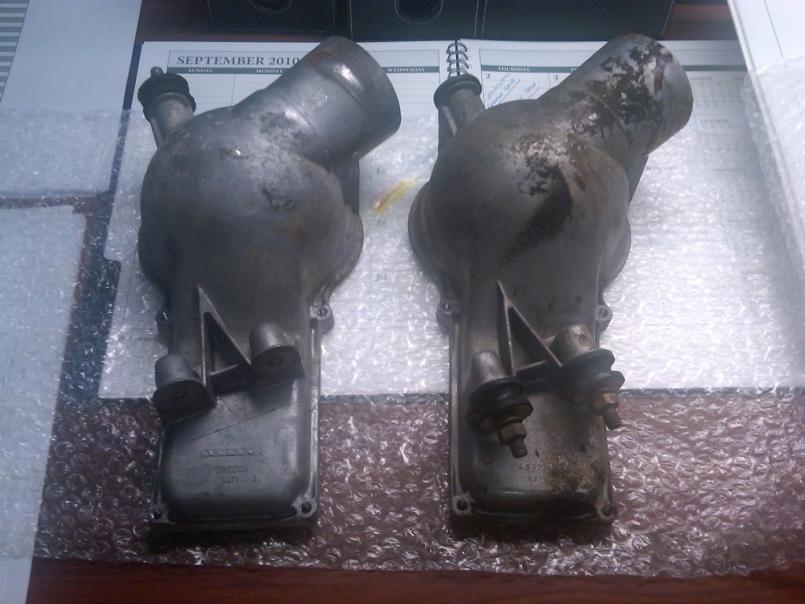

I'll have to find the thread I was reading awhile ago. I know it was about the 6 and 8 cylinder turbo fuel distributors. Just like I'm still looking for my extra Tray!

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
