> BUILD-OFF CHALLENGE: Another 914-GT Conversion Project, I finally drove it this weekend!
jkb944t
post Apr 14 2011, 05:55 AM
Post #1


Member
**

Group: Members
Posts: 464
Joined: 17-January 05
From: Canton, OH
Member No.: 3,459
Region Association: None

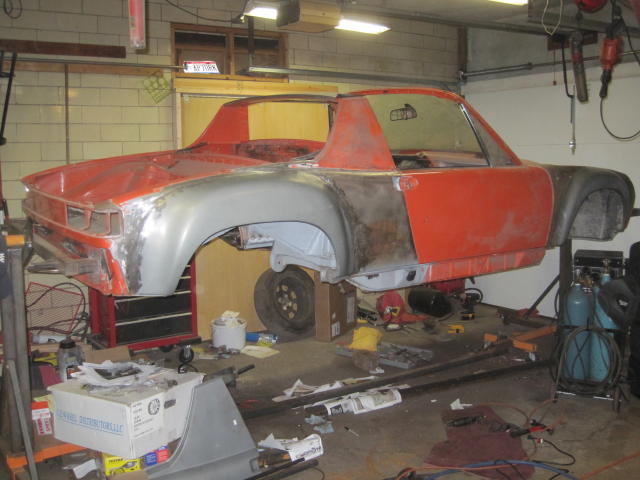

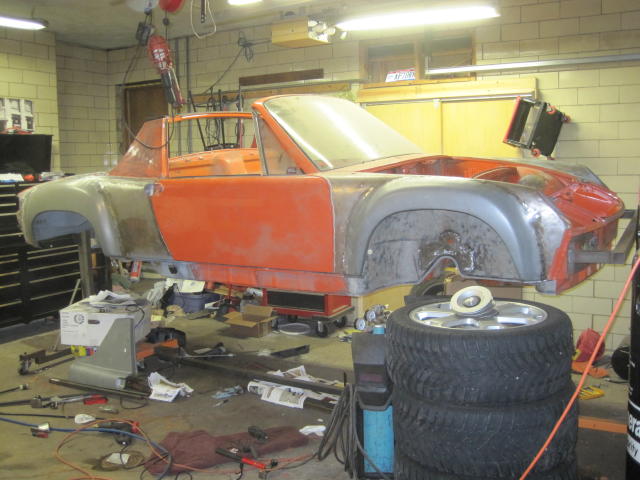

I am working on restoring a 1973 914 and converting it to a GT clone with the flares and chassis stiffening. Here is a picture of where I am on it.

Jeff B


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jkb944t
post Apr 14 2011, 05:58 AM
Post #2


Member
**

Group: Members
Posts: 464
Joined: 17-January 05
From: Canton, OH
Member No.: 3,459
Region Association: None



I removed the tar sound insulation on the floor panels per a suggestion I saw from Scotty and I am glad I followed his advice. I did find some rust but fortunately it was fairly minor with only one 1/8 hole that I welded up last night.

Jeff B


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jkb944t
post Apr 14 2011, 06:03 AM
Post #3


Member
**

Group: Members
Posts: 464
Joined: 17-January 05
From: Canton, OH
Member No.: 3,459
Region Association: None



I can see rust inside the center tunnel but it is still solid. What would be the best way to approach addressing this rust so that it doesn’t get any worse? Here are some pictures of the rust that I have in the center tunnel.

Jeff B


Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
type47
post Apr 14 2011, 06:11 AM
Post #4


Viermeister
****

Group: Members
Posts: 4,254
Joined: 7-August 03
From: Vienna, VA
Member No.: 994
Region Association: MidAtlantic Region



I think Eastwood, probably among others, offers a rust converter that has a wand or hose to get into areas like the central tunnel. Maybe there was a thread here about it as this is where I read just about everything. (more caffiene needed...)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
proto31
post Apr 14 2011, 08:06 AM
Post #5


Member
**

Group: Members
Posts: 413
Joined: 2-February 06
From: Costa Mesa, CA.
Member No.: 5,515
Region Association: None



Nice start! Are you going to keep it Tangerine? This will be a fun build thread to watch (IMG:style_emoticons/default/biggrin.gif)

Dan
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jkb944t
post Apr 14 2011, 09:24 PM
Post #6


Member
**

Group: Members
Posts: 464
Joined: 17-January 05
From: Canton, OH
Member No.: 3,459
Region Association: None



I am going to keep it the same color but it is actually Phoenix Red L32K. It sure looks orange to me too.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jasons
post Apr 14 2011, 11:31 PM
Post #7


Jackstand Extraordinaire
****

Group: Members
Posts: 2,011
Joined: 19-August 04
From: Scottsdale, AZ
Member No.: 2,573
Region Association: None



QUOTE(jkb944t @ Apr 14 2011, 05:03 AM) *

I can see rust inside the center tunnel but it is still solid. What would be the best way to approach addressing this rust so that it doesn’t get any worse? Here are some pictures of the rust that I have in the center tunnel.

Jeff B


I don't know if its best, but I sprayed Ospho up down my tunnel. I had already cut an access hole to fix the clutch tube and that helped me get better distribution. Honestly, I'm not sure what else you can do? (IMG:style_emoticons/default/confused24.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
FourBlades
post Apr 14 2011, 11:51 PM
Post #8


From Wreck to Rockin
****

Group: Members
Posts: 2,056
Joined: 3-December 07
From: Brevard, FL
Member No.: 8,414
Region Association: South East States




That is a very solid looking car.

Looks like you are off to a good start.

I would just get the inside of the tunnel damp with ospho or better yet, metal ready (which contains zinc). You are supposed to rinse ospho or metal ready off after it is done reacting, which is hard to do inside the tunnel. Getting a lot of moisture in there would be a bad idea.

I sprayed metal ready followed a few days later by eastwood rust encapsulator into areas I did not open up. Not perfect solution but it has to help.

John

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ellisor3
post Apr 15 2011, 04:50 AM
Post #9


HPWhore
***

Group: Members
Posts: 811
Joined: 23-October 08
From: Fleming Island, Florida
Member No.: 9,683
Region Association: South East States



I used the Eastwood Rust Converter followed by the Rust Encapsulator and it produced a very smooth finish. I used it in the floor pans as well. Not cheap, but I think it works well.

http://www.eastwood.com/rust-solutions.html
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nsr-jamie
post Apr 15 2011, 05:03 AM
Post #10


914 guy in Japan
***

Group: Members
Posts: 1,182
Joined: 7-November 07
From: Nagoya, Japan
Member No.: 8,305
Region Association: None



need more pictures...looks very good for now. I hope to see more updates and pictures soon (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jkb944t
post Apr 15 2011, 10:34 AM
Post #11


Member
**

Group: Members
Posts: 464
Joined: 17-January 05
From: Canton, OH
Member No.: 3,459
Region Association: None



Thanks for the help and encouragement.

The car is very solid other than a few minor spots. Here are some pictures of the front trunk seal repair around the headlight. I had to grind out the rusty front channel.
Attached Image

Then I made a new piece of channel and fit it.
Attached Image

Then I welded it in and finished it.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
stugray
post Apr 16 2011, 02:19 AM
Post #12


Advanced Member
****

Group: Members
Posts: 3,825
Joined: 17-September 09
From: Longmont, CO
Member No.: 10,819
Region Association: None



You can spray the insides of some of the cavities with a tool like this:

http://professionalautomotivetools.com/hus...washer-sprayer/

You just hook it to pressure, drop the hose in the "paint", and spray away.

It can be used to apply paints/coatings as well, just wear clothes you never want to wear in public again if you restrict the flow with the nozzle too much ;-)


Stu
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jkb944t
post Apr 26 2011, 11:01 AM
Post #13


Member
**

Group: Members
Posts: 464
Joined: 17-January 05
From: Canton, OH
Member No.: 3,459
Region Association: None



Made some more progress on the front swaybar improvements. Here is the cutting open and fitting part:
Attached Image

Then welded it back together:
Attached Image

Then the fitting of the outside reinforcement pieces:
Attached Image

After welding and some grinding:
Attached Image

Then I worked on the rear of the car and did the dog ear supports.
Attached Image

Attached Image

One of the next things I need to do is check some dimensions on my GT flares. Is there anyone anywhere near the Canton, Ohio area that has steel GT flares on their car?

Jeff B
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jkb944t
post Apr 27 2011, 05:31 AM
Post #14


Member
**

Group: Members
Posts: 464
Joined: 17-January 05
From: Canton, OH
Member No.: 3,459
Region Association: None



I am finishing up the rear camber adjustment links.

Attached Image

Attached Image

I also bought another 914 a week ago to get parts off of but it is already pretty well stripped.

Attached Image

It is a 1973 with the 1.8 L motor. I plan to cut the parts off that I need and then part out the rest of what is left of it.

Jeff B
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jkb944t
post May 2 2011, 06:17 AM
Post #15


Member
**

Group: Members
Posts: 464
Joined: 17-January 05
From: Canton, OH
Member No.: 3,459
Region Association: None



I thought that since I am converting a 1973 I would document how I reinforced the area where I cut out the 4 cylinder motor mounts for anyone interested. I ended up making custom reinforcement plates for this area.

Attached Image

Then I tacked them and heated them up to form them around the rear suspension console.

Attached Image

Attached Image

I also had to put in a new engine tray piece that I got from Restoration Design.

Attached Image

Next I have to weld the battery support bracket and the battery tray back in.

Jeff B
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
0396
post May 2 2011, 07:25 AM
Post #16


Advanced Member
****

Group: Members
Posts: 2,046
Joined: 13-October 03
From: L.A. Calif
Member No.: 1,245
Region Association: Southern California



very interesting project- good luck!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post May 2 2011, 02:38 PM
Post #17


PMB Performance
***************

Group: Admin
Posts: 19,289
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains



Looking good... I'd say the Eastwood Internal Frame Coating w/Spray Nozzle would be the trick setup for your tunnel.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PeeGreen 914
post May 2 2011, 02:59 PM
Post #18


Just when you think you're done...wait, there is more..lol
**********

Group: Members
Posts: 10,219
Joined: 21-September 06
From: Seattle, WA... actually Everett
Member No.: 6,884
Region Association: Pacific Northwest



QUOTE(jkb944t @ May 2 2011, 05:17 AM) *

I thought that since I am converting a 1973 I would document how I reinforced the area where I cut out the 4 cylinder motor mounts for anyone interested. I ended up making custom reinforcement plates for this area.




That looks very similar to what I did on my car when I removed the mounts (IMG:style_emoticons/default/smile.gif)

Looks nice. Actually a much cleaner job than I did as I had to get the car ready for the AX season (IMG:style_emoticons/default/happy11.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
fasthonda
post May 2 2011, 04:12 PM
Post #19


914 Type R
**

Group: Members
Posts: 134
Joined: 10-January 04
From: Greenville, SC
Member No.: 1,544
Region Association: None



Excellent work. I really like your approach and the quality of work done on the chassis. I'll be following your thread.

I would add a plate over the ears if your not already planning to.

This is a project I would buy if you consider selling at any point.

Regards,

Michael
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jkb944t
post Jul 18 2012, 12:03 PM
Post #20


Member
**

Group: Members
Posts: 464
Joined: 17-January 05
From: Canton, OH
Member No.: 3,459
Region Association: None



I have been travelling a lot for work over the past year but I have gotten some work accomplished that I thought might be worth documenting.

I have been working on the front of the car where the oil cooler will be going. I have studied all of the photos on Armando Serrano’s web site for many hours. This site is an amazing resource for GT info.

I cut open the front trunk area to get access to add the reinforcement bars and marked the area that needed to be opened up.

Attached Image

Attached Image

Then I custom fit the first reinforcement bar in.

Attached Image

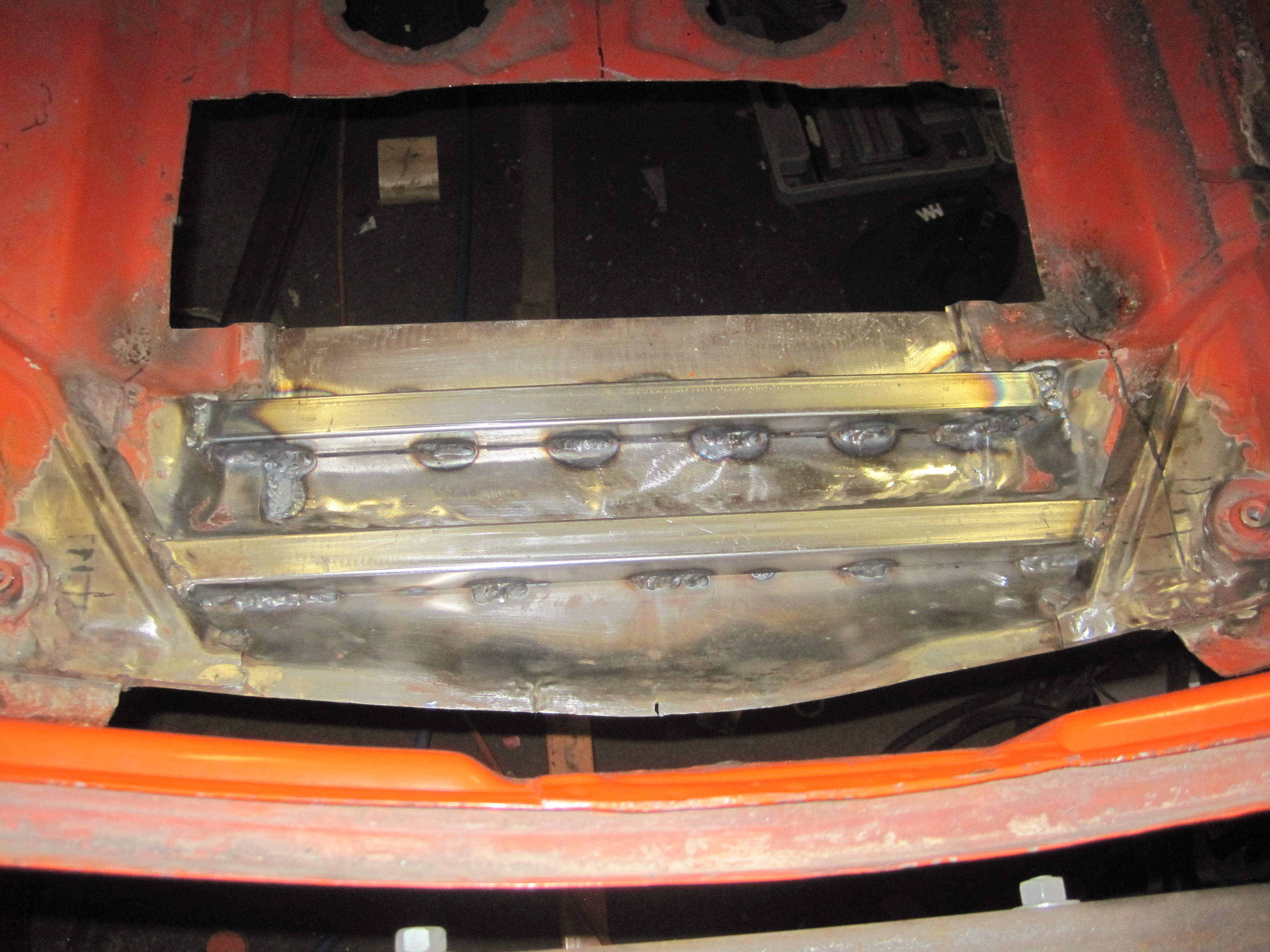

Next I fit the filler panel and the second reinforcement bar in. Then I welded the filler panel in place.

Attached Image

Attached Image

Next I fit the filler panel and the second reinforcement bar in. Then I welded the filler panel in place.

Attached Image

Attached Image

Next I have to fabricate the oil cooler shroud which I am not looking forward to doing. I may move to the back of the car to do some more work there.

Jeff B
